Toyota HILUX 前保险杠及附件 — Figure 5252

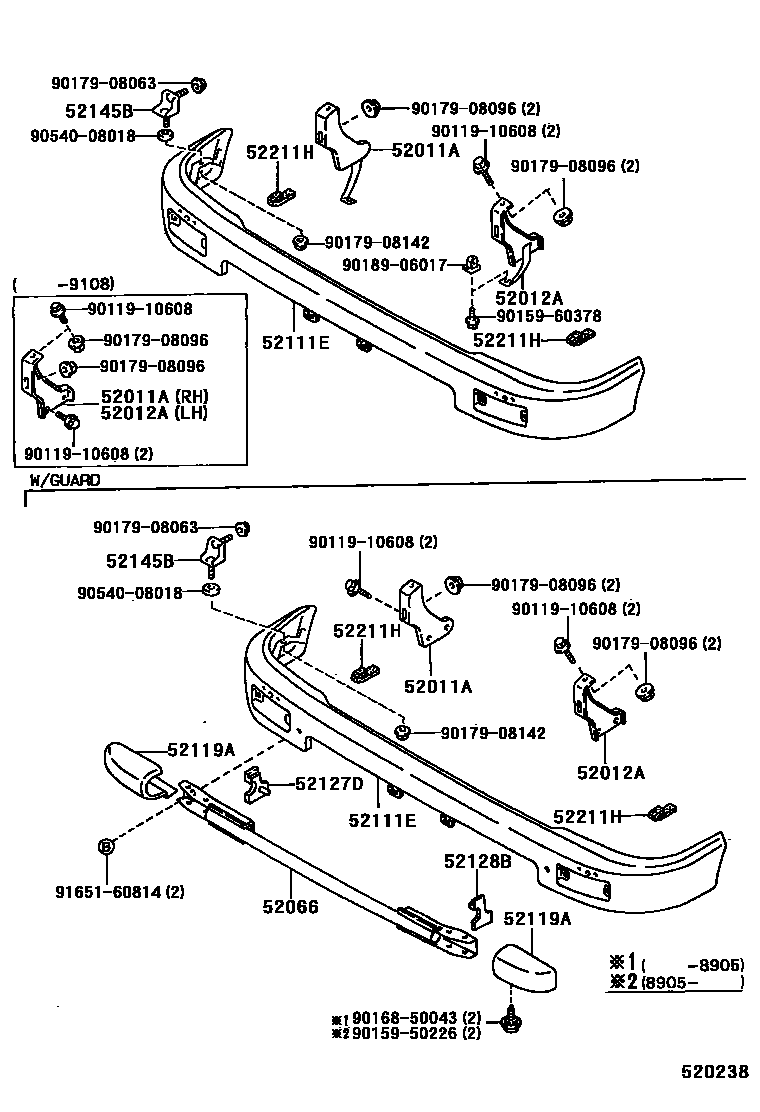

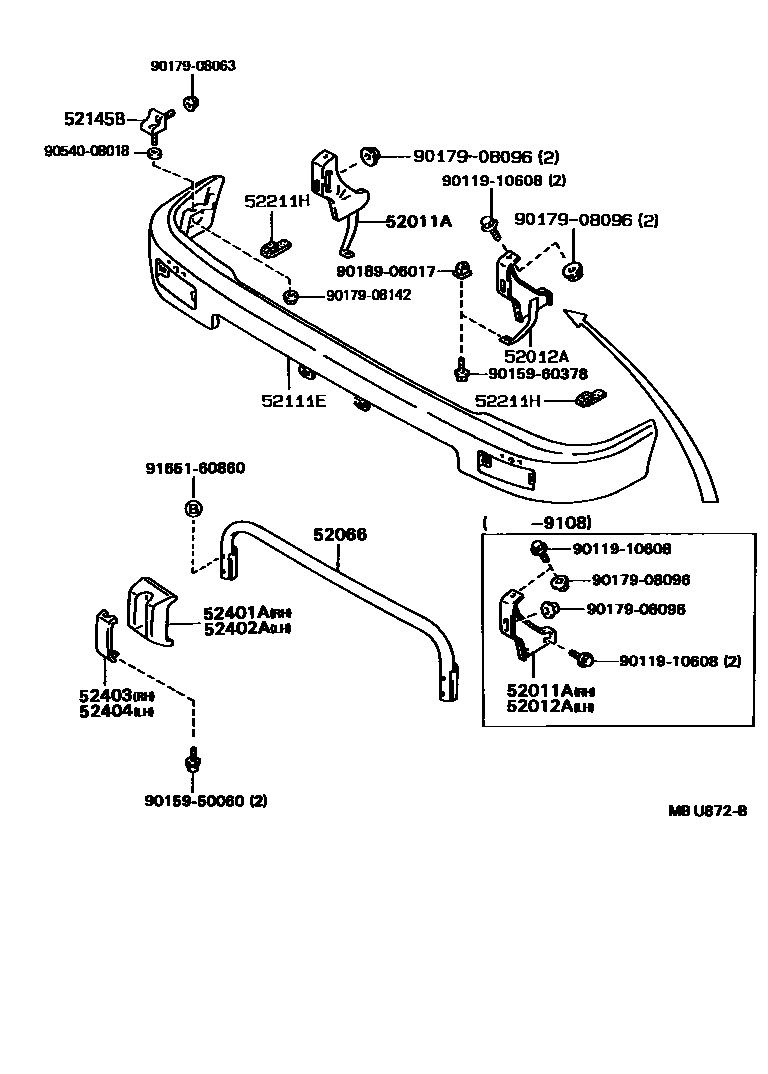

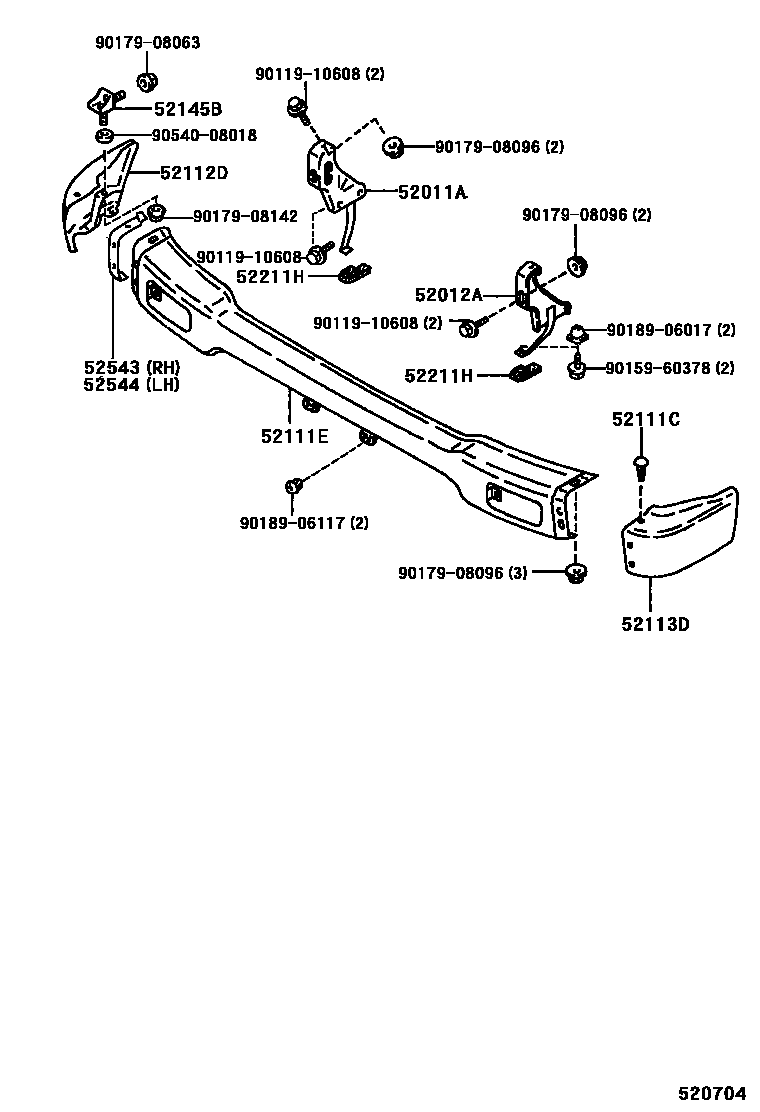

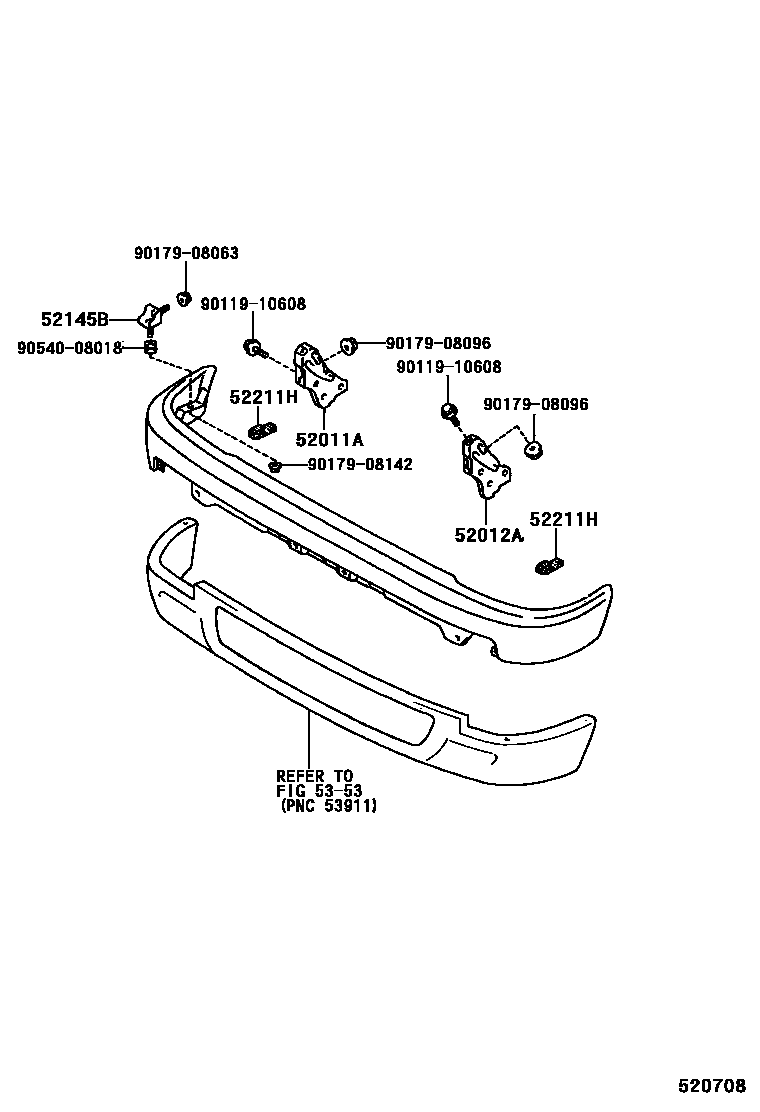

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-04020 · 52011-35050 · 52011-35060 · 52011-89115 · 52011-89117 |
| 52012A | Front bumper left arm sub-assembly | 52012-04020 · 52012-35050 · 52012-35060 · 52012-89115 · 52012-89117 |
| 52066 | Center front bumper sub-assembly | 52066-89103 · 52066-89104 |
| 52111C | Round head square neck bolt (for front bumper) | 90112-08069 · 90112-08070 |
| 52111E | front bumper stay | 52101-35060 · 52101-35070 · 52101-35170 · 52101-35240 · 52101-89107 · 52101-89108 · 52101-89109 · 52101-89113 · 52101-89114 · 52101-89116 |
| 52112D | Front bumper right extension | 52102-89114 · 52102-89115 |
| 52113D | Front bumper left extension | 52103-89114 · 52103-89115 |
| 52119A | front bumper cover | 52119-89102 · 52119-89103 |
| 52127D | Front bumper right hole cover | 52127-89102 |
| 52128B | Front bumper left hole cover | 52128-89101 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52211H | Bumper pad (for front bumper arm) | 52211-89101 |
| 52401A | Front bumper right anti-collision bar sub-assembly | 52401-89105 |
| 52402A | Front bumper left anti-collision bar sub-assembly | 52402-89103 |
| 52403 | Front bumper right side anti-collision bar gasket sub-assembly | 52403-89101 |
| 52404 | Front bumper left anti-collision bar gasket sub-assembly | 52403-89101 |
| 52543 | Front bumper right seal | 52543-89101 |
| 52544 | Front bumper left seal | 52544-89101 |
