Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

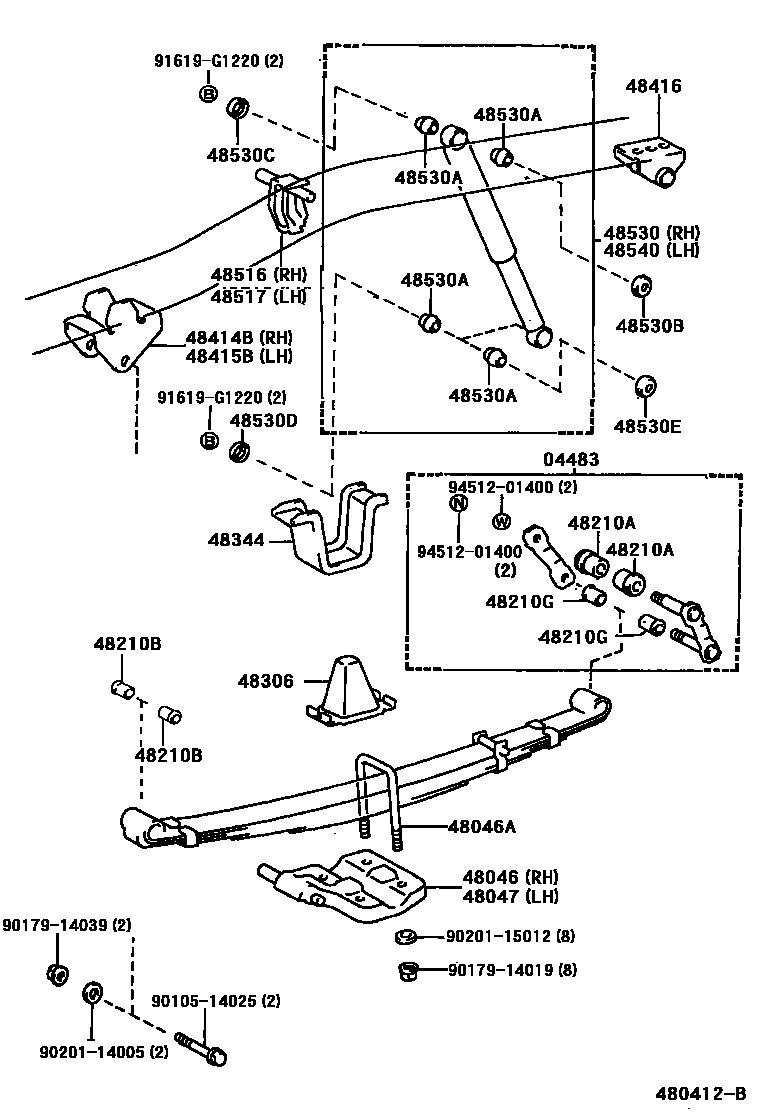

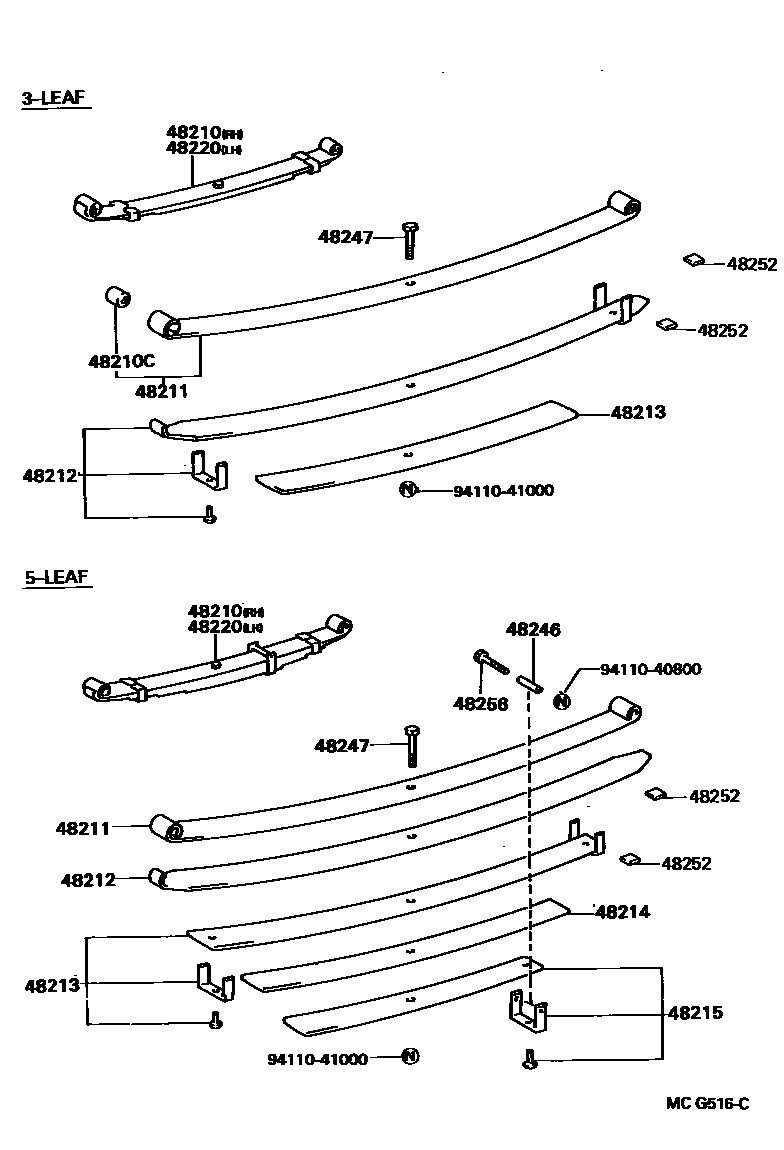

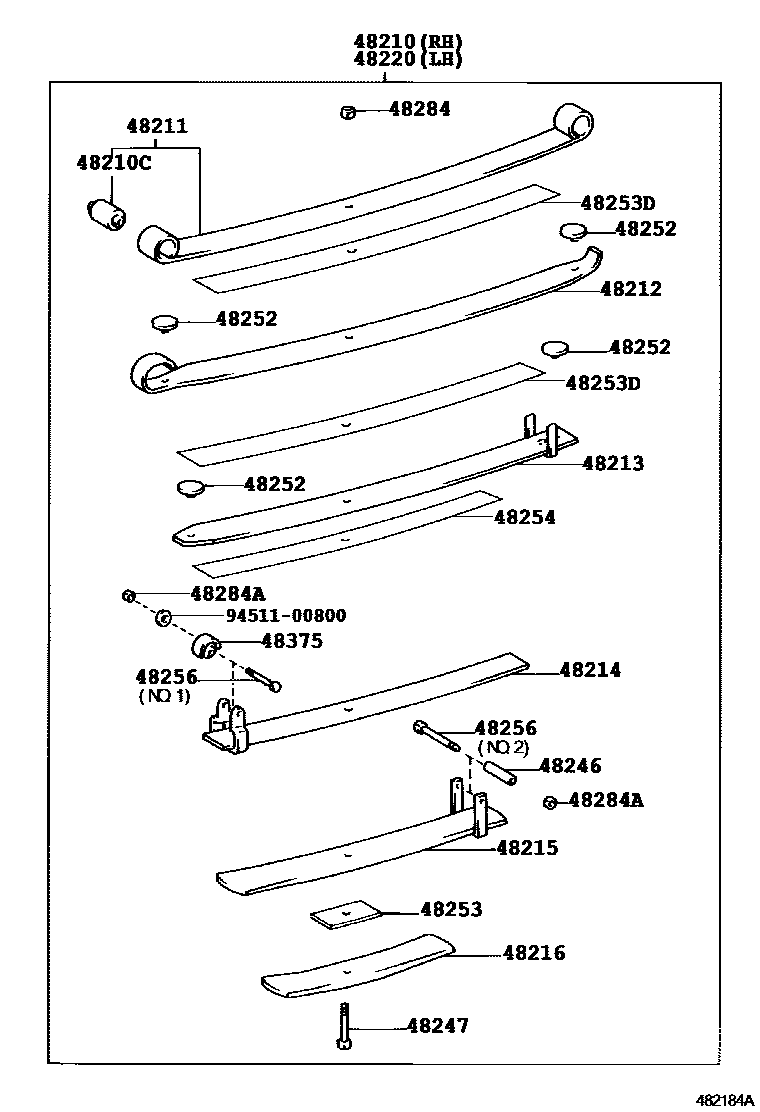

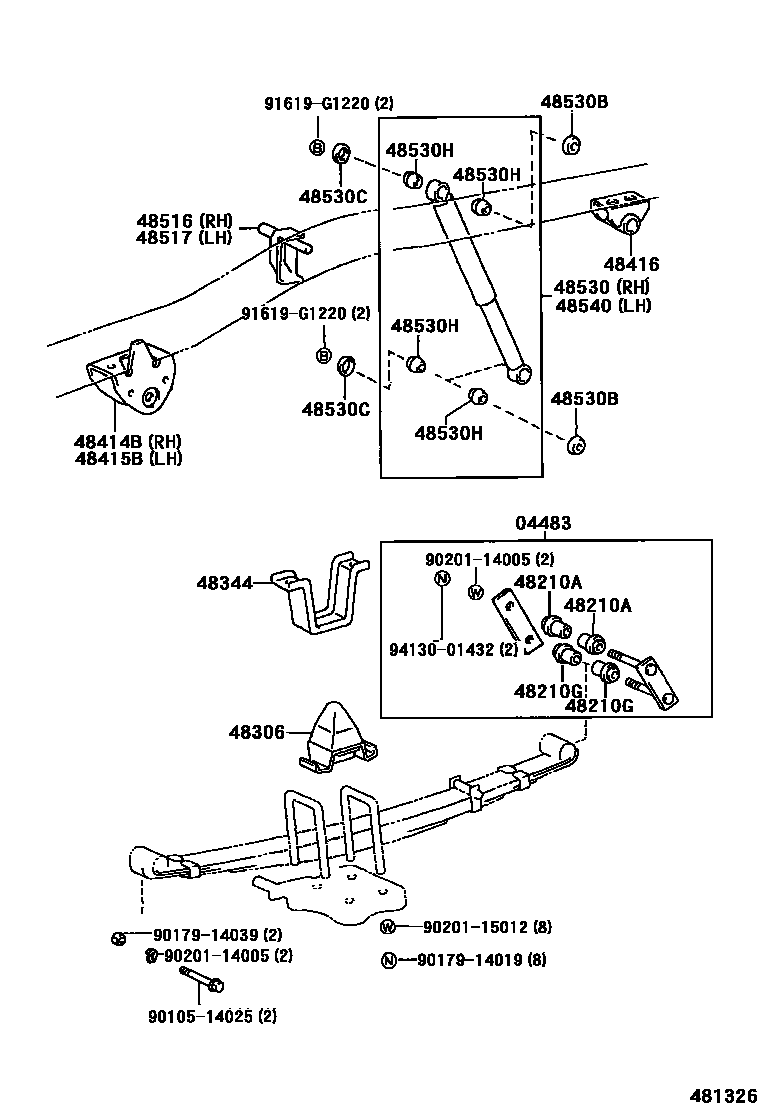

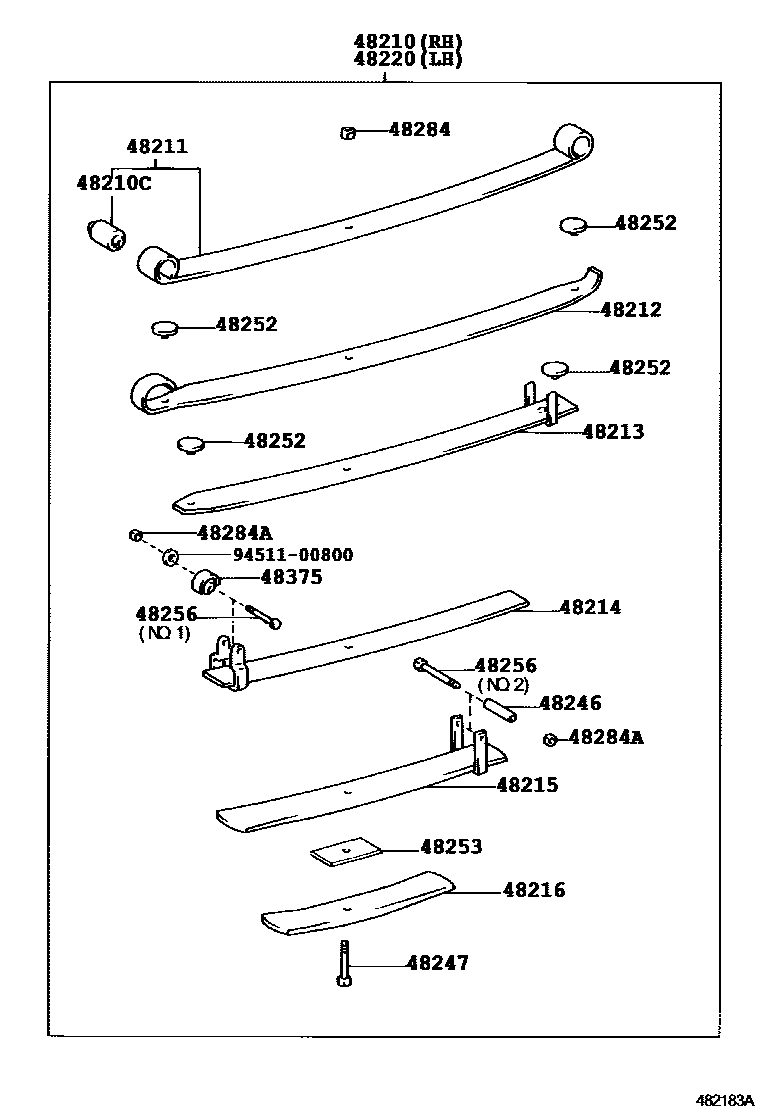

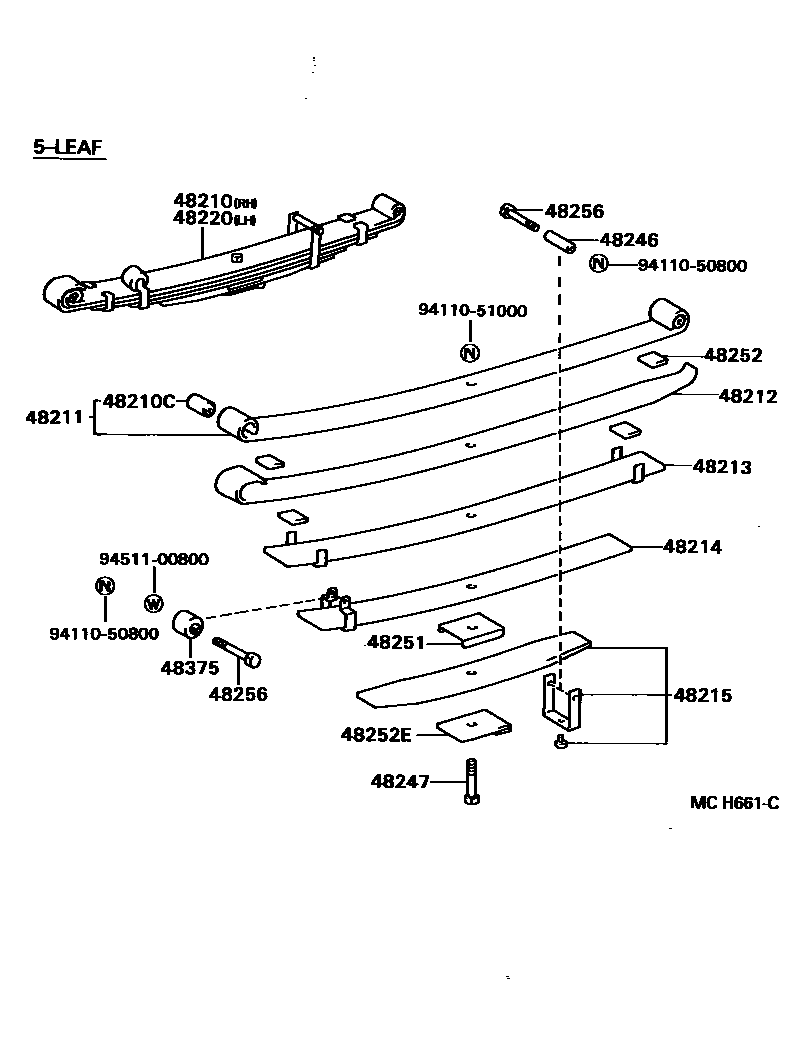

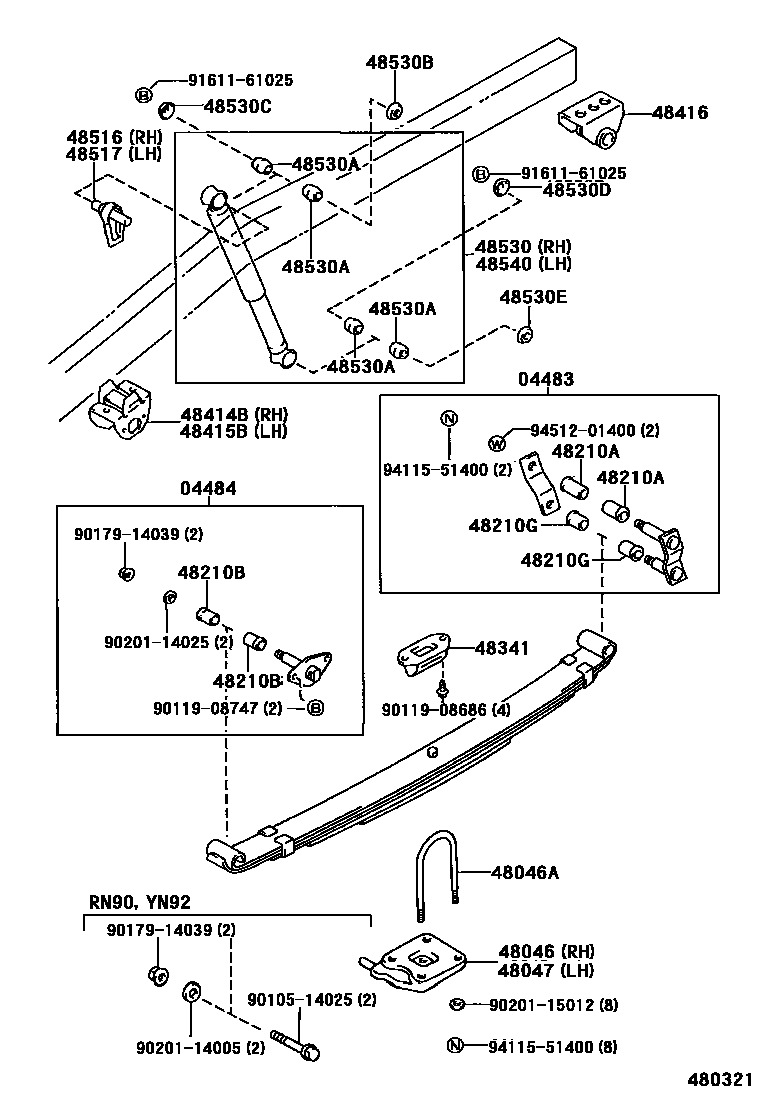

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 7 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-35051 · 04483-35070 · 04483-35080 · 04483-35120 |
| 04484 | Rear spring pin assembly | 04482-35030 · 04484-35060 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-35140 · 48046-35170 |
| 48046A | U-bolt (for rear spring) | 90117-14008 · 90117-14039 · 90117-14040 · 90117-14053 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-35140 · 48046-35170 |
| 48210 | Right rear spring assembly | 48210-35620 · 48210-35630 · 48210-35640 · 48210-35750 · 48210-35760 · 48210-35780 · 48210-35881 · 48210-35882 · 48210-35A10 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18012 · 90385-18013 · 90385-18019 |
| 48210B | Bushing (for rear spring pin) | 90385-18046 |
| 48210C | Bushing (for rear leaf spring) | 90389-14004 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18020 · 90385-18046 |
| 48211 | No. 1 rear leaf spring | 48201-35620 · 48201-35780 · 48201-35882 · 48211-35630 · 48211-35640 · 48211-35651 · 48211-35750 · 48211-35760 · 48211-35820 |
| 48212 | No. 2 rear leaf spring | 48202-35620 · 48212-35630 · 48212-35640 · 48212-35651 · 48212-35750 · 48212-35760 · 48212-35780 · 48212-35820 · 48212-35882 |
| 48213 | No. 3 rear leaf spring | 48202-35630 · 48202-35640 · 48202-35651 · 48202-35750 · 48202-35760 · 48202-35780 · 48202-35820 · 48202-35882 · 48213-35620 |
| 48214 | No. 4 rear leaf spring | 48203-35780 · 48203-35882 · 48214-35630 · 48214-35640 · 48214-35651 · 48214-35750 · 48214-35760 · 48214-35820 |
| 48215 | No. 5 rear leaf spring | 48203-35630 · 48203-35640 · 48203-35750 · 48203-35760 · 48204-35780 · 48204-35882 · 48215-35651 |
| 48216 | No. 6 rear leaf spring | 48216-35882 |
| 48220 | Left rear spring assembly | 48210-35620 · 48210-35630 · 48210-35640 · 48210-35750 · 48210-35760 · 48210-35780 · 48210-35881 · 48210-35882 · 48210-35A10 |
| 48246 | rear spring clamp bolt housing | 48146-60070 · 48246-35160 |
| 48247 | rear spring center bolt | 48147-27020 · 48247-29210 · 48247-35620 · 48247-35630 · 48247-35810 · 48247-35820 · 48247-36530 |
| 48251 | rear leaf spring spacer | 48251-35350 |
| 48252 | rear spring muffler | 48252-26070 · 48252-35270 · 48252-35630 |
| 48252E | Rear spring caster angle adjustment wedge | 48252-35470 |
| 48253 | No. 1 rear spring spacer | 48253-3D180 |
| 48253D | No. 3 rear spring spacer | 48253-35A10 |
| 48254 | rear leaf spring spacer | 48254-35A10 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-35160 · 48256-35360 · 48256-36570 |
| 48284 | Rear spring center bolt nut | 48284-37130 |
| 48284A | rear spring clamp nut | 48284-20440 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35150 · 48306-35190 |
| 48341 | Rear spring buffer block | 48341-35050 · 48341-35060 |
| 48344 | Rear buffer block | 48344-35020 |
| 48375 | Leaf spring dynamic damper | 48375-35011 |
| 48414B | Right No. 3 spring bracket | 48414-35120 · 48414-35130 · 48414-35160 · 48414-35170 · 48414-35190 |
| 48415B | No. 3 spring bracket on the left | 48414-35160 · 48414-35170 · 48415-35050 · 48415-35060 · 48415-35080 |
| 48416 | No. 4 spring bracket | 48416-35080 |
| 48516 | Right rear shock absorber upper bracket | 48505-35030 · 48505-35040 · 48505-35070 |
| 48517 | Left rear shock absorber upper bracket | 48506-35010 · 48506-35030 |
| 48530 | Right rear shock absorber assembly | 48531-39935 · 48531-39975 · 48531-80081 · 48531-80513 · 48531-80514 · 48531-80664 · 48531-80669 · 48531-80699 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 · 90385-19004 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03011 · 90948-03020 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03011 · 90948-03012 · 90948-03020 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03011 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 · 90948-03020 |
| 48530H | Rear shock absorber bushing | 90385-19007 |
| 48540 | Left rear shock absorber assembly | 48531-39935 · 48531-39975 · 48531-80513 · 48531-80514 · 48531-80664 · 48531-80699 · 48541-39145 · 48541-39316 |
