Toyota HILUX 前鼓式制动器分泵和底板 — Figure 4704

Toyota HILUX EPC diagram 4704, 前鼓式制动器分泵和底板, with 1 images and 26 PNC and OE references.

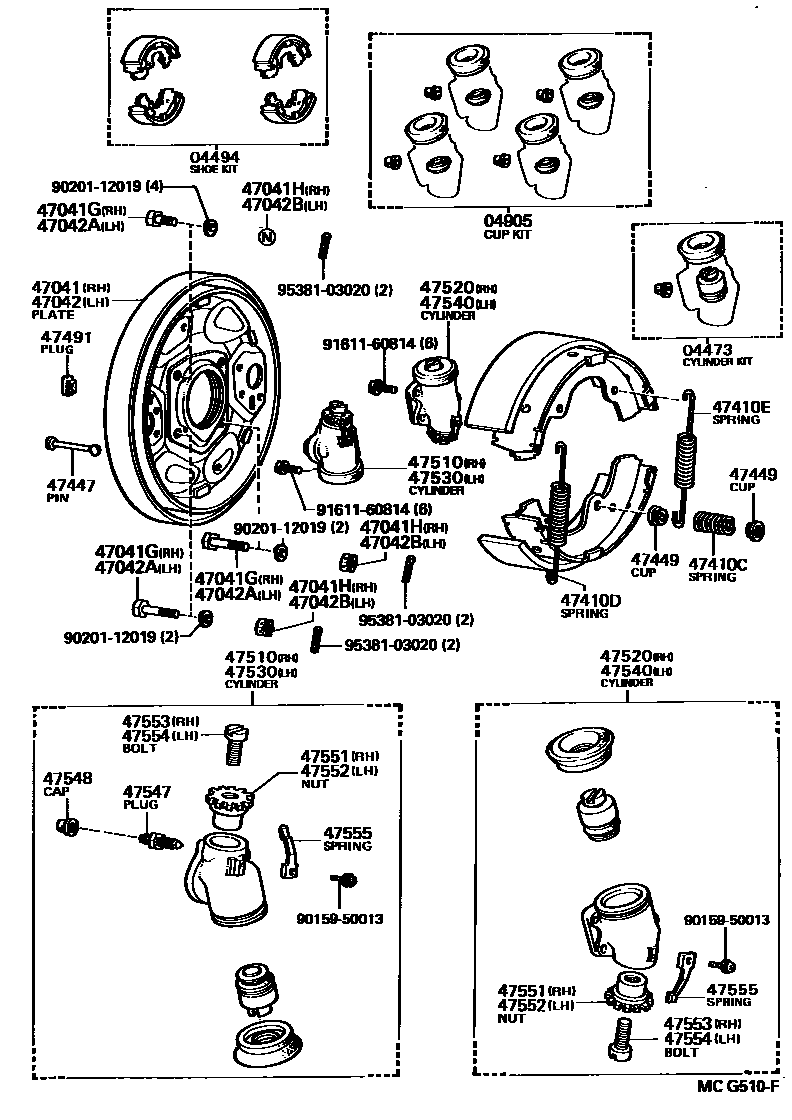

Toyota HILUX 前鼓式制动器分泵和底板 EPC diagram — MCG510F
前鼓式制动器分泵和底板 — MCG510F (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
04473Front wheel cylinder assembly04473-26010
04494front brake shoe assembly04494-26030 · 04494-26070
04905Front wheel cylinder cup assembly04905-35050
47041Right front brake base plate sub-assembly47041-35070
47041GBolt (for right front brake base plate)90101-12060 · 90102-12006 · 90102-12011
47041HNut (for right front brake base plate)90171-12006 · 94115-71200
47042Left front brake base plate sub-assembly47042-35060
47042ABolt (for left front brake base plate)90101-12060 · 90102-12006 · 90102-12011
47042BNut (for left front brake base plate)90171-12006 · 94115-71200
47410CLimit spring (for front brake shoes)90501-20756
47410DTension spring (for front brake shoe return)90506-23301
47410ETension spring (for front brake shoe return)90506-23301
47447Brake shoe limit spring pin (for front wheel brake)47447-20020
47449Brake shoe limit spring seat (for front wheel brake)47449-30020
47491Hole plug (for front wheel brake)47491-36010
47510Right front wheel brake cylinder assembly (for front or upper side)47510-26030
47520Right front wheel brake cylinder assembly (for rear or lower side)47520-26010
47530Left front wheel brake cylinder assembly (for front or upper side)47530-26030
47540Left front wheel brake cylinder assembly (for rear or lower side)47540-26010
47547Bleed plug (for front drum brake)47547-12010
47548Bleeder plug cap (for front drum brake)31478-30010
47551Right front wheel cylinder adjustment nut (for front wheel brake)47551-26020
47552Left front wheel cylinder adjustment nut (for front wheel brake)47552-26020
47553Right front wheel cylinder adjustment bolt (for front wheel brake)47553-30051
47554Left front wheel cylinder adjustment bolt (for front wheel brake)47554-30051
47555Adjuster locking spring (for front wheel brake)47555-26030
