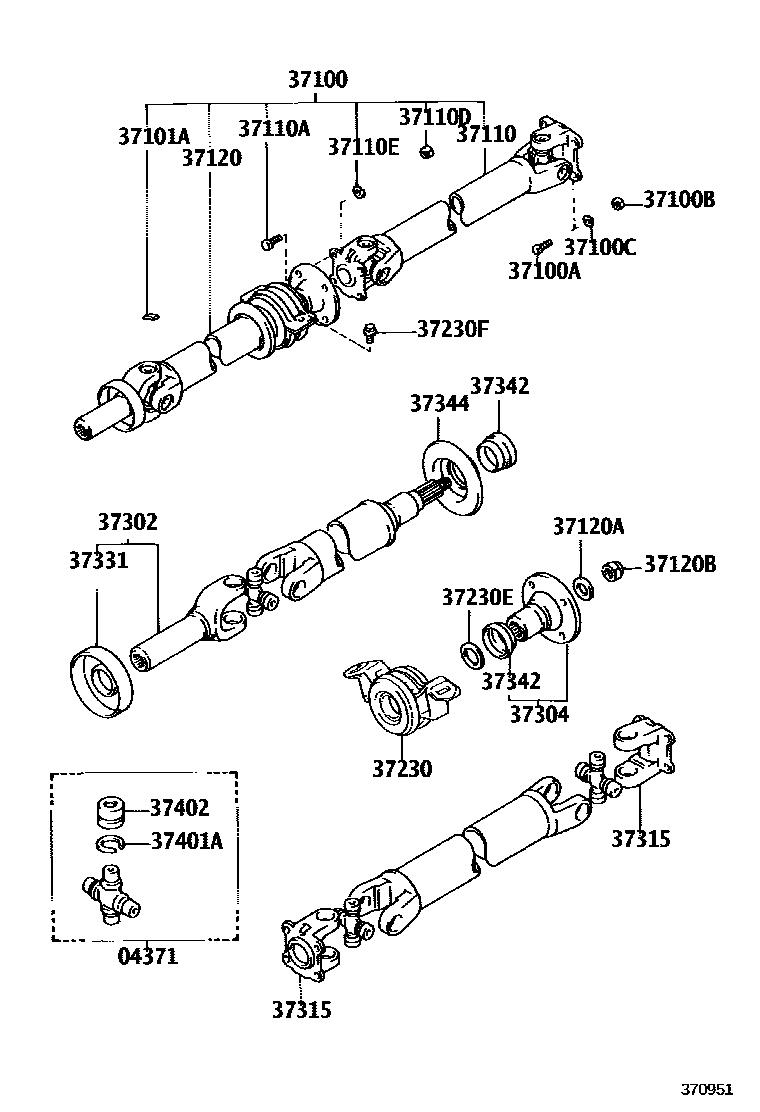

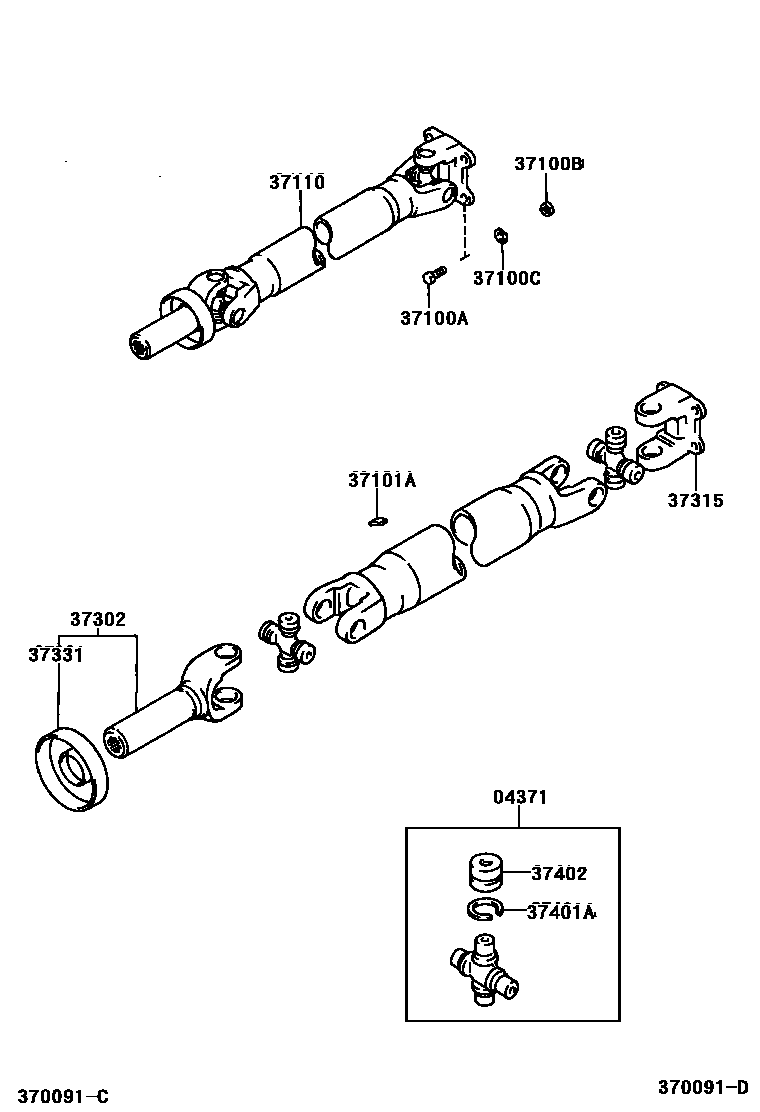

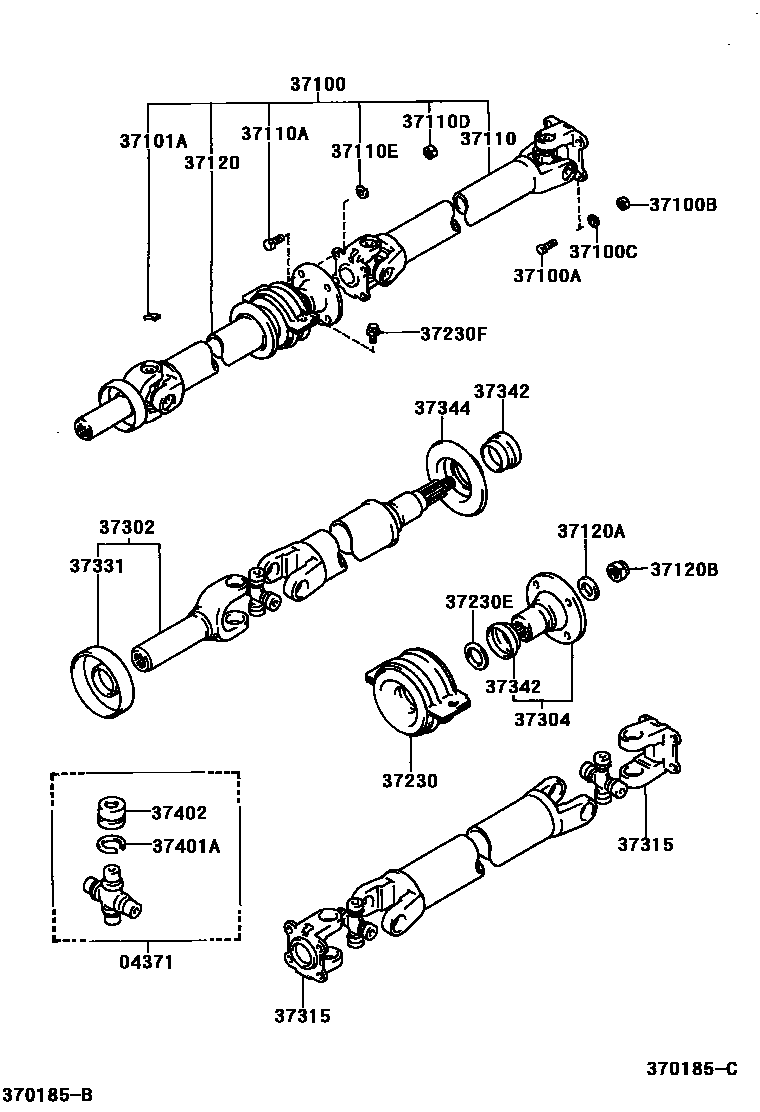

Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701
Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-25010 · 04371-30021 · 04371-30040 · 04371-30041 |
| 37100 | Drive shaft assembly with central bearing | 37100-35270 · 37100-35350 · 37100-35380 · 37100-35410 · 37100-35440 · 37100-35450 · 37100-35600 · 37100-35610 · 37100-35620 · 37100-35680 · 37100-35710 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-10085 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90179-10059 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90204-10002 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 · 90937-01201 |
| 37110 | Drive shaft assembly | 37110-35200 · 37110-35210 · 37110-35230 · 37110-35300 · 37110-35400 · 37110-35680 |
| 37110A | Bolt (for drive shaft) | 90105-10085 |
| 37110D | Nut (for drive shaft) | 90179-10059 |
| 37110E | Washer (for drive shaft) | 90204-10002 |
| 37120 | Intermediate drive shaft assembly | 37120-35220 · 37120-35280 · 37120-35290 · 37120-35300 · 37120-35330 · 37120-35340 · 37120-35350 · 37120-35510 · 37120-35520 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 · 90201-20005 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 · 90179-20006 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-35070 · 37230-35100 |
| 37230E | No. 1 washer (for intermediate support bearing) | 90201-26005 · 90201-28005 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10049 · 90119-10316 |
| 37302 | Universal joint fork assembly | 37302-35010 · 37302-35030 |
| 37304 | Universal joint flange sub-assembly | 37304-35041 · 37304-35051 |
| 37315 | Universal joint flange fork | 37315-35040 · 37315-35050 · 37315-35070 |
| 37331 | Sliding shaft dust cover | 37331-30010 |
| 37342 | No. 2 drive shaft dust cover | 37342-30010 |
| 37344 | No. 3 drive shaft dust cover | 37344-35021 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90520-25039 · 90520-25040 · 90520-25041 · 90520-25042 · 90520-25043 · 90520-25044 · 90520-25045 · 90520-25046 · 90520-25047 · 90520-25048 · 90520-25049 · 90520-25050 · 90520-25051 · 90520-25052 · 90520-25053 · 90520-25054 · 90520-25055 · 90520-25056 · 90520-25057 · 90520-25058 · 90520-26038 · 90520-26040 · 90520-26041 · 90520-26042 · 90520-26043 · 90520-26044 · 90520-26045 · 90520-26046 · 90520-26050 · 90520-26051 · 90520-26052 · 90520-26053 · 90520-26054 · 90520-26055 · 90520-26056 · 90520-26057 · 90520-26058 · 90520-26059 · 90520-26062 · 90520-26063 · 90520-26064 · 90520-26065 · 90520-26066 · 90520-26067 · 90520-26068 · 90520-26069 · 90521-29070 · 90521-29071 · 90521-29072 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-25010 · 37402-25020 · 37402-30011 · 37402-30021 |
