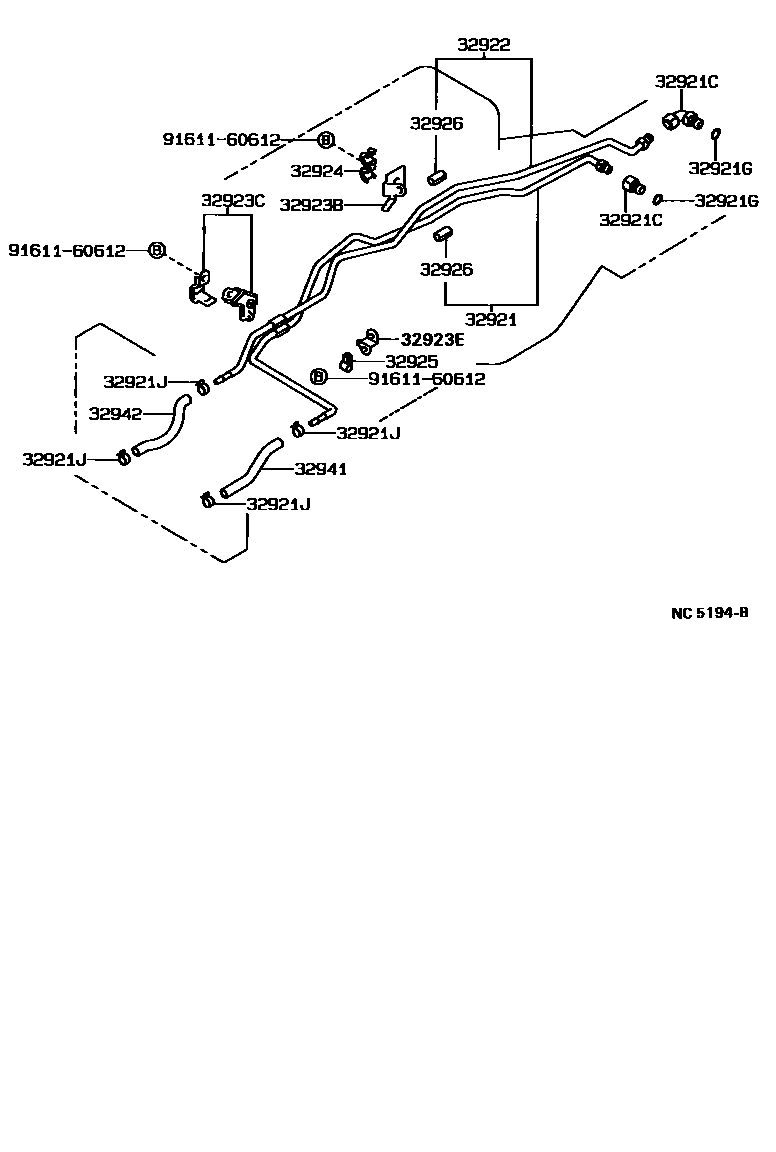

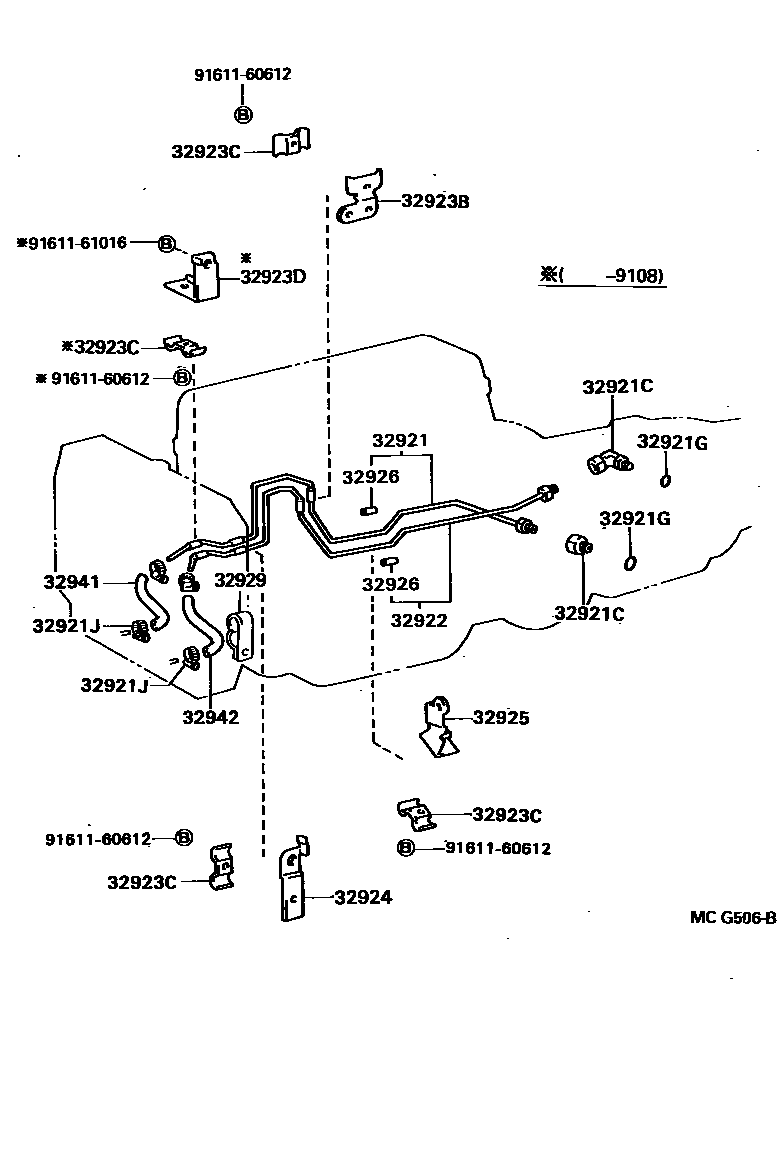

Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514
Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35150 · 32921-35160 · 32921-35161 · 32921-35190 · 32921-35191 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16021 · 90407-16010 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35160 · 32922-35171 · 32922-35220 · 32922-35221 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-35010 · 32923-35040 |
| 32923C | No. 4 automatic transmission oil cooler pipe clamp | 32909-35030 · 32909-35040 · 90462-12044 |
| 32923D | No. 5 automatic transmission oil cooler pipe clamp | 32928-35020 · 32928-35021 |
| 32923E | No. 6 automatic transmission oil cooler pipe clamp | 32928-35031 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-30090 · 32924-35100 · 32924-35101 · 90462-12044 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32929-35010 · 90461-06188 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32929 | No. 2 Flexible Hose Clamp | 32929-35060 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-35081 · 32941-35090 · 32941-35180 · 32941-35200 · 32942-35070 · 32943-60120 · 90445-17100 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-35070 · 32943-60120 · 90445-17075 · 90445-17079 · 90445-17100 · 90445-17106 |
