Toyota HILUX 节气阀连杆和阀杆(ATM) — Figure 3513

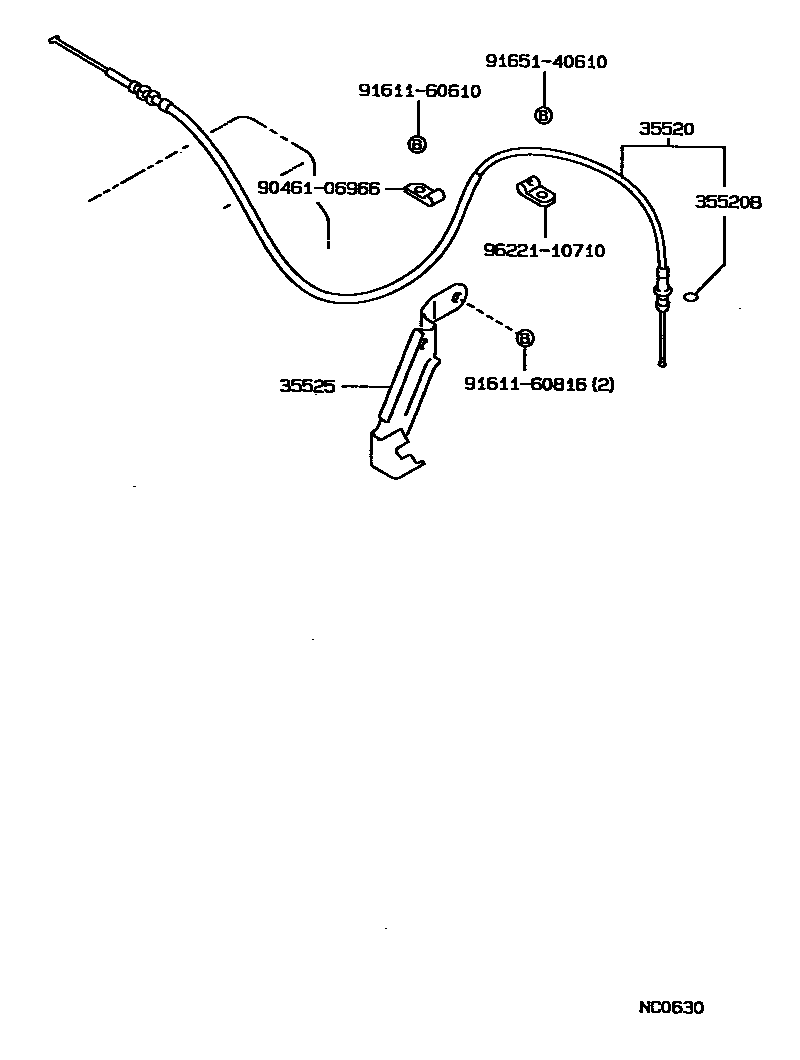

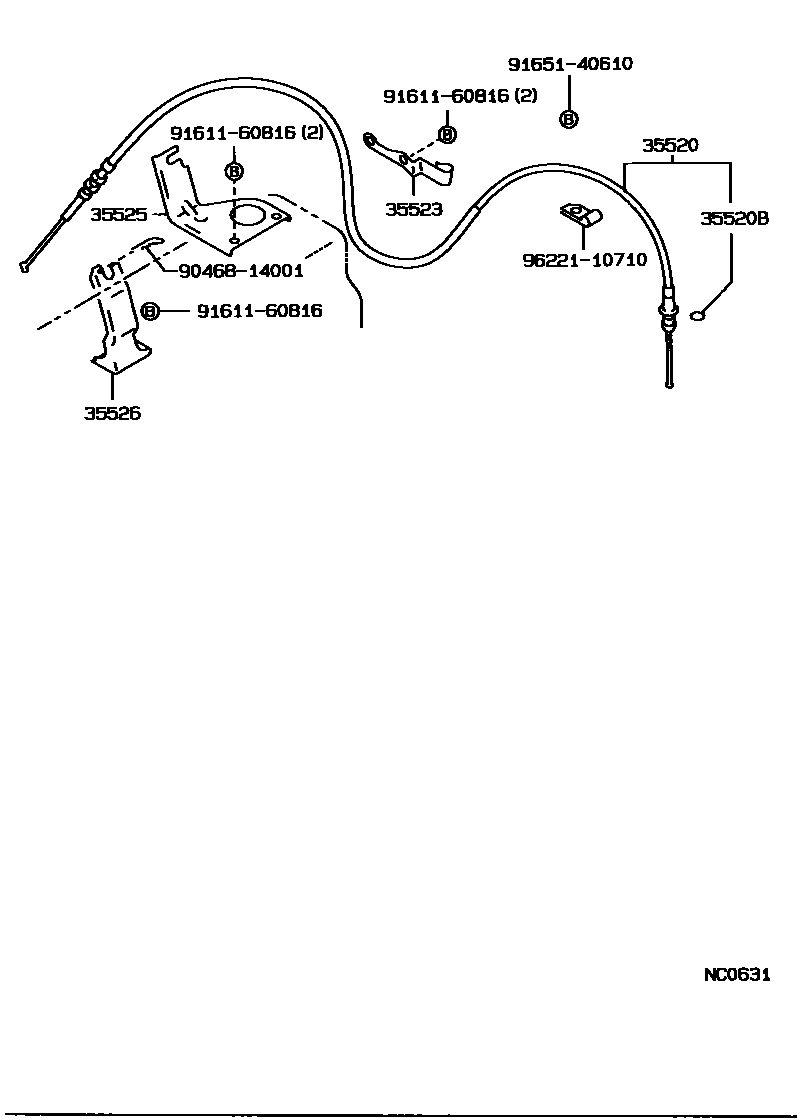

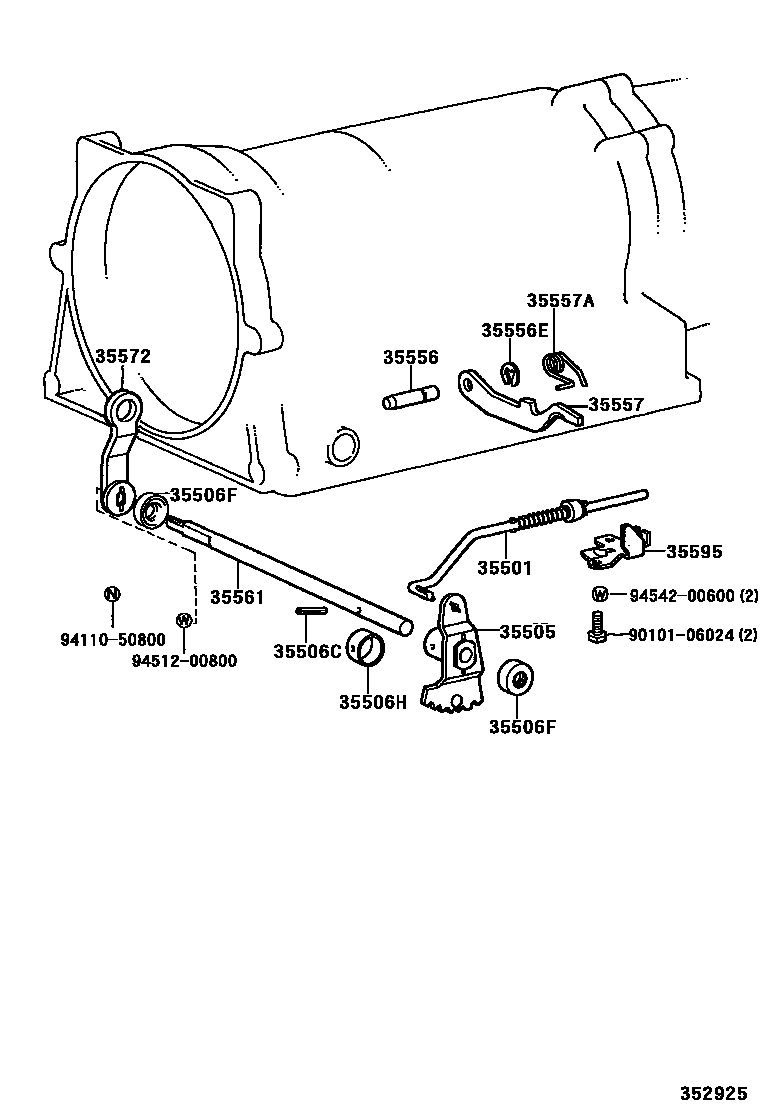

Toyota HILUX EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35501 | Parking lock lever sub-assembly | 35501-22020 · 35501-26020 |
| 35505 | Manual valve stem sub-assembly | 35505-22040 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-11001 · 90311-11003 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20003 |
| 35520 | Throttle valve cable assembly | 35520-35100 · 35520-35110 · 35520-35140 |
| 35520B | O-ring (for throttle valve cable) | 90301-09004 · 90301-09012 |
| 35523 | Throttle valve cable clamp | 35523-14070 |
| 35525 | Throttle valve cable bracket | 35525-35020 · 35525-35030 · 35525-35031 |
| 35526 | Throttle valve cable guide bracket | 35526-35010 |
| 35556 | Parking lock pawl shaft | 35556-26010 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-26010 · 35557-26020 · 35557-26031 |
| 35557A | Torsion spring (for parking pawl) | 90508-21001 · 90508-25001 |
| 35561 | Manual valve stem shaft | 35561-40010 |
| 35572 | Transmission right control lever | 35572-22040 · 35572-35020 |
| 35595 | Parking lock pawl bracket | 35595-26010 · 35595-40010 |
