Toyota HILUX 阀体和滤油网(ATM) — Figure 3512

Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 104 PNC and OE references.

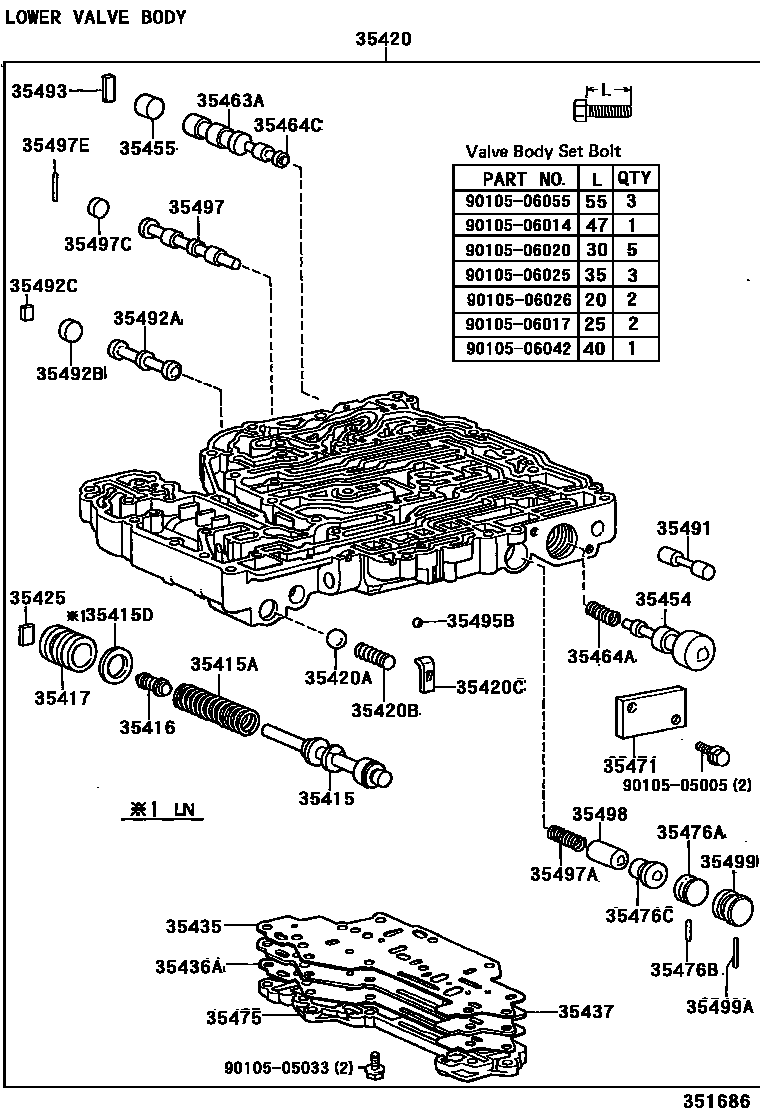

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 351686
阀体和滤油网(ATM) — 351686 (198808 – 999999)

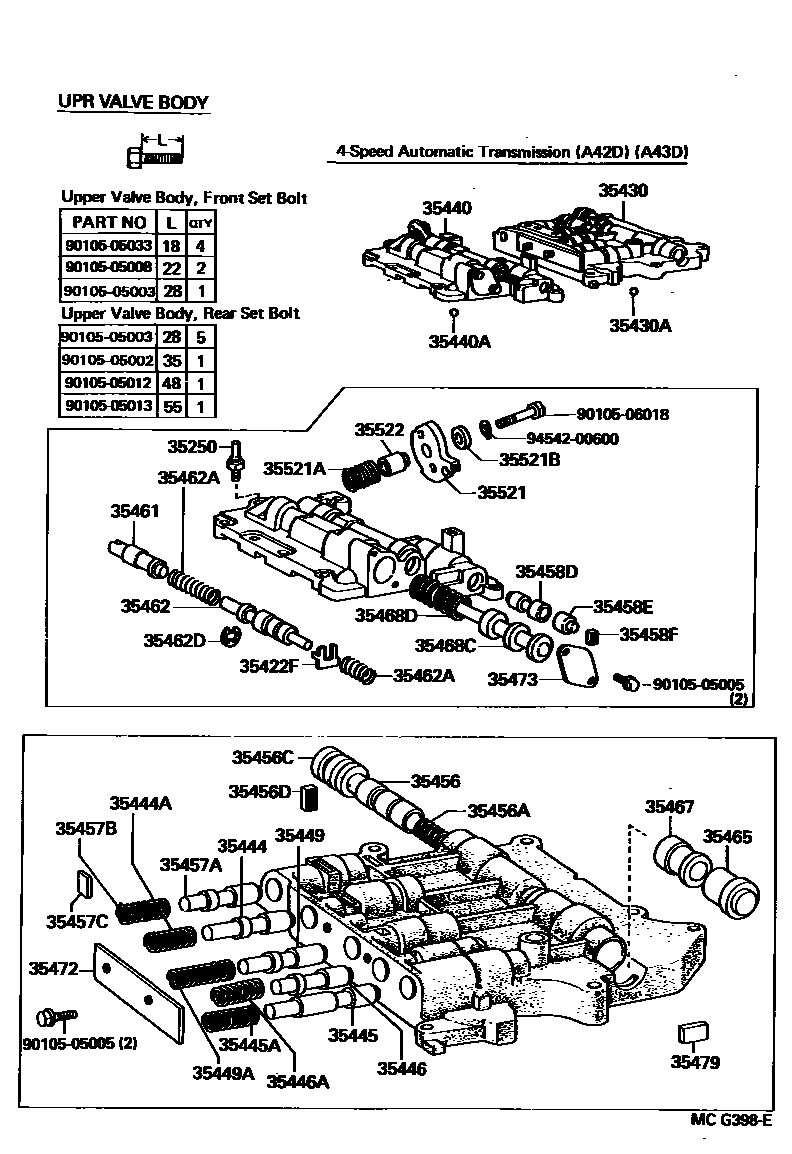

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCG398E
阀体和滤油网(ATM) — MCG398E (198808 – 999999)

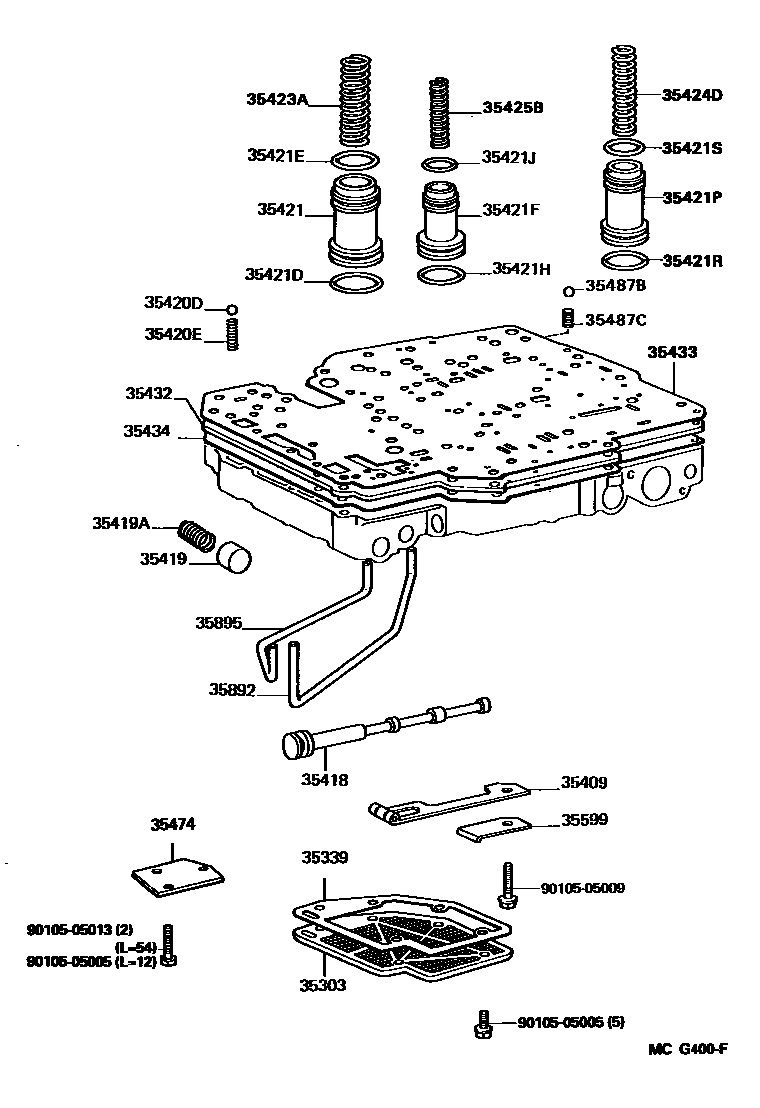

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCG400F
阀体和滤油网(ATM) — MCG400F (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
35250Ball check valve body assembly35250-30010
35303Oil filter sub-assembly35303-30050
35339Oil filter gasket35339-28010 · 35339-30050
35409Manual lock spring sub-assembly35409-30010
35415pressure regulator valve35415-22020 · 35415-22021
35415ACompression spring (for pressure regulator valve)90501-15017 · 90501-16682 · 90501-17020 · 90501-18028
35415DGasket (for pressure regulator valve)90564-12004
35416No. 1 main regulator valve plunger35416-22010 · 35416-30020 · 35416-30030
35417pressure regulator valve sleeve35417-22020 · 35417-30030 · 35417-30050
35418Manual valve35418-30050
35419No. 1 one-way valve35419-22010
35419ACompression spring (for one-way valve)90501-16083
35420Lower valve body assembly35420-30111 · 35420-35010 · 35420-35011
35420ABall (for pressure reducing valve)90360-13024
35420BSpring (for pressure reducing valve)90501-18677
35420CSeat (for pressure reducing valve)35427-22011
35420DBall (for lower valve body)35495-22020 · 35496-22030
35420ESpring (for lower valve body)90501-04727
35421No. 1 accumulator piston35421-30020
35421DRing (for accumulator piston No. 1)90301-29187
35421ERing (for accumulator piston No. 1)90301-23194
35421FNo. 2 accumulator piston35441-30010
35421HRing (for accumulator piston No. 2)90301-26190
35421JRing (for accumulator piston No. 2)90301-18186
35421PNo. 3 accumulator piston35421-22030
35421RRing (for No. 3 accumulator piston)90301-26190
35421SRing (for No. 3 accumulator piston)90301-22185
35422FValve damping stop35422-22010
35423ACompression spring (for B-2 accumulator piston)90501-26776 · 90501-28002
35424DCompression spring (for C-1 accumulator piston)90501-20016 · 90501-20063
35425Pressure regulator valve sleeve seat35425-14010
35425BCompression spring (for C-2 accumulator piston)90501-18026 · 90501-25002
35430Rear upper valve body assembly35430-26020 · 35430-30070
35430ABall (for rear upper valve body)35495-22020 · 90360-06023
35432No. 1 valve body plate35432-22071 · 35432-30071
35433No. 1 valve body gasket35433-14012 · 35433-30052
35434No. 2 valve body gasket35434-14012 · 35434-30052
35435No. 3 valve body plate gasket35435-30030
35436ANo. 4 valve body plate gasket35436-30040
354373rd-4th gear shift valve separation plate35437-22040 · 35437-30020 · 35437-30040
35440Front upper valve body assembly35440-30051 · 35440-30081
35440ABall (for front upper valve body)35495-22020
35444intermediate regulator valve35444-22010
35444ACompression spring (for intermediate regulator valve)90501-09686 · 90501-11009
35445Low speed regulator valve35445-22010
35445ACompression spring (for low speed regulator valve)90501-08725
35446governor regulator valve35446-20010 · 35446-22010
35446ACompression spring (for governor regulator valve)90501-07688
35449sequence valve35447-22010
35449ACompression spring (for sequence valve)90501-12726
35454Low gear coast shift valve35454-30010
354551-2 gear low gear shift valve plunger35455-22010
354562nd-3rd gear shift valve35456-22010
35456ACompression spring (for 2-3 gear shift valve)90501-08724
35456CPlunger (for 2-3 gear shift valve)35452-22010
35456DSeat (for 2-3 gear shift valve)35493-22020
35457Alock regulator valve35457-22010
35457BCompression spring (for locking regulator valve)90501-09007 · 90501-09025
35457CSeat (for locking regulator valve)35438-22020
35458Dreverse valve35458-22010
35458EPlunger (for reverse valve)35459-22010
35458FSeat (for reverse valve)35493-22010
35461Downshift plug35408-30010
35462throttle valve35462-22011
35462ACompression spring (for throttle valve)90501-07680 · 90501-12011 · 90501-12045
35462DE-ring (for throttle valve)90523-06023
35463A1-2 gear lower shift valve35463-22010
35464ACompression spring (for 1-2 gear shift valve)90501-06684
35464C1-2 gear upper shift valve35464-22020
35465Intermediate shift valve plunger35465-22010
35467Intermediate shift valve35467-22010
35468CSecondary regulator valve35468-22010
35468DCompression spring (for secondary regulator valve)90501-19001
35471No. 1 valve body cover35471-22010
35472No. 2 valve body cover35472-22010
35473Transmission valve body cover35473-22010
35474No. 4 valve body cover35474-22010
35475No. 5 valve body cover35475-30020
35476AStraight screw plug (for third-speed coaster shift valve)90334-12001
35476BLocating pin (for third-speed coaster shift valve)90250-02012
35476CThree-speed slide valve35476-30010
35479Intermediate shift valve seat35479-22010
35487BNo. 4 one-way ball35487-30010
35487CCompression spring (for one-way balls)90504-05006
35491Reverse brake plug35491-22010
35492AManual downshift timing valve35492-30010
35492BPlunger (for manual downshift timing valve)35494-30010
35492CValve seat (for manual downshift timing valve)35493-30040
35493Shift valve spring seat35493-22010
35495BOne-way ball No. 135495-22020
354973rd-4th gear shift valve35497-30020
35497ACompression spring (for 3-4 gear shift valve)90501-10060 · 90501-11006
35497CPlunger (for 3-4 gear shift valve)90334-13001
35497ENeedle roller (for 3-4 gear shift valve)90361-02051
354983rd-4th gear slide shift valve35498-30010
354993rd-4th gear shift valve plunger35499-30030
35499ADirect sales (for 3-4 gear shift valve)90250-02012
35521throttle cam35521-20010 · 35521-30010
35521ASpring (for throttle cam return)90508-12331
35521BGasket (for throttle cam assembly)90201-06472
35522Throttle valve cam pin35522-22010
35599Manual locking spring cover35599-30010
35892overdrive brake pipe35892-28010 · 35892-30020
35895Front clutch oil supply pipe35895-30021
