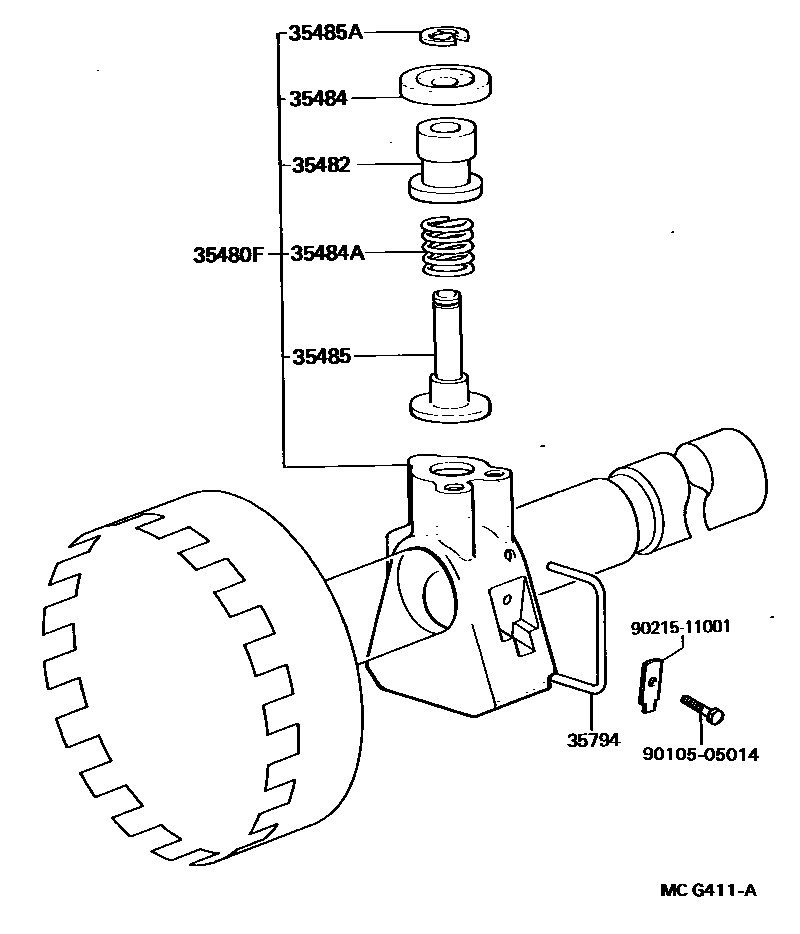

Toyota HILUX 后油泵和调速器(ATM) — Figure 3511
Toyota HILUX EPC diagram 3511, 后油泵和调速器(ATM), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35480F | Governor body assembly | 35480-30060 · 35480-30080 |
| 35482 | governor valve | 35482-20010 · 35482-22010 |
| 35484 | Speed regulator external weight | 35484-20020 · 35484-22010 |
| 35484A | Compression spring (for governor weight) | 90501-09030 · 90501-09673 |
| 35485 | governor valve shaft | 35485-22010 |
| 35485A | E-ring (for governor valve shaft) | 90523-05020 |
| 35794 | governor retaining ring | 35794-22010 |
