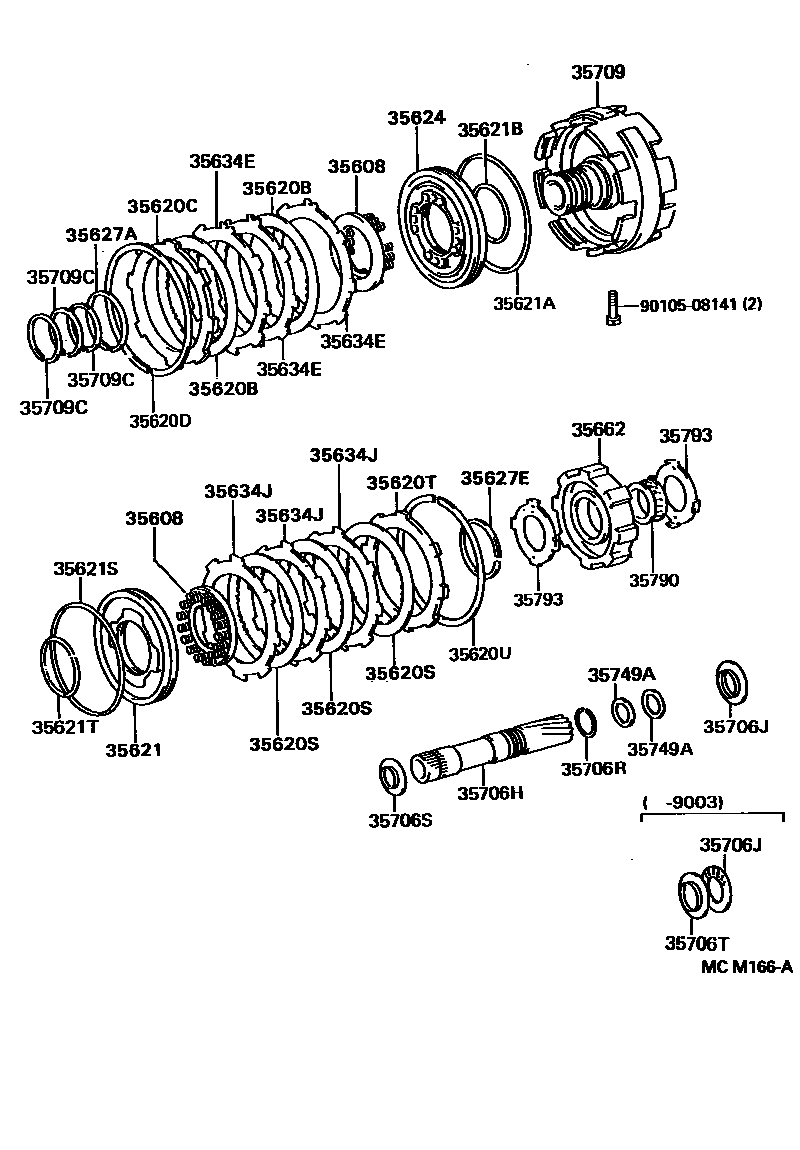

Toyota HILUX 中央支架和行星太阳齿轮(ATM) — Figure 3508
Toyota HILUX EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-20010 · 35608-30020 |
| 35620B | Clutch disc (for brakes) | 35677-30100 |
| 35620C | Clutch flange (for brake) | 35675-22010 |
| 35620D | Ring (for brake) | 90521-99139 |
| 35620S | Clutch disc (for rear brake) | 35677-30020 |
| 35620T | Clutch flange (for rear brake) | 34625-22010 · 35675-22010 |
| 35620U | Ring (for rear wheel brake) | 90521-99139 |
| 35621 | Brake piston No. 1 | 35621-30010 |
| 35621A | Outer O-ring (for brake piston) | 90301-99007 |
| 35621B | Inner O-ring (for brake piston) | 90301-57188 |
| 35621S | Outer ring (for rear brake piston) | 90301-99192 |
| 35621T | Inner O-ring (for rear brake piston) | 90301-57188 |
| 35624 | Second gear brake piston | 35624-22010 |
| 35627A | Shaft snap ring (for brake return spring seat) | 90520-52262 |
| 35627E | Shaft snap ring (for rear wheel brake return spring seat) | 90520-52262 |
| 35634E | Clutch disc (for brakes) | 35634-22060 |
| 35634J | Clutch plate No. 3 | 35634-22060 · 35648-30020 |
| 35662 | brake hub | 35662-30010 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-30040 · 35706-30070 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-23012 · 90374-24003 |
| 35706R | Shaft snap ring (for planetary gear train sun gear) | 90520-34001 |
| 35706S | Front thrust bearing race (for planetary gear train sun gear) | 35789-22030 |
| 35706T | Rear thrust bearing race (for planetary gear train sun gear) | 35789-22010 |
| 35709 | Middle bracket sub-assembly | 35709-26011 · 35709-30041 |
| 35709C | Oil protection ring (for intermediate bracket) | 35617-16010 |
| 35749A | Sun gear shaft oil ring | 35749-30010 |
| 35790 | One-way clutch assembly | 35791-30020 |
| 35793 | One way clutch retaining ring | 35793-22011 |
