Toyota HILUX 超速档齿轮(ATM) — Figure 3506

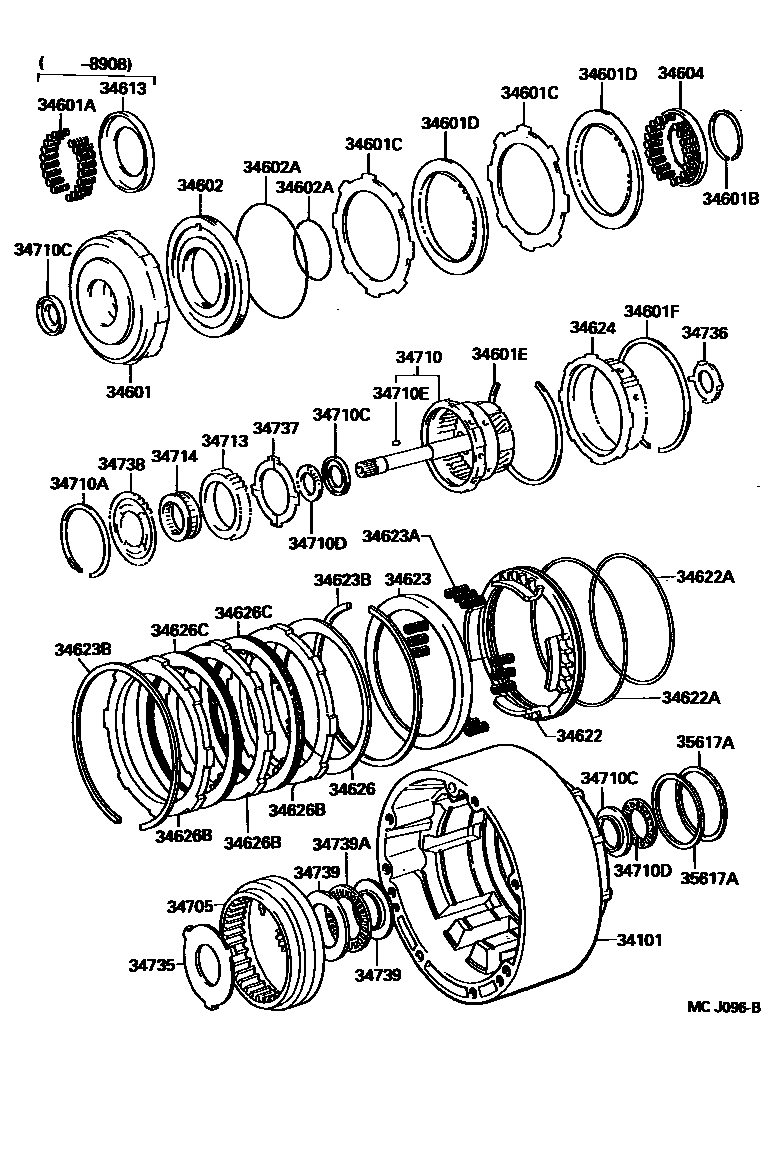

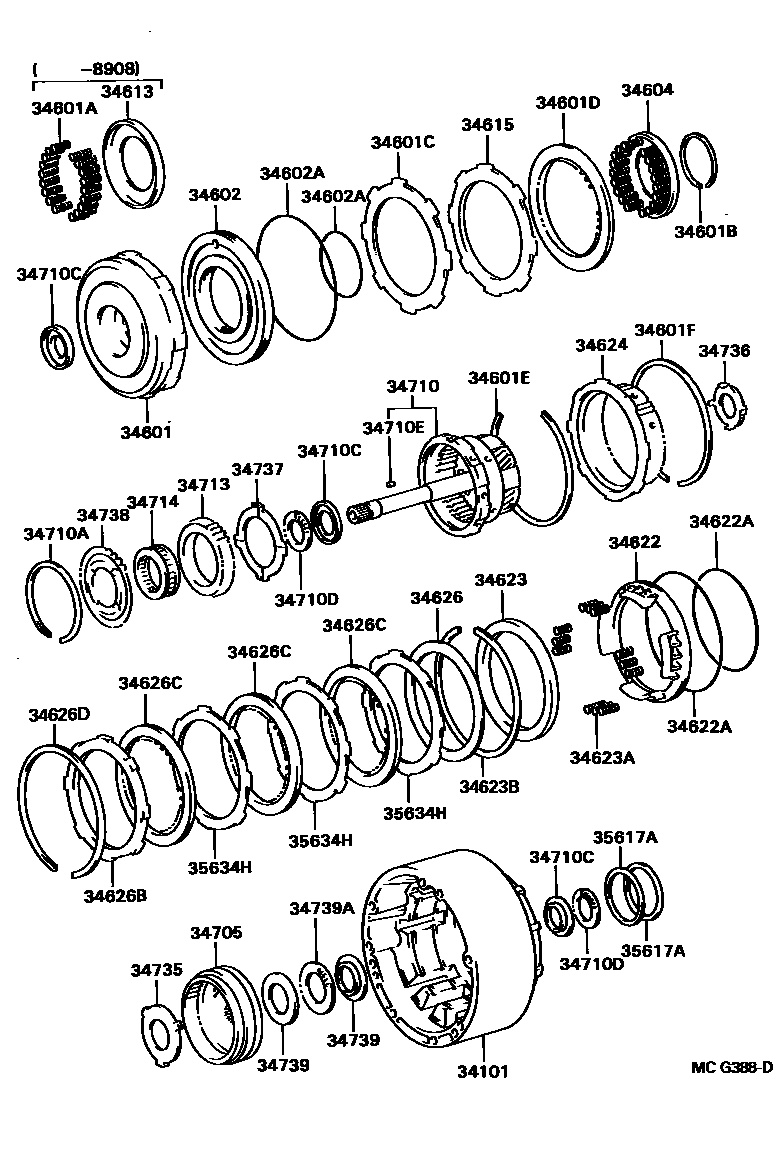

Toyota HILUX EPC diagram 3506, 超速档齿轮(ATM), with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-28010 · 34101-30062 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-30022 |
| 34601A | Compression spring (for overdrive direct clutch) | 90501-11023 |
| 34601B | Shaft snap ring (for overdrive direct gear clutch) | 90520-52262 |
| 34601C | Clutch disc (for overdrive) | 35634-22040 · 35634-30070 |
| 34601D | Clutch disc (for overdrive) | 35677-24010 · 35677-30030 · 35677-30160 |
| 34601E | No. 1 hole snap ring (for overdrive gear) | 90521-99146 |
| 34601F | No. 2 hole snap ring (for overdrive gear) | 90521-99001 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-30011 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-99016 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-22010 |
| 34613 | Overdrive direct gear clutch return spring seat | 34613-30010 |
| 34615 | Overdrive clutch flange | 34615-30010 |
| 34622 | overdrive brake piston | 34622-30040 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99008 · 90301-99009 |
| 34623 | Overdrive brake return spring seat | 34623-30020 |
| 34623A | Compression spring (for overdrive brake return spring seat) | 90501-10671 |
| 34623B | Hole snap ring (for overdrive brake return spring seat) | 90521-99004 |
| 34624 | overdrive brake hub | 34624-26010 · 34624-32010 |
| 34626 | overdrive brake cushion | 34626-30050 |
| 34626B | Rear clutch flange (for overdrive) | 34625-26010 |
| 34626C | Clutch disc (for overdrive) | 35677-30040 |
| 34626D | Hole snap ring (for overdrive) | 90521-99004 |
| 34705 | Overdrive planetary ring gear sub-assembly | 34705-30021 |
| 34710 | Overdrive planetary gear assembly | 34710-30022 |
| 34710A | Hole snap ring (for overdrive planetary gear) | 90521-99003 |
| 34710C | Thrust bearing race (for overdrive planetary gear) | 34739-30031 · 34739-30041 · 35789-22010 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-23012 · 90374-24001 |
| 34710E | Straight screw plug (for overdrive planetary gear) | 90334-03001 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-30020 |
| 34714 | One-way clutch (for overdrive) | 35791-30030 |
| 34735 | No. 1 overdrive planetary gear thrust washer | 34735-30020 |
| 34736 | No. 2 overdrive planetary gear thrust washer | 34736-30010 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-30020 |
| 34738 | No. 4 overdrive planetary gear thrust washer | 34738-30020 |
| 34739 | Thrust bearing race (for overdrive) | 34739-30020 · 35789-22030 |
| 34739A | Thrust needle roller bearing (for overdrive) | 90374-28014 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 · 35617-43010 |
| 35634H | Clutch disc (for overdrive) | 35634-30080 |
