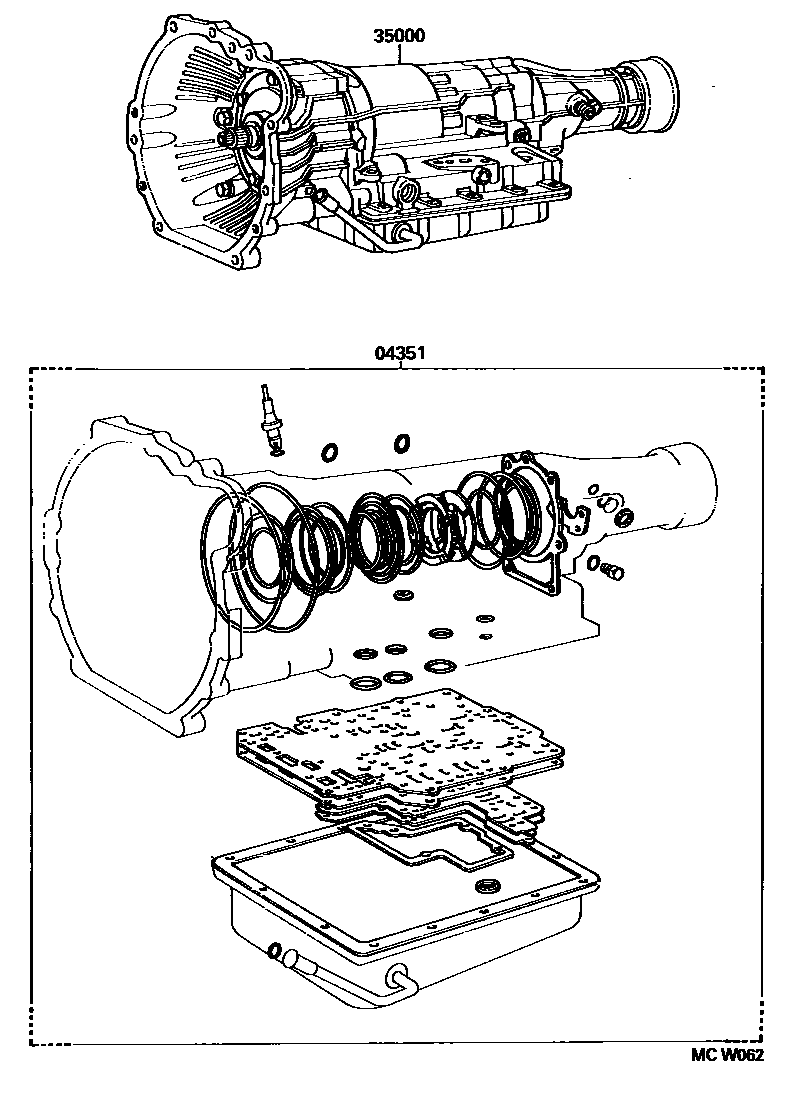

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351 | Automatic transmission overhaul gasket assembly | 04351-30110 · 04351-35040 · 04351-35080 |
| 35000 | Automatic transmission assembly | 35000-35390 · 35000-35400 · 35000-35401 · 35000-35410 · 35000-35411 · 35000-35420 · 35000-35421 · 35000-35770 · 35000-35800 · 35000-3D260 · 35000-3D290 · 35000-3D380 · 35000-3D390 · 35000-3D520 |
