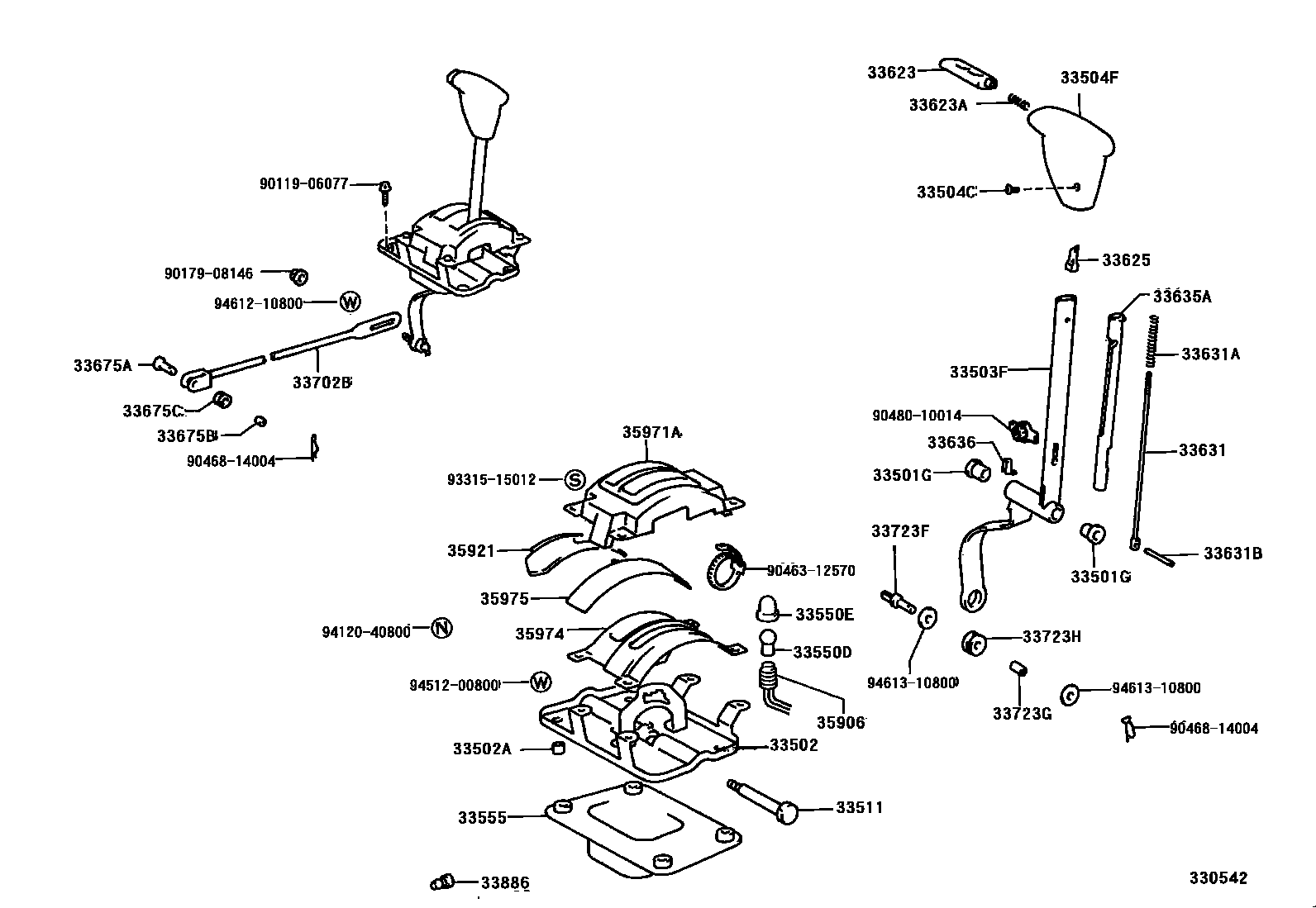

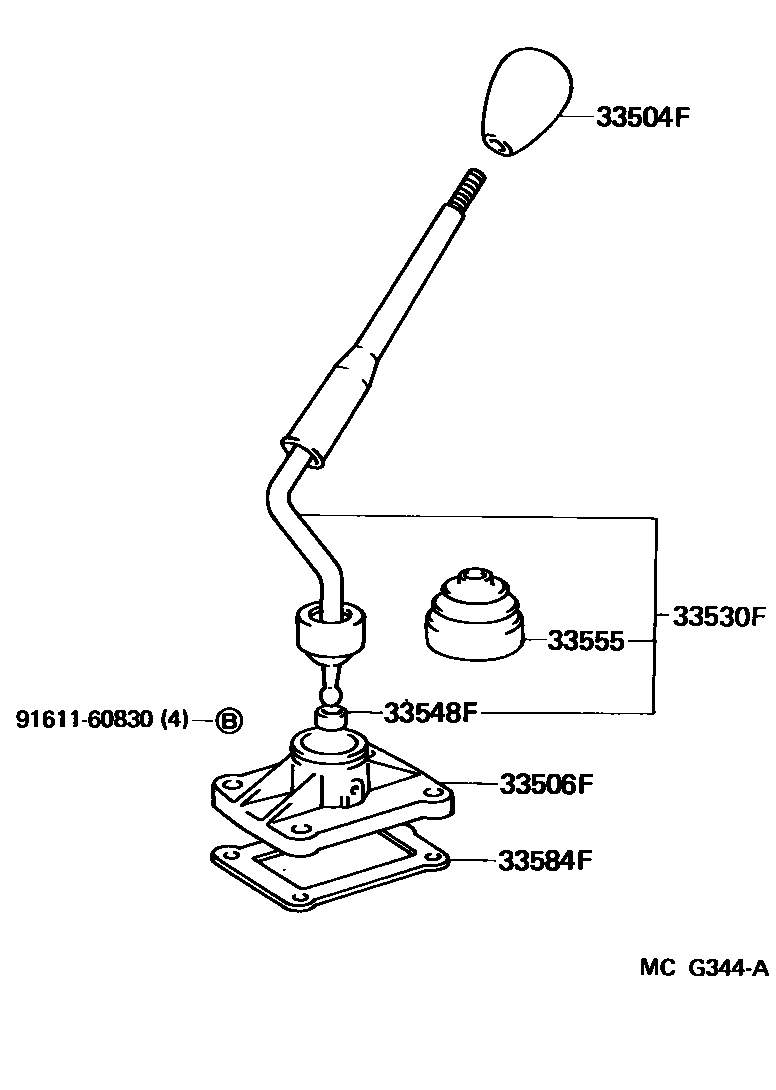

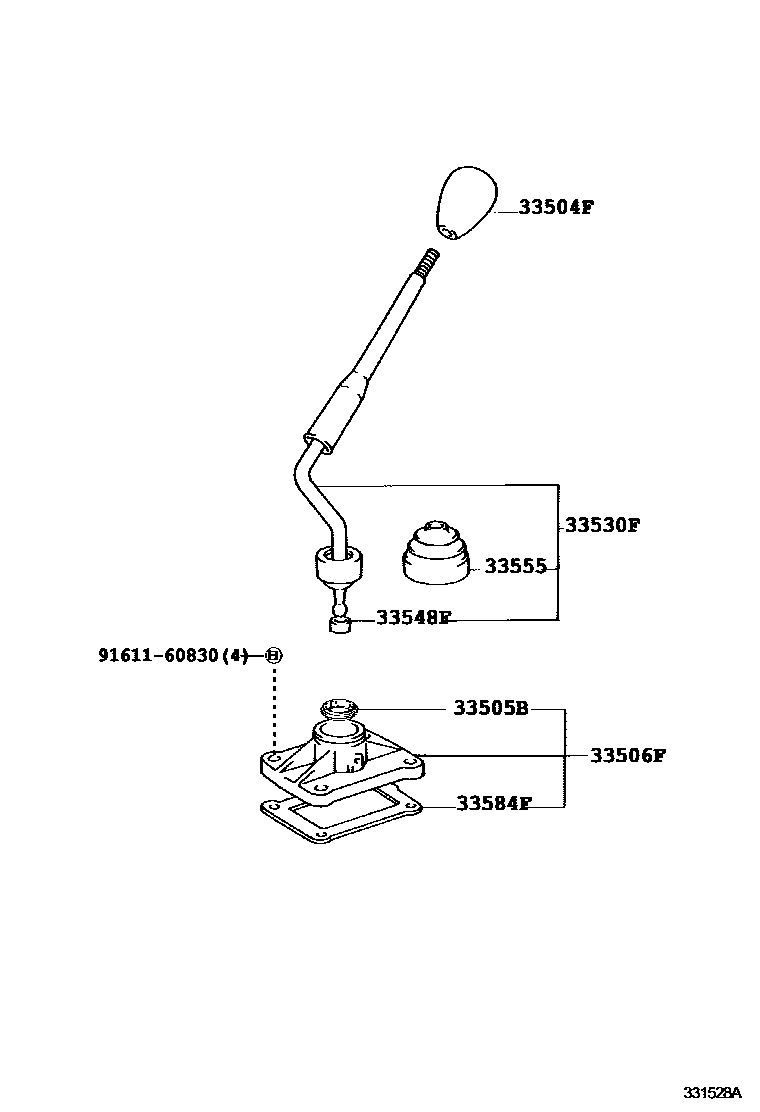

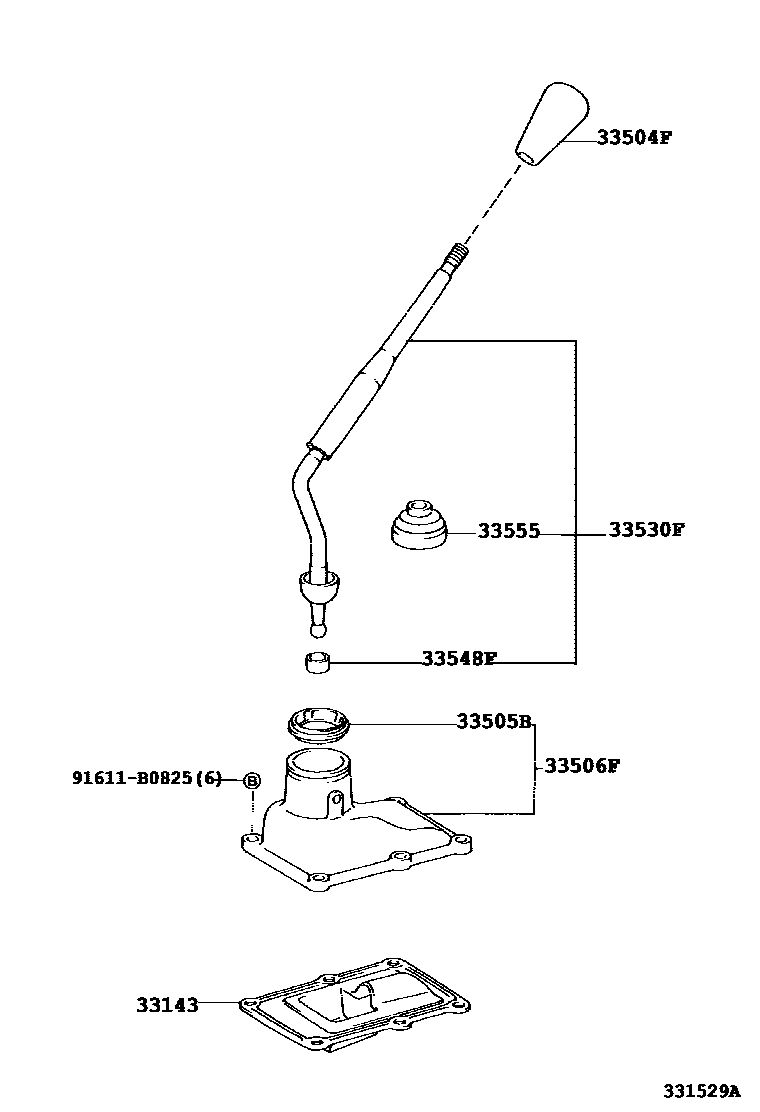

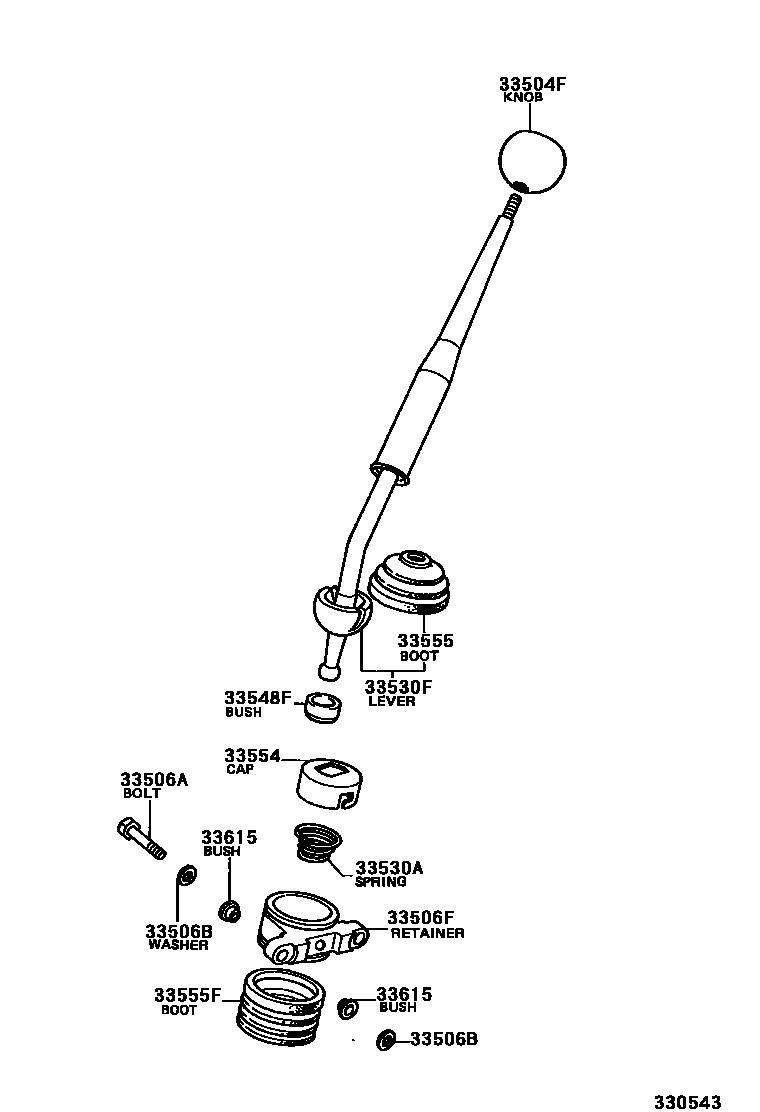

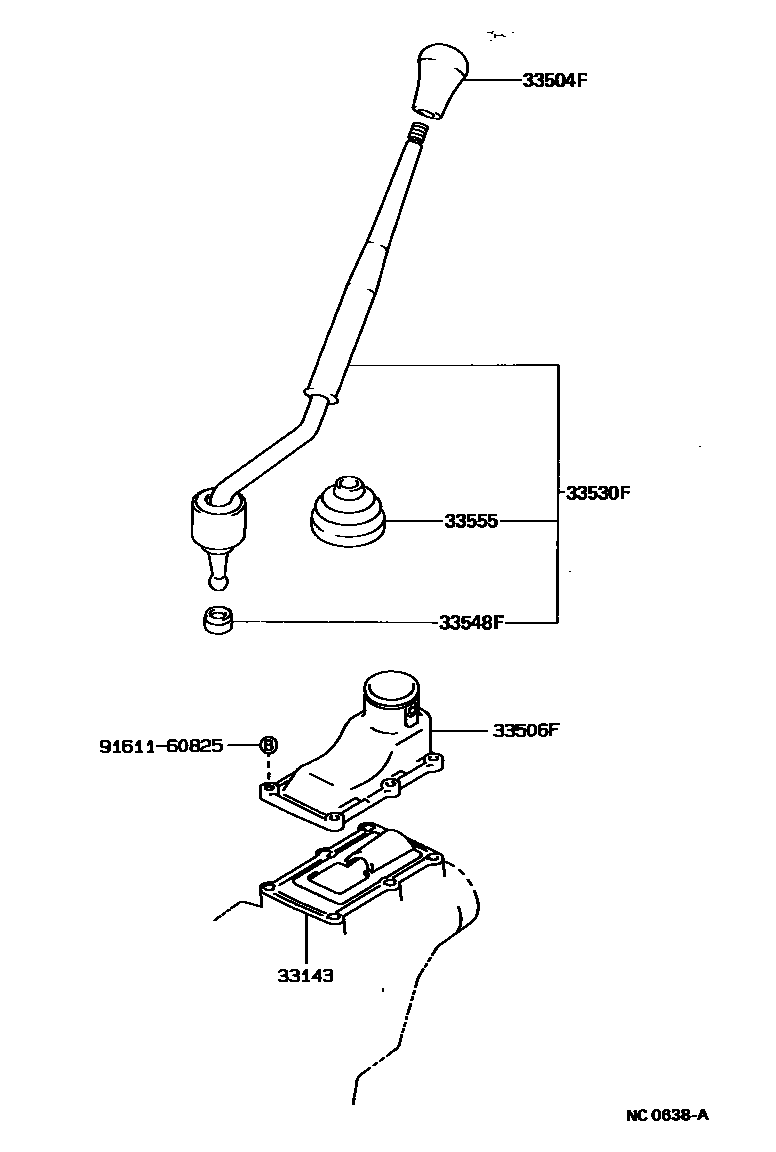

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 6 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143 | Extended shell oil baffle | 33143-35030 · 33143-35050 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-11003 |
| 33502 | Shift lever base plate sub-assembly | 33502-35170 · 33502-35180 · 33502-35240 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-35090 · 33503-35080 · 33503-35090 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33505B | Shift lever seat sub-assembly | 33505-35020 |
| 33506A | Bolt (for shift lever stop) | 90109-10042 |
| 33506B | Flat washer (for shift lever stop) | 90201-10036 · 90201-13012 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-20031 · 33506-35060 · 33506-35070 · 33506-38010 · 33570-35030 |
| 33511 | Control shaft (for floor shifting) | 33511-22160 |
| 33530A | Compression spring (for gear selector) | 90502-26004 |
| 33530F | Shift lever assembly (for floor shift) | 33530-35140 · 33530-35141 · 33530-35160 · 33530-35161 · 33530-35170 · 33530-35171 · 33530-35540 · 33530-35550 · 33530-35600 · 33541-35460 · 33541-35470 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-30010 · 33548-31010 · 33548-35010 |
| 33550D | position indicator light bulb | 99132-11034 |
| 33550E | position indicator cover | 90339-09001 |
| 33554 | shift lever cover | 33554-30012 |
| 33555 | Gear shift lever dust cover | 33555-30030 · 33555-35040 · 33555-35100 |
| 33555F | No. 2 shift lever dust cover | 33555-30020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-60010 |
| 33615 | Shift control lever stopper bushing | 33615-20012 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-24010 |
| 33631 | Locking lever | 33631-30060 |
| 33631A | Compression spring (for locking lever) | 90501-07005 · 90501-07074 |
| 33631B | Slotted spring pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-35030 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33675A | Pin with hole (for transmission control lever) | 33726-35010 · 90240-08054 |
| 33675B | Bushing (for transmission control lever) | 90389-08005 |
| 33675C | retaining ring (for transmission control lever) | 90480-17177 |
| 33702B | No. 1 shift rod sub-assembly (for floor shift) | 33702-35120 · 33702-35170 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90389-08005 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 33886 | shift lever block | 33886-16010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-10030 · 35906-20030 |
| 35921 | control position indicator board | 35921-35080 · 35921-35090 |
| 35971A | Position indicator light upper shell | 35971-35020 |
| 35974 | Position indicator light lower shell | 35974-35030 · 35974-35050 |
| 35975 | Slide cover (for position indicator light) | 35975-35040 |
