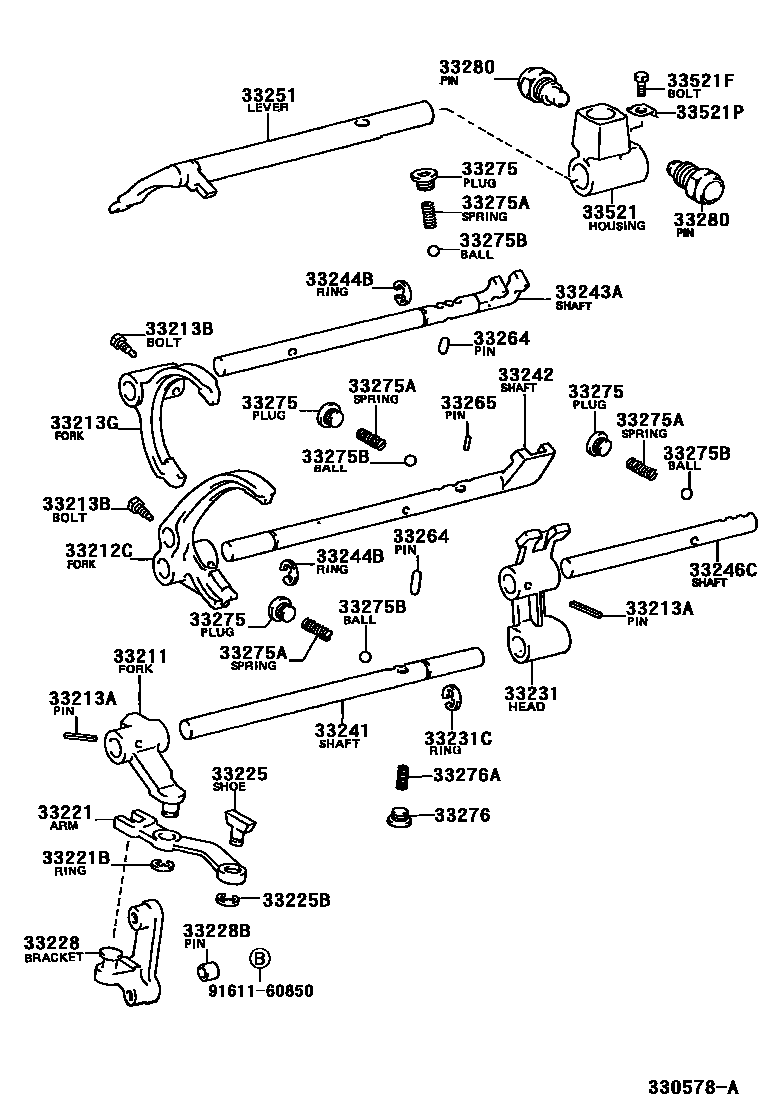

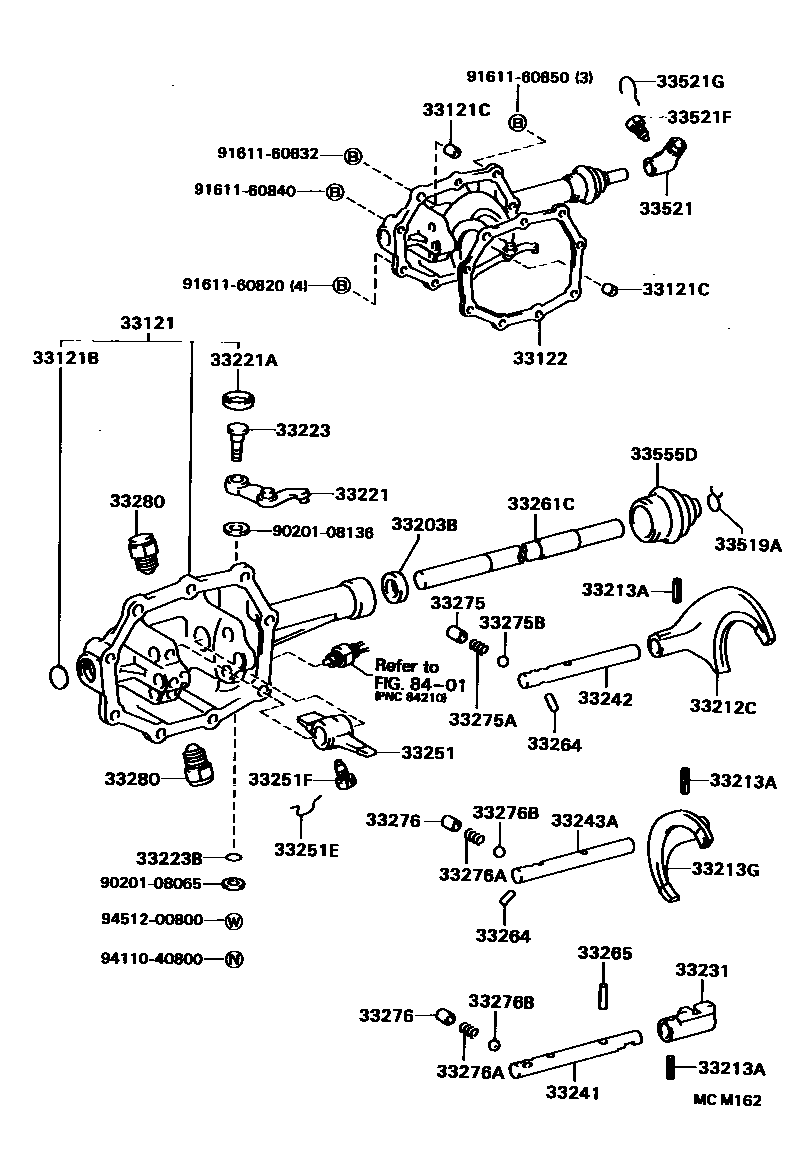

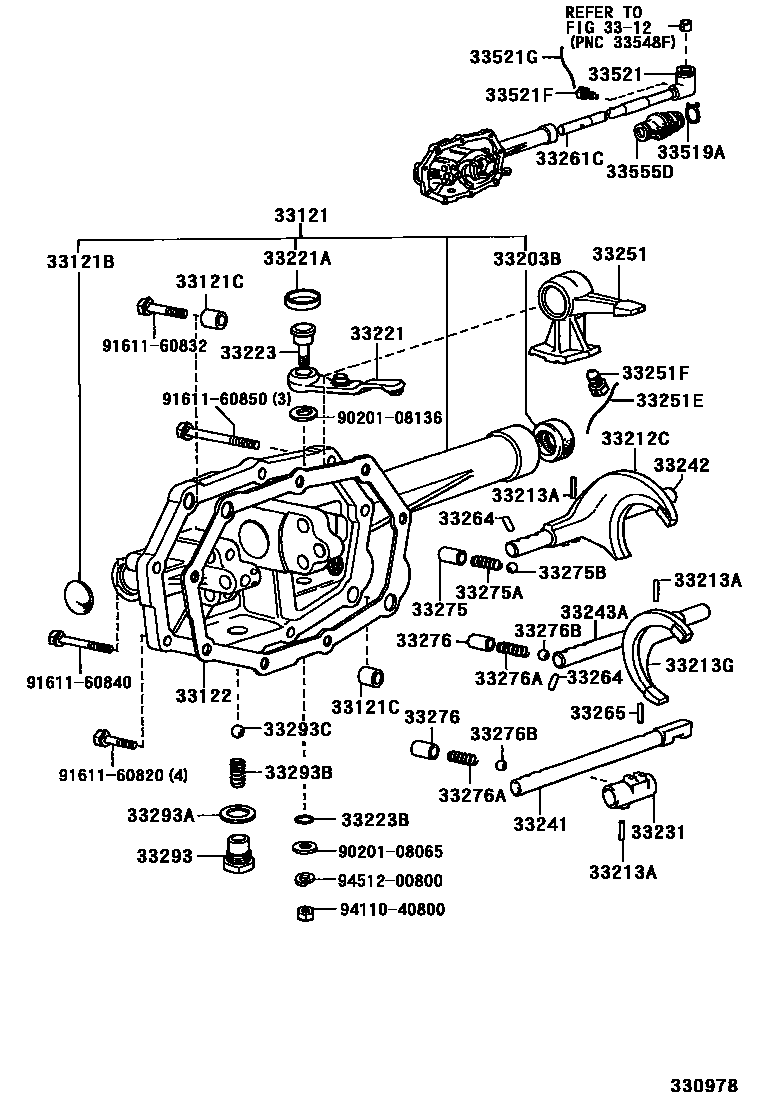

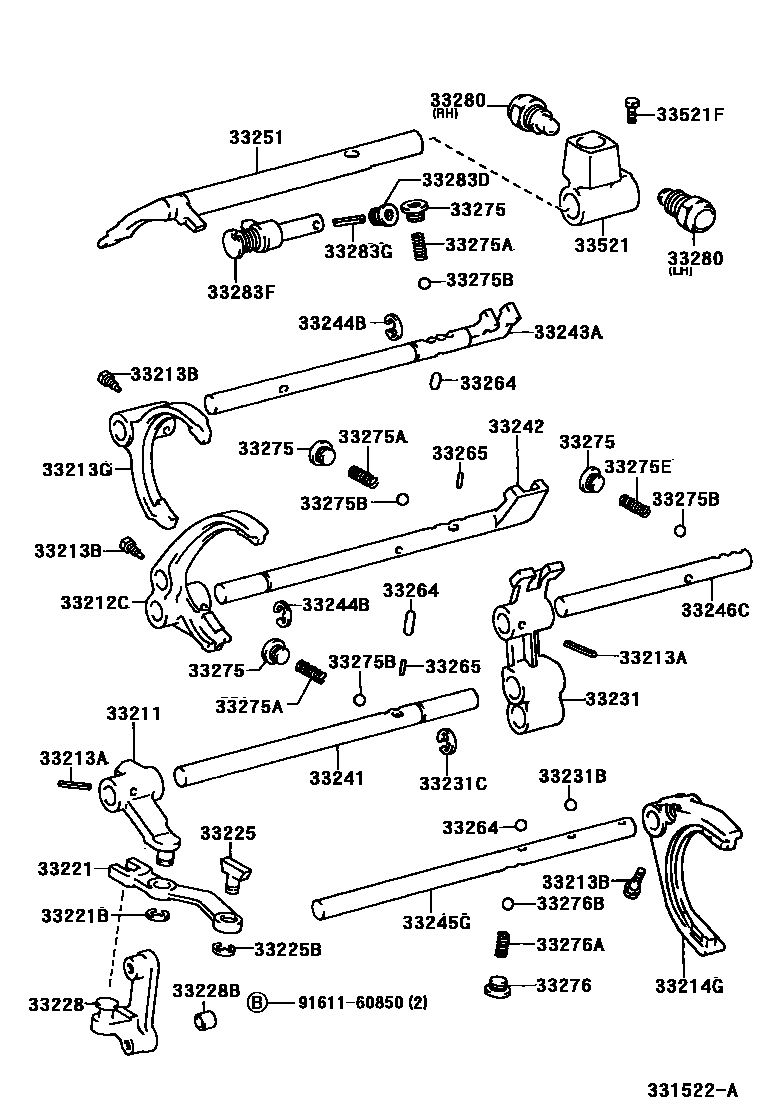

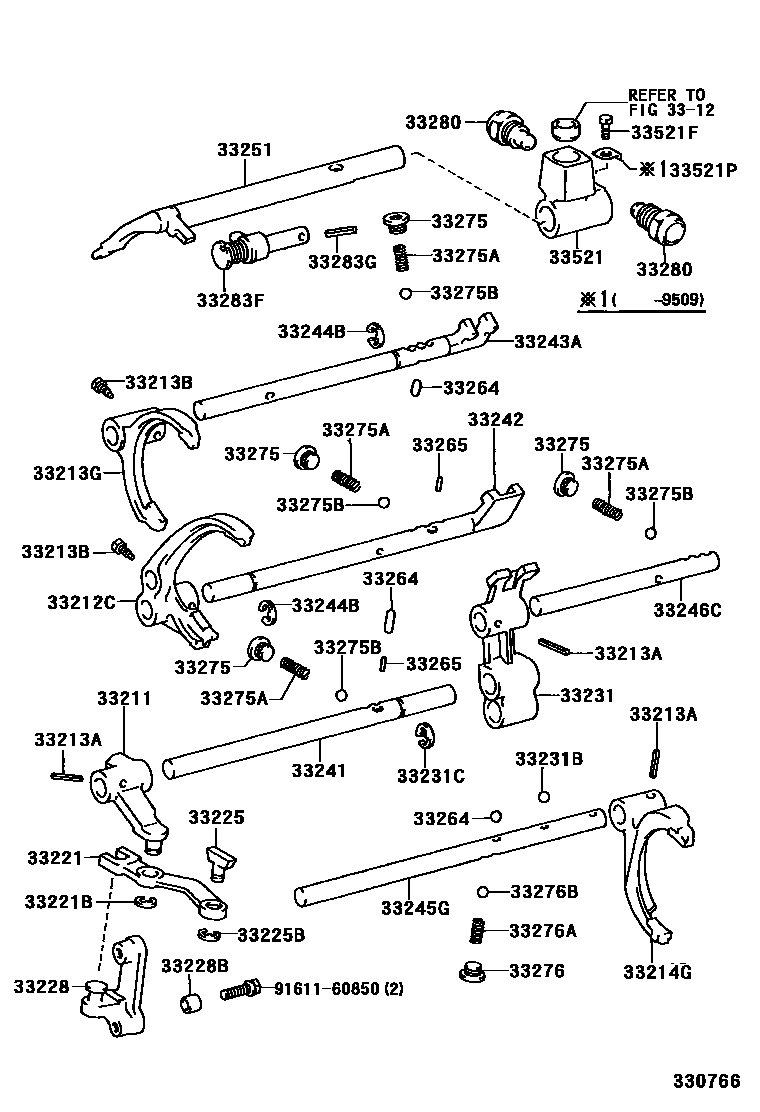

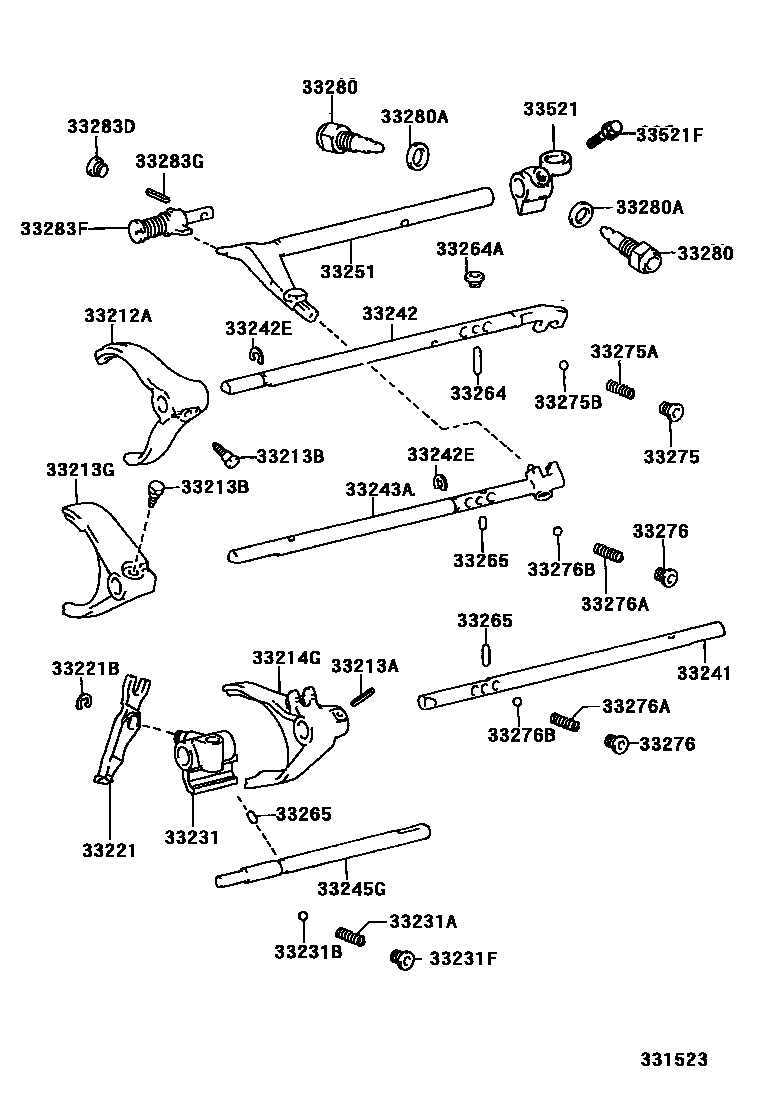

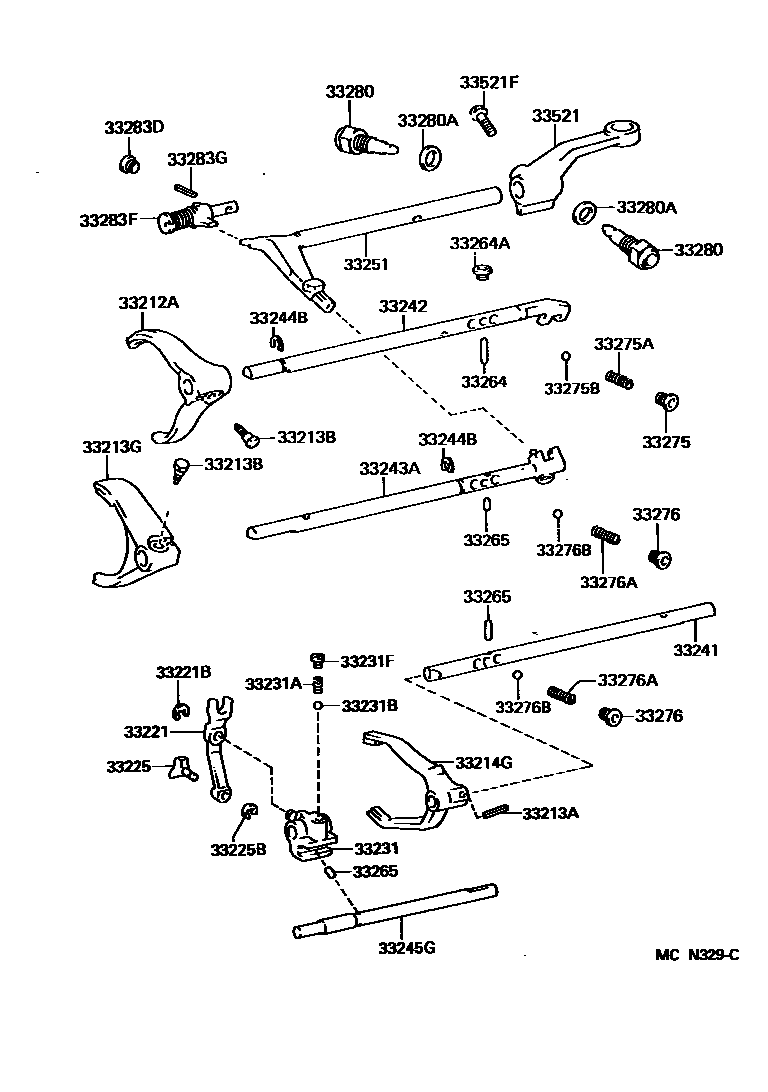

Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 7 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33121 | manual gearbox cover | 33102-35010 · 33102-38010 |
| 33121B | Expansion plug or sealing plug (for gearbox cover) | 90330-20011 |
| 33121C | pin (for gearbox cover) | 90253-11001 |
| 33122 | Manual transmission cover gasket | 33122-30020 |
| 33203B | Oil seal (for shift lever shaft) | 90311-18002 |
| 33211 | Reverse Shift Fork | 33211-28010 |
| 33212A | No. 1 shift fork | 33212-22020 · 33212-30050 |
| 33212C | No. 1 shift fork | 33212-28010 · 33212-35023 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 · 90105-06143 |
| 33213G | No. 2 shift fork | 33213-22030 · 33213-26020 · 33213-30060 · 33213-35032 · 33213-35033 |
| 33214G | No. 3 shift fork | 33214-22030 · 33214-30060 · 33214-35020 · 33214-35040 · 33230-30010 · 33230-30011 |
| 33221 | Reverse shift arm | 33221-22020 · 33221-22021 · 33221-28010 · 33221-30010 |
| 33221A | Sealing plug (for reverse shift arm) | 96411-42500 |
| 33221B | E-ring (for reverse shift arm) | 96160-00800 · 96160-01000 |
| 33223 | shift arm pivot | 33223-30011 |
| 33223B | O-ring (for shift arm pivot) | 90301-08001 |
| 33225 | shift arm shoe | 33225-22020 · 33225-35030 |
| 33225B | E-ring (for shift arm shoe) | 96160-00600 · 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-28010 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33231-22040 · 33231-22041 · 33231-26010 · 33231-35040 · 33231-35050 · 33231-35070 |
| 33231A | Reverse shift positioning spring | 90501-10052 |
| 33231B | Reverse gear shift positioning steel ball | 90360-08009 · 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90520-12003 · 90520-12006 |
| 33231F | Screw plug (for reverse gear shift guide block) | 90341-10016 · 90341-10065 |
| 33241 | Reverse shift fork shaft | 33241-26010 · 33244-22021 · 33244-30050 · 33244-35021 · 33244-35031 · 33244-35050 · 33244-53020 |
| 33242 | No. 1 shift fork shaft | 33242-26010 · 33242-30070 · 33242-30080 · 33242-35022 · 33242-53020 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33240-22022 · 33240-30020 · 33243-30120 · 33243-30130 · 33243-35042 · 33243-35060 · 33243-53020 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-12006 |
| 33245G | No. 4 shift fork shaft | 33245-22011 · 33245-35040 · 33245-35080 |
| 33246C | No. 5 shift fork shaft | 33246-35020 |
| 33251 | shift lever | 33251-22051 · 33251-30040 · 33251-30090 · 33251-30100 · 33251-30101 · 33251-35060 · 33251-35061 · 33251-38010 |
| 33251E | Cable (for gear shift and selector lever) | 90580-14051 |
| 33251F | Pin or bolt (for shift lever) | 33218-35010 |
| 33261C | shift lever shaft | 33261-20010 |
| 33264 | No. 1 shift interlock pin or steel ball | 33264-22010 · 33264-30010 · 90360-10003 · 90361-10002 · 90361-10003 |
| 33264A | interlocking hole plug | 90341-10065 |
| 33265 | No. 2 shift interlock pin | 33265-22010 · 33265-30010 · 33266-22010 · 90250-05020 · 90250-06007 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-10010 · 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14061 · 90501-14062 · 90501-14090 · 90501-14123 · 90501-14132 · 90501-15040 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-10061 |
| 33276 | No. 2 shift lock steel ball spring seat | 33275-10010 · 90341-12005 · 90341-12008 · 90341-12018 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-10061 · 90501-14090 · 90501-14123 · 90501-15040 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-22020 · 33280-22030 · 33280-30040 · 33280-30041 · 33280-30050 · 33280-30051 · 33280-35020 · 33280-35021 · 33280-35030 · 33280-35031 |
| 33280A | Reverse gear positioning pin gasket | 90430-18008 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 · 90341-12008 |
| 33283F | Reverse gear positioning pin | 33280-22010 · 33280-30060 · 33280-30061 · 33280-35040 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 · 90254-05016 |
| 33293 | Reverse gear positioning steel ball retainer | 33293-30010 |
| 33293A | Pad (for reverse gear positioning steel ball holder) | 90430-18008 |
| 33293B | Compression spring (for reverse gear positioning steel ball) | 90501-16041 |
| 33293C | Steel ball (for reverse gear positioning) | 90360-10003 |
| 33519A | Clamp (for control shaft boot assembly) | 90467-17126 |
| 33521 | shift lever housing | 33502-35260 · 33521-30020 · 33521-35070 · 33521-35180 · 33521-35221 |
| 33521F | Pin or bolt (for shifter housing) | 33218-35010 · 90105-08079 · 90109-08305 · 90113-08001 |
| 33521G | Wiring harness (for shift lever housing) | 90580-14049 |
| 33521P | Lock washer (for shift lever housing) | 90215-09003 |
| 33555D | Gear shift lever dust cover | 33555-20010 |
