Toyota HILUX 分电器 — Figure 1902

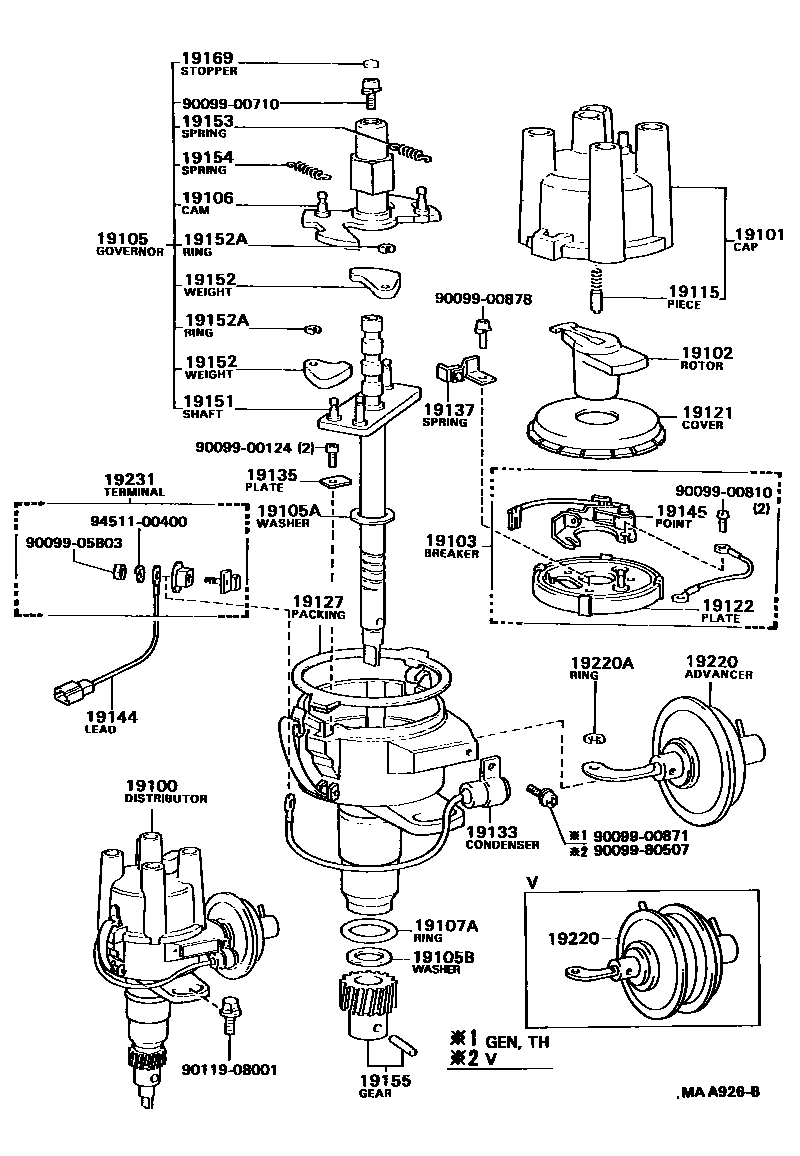

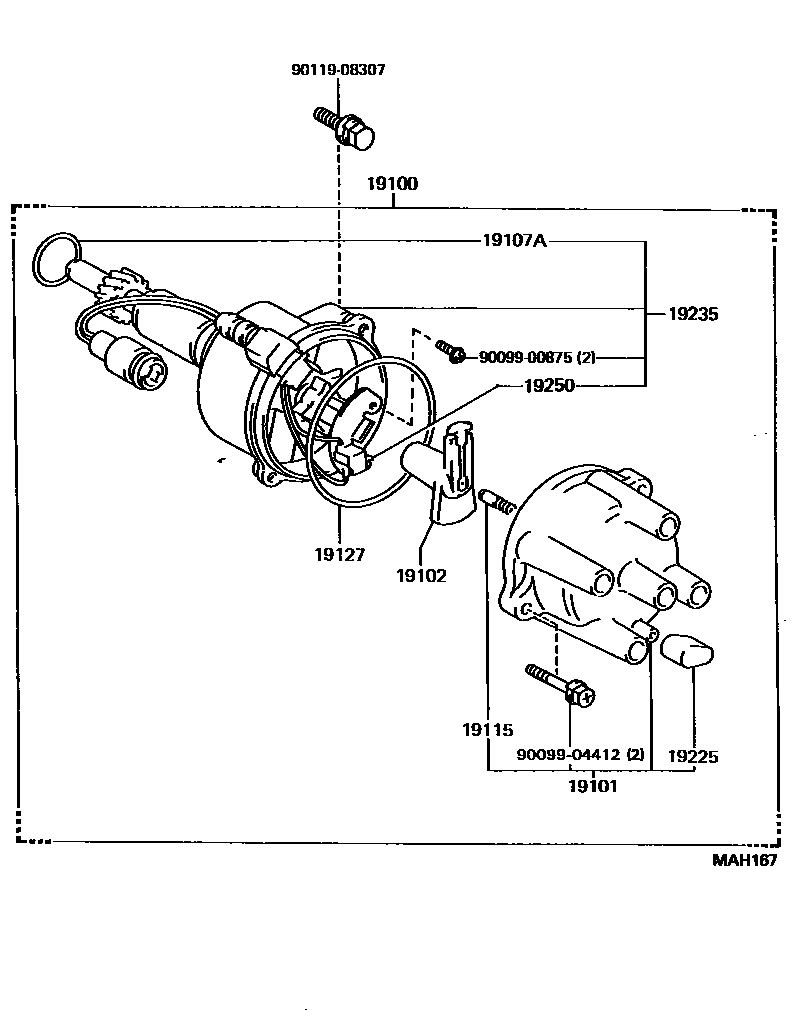

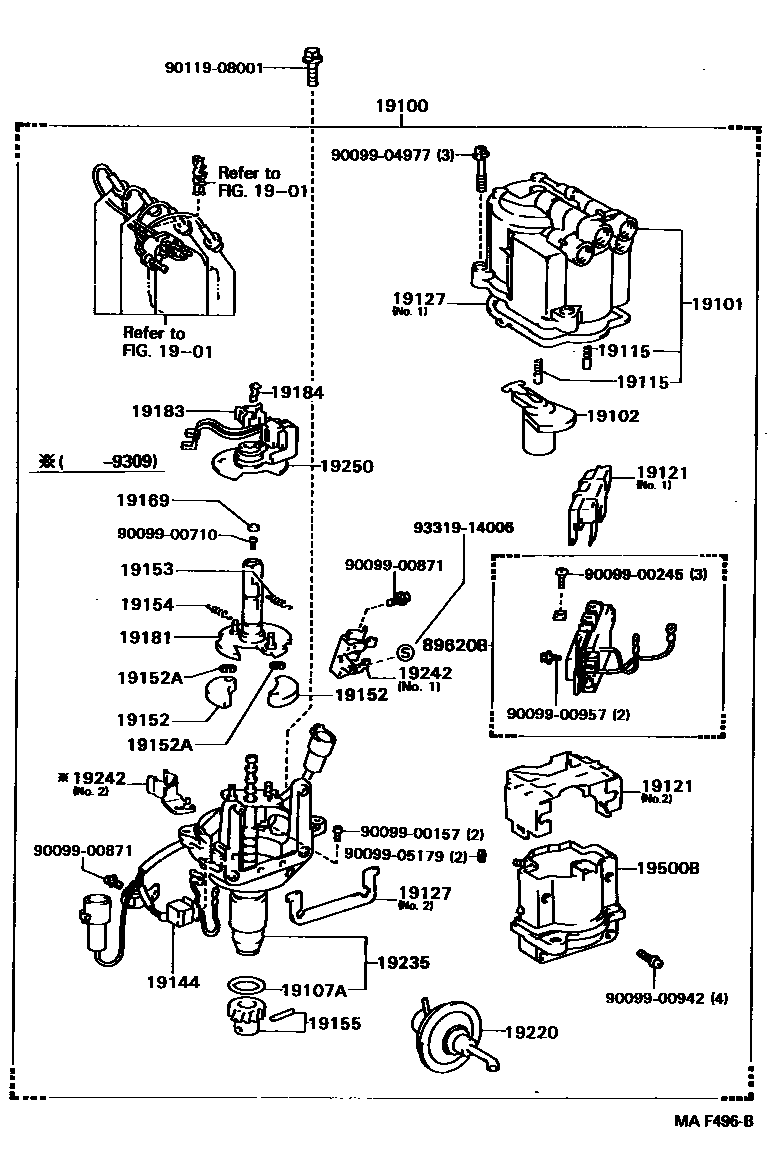

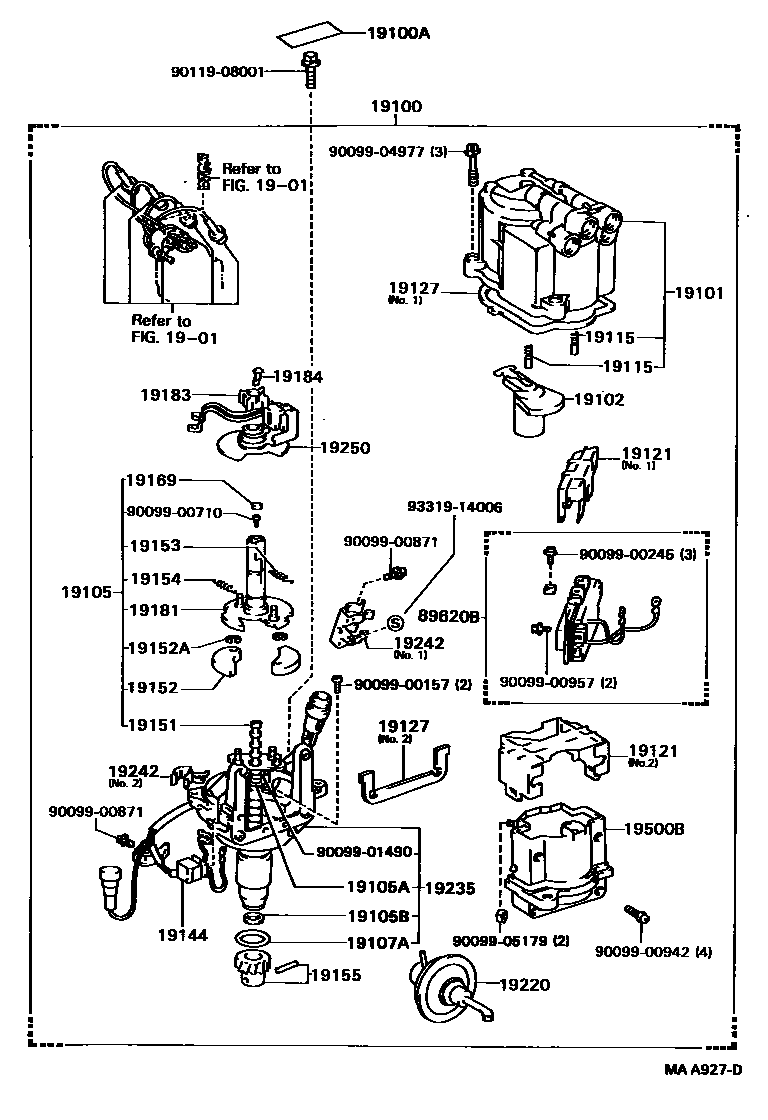

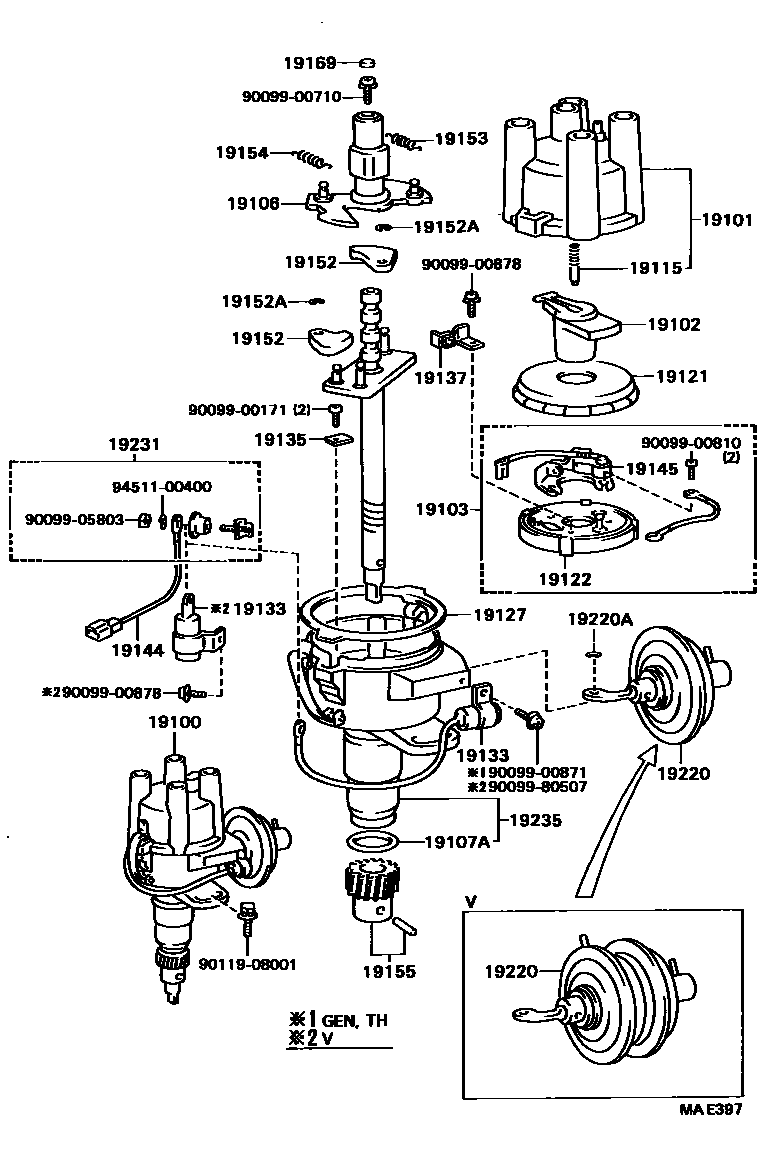

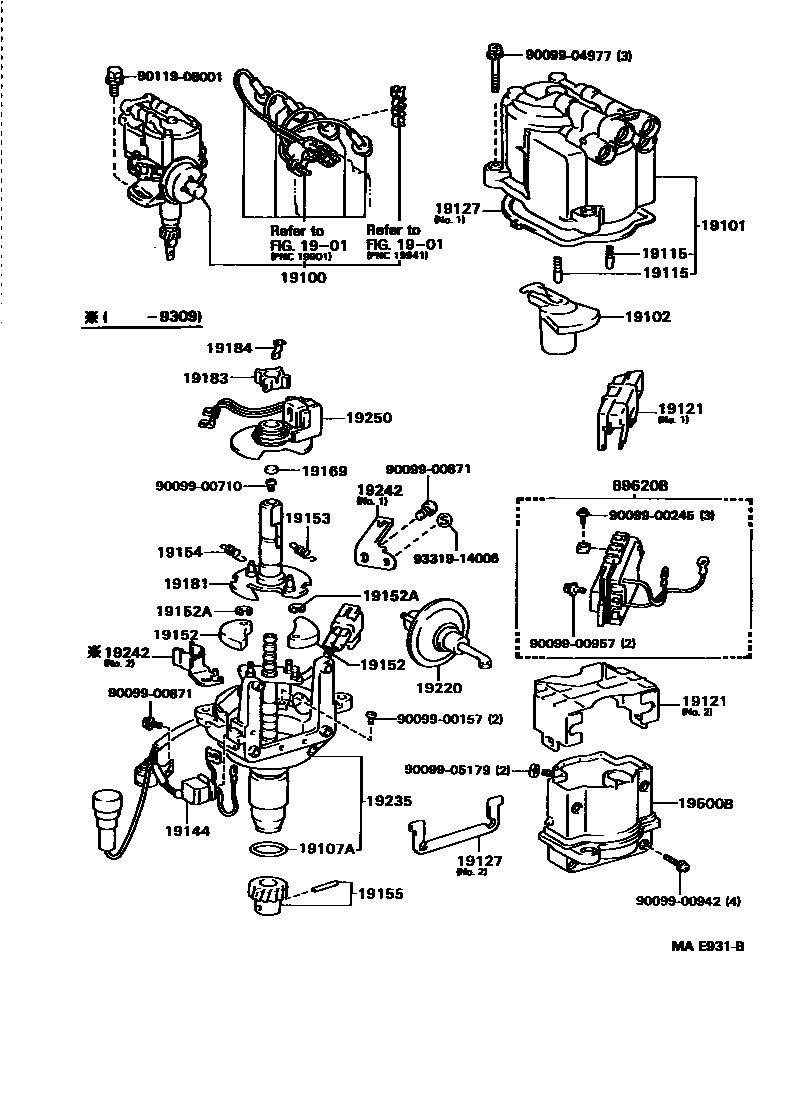

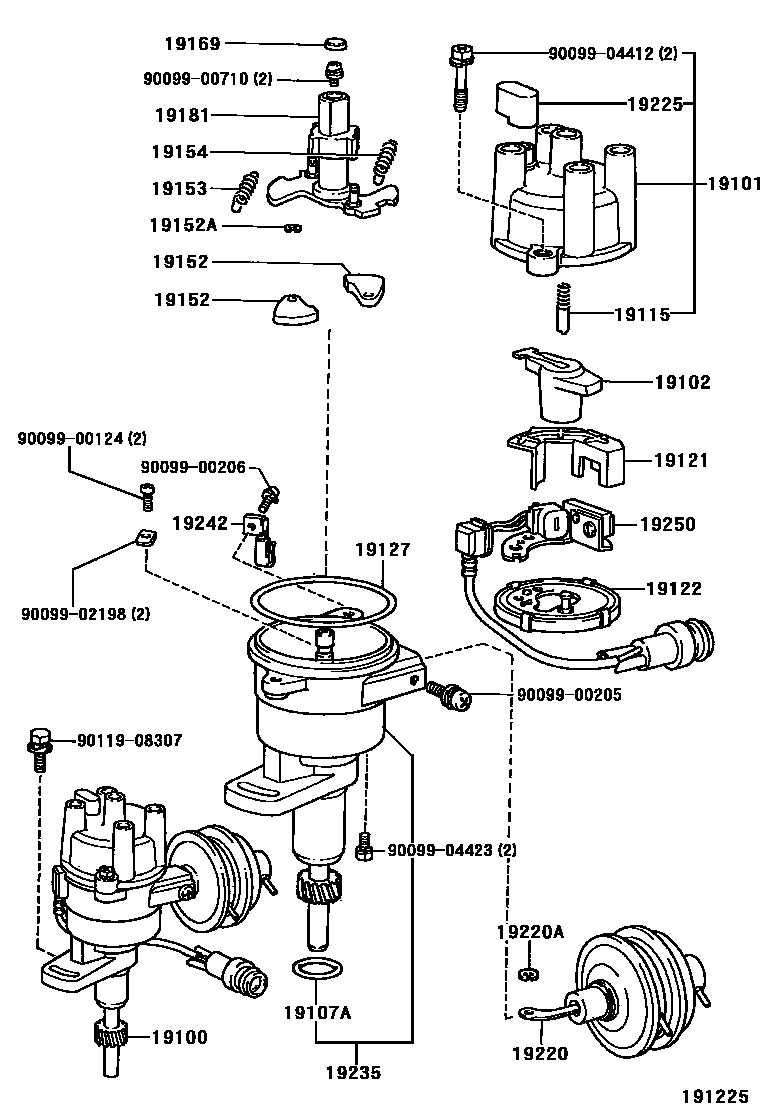

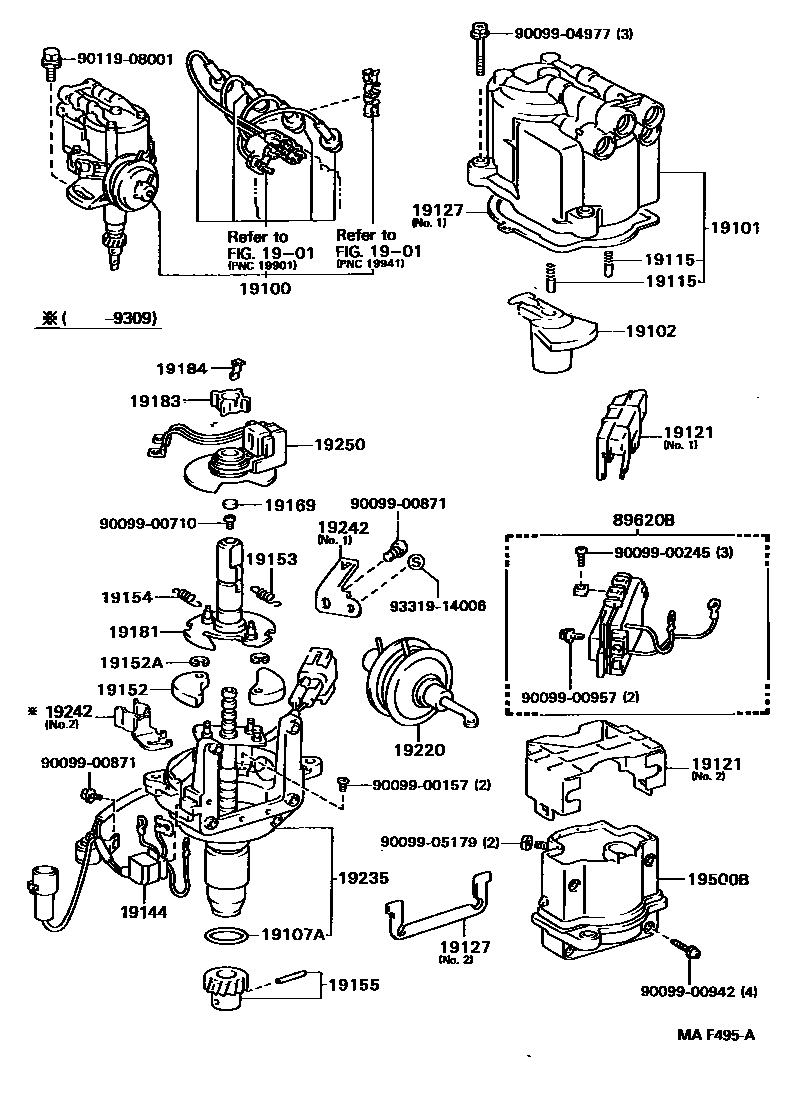

Toyota HILUX EPC diagram 1902, 分电器, with 8 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-71060 · 19030-72050 · 19030-72061 · 19030-72080 · 19030-72100 · 19030-73080 · 19100-35140 · 19100-35160 · 19100-35250 · 19100-35260 · 19100-35270 · 19100-71010 · 19100-73040 · 19100-73050 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-35010 · 19101-35140 · 19101-71010 · 19101-71020 |
| 19102 | Distributor flame head sub-assembly | 19102-16040 · 19102-16060 · 19102-26151 · 19102-33012 · 19102-73021 · 19102-73060 · 19102-75010 |
| 19103 | Distributor breaker sub-assembly | 19103-26211 |
| 19105 | Speed governor sub-assembly | 19105-71011 · 19105-71060 · 19105-72050 · 19105-73040 |
| 19105A | Thrust washer (for governor shaft) | 90099-01385 · 90099-01386 · 90099-01387 · 90099-01412 · 90099-01486 · 90099-01487 · 90099-01488 · 90099-01489 |
| 19105B | Thrust Washer No. 2 (for governor shaft) | 90099-01429 |
| 19106 | Distributor cam sub-assembly | 19106-34090 · 19106-71010 · 19106-73020 · 19106-88220 |
| 19107A | Distributor housing O-ring | 90099-14020 · 90099-14090 · 90099-14106 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-88280 |
| 19121 | dust cover | 19121-38030 · 19121-38210 · 19121-63010 · 19121-63040 |
| 19122 | Distributor fixing plate | 19122-26211 · 19122-88262 |
| 19127 | Dust seal | 19127-15010 · 19127-15021 · 19127-63010 · 19127-63020 |
| 19133 | Distributor capacitor | 90099-52059 · 90099-52070 |
| 19135 | fixed plate | 90099-02198 |
| 19137 | Shock absorber spring sub-assembly | 19137-33012 |
| 19144 | Distributor breaker lead | 19144-34180 · 19144-34190 · 19144-71020 · 19144-71061 · 19144-72020 · 19144-72040 · 19144-73060 · 19144-73070 |
| 19145 | Distributor contacts | 19145-26060 |
| 19151 | governor shaft | 19151-71010 · 19151-71020 |
| 19152 | Speed regulator weight | 19152-63010 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-35140 · 19153-35160 · 19153-71012 · 19153-71060 · 19153-72050 · 19153-72060 · 19153-73040 · 19153-73071 |
| 19154 | B governor spring | 19153-71012 · 19153-71060 · 19153-72050 · 19153-72060 · 19154-35140 · 19154-35160 · 19154-73040 · 19154-73070 |
| 19155 | Distributor spiral gear | 19195-71010 · 19195-71011 · 19195-72090 |
| 19169 | Cam grease stop | 19169-63011 |
| 19181 | Distributor signal distributor | 19181-31170 · 19181-35010 · 19181-35020 · 19181-35140 · 19181-71060 · 19181-72011 · 19181-72040 · 19181-73050 · 19181-74060 |
| 19183 | Signal splitter | 19183-63030 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19220 | Distributor vacuum advance device assembly | 19220-35140 · 19220-35160 · 19220-71011 · 19220-71030 · 19220-71060 · 19220-72060 · 19220-72070 · 19220-73030 · 19220-73050 · 19220-73080 · 19220-73090 · 19220-73140 |
| 19220A | Snap ring (for distributor vacuum advance device) | 90099-07109 |
| 19225 | rubber cap | 19225-35190 · 19225-41140 |
| 19231 | Distributor terminals | 19231-24140 |
| 19235 | Distributor housing | 19235-35010 · 19235-35160 · 19235-71010 · 19235-71020 · 19235-71030 · 19235-72011 |
| 19242 | Cable clip | 19242-37080 · 19242-71010 · 19242-71061 · 19242-72030 |
| 19250 | Signal generator assembly | 19250-35010 · 19250-35020 · 19250-37080 · 19251-63011 |
| 19500B | Ignition coil assembly | 90919-02139 |
| 89620B | Ignition assembly | 89620-32020 |
