Toyota HILUX vacuum tube — Figure 1708

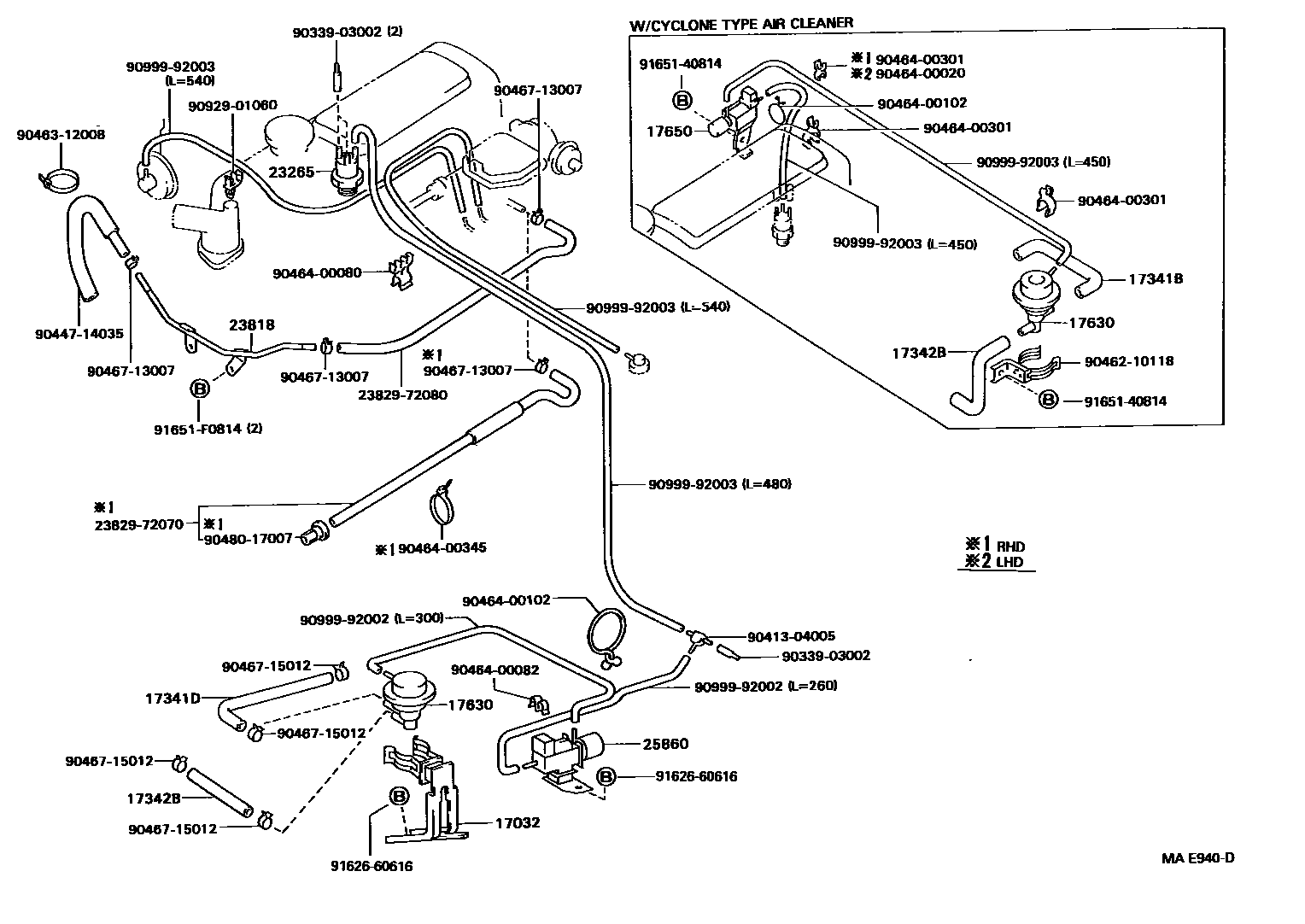

Toyota HILUX EPC diagram 1708, vacuum tube, with 18 images and 36 PNC and OE references.

Toyota HILUX vacuum tube EPC diagram — 170021 — vacuum tube — 170021 (198808 – 999999)

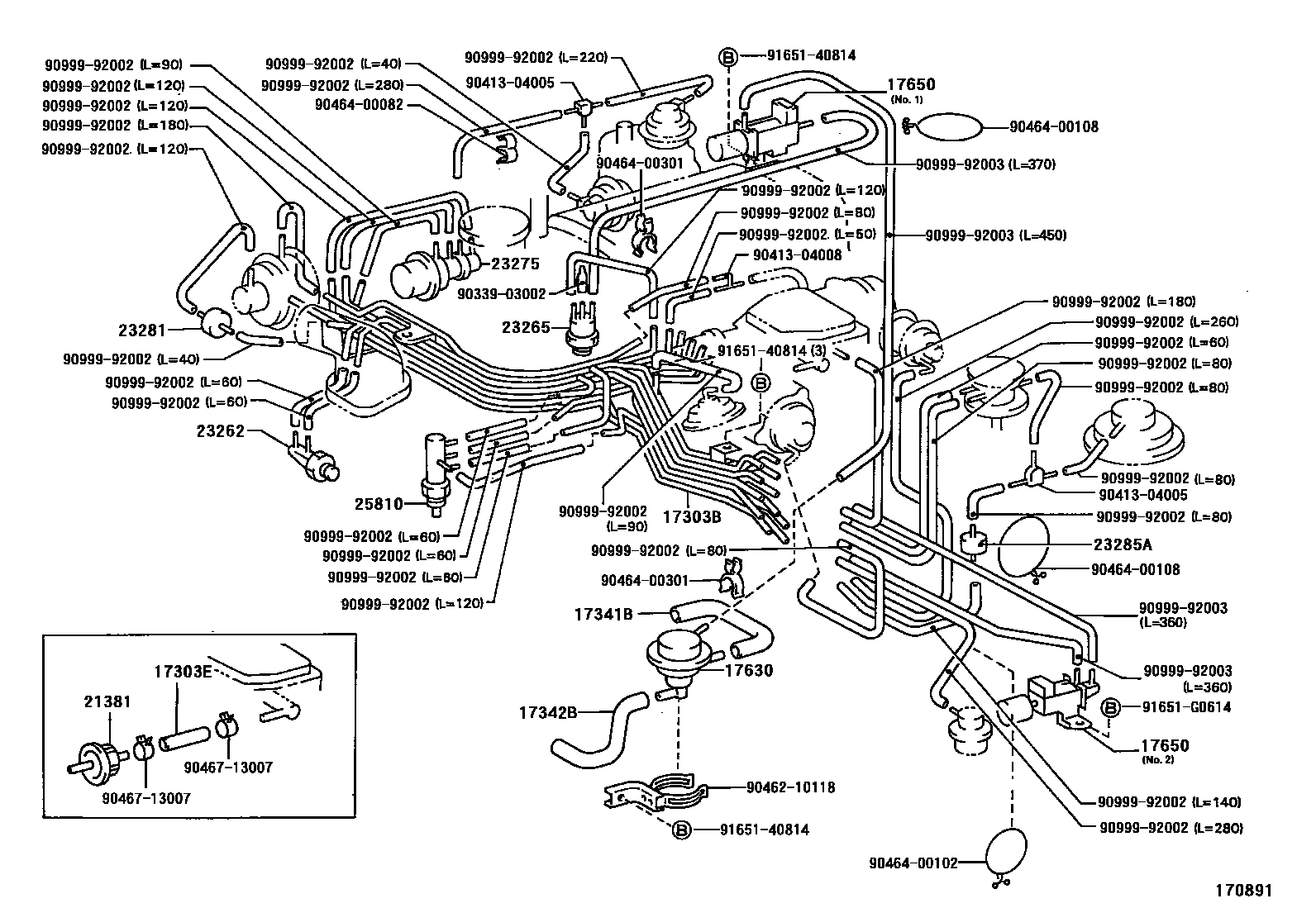

Toyota HILUX vacuum tube EPC diagram — 170891 — vacuum tube — 170891 (199401 – 199504)

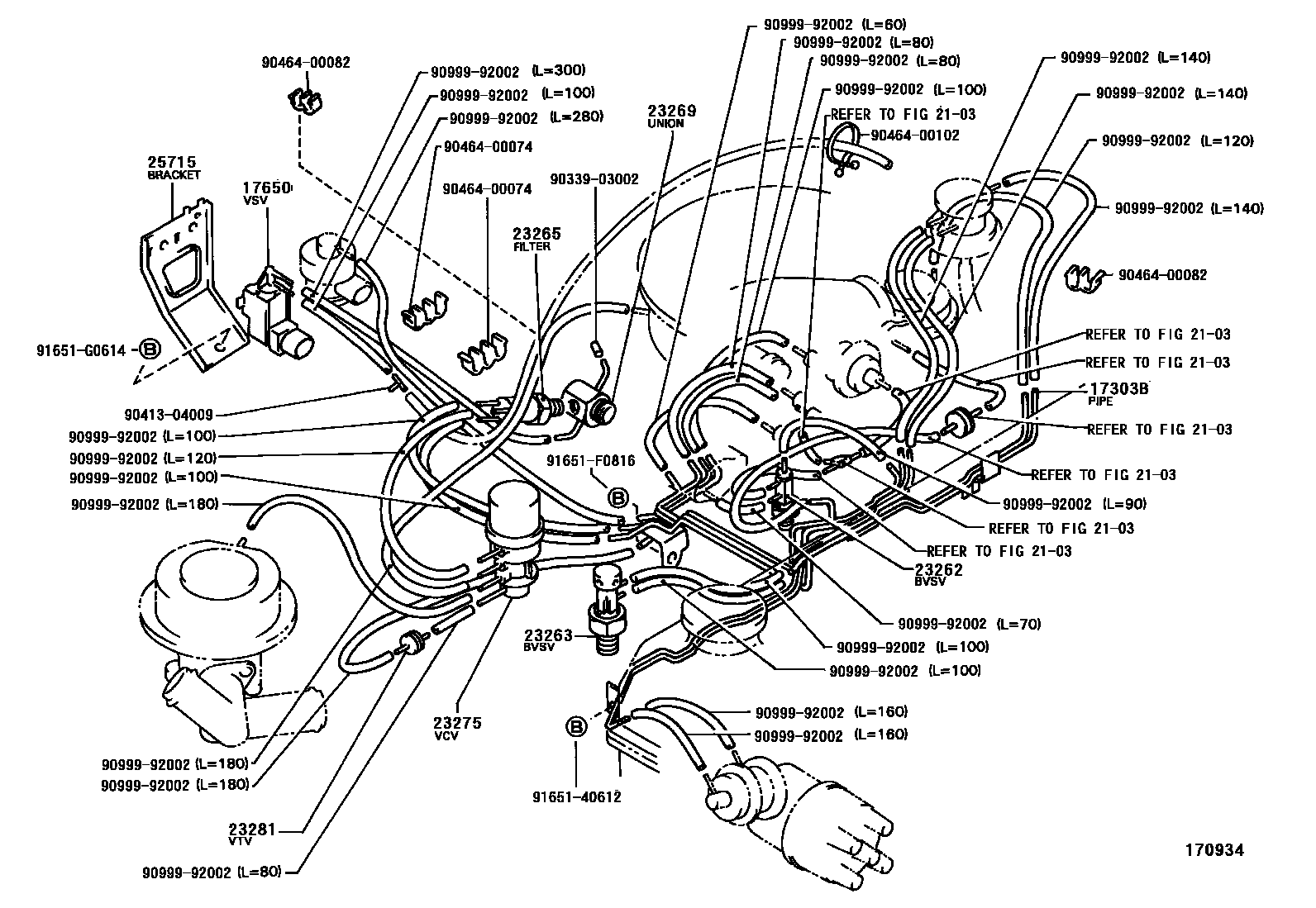

Toyota HILUX vacuum tube EPC diagram — 170934 — vacuum tube — 170934 (198808 – 199008)

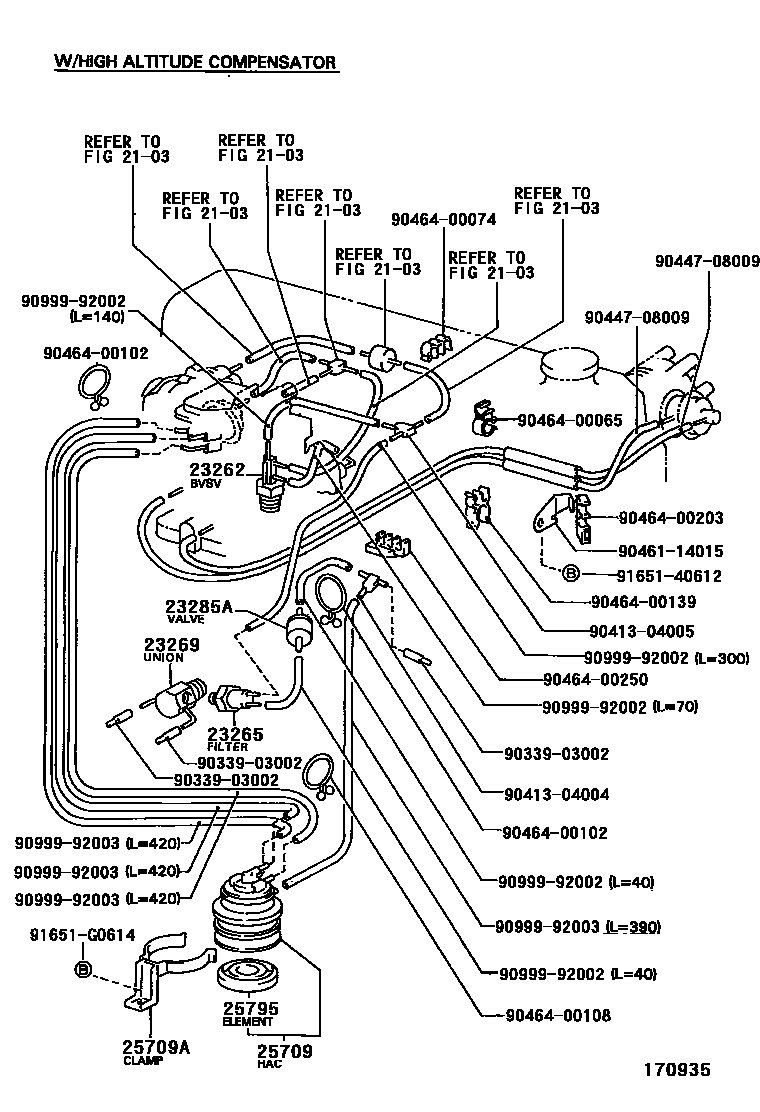

Toyota HILUX vacuum tube EPC diagram — 170935 — vacuum tube — 170935 (199108 – 999999)

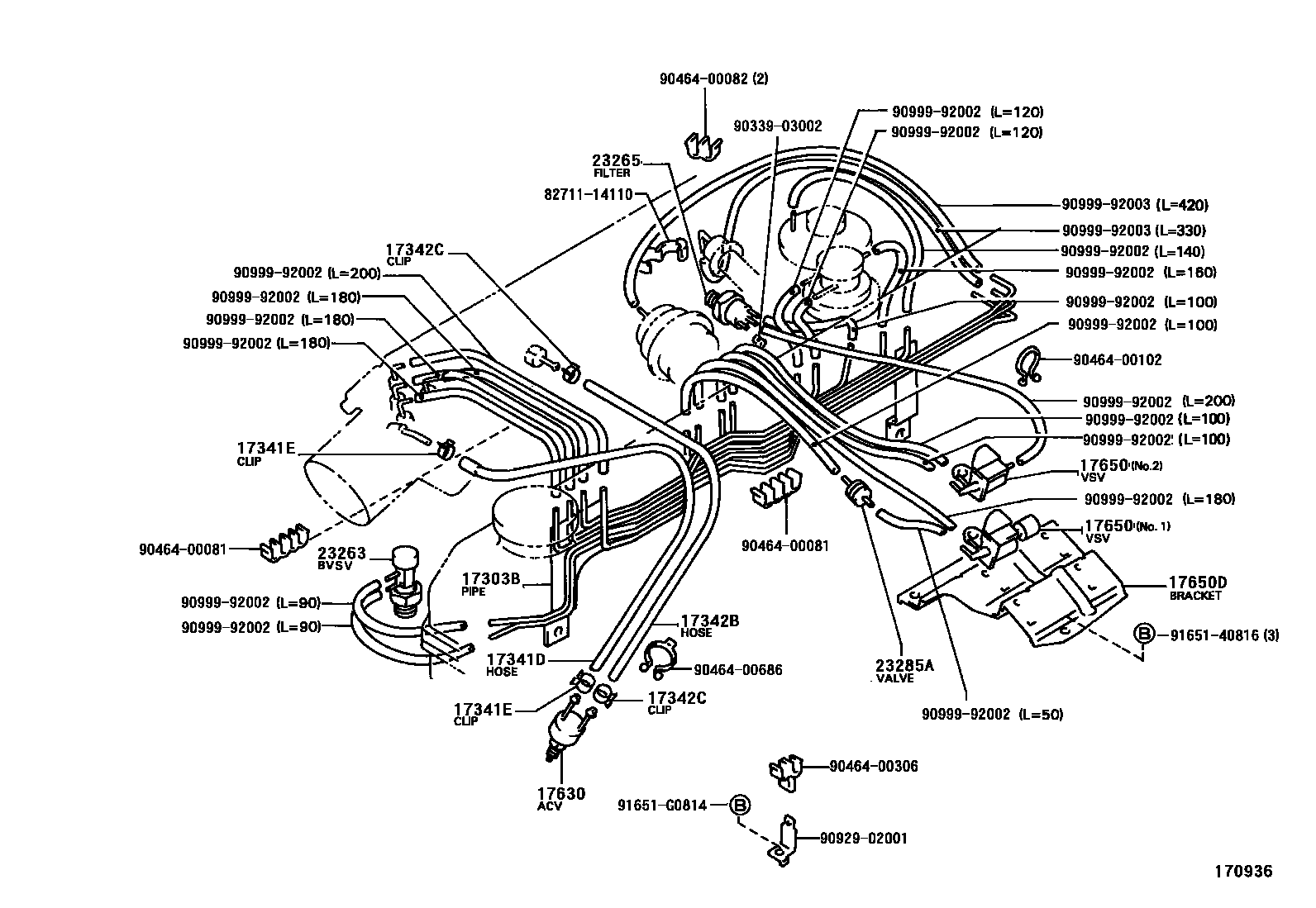

Toyota HILUX vacuum tube EPC diagram — 170936 — vacuum tube — 170936 (199401 – 999999)

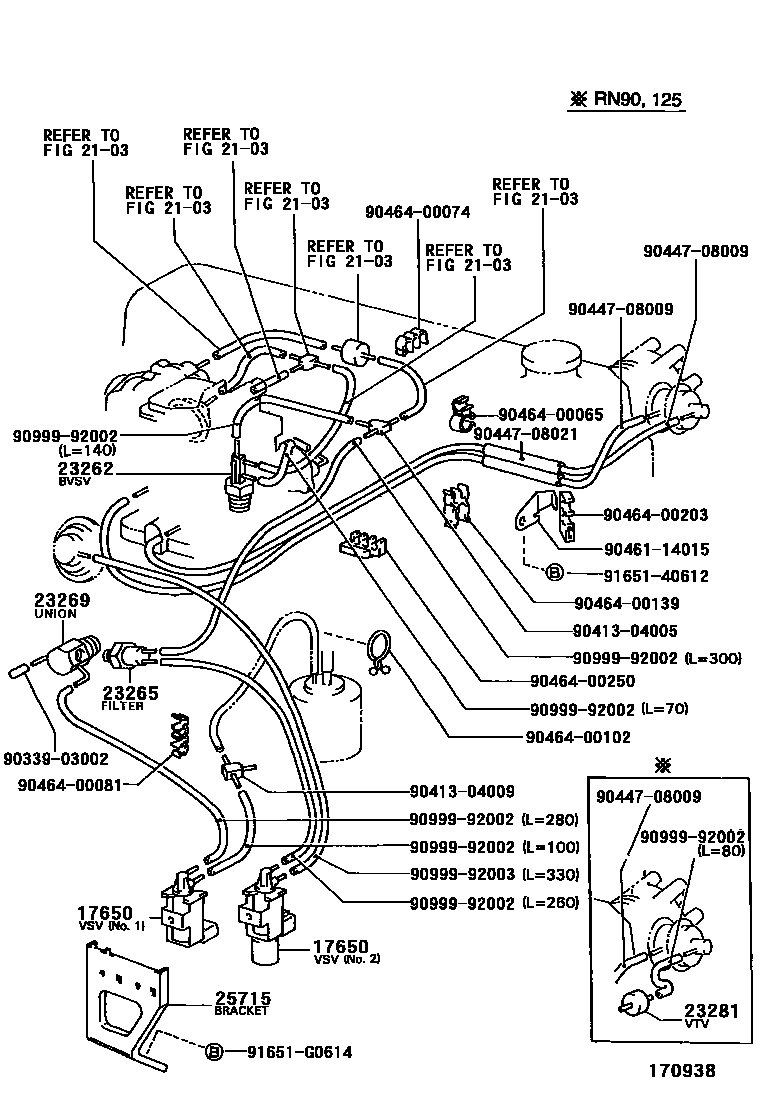

Toyota HILUX vacuum tube EPC diagram — 170938 — vacuum tube — 170938 (198808 – 999999)

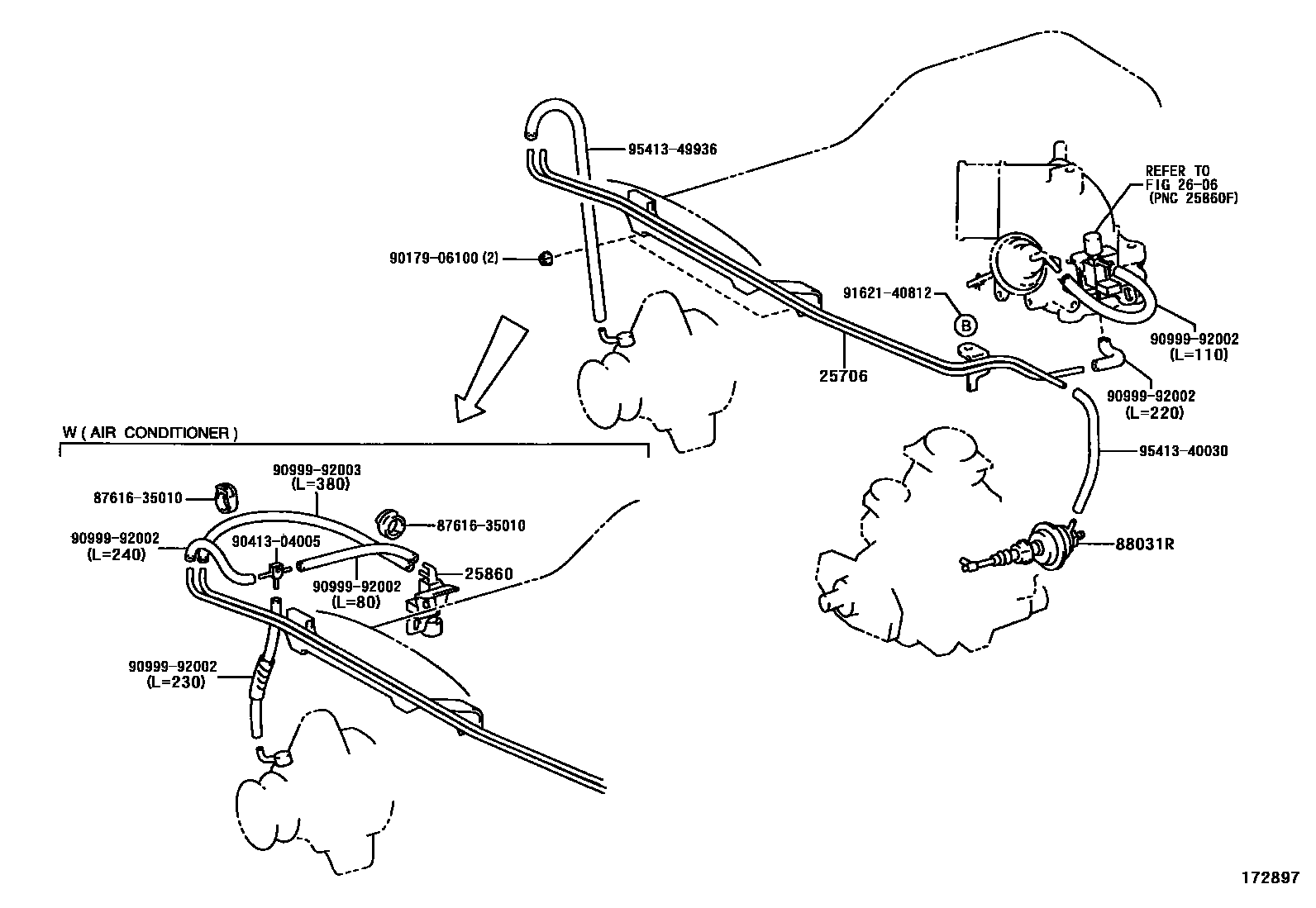

Toyota HILUX vacuum tube EPC diagram — 172897 — vacuum tube — 172897 (200106 – 999999)

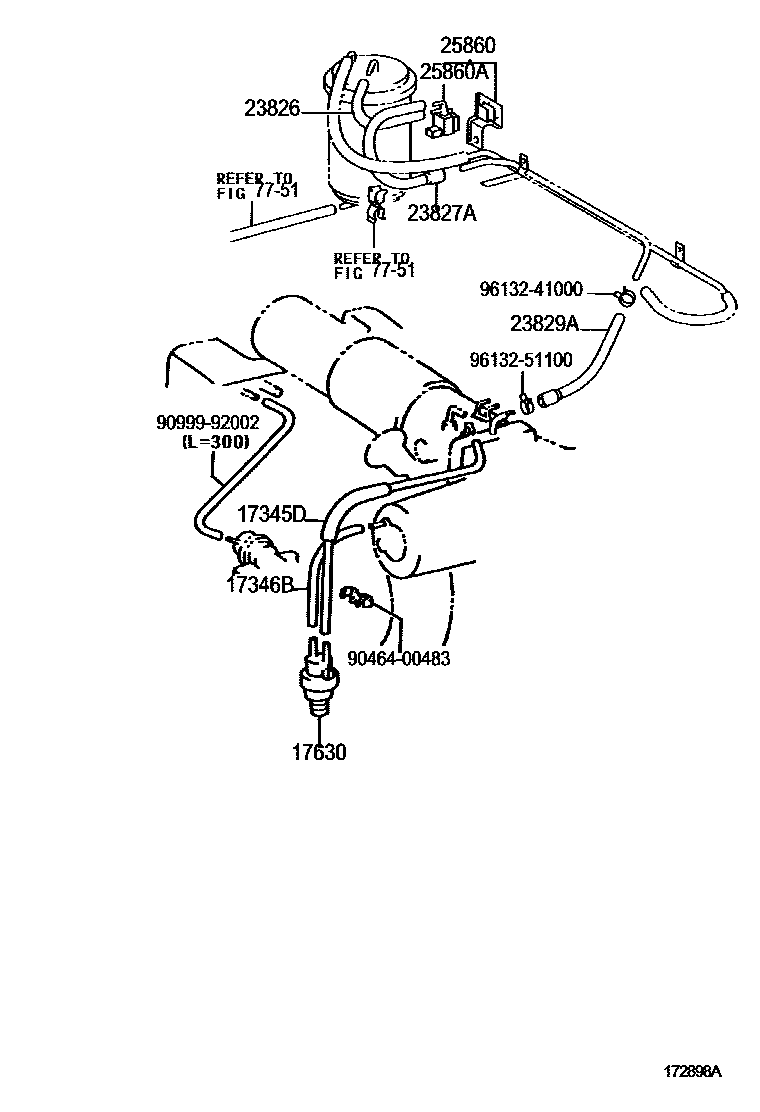

Toyota HILUX vacuum tube EPC diagram — 172898A — vacuum tube — 172898A (200105 – 999999)

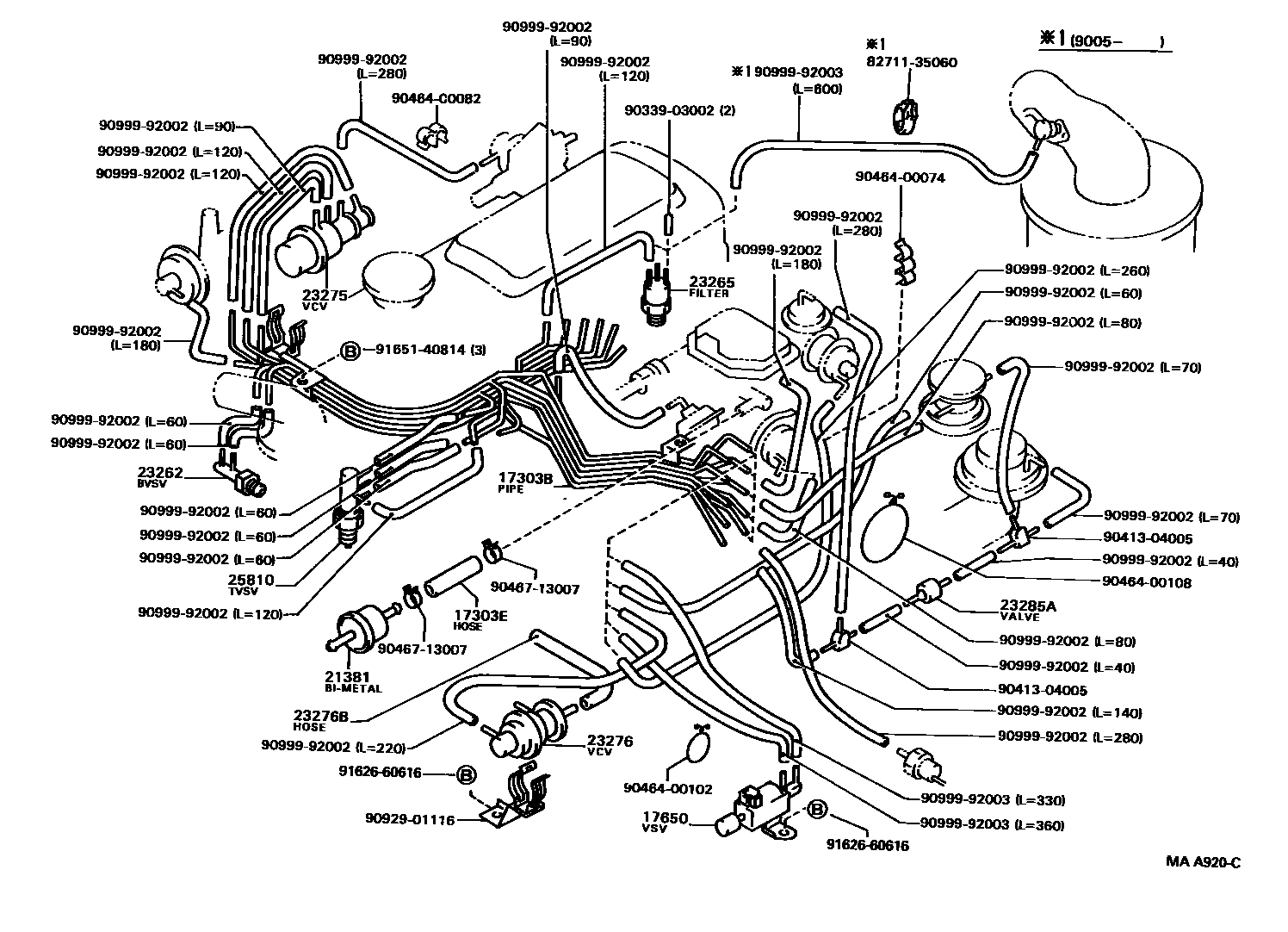

Toyota HILUX vacuum tube EPC diagram — MAA920C — vacuum tube — MAA920C (198808 – 999999)

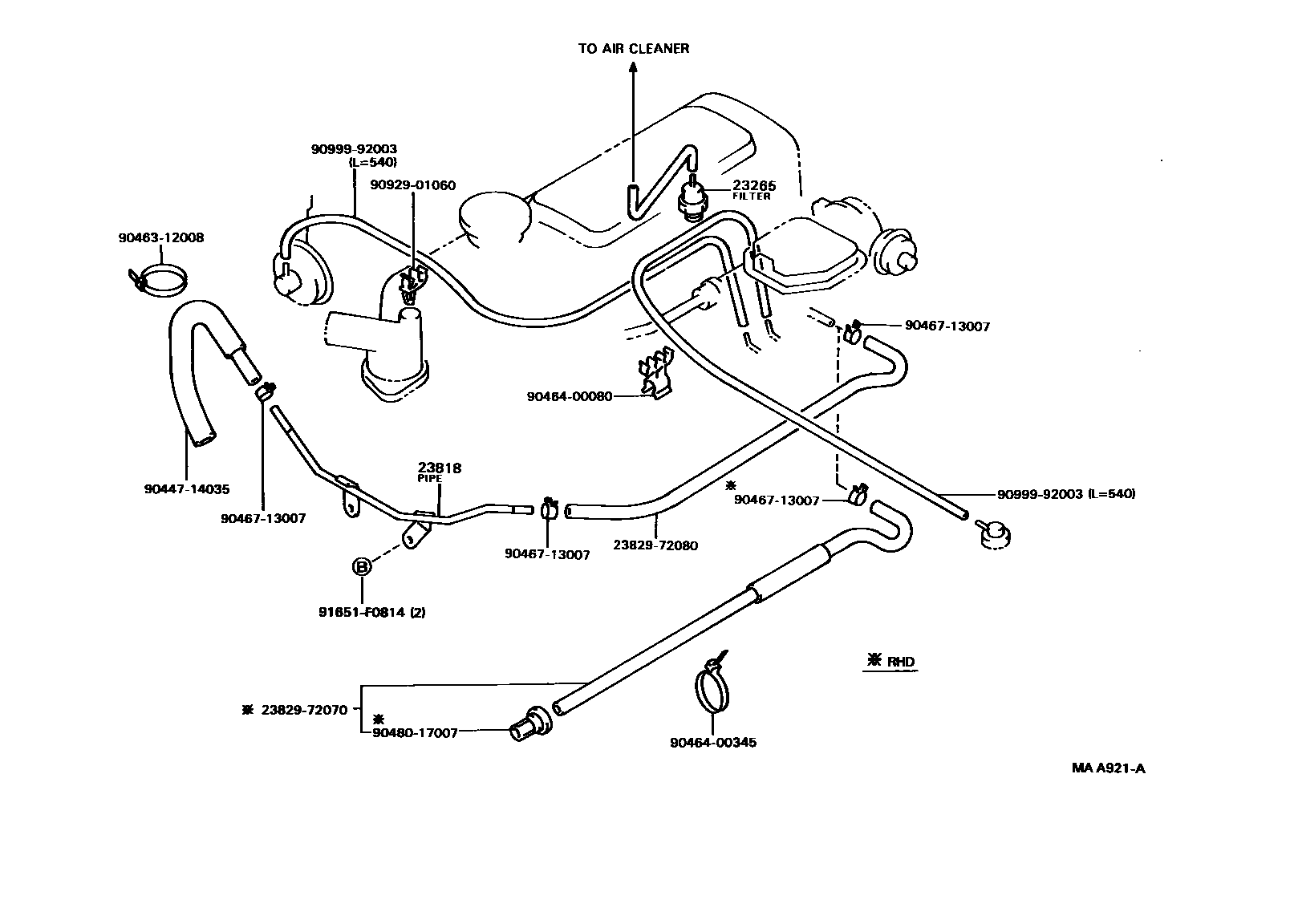

Toyota HILUX vacuum tube EPC diagram — MAA921A — vacuum tube — MAA921A (198808 – 199108)

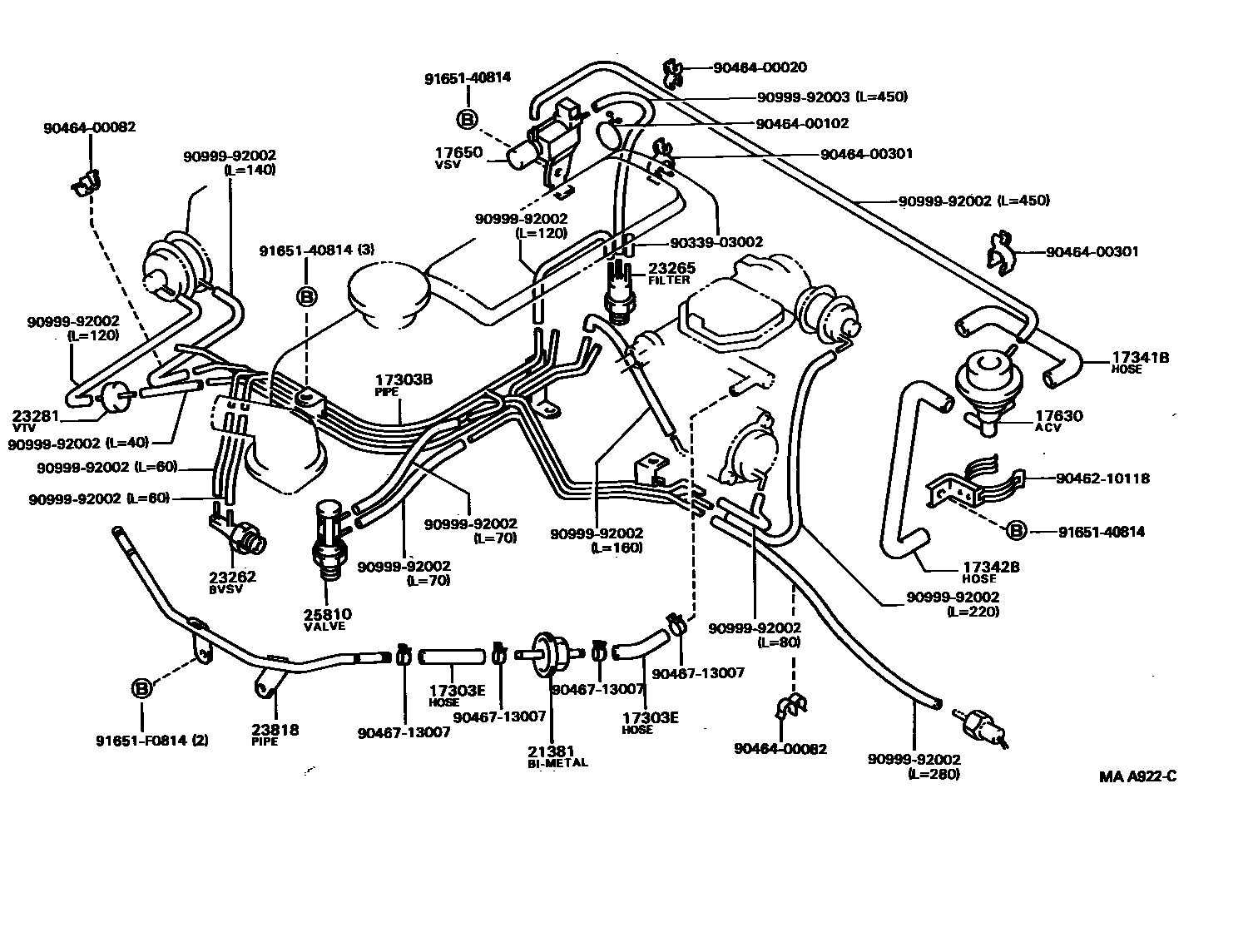

Toyota HILUX vacuum tube EPC diagram — MAA922C — vacuum tube — MAA922C (198808 – 999999)

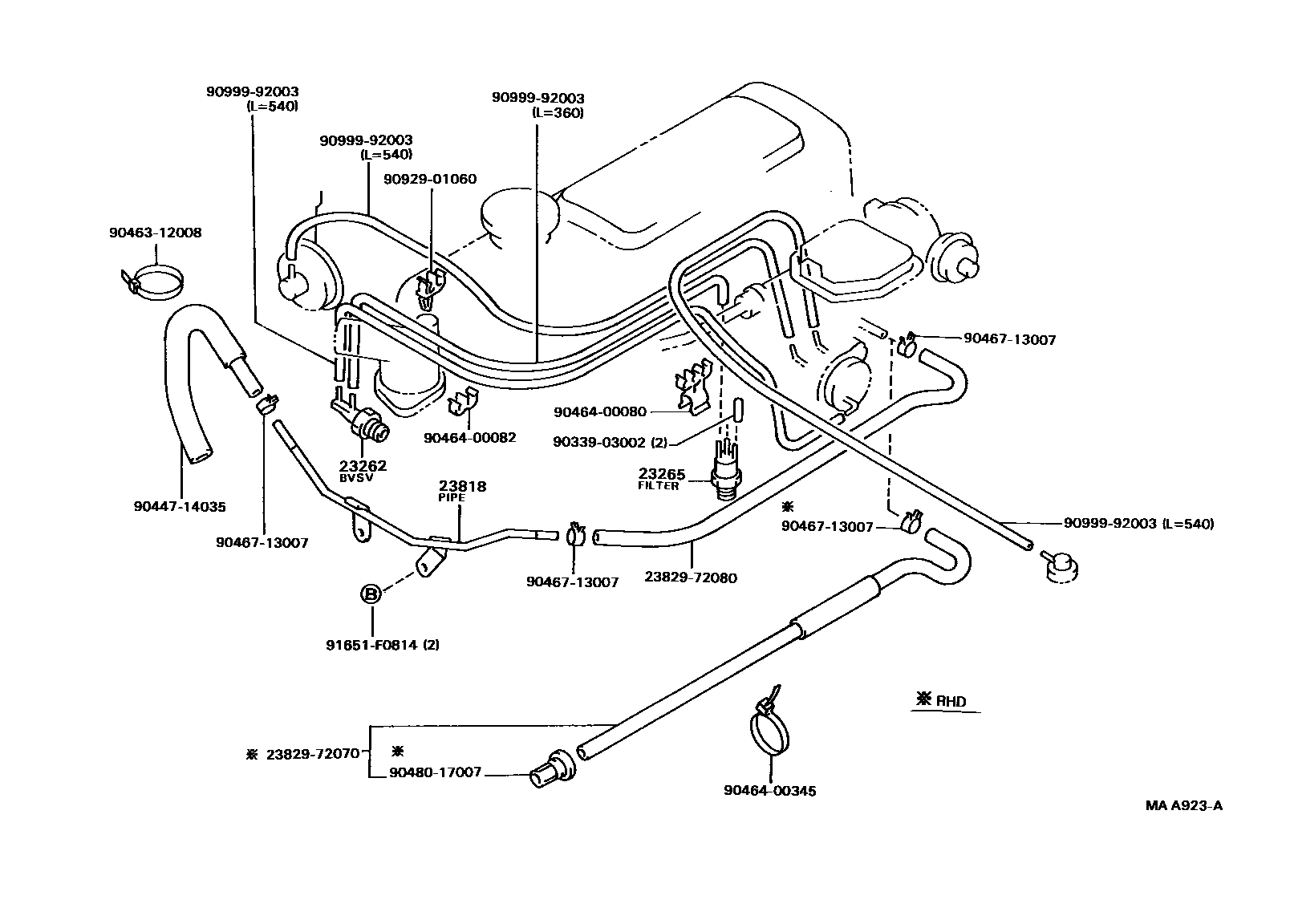

Toyota HILUX vacuum tube EPC diagram — MAA923A — vacuum tube — MAA923A (198808 – 199108)

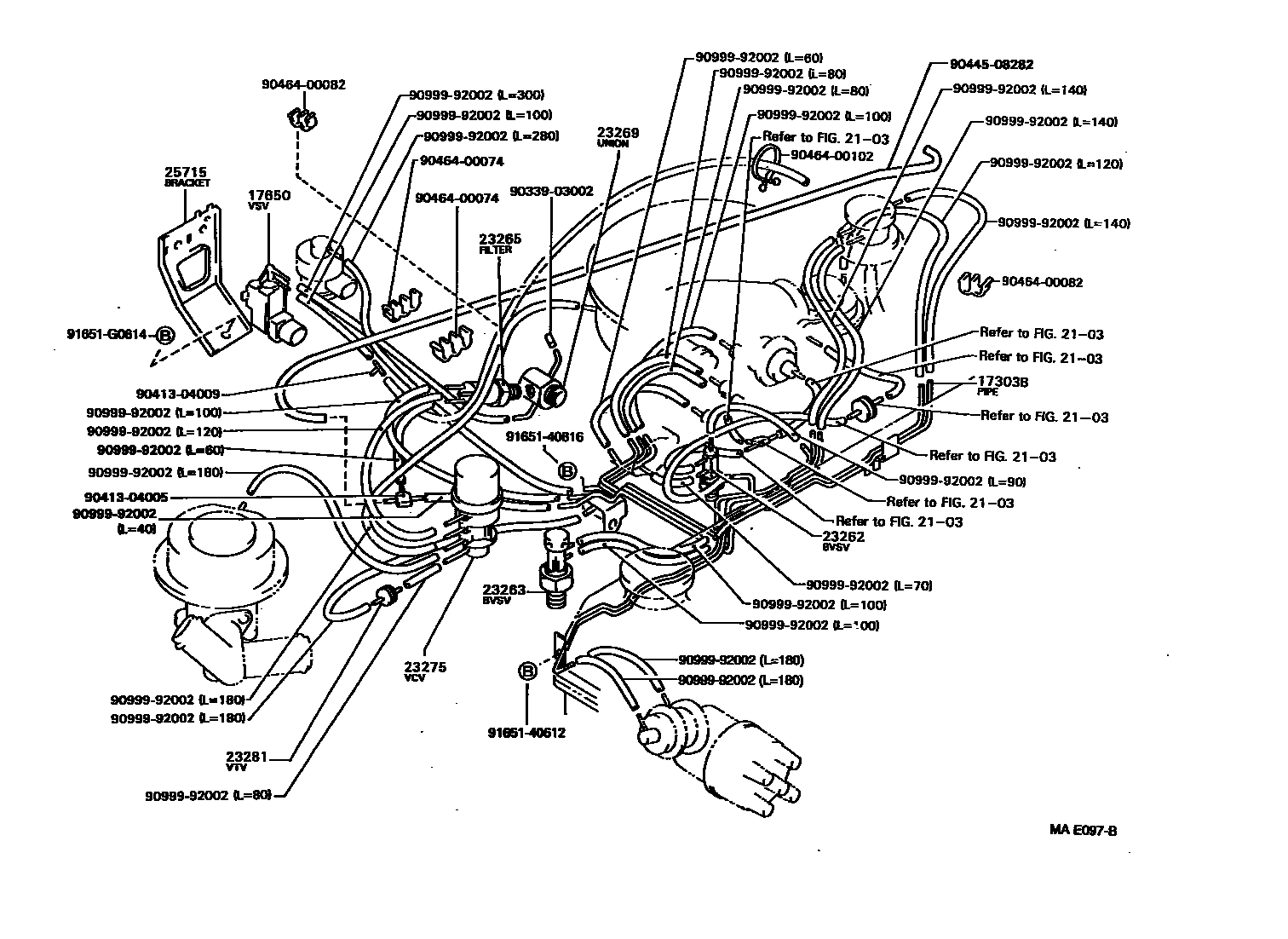

Toyota HILUX vacuum tube EPC diagram — MAE097B — vacuum tube — MAE097B (199008 – 999999)

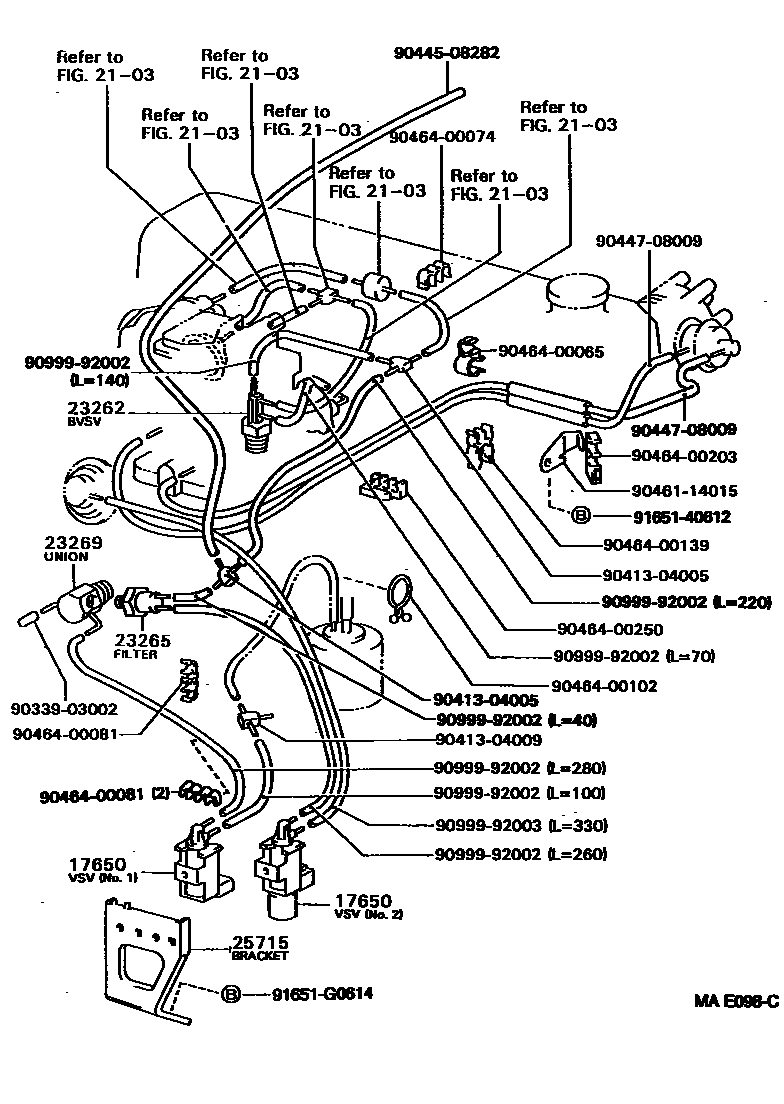

Toyota HILUX vacuum tube EPC diagram — MAE098C — vacuum tube — MAE098C (199008 – 999999)

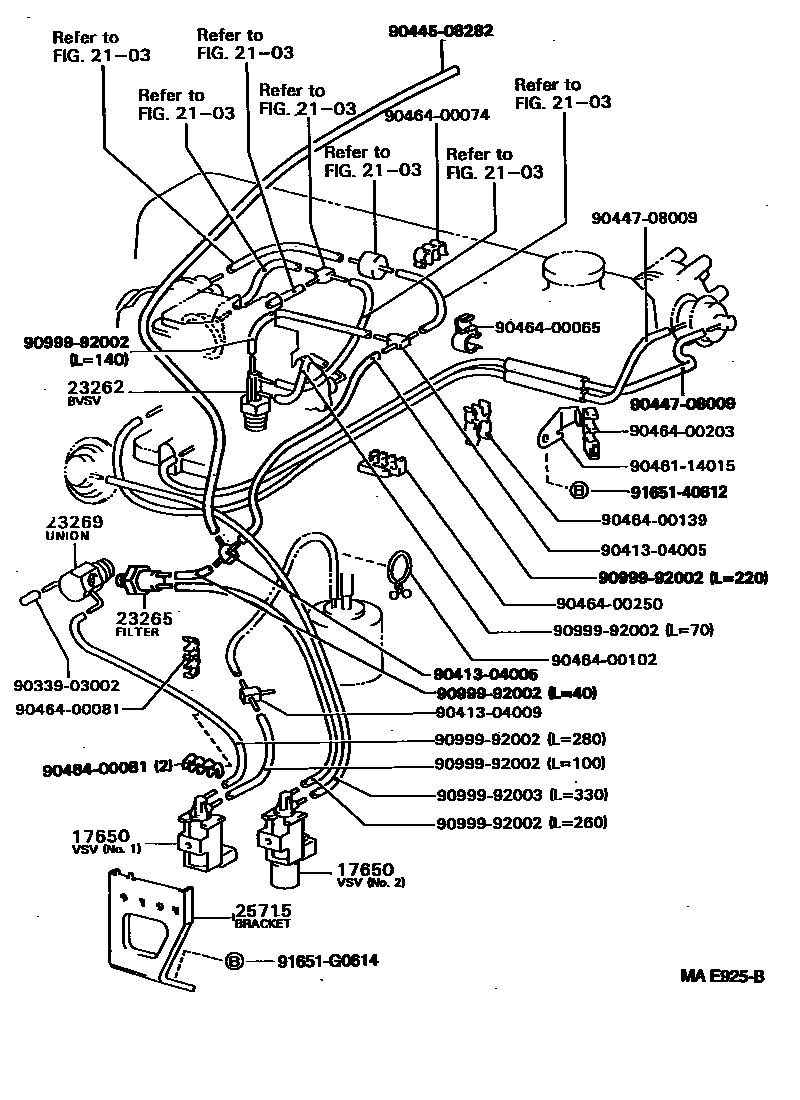

Toyota HILUX vacuum tube EPC diagram — MAE925B — vacuum tube — MAE925B (199108 – 999999)

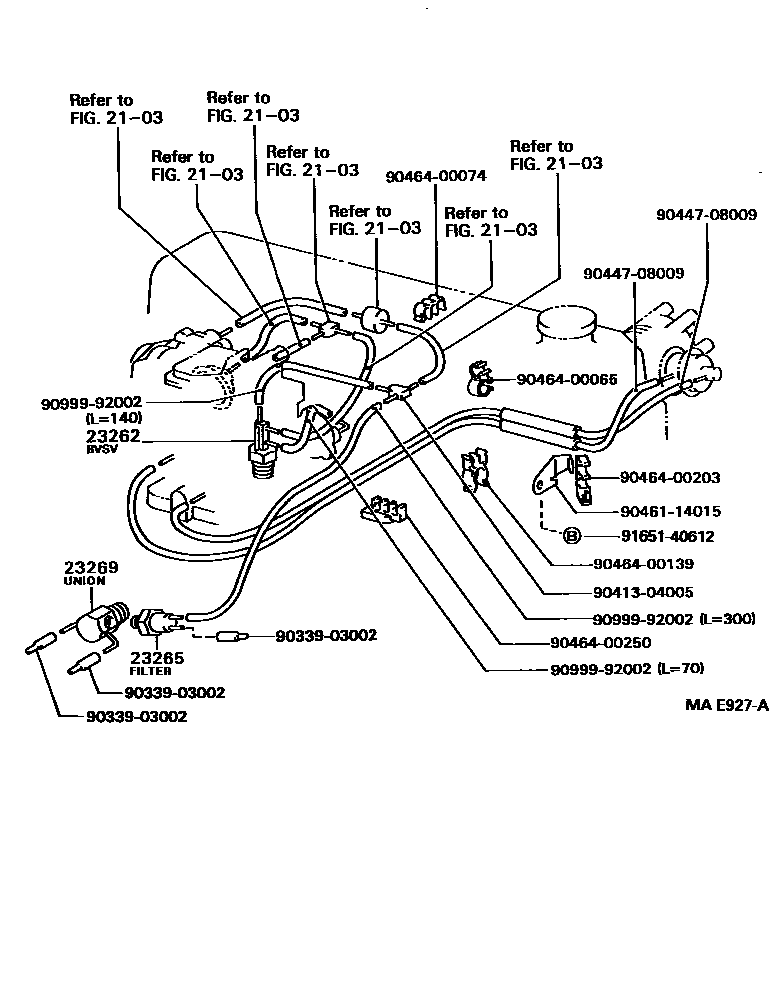

Toyota HILUX vacuum tube EPC diagram — MAE927A — vacuum tube — MAE927A (199505 – 999999)

Toyota HILUX vacuum tube EPC diagram — MAE940D — vacuum tube — MAE940D (199108 – 999999)

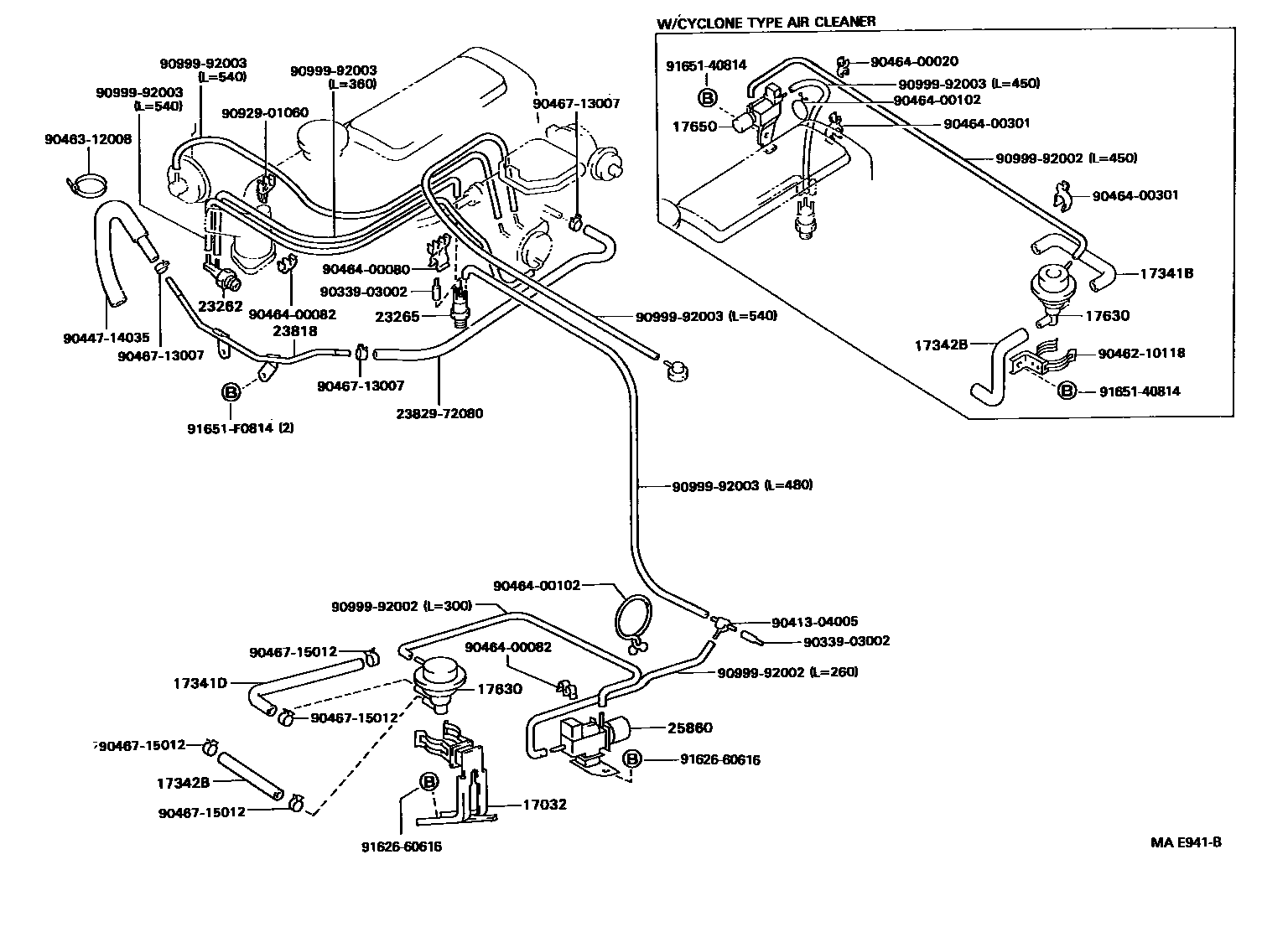

Toyota HILUX vacuum tube EPC diagram — MAE941B — vacuum tube — MAE941B (199108 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17032	Air valve bracket sub-assembly	17032-73010
17303B	No. 1 air pipe sub-assembly	17303-35240 · 17303-35250 · 17303-72021 · 17303-73040 · 17303-73080
17303E	No. 1 hose (for air pipe)	90445-14075 · 90445-14079
17341B	Hoses No. 1 (for air injection systems)	17341-73040
17341D	No. 1 hose (for idle boost)	17341-35180 · 17341-73060 · 17342-35050
17341E	Clamp No. 1 (for idle lift hose)	96132-41000 · 96132-41100
17342B	No. 2 hose (for idle boost)	17342-35050 · 17342-72020 · 17342-73030 · 90445-16040
17342C	Clamp No. 2 (for idle lift hose)	96132-41000
17345D	No. 5 air hose	17345-75010
17346B	No. 6 air hose	17346-75010
17630	Air control valve assembly	17300-73011 · 17300-73020 · 17630-15090 · 17630-28010
17650	Vacuum switch valve assembly	89570-35200 · 90910-12035 · 90910-12036 · 90910-12038 · 90910-12084 · 90910-12085
17650D	Vacuum switch valve bracket	25861-35020
21381	thermostat bimetal	21381-71050
23262	No. 1 bimetallic vacuum switch valve	25810-27010 · 90925-05044
23263	No. 2 bimetallic vacuum switch valve	25820-13010 · 90925-05073
23265	No. 1 gas filter	90917-11022 · 90917-11023 · 90917-11024 · 90917-11027
23269	Connector (for gas filter)	90404-54030
23275	Vacuum control valve No. 1	90925-03104 · 90925-03166
23276	Vacuum control valve No. 2	90925-03162
23276B	Hoses (for vacuum control valve)	90445-11019
23281	Vacuum Transfer Valve No. 1	90925-01014 · 90925-01027 · 90925-01041 · 90925-01084
23285A	No. 1 one-way valve	90917-10049
23818	Fuel vapor supply pipe	23818-71011 · 23818-71012
23826	No. 1 fuel vapor supply hose	23826-75080
23827A	No. 2 fuel vapor supply hose	23827-75210
23829A	Fuel vapor supply hose	23829-75270
25706	No. 1 vacuum transfer tube sub-assembly	25706-54041
25709	High altitude compensator valve sub-assembly	25709-38010
25709A	Clamp (for high altitude compensator valve)	90461-10178
25715	Emission control valve bracket	25715-35050
25795	Altitude compensator filter element	25795-38010
25810	Bimetal valve assembly	25820-37010 · 90925-02077
25860	No. 1 vacuum switch valve assembly	25860-54330 · 25860-73040 · 25860-75240
25860A	No. 1 vacuum switch valve	90910-12187
88031R	Idle speed lift actuator assembly	88031-35130 · 88031-35131
