Toyota HILUX Engine Mounting — Figure 1107

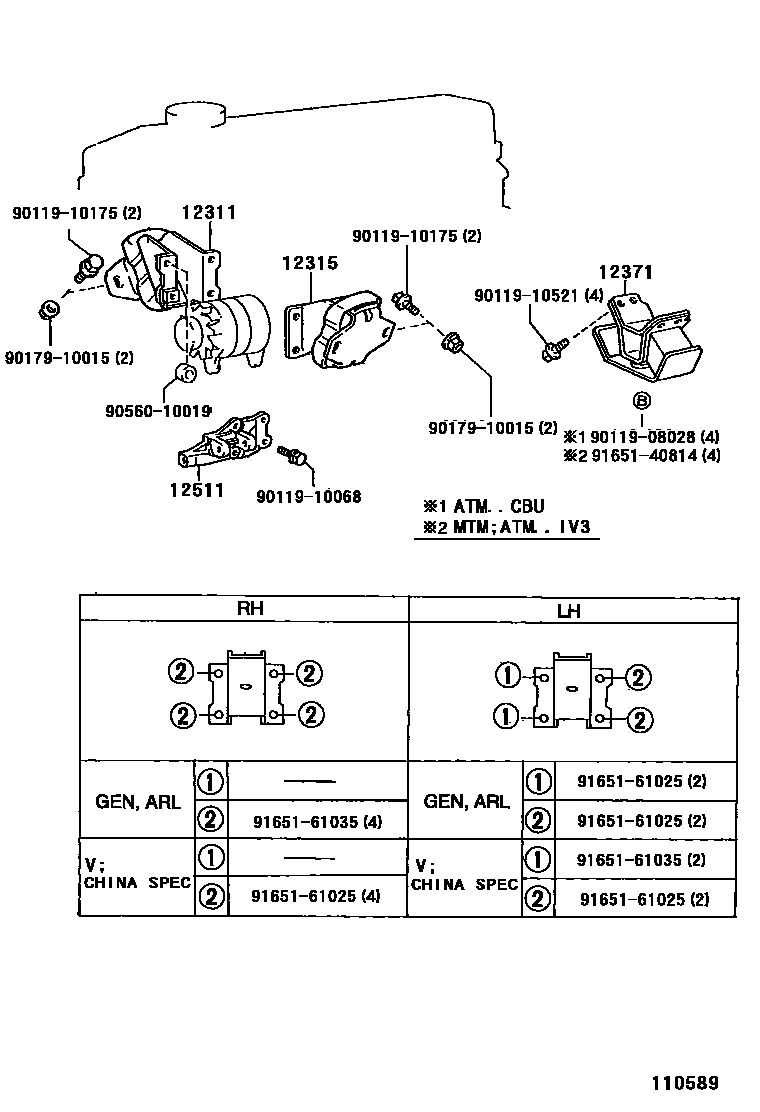

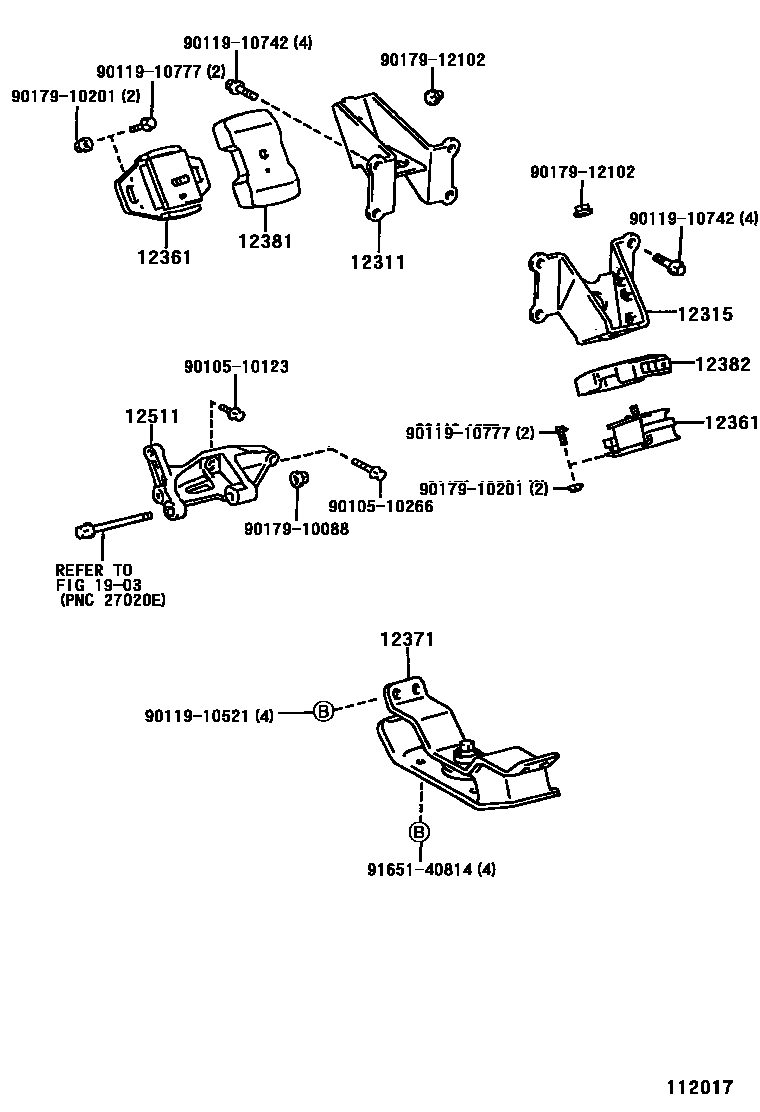

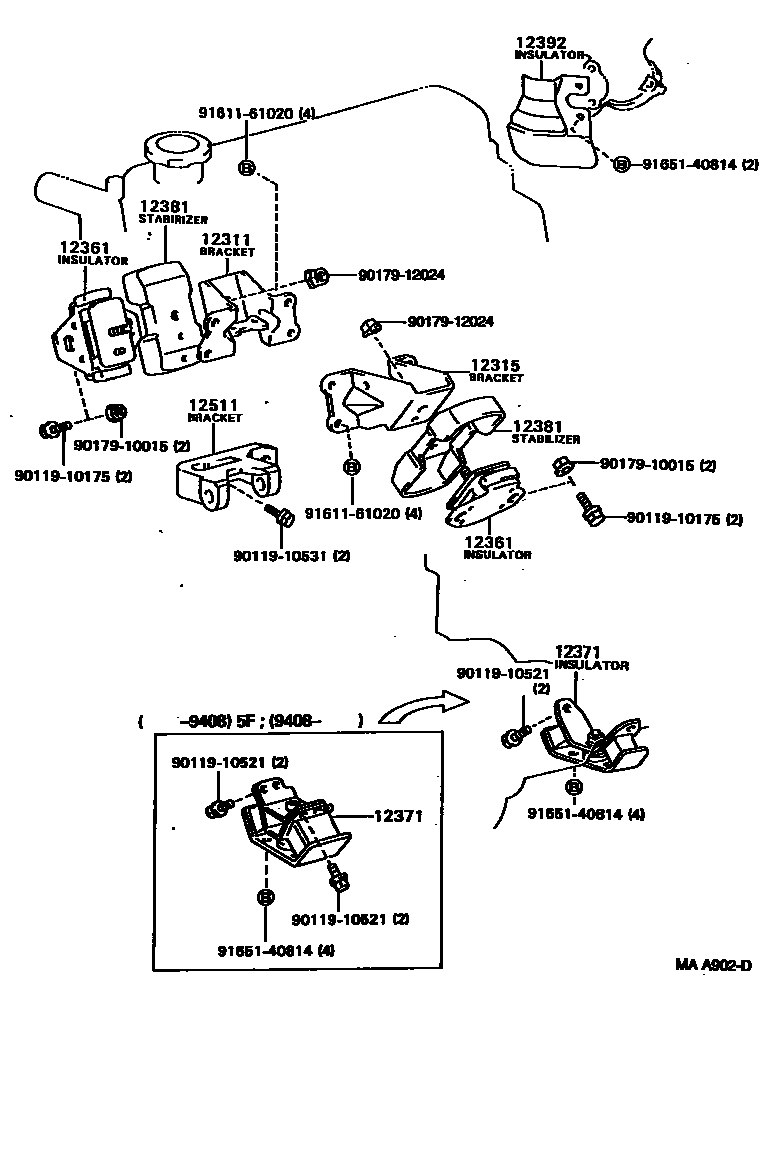

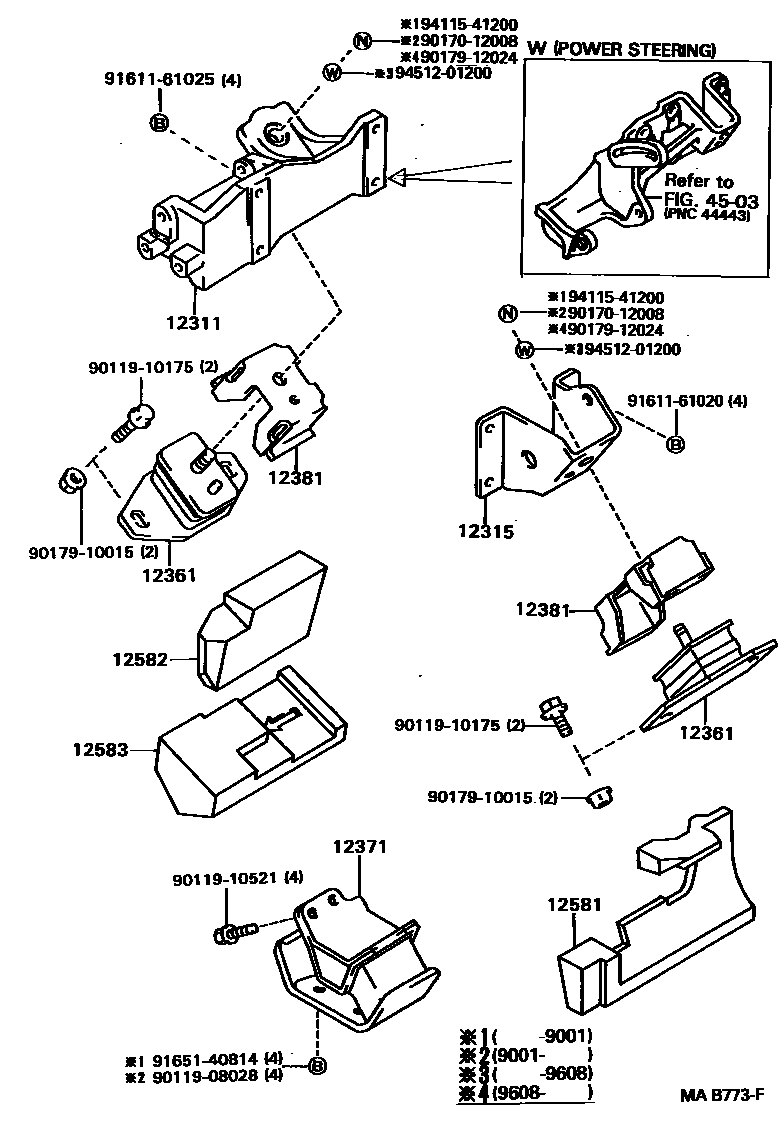

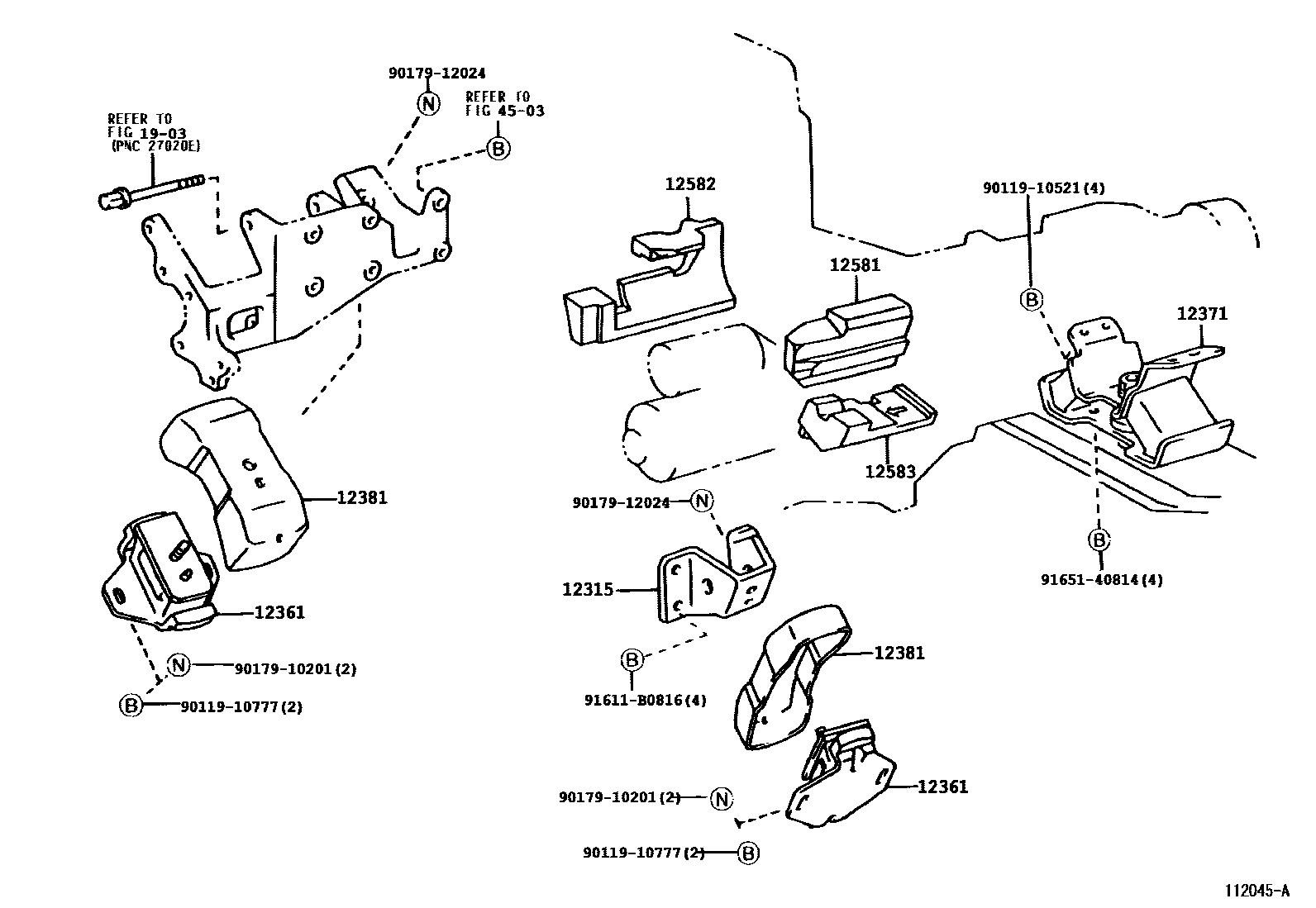

Toyota HILUX EPC diagram 1107, Engine Mounting, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12301-35121 · 12301-35190 · 12301-35210 · 12311-54090 · 12311-54091 · 12311-71010 · 12311-75080 |
| 12315 | Engine No. 1 left front suspension bracket | 12302-35050 · 12302-35070 · 12302-35120 · 12312-54021 · 12315-71010 · 12315-75070 |
| 12361 | Engine front mounting vibration isolation pad | 12361-35050 · 12361-35090 · 12361-54110 · 12361-54111 · 12361-54120 · 12361-54121 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-31040 · 12371-34030 · 12371-35070 · 12371-75080 |
| 12381 | engine mount stabilizer bar | 12381-54010 · 12381-54020 · 12381-54100 · 12381-73010 · 12381-75020 |
| 12382 | Engine left mounting stabilizer bar | 12382-75020 |
| 12392 | Engine left front mounting heat insulation pad | 12391-72010 |
| 12511 | No. 1 generator bracket | 12501-73011 · 12511-35010 · 12511-35030 · 12511-71010 · 12511-75041 |
| 12581 | No. 1 cylinder block vibration isolation pad | 12581-54010 |
| 12582 | No. 2 cylinder block vibration isolation pad | 12582-54011 · 12582-54020 · 12582-54021 |
| 12583 | No. 3 cylinder block vibration isolation pad | 12583-54010 · 12583-54030 |
