Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 9 PNC and OE references.

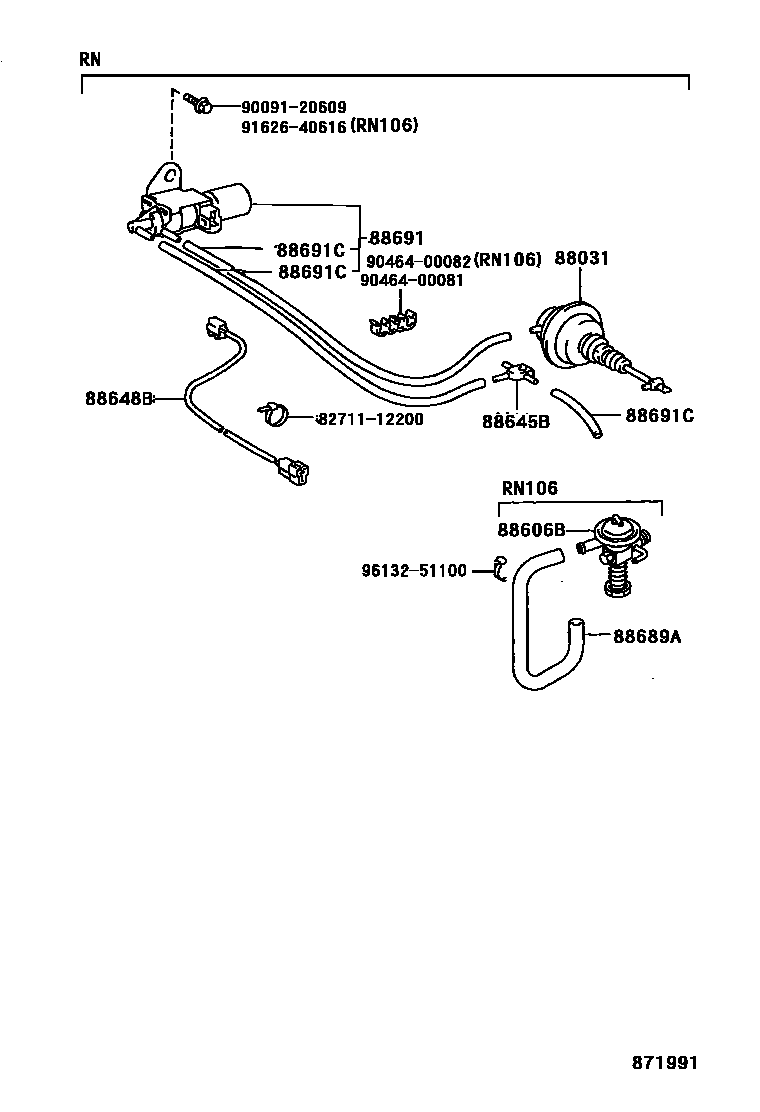

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — 871991
暖风和空调系统 - 真空管 — 871991 (198808 – 999999)

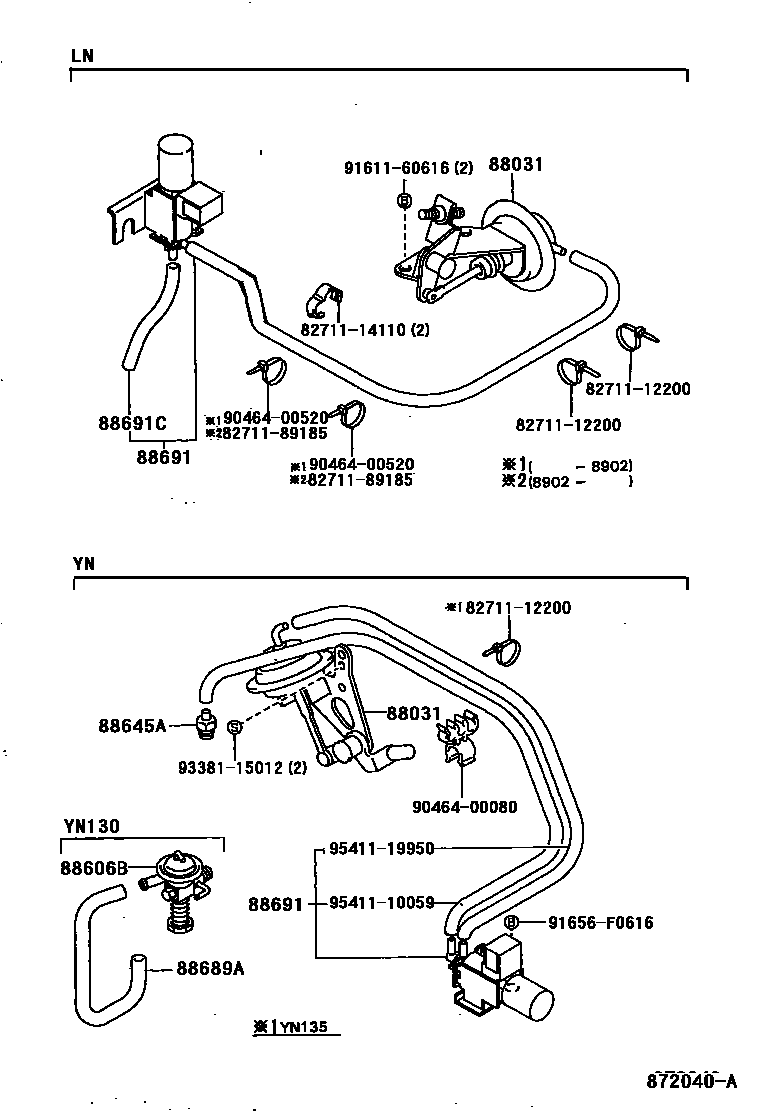

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — 872040A
暖风和空调系统 - 真空管 — 872040A (198808 – 999999)

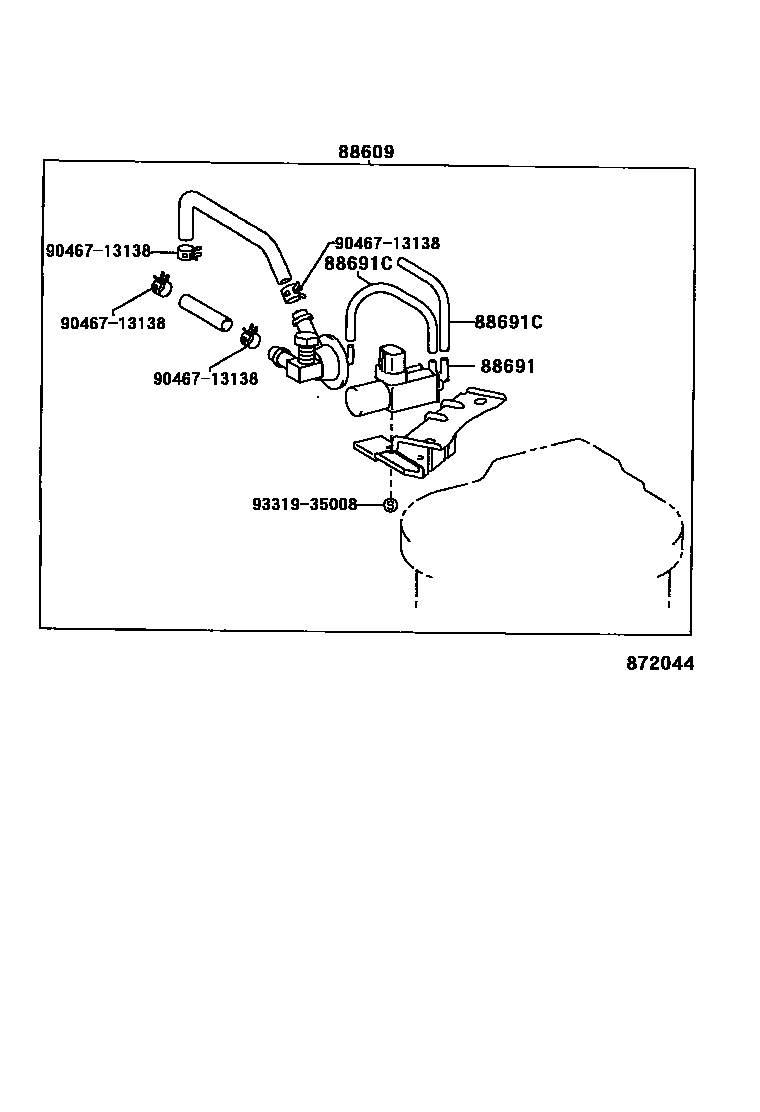

Toyota HILUX 暖风和空调系统 - 真空管 EPC diagram — 872044
暖风和空调系统 - 真空管 — 872044 (199008 – 199511)

PNC and OE references

PNCPart nameOE numbers
88031Idle speed lift actuator assembly21099-71030 · 88031-30060 · 88031-35040 · 88031-35090 · 88031-35100 · 88031-36012
88606BCooler diaphragm sub-assembly88606-28010 · 88606-35020
88609Idle speed lifting device sub-assembly88609-35010 · 88609-89107
88645AConnector (for idle lift device)90404-51093 · 90405-09127 · 90405-09139 · 90405-09149
88645BConnector No. 1 (for idle speed lifting device)90413-04001
88648BNo. 1 cooler wiring harness88648-35100 · 88648-35110 · 88648-89134
88689ACooler Vacuum Hose No. 188689-35020
88691Solenoid valve (for idle speed lifting device)88690-35010 · 88690-35020 · 88690-35030 · 88690-89128 · 88690-89129 · 88690-89131 · 88690-89132 · 88691-89104 · 88691-89106 · 88691-89107
88691CVacuum hose No. 1 (for idle lift)95411-10239 · 95411-19911
