Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

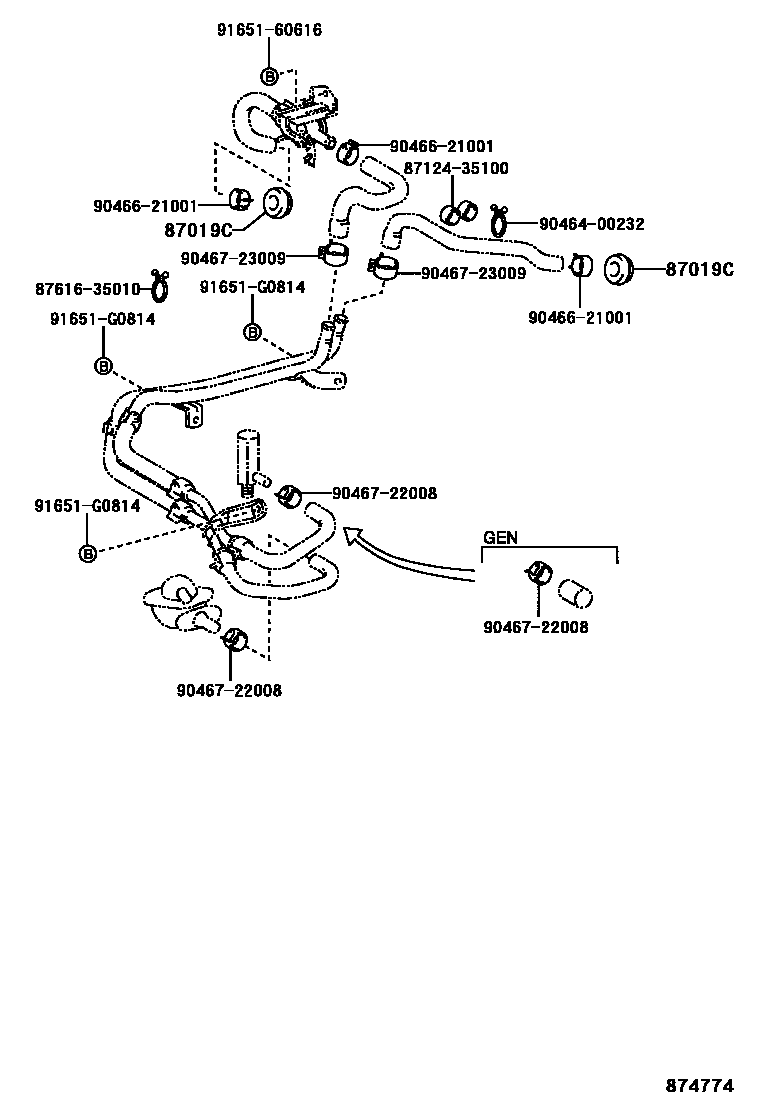

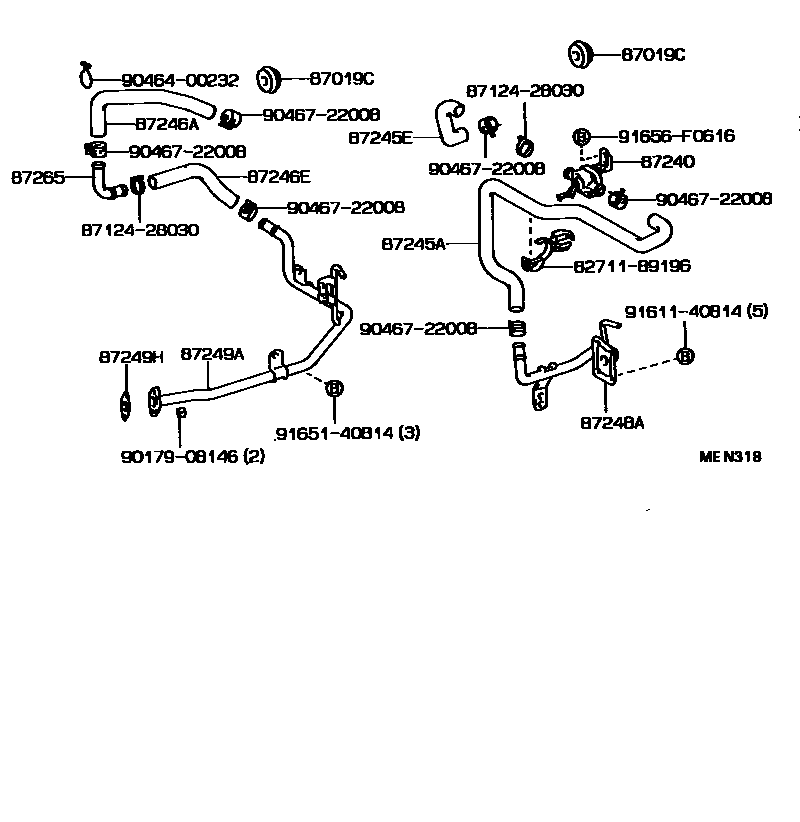

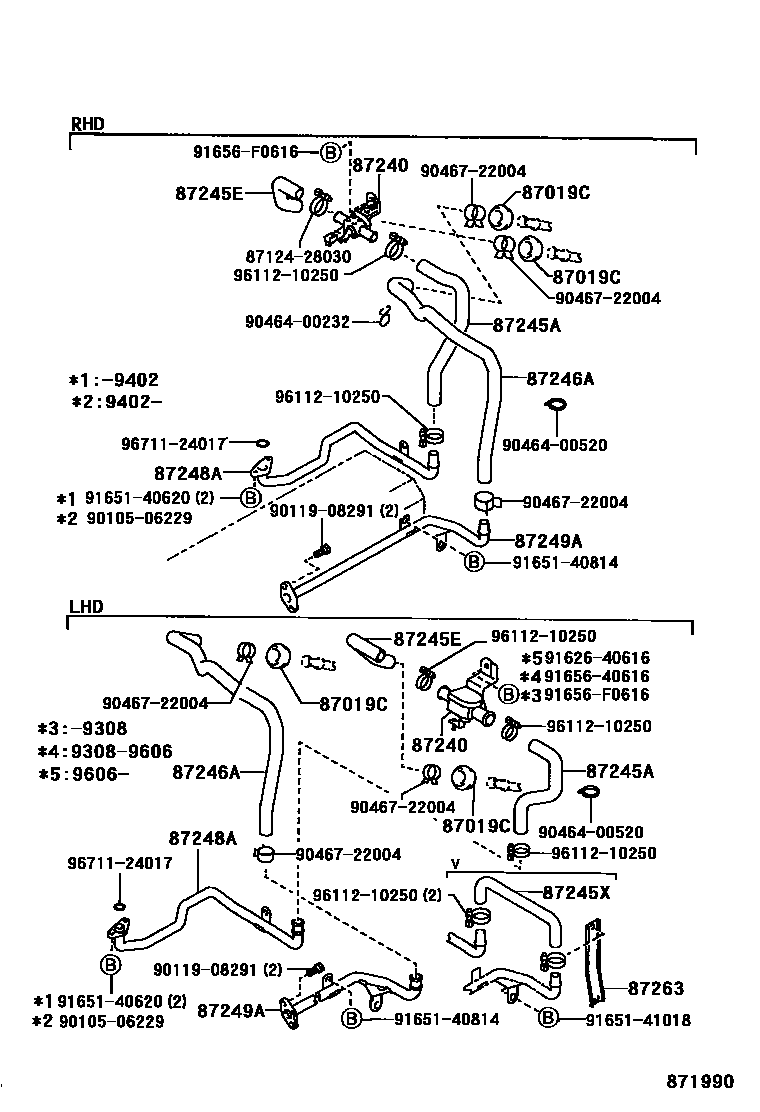

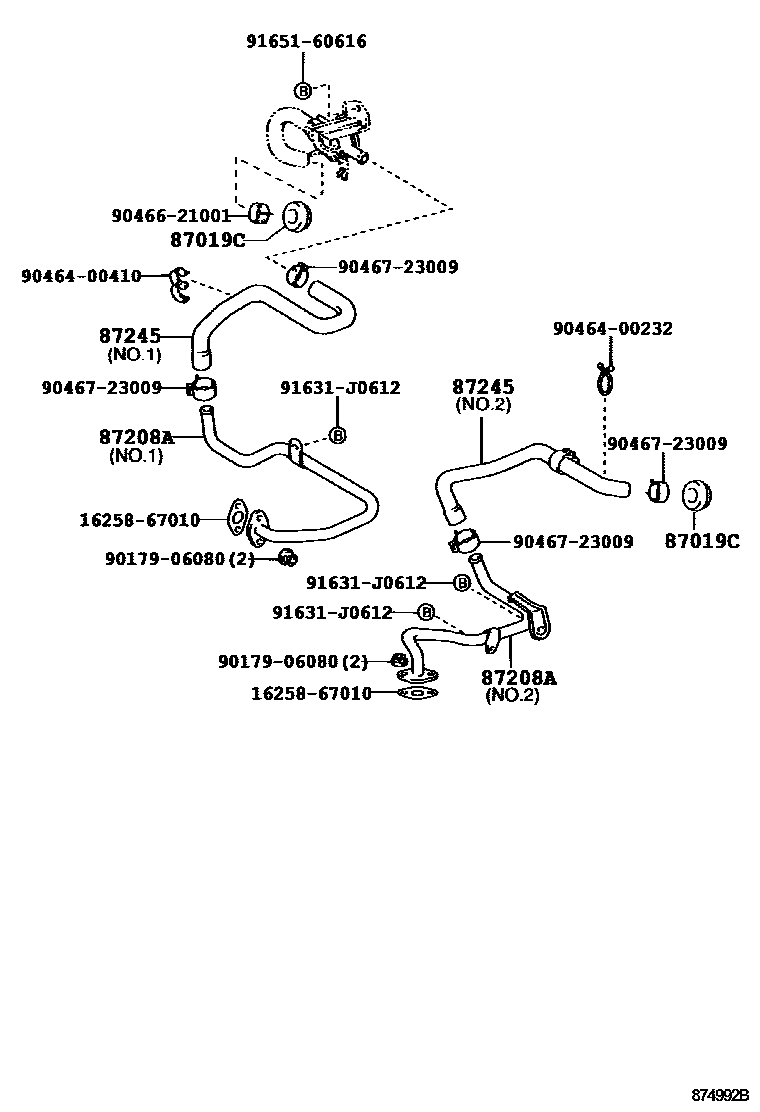

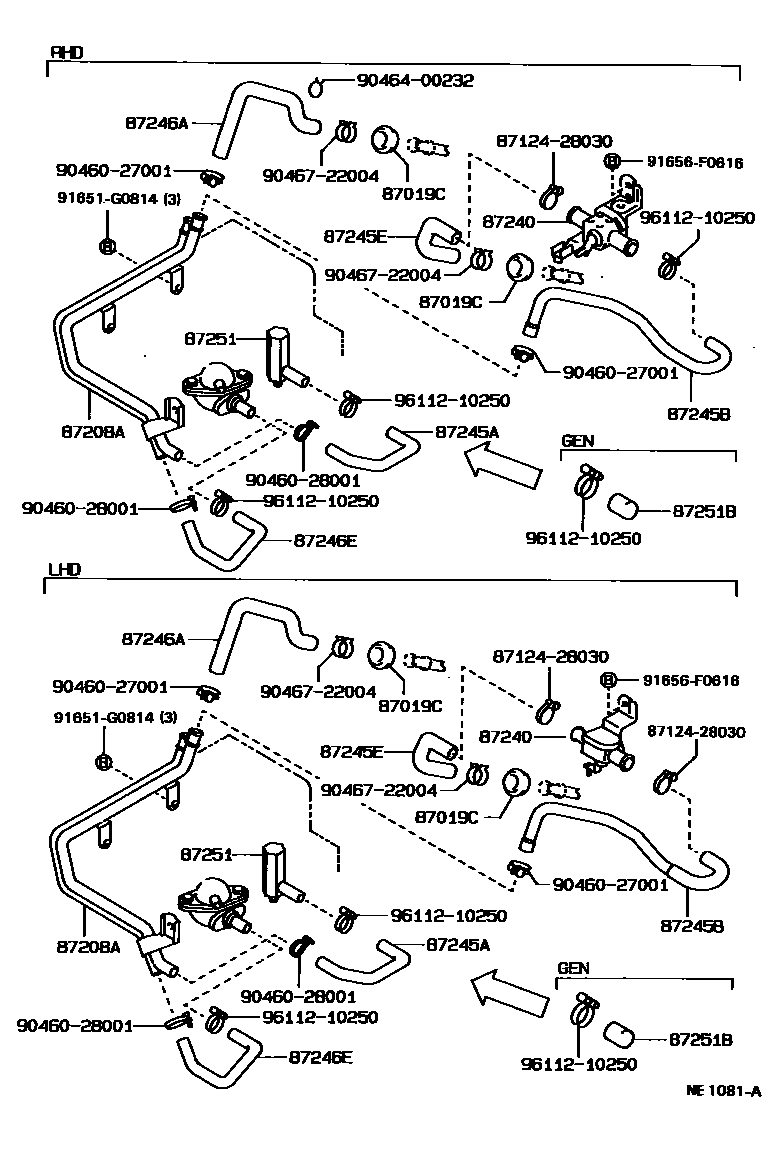

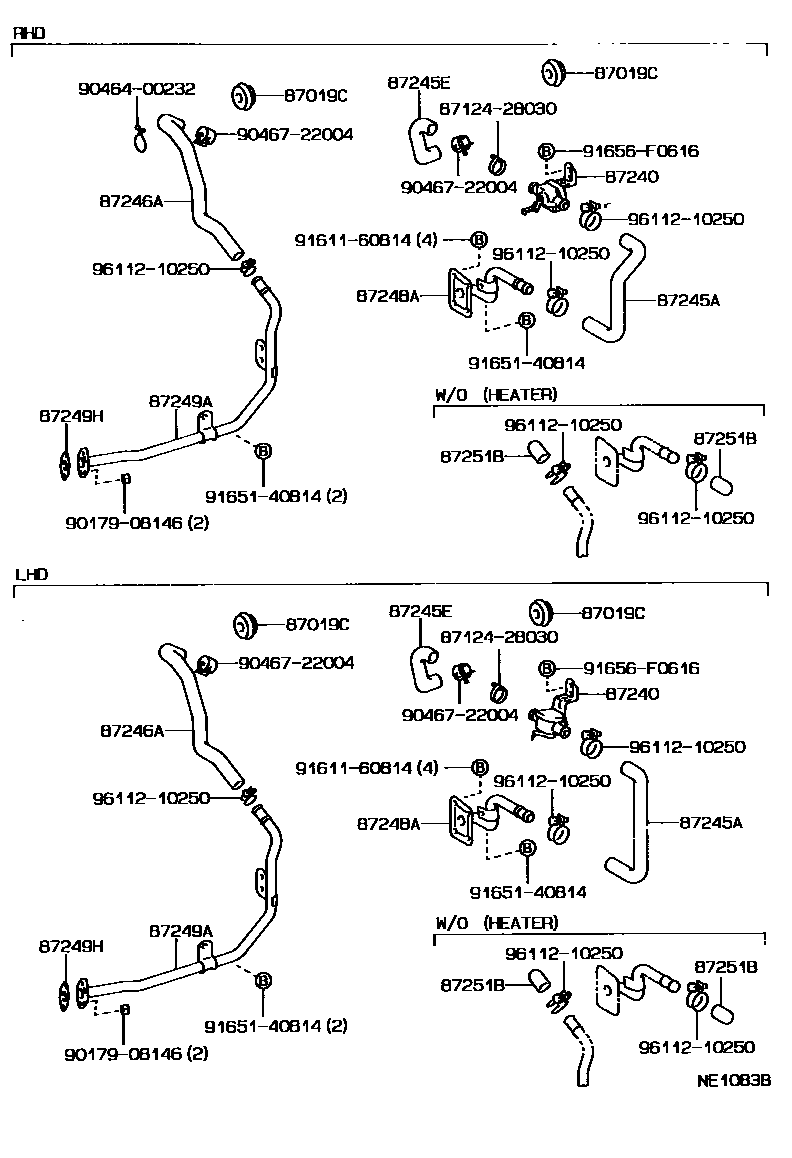

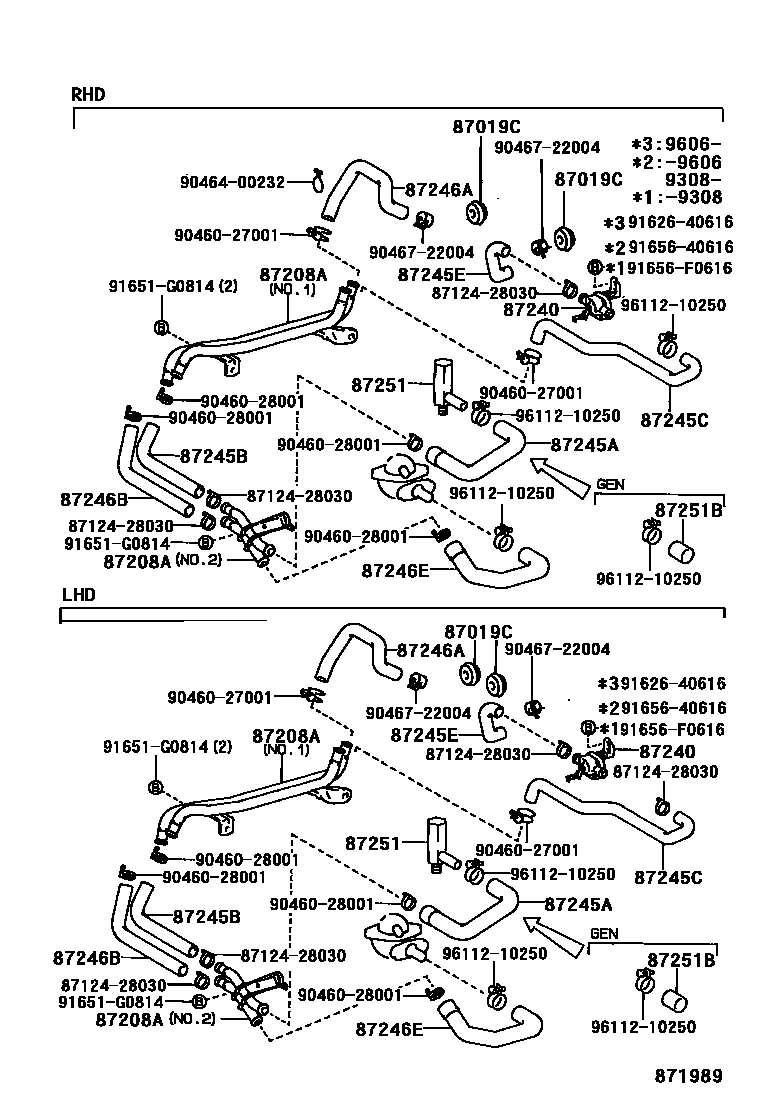

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 7 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-36005 |
| 87208A | Heater water pipe sub-assembly A | 87208-35250 · 87208-35260 · 87208-89136 · 87208-89143 · 87208-89144 |
| 87240 | Heater water valve assembly | 87240-35020 · 87240-89124 · 87240-89125 · 87240-89126 |
| 87245 | Heater water inlet hose | 87245-04260 · 87245-04270 |
| 87245A | Heater water inlet hose A | 87245-35160 · 87245-89218 · 87245-89220 · 87245-89226 · 87245-89228 · 87245-89238 · 87245-89279 · 87245-89290 · 87245-89299 |
| 87245B | Heater water inlet hose B | 87245-89240 · 87245-89281 |
| 87245C | Heater water inlet hose C | 87245-89240 · 87245-89243 |
| 87245E | Heater water inlet hose E | 87245-89231 · 87245-89232 · 87245-89233 |
| 87246A | Heater outlet hose A | 87245-35170 · 87245-89217 · 87245-89219 · 87245-89221 · 87245-89227 · 87245-89241 · 87245-89242 · 87245-89291 · 87245-89300 |
| 87246B | Heater outlet hose B | 87245-89282 |
| 87246E | Heater outlet hose E | 87245-35090 · 87245-89239 · 87245-89273 · 87245-89280 · 87245-89292 |
| 87248A | Heater water inlet pipe A | 87208-22130 · 87208-35140 · 87208-35160 · 87208-35170 · 87208-89128 · 87208-89134 |
| 87249A | Heater outlet pipe A | 87208-35130 · 87208-35150 · 87208-89121 · 87208-89129 · 87208-89135 |
| 87249H | Outlet pipe gasket | 17175-72010 · 17175-72011 |
| 87251 | Water hose penetration joint | 87251-89113 |
| 87251B | heater water plug | 90339-16001 · 90339-16007 |
| 87263 | No. 1 heater water pipe bracket | 87263-14140 |
| 87265 | Heater water hose connector | 87265-35030 · 87265-35180 · 87265-89117 · 87265-89119 |
