Toyota HILUX 超速档和电子控制变速器 — Figure 8410

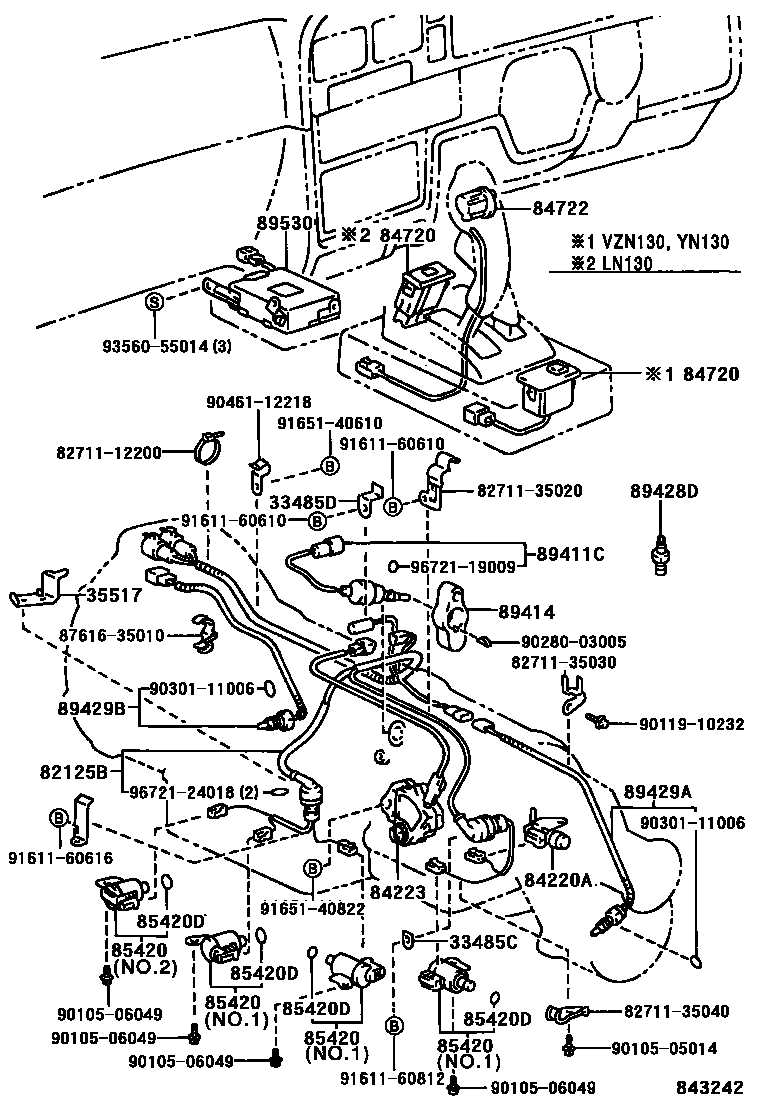

Toyota HILUX EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33485C | Speedometer sleeve locking plate | 33485-30020 |
| 33485D | Speedometer sleeve locking plate | 33485-35020 |
| 35517 | Transmission harness locking plate | 35517-30010 · 35517-35010 |
| 82125B | Transmission wiring harness | 82125-35051 · 82125-35052 · 82125-35081 · 82125-35082 · 82125-35101 |
| 84220A | Transmission position indicator light switch assembly | 84220-35060 |
| 84223 | transfer case position switch | 84223-35010 |
| 84720 | Mode selection switch assembly | 84720-35020 · 84720-35050 |
| 85420 | Transmission solenoid valve assembly | 35250-50030 · 85420-21090 · 85420-22080 · 85420-30110 · 85420-30120 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89411C | Speed sensor | 89411-35010 |
| 89414 | sensor rotor | 89414-35010 |
| 89428D | No. 2 temperature switch | 89428-20050 |
| 89429A | temperature sensor | 89429-35010 · 89429-35022 |
| 89429B | No. 2 temperature sensor | 89429-35040 · 89429-35041 · 89429-35042 |
| 89530 | Transmission control ECU assembly | 89530-35241 |
