Toyota HILUX 巡航控制(自动行驶) — Figure 8408

Toyota HILUX EPC diagram 8408, 巡航控制(自动行驶), with 3 images and 12 PNC and OE references.

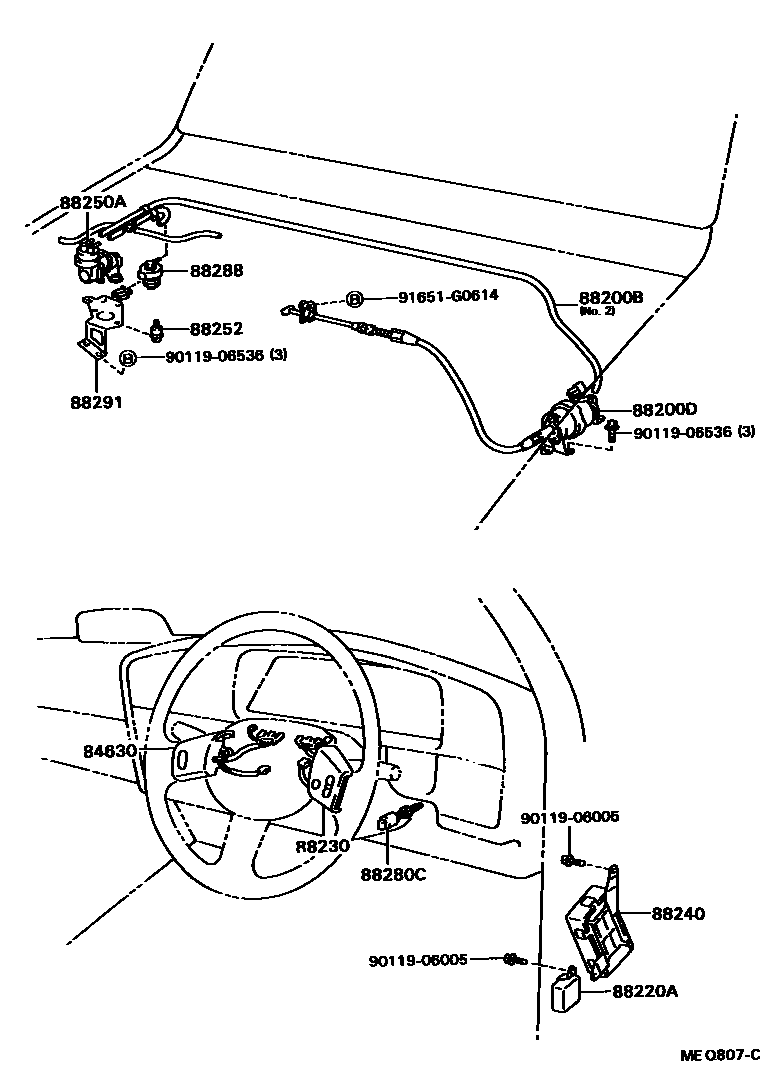

Toyota HILUX 巡航控制(自动行驶) EPC diagram — MEQ807C
巡航控制(自动行驶) — MEQ807C (199008 – 999999)

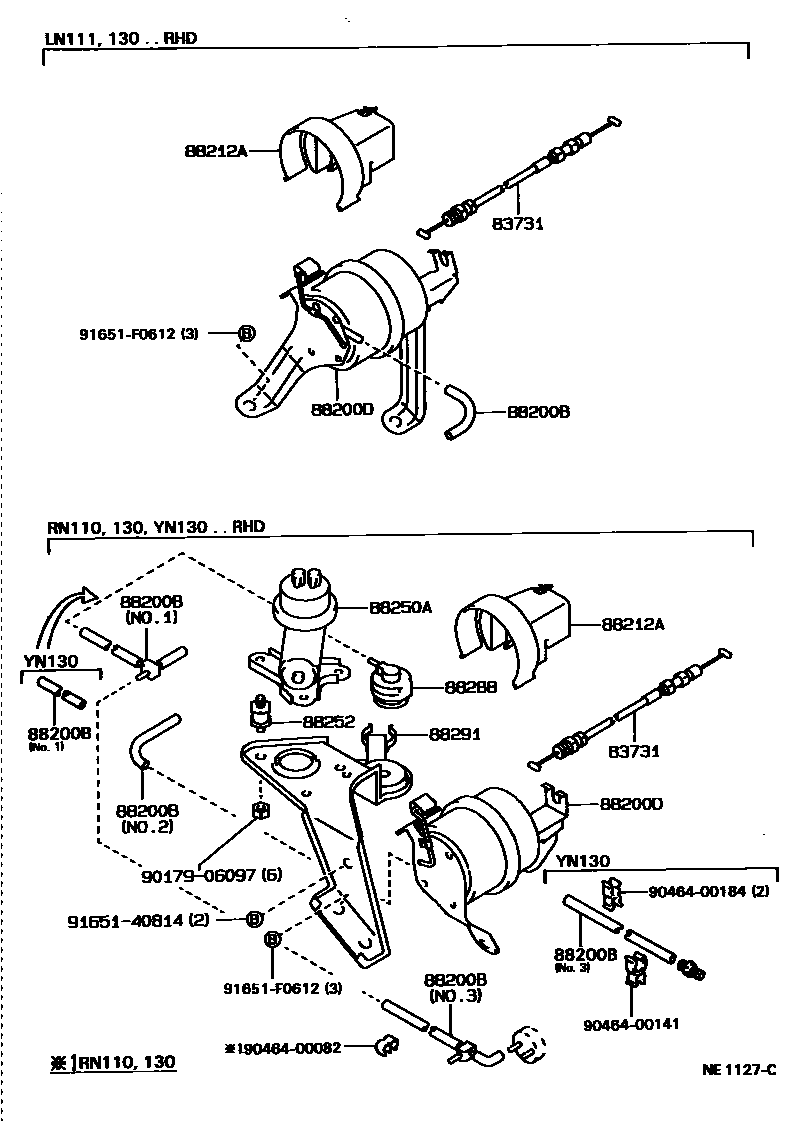

Toyota HILUX 巡航控制(自动行驶) EPC diagram — NE1127C
巡航控制(自动行驶) — NE1127C (198808 – 199008)

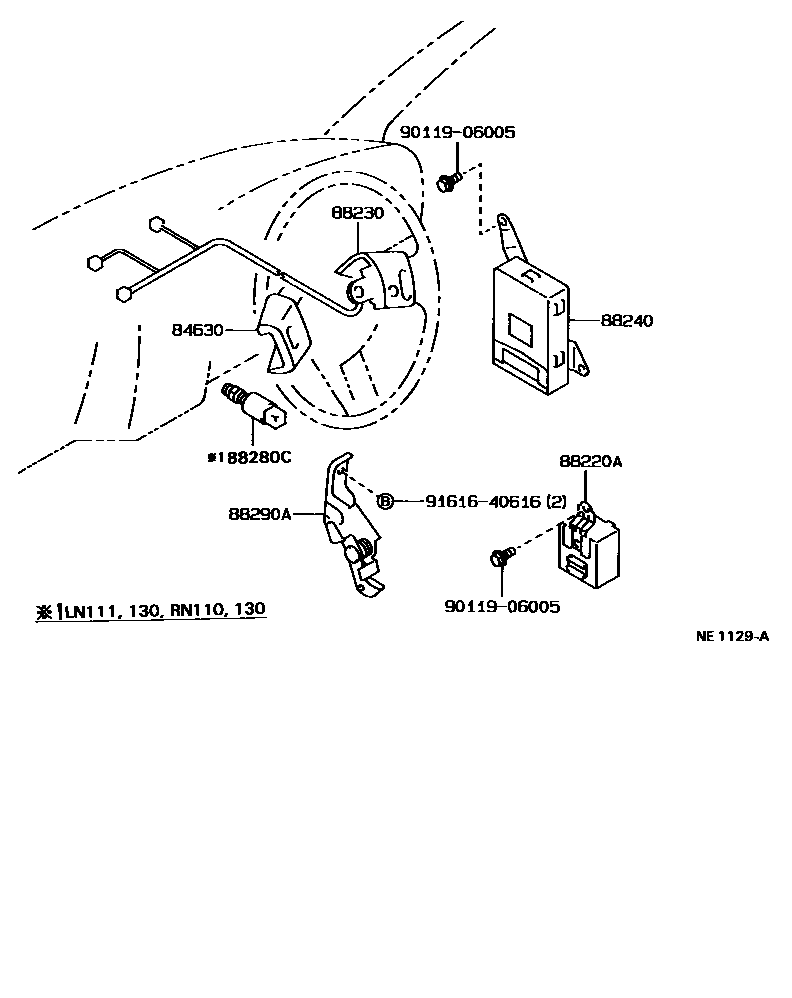

Toyota HILUX 巡航控制(自动行驶) EPC diagram — NE1129A
巡航控制(自动行驶) — NE1129A (198808 – 199008)

PNC and OE references

PNCPart nameOE numbers
83731cruise control cable83731-35150 · 83731-35160
88200Bcruise control vacuum hose88283-35030 · 88283-35040 · 88283-35080 · 90445-08278
88200DCruise control actuator assembly88200-35160 · 88200-35161 · 88200-35170 · 88200-35171 · 88200-35230
88212Acruise control actuator cover88212-12070
88220ASpeed control main relay assembly88220-35010
88240Cruise control ECU assembly88240-35130 · 88240-35140 · 88240-35200 · 88240-35201
88250Acruise control pump assembly88251-35070 · 88251-35090
88252Vacuum pump cushion88252-30130 · 88252-30140
88280CClutch switch assembly88280-20010
88288Vacuum speed control switch88288-22010
88290ACruise control right angle lever assembly88290-89104 · 88290-89105
88291No. 1 cruise control (automatic driving) bracket88291-35040 · 88291-35060
