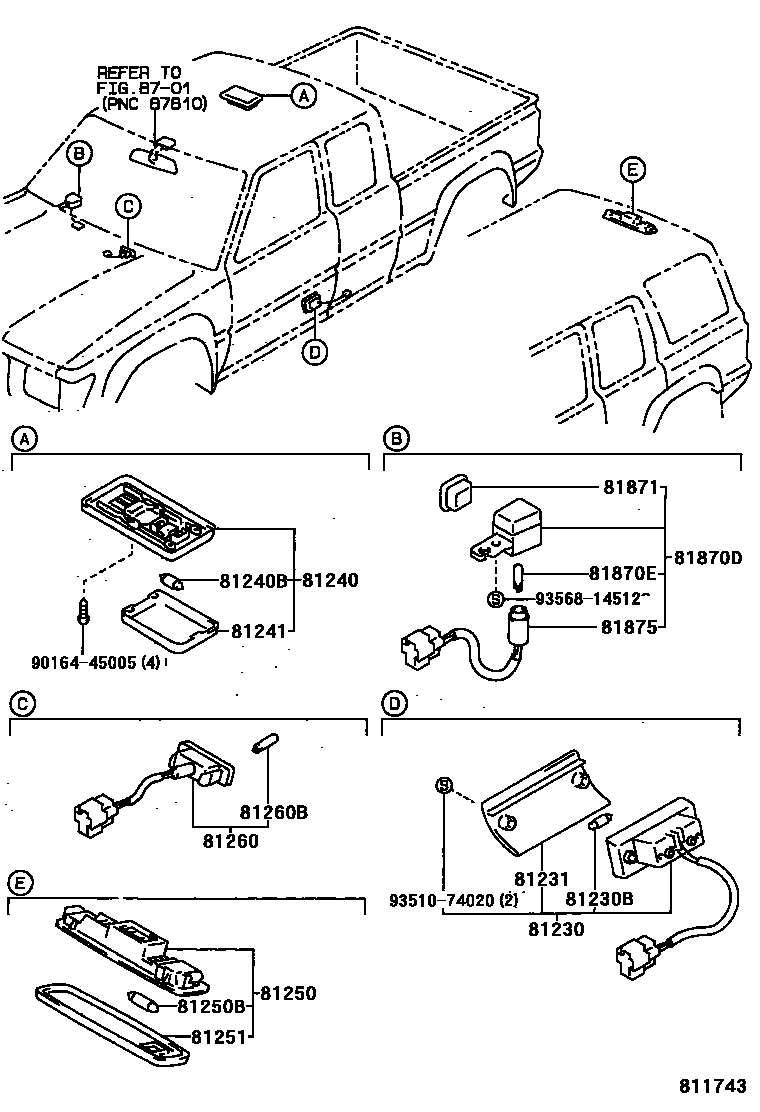

Toyota HILUX 车内灯 — Figure 8121
Toyota HILUX EPC diagram 8121, 车内灯, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81230 | Door control light assembly | 81230-89104 |
| 81230B | Bulb (for gated lights) | 90981-11006 · 90981-14001 |
| 81231 | door control lamp shade | 81231-89104 |
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-20060 |
| 81250 | No. 2 interior light assembly | 81250-89102 |
| 81250B | Interior light bulb No. 2 | 90981-11004 |
| 81251 | Interior light cover No. 2 | 81251-89102 |
| 81260 | Glove box light assembly | 81260-89104 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81870D | Lock core lighting assembly | 81870-35010 · 81870-89102 |
| 81870E | Lock cylinder lighting bulb | 90981-11018 |
| 81871 | Ignition lock cylinder lighting lamp cover | 81871-89102 |
| 81875 | Lock core lighting lamp holder and wiring harness | 81875-35010 · 81875-89102 |
