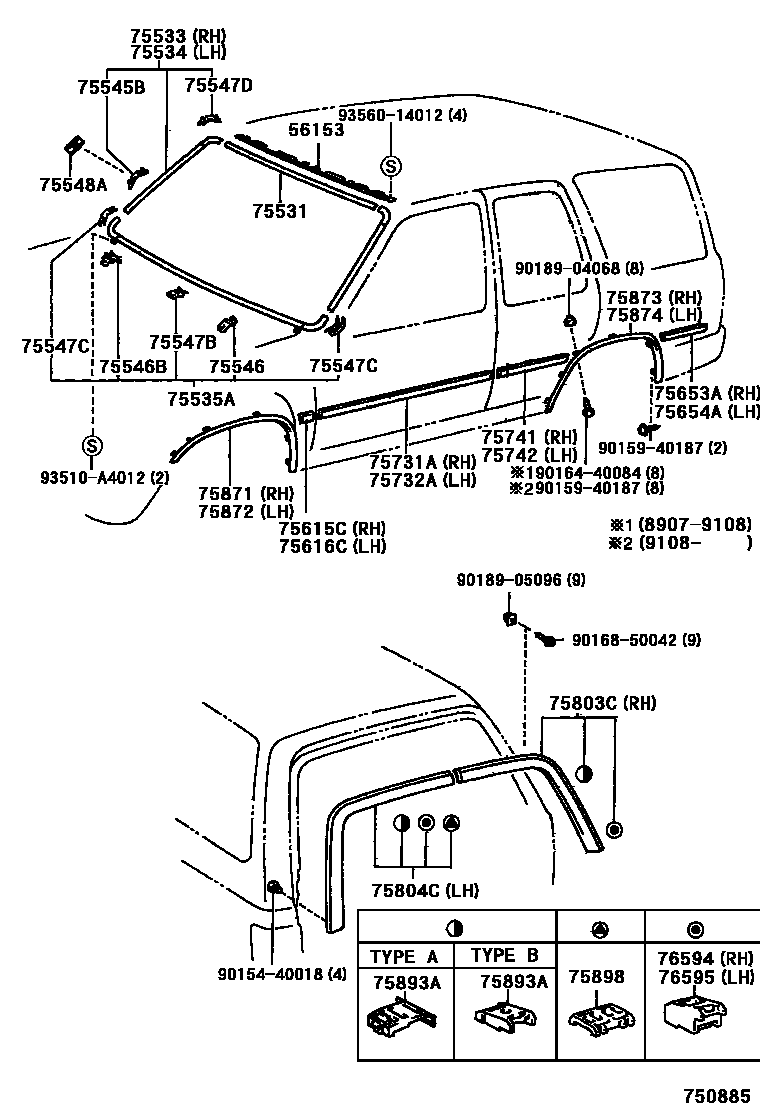

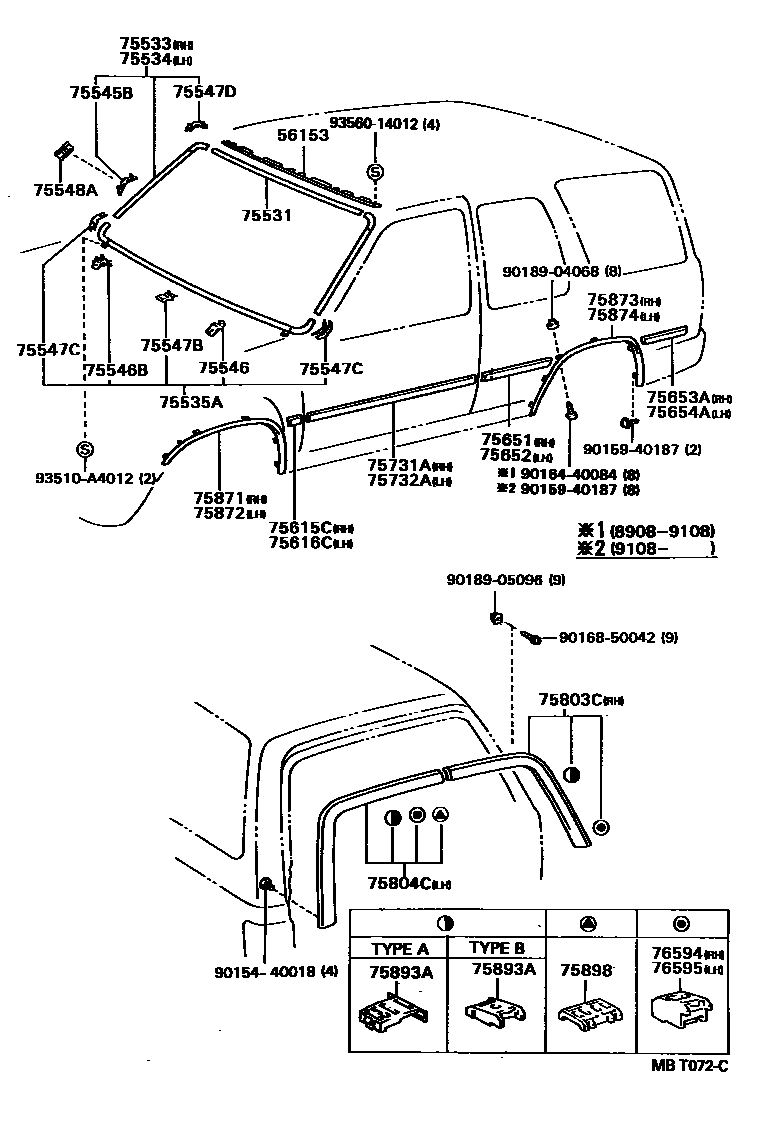

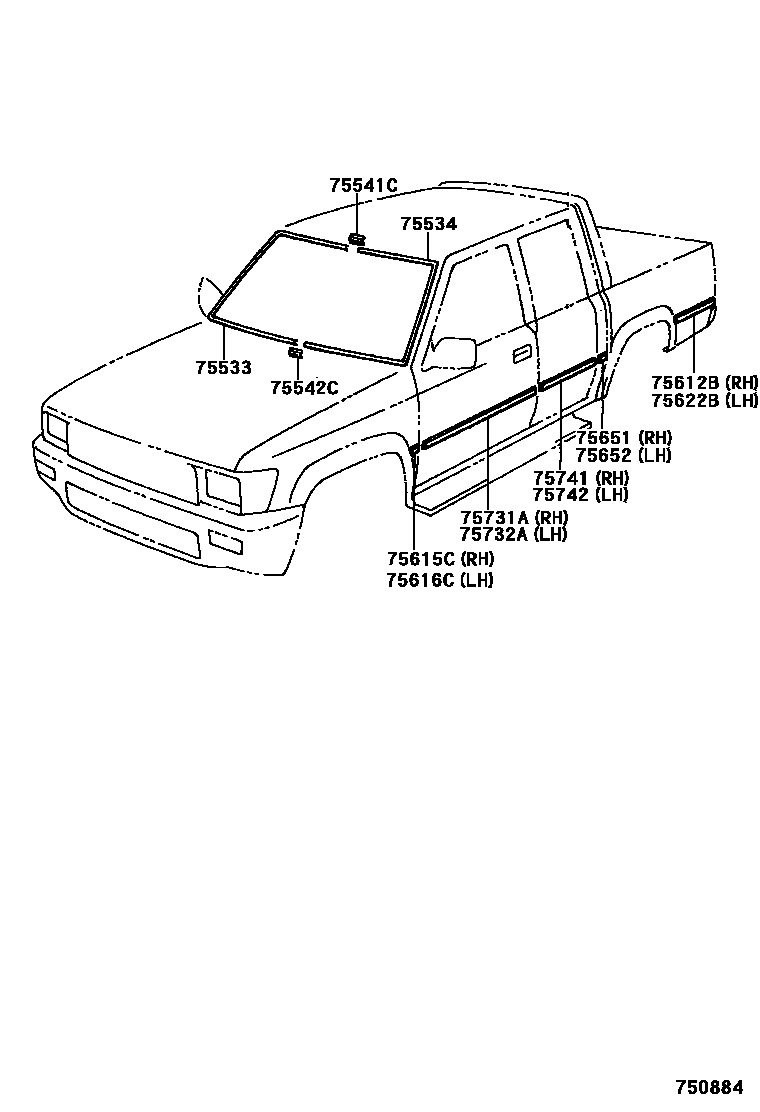

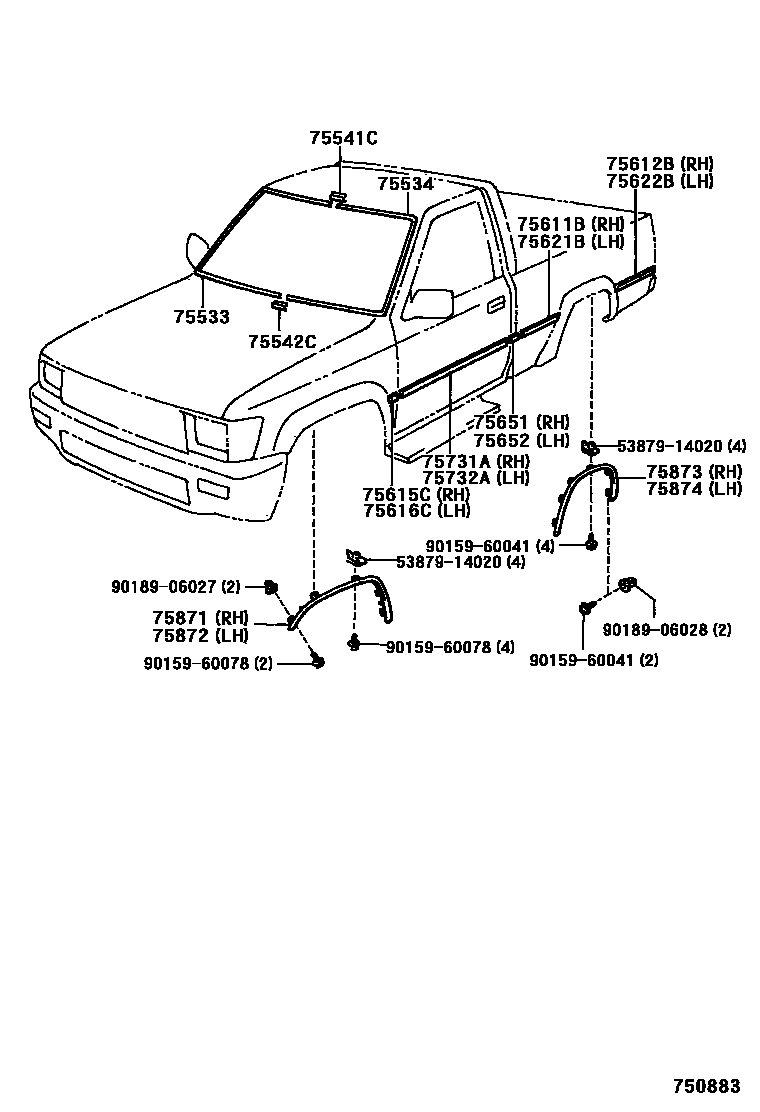

Toyota HILUX 防护条 — Figure 7552
Toyota HILUX EPC diagram 7552, 防护条, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56153 | Front center window inner protective strip | 56153-35010 · 56153-89102 · 56153-89103 |
| 75531 | Windshield outer protective strip | 75531-35040 · 75531-35041 · 75531-35042 · 75531-35070 · 75531-35071 · 75531-35100 · 75531-35101 · 75531-35102 · 75531-89105 · 75531-89106 · 75531-89109 · 75531-89111 |
| 75533 | Windshield right outer protective strip | 75533-89108 · 76503-89103 · 76503-89104 · 76503-89105 |
| 75534 | Windshield left outer protective strip | 75534-89106 · 76504-89103 · 76504-89104 · 76504-89105 |
| 75535A | Windshield outer lower protective strip | 75504-89103 · 75504-89104 · 75504-89105 |
| 75541C | Windshield upper right protective strip joint cover | 75541-89103 |
| 75542C | Windshield upper left protective strip joint cover | 75541-89103 |
| 75545B | No. 1 windshield outer protective strip clip | 75545-89102 · 75545-89103 |
| 75546 | Windshield outer protective strip clip | 75546-89106 |
| 75546B | No. 2 windshield outer protective strip clip | 75546-89103 · 75546-89105 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-89103 · 75547-89108 |
| 75547C | No. 3 windshield outer protective strip clip | 75547-89106 · 75547-89107 · 75547-89111 · 75547-89112 |
| 75547D | No. 3 windshield outer protective strip clip | 75547-89104 · 75547-89105 · 75547-89109 · 75547-89110 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16030 |
| 75611B | No. 1 right side panel protective strip | 75611-89102 · 75611-89103 · 75611-89107 · 75611-89108 |
| 75612B | No. 2 right side panel protective strip | 75612-89102 · 75612-89103 · 75612-89106 · 75612-89107 · 75612-89110 |
| 75615C | Right front fender rear protective strip | 75615-35010 · 75615-89109 · 75615-89111 |
| 75616C | Left front fender rear protective strip | 75616-35010 · 75616-89109 · 75616-89111 |
| 75621B | No. 1 left side panel protective strip | 75621-89101 · 75621-89102 · 75621-89106 · 75621-89107 |
| 75622B | No. 2 left side panel protective strip | 75622-89101 · 75622-89102 · 75622-89105 · 75622-89106 · 75622-89109 |
| 75651 | Right side outer protective strip | 75651-89115 · 75651-89116 · 75651-89117 · 75651-89118 · 75651-89119 · 75651-89120 · 75651-89121 · 75651-89122 |
| 75652 | Left side outer protective strip | 75651-89115 · 75651-89116 · 75651-89118 · 75651-89119 · 75652-89111 · 75652-89112 · 75652-89113 · 75652-89114 |
| 75653A | Right rear side panel outer protective strip | 75653-35010 · 75653-89134 · 75653-89135 |
| 75654A | Left rear side panel outer protective strip | 75654-35010 · 75654-89132 · 75654-89133 |
| 75731A | Right front door outer protective strip | 75731-35010 · 75731-89107 · 75731-89108 · 75731-89109 · 75731-89110 |
| 75732A | Left front door outer protective strip | 75732-35010 · 75732-89107 · 75732-89108 · 75732-89109 · 75732-89110 |
| 75741 | Right rear door outer protective strip | 75741-35010 · 75741-89107 · 75741-89108 · 75741-89109 · 75741-89110 |
| 75742 | Left rear door outer protective strip | 75742-35010 · 75742-89107 · 75742-89108 · 75742-89109 · 75742-89110 |
| 75803C | Back door right outer protective strip sub-assembly | 75803-89101 · 75803-89103 |
| 75804C | Back door left outer protective strip sub-assembly | 75804-89101 · 75804-89102 |
| 75871 | Right front fender wheel well protection strip | 75085-89104 · 75085-89106 |
| 75872 | Left front fender wheel well protection strip | 75086-89104 · 75086-89106 |
| 75873 | Right side panel wheel mouth protection strip | 75087-89105 · 75087-89107 · 75873-89106 |
| 75874 | Left side panel wheel mouth protection strip | 75088-89105 · 75088-89107 · 75874-89106 |
| 75893A | Back door protective strip fixings | 75893-89101 · 75893-89102 |
| 75898 | Back door outer protective strip clip | 75898-89101 |
| 76594 | No. 1 rear door lower protective strip fixings | 76594-89101 |
| 76595 | No. 2 rear door lower protective strip fixings | 76595-89101 |
