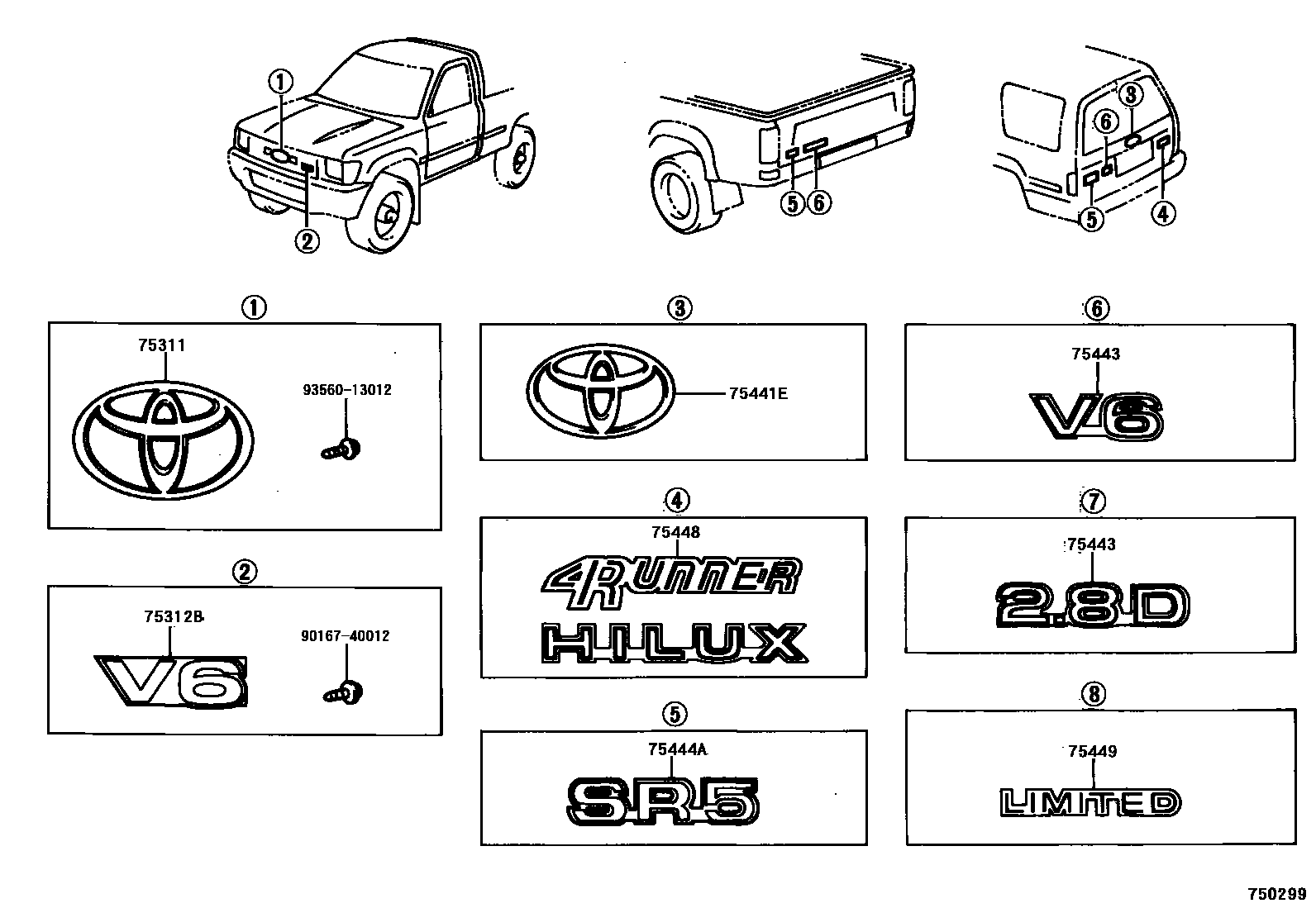

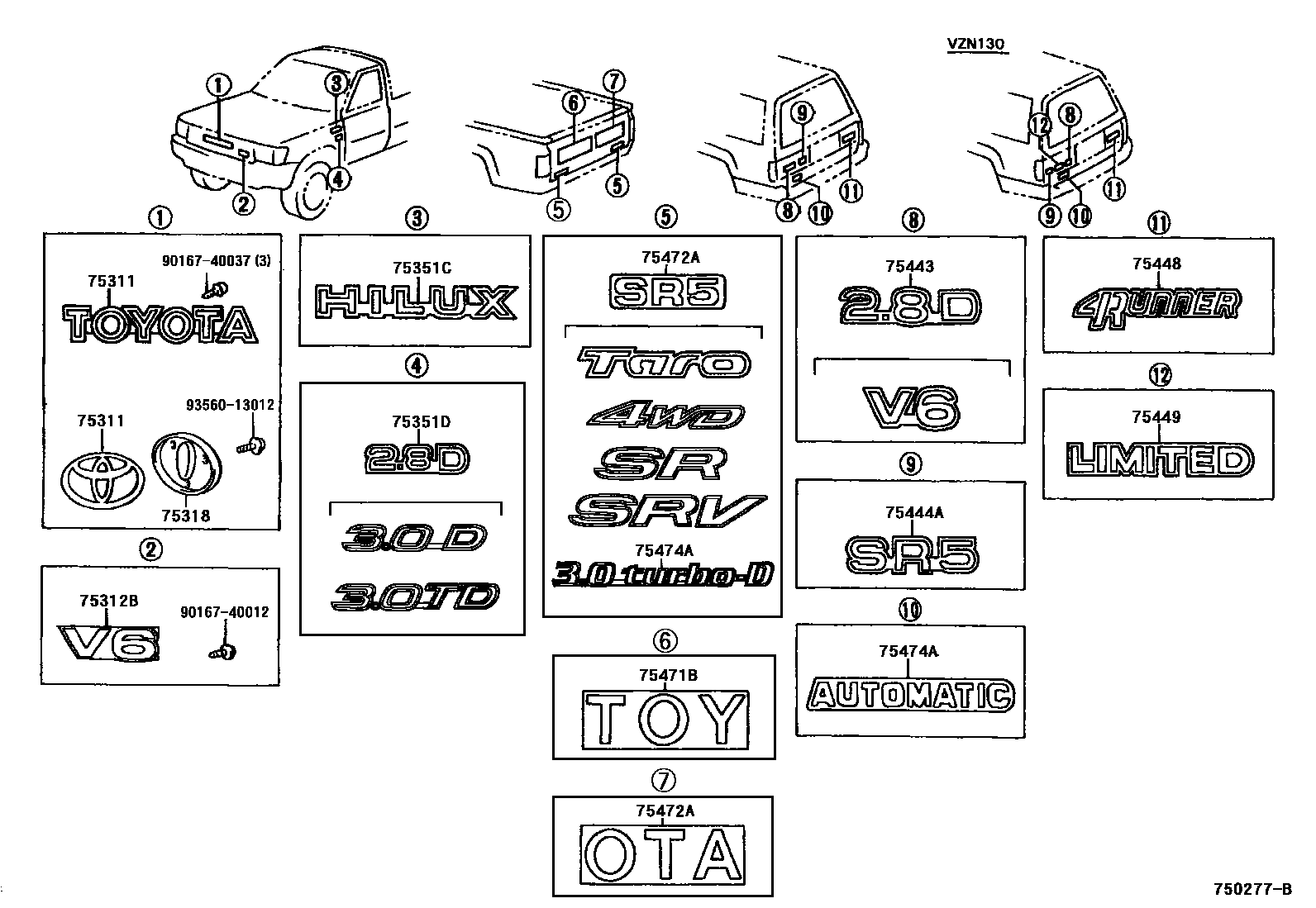

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-35090 · 75311-89123 · 75311-89128 |
| 75312B | Radiator grille number 2 plate | 75312-35030 · 75312-89106 |
| 75318 | Radiator grille plate fixings | 75318-35010 · 75318-35020 · 75318-35030 |
| 75351C | fender markings | 75351-89125 · 75361-35010 |
| 75351D | No. 2 fender mark | 75351-89127 · 75362-35030 · 75362-35060 |
| 75441E | Back door No. 1 nameplate | 75441-35010 |
| 75443 | No. 3 nameplate on back door | 75443-89101 · 75443-89102 |
| 75444A | No. 4 nameplate on back door | 75444-89101 |
| 75448 | No. 8 nameplate on back door | 75442-89101 · 75448-89101 |
| 75449 | No. 9 nameplate on back door | 75449-89101 |
| 75472A | No. 2 nameplate on rear body | 75444-21220 · 75472-35011 · 75472-35090 · 75472-35100 · 75472-35110 · 75472-89128 |
| 75474A | No. 4 nameplate on rear body | 75443-35050 · 75474-89112 |
