Toyota HILUX warning nameplate — Figure 7455

Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 6 PNC and OE references.

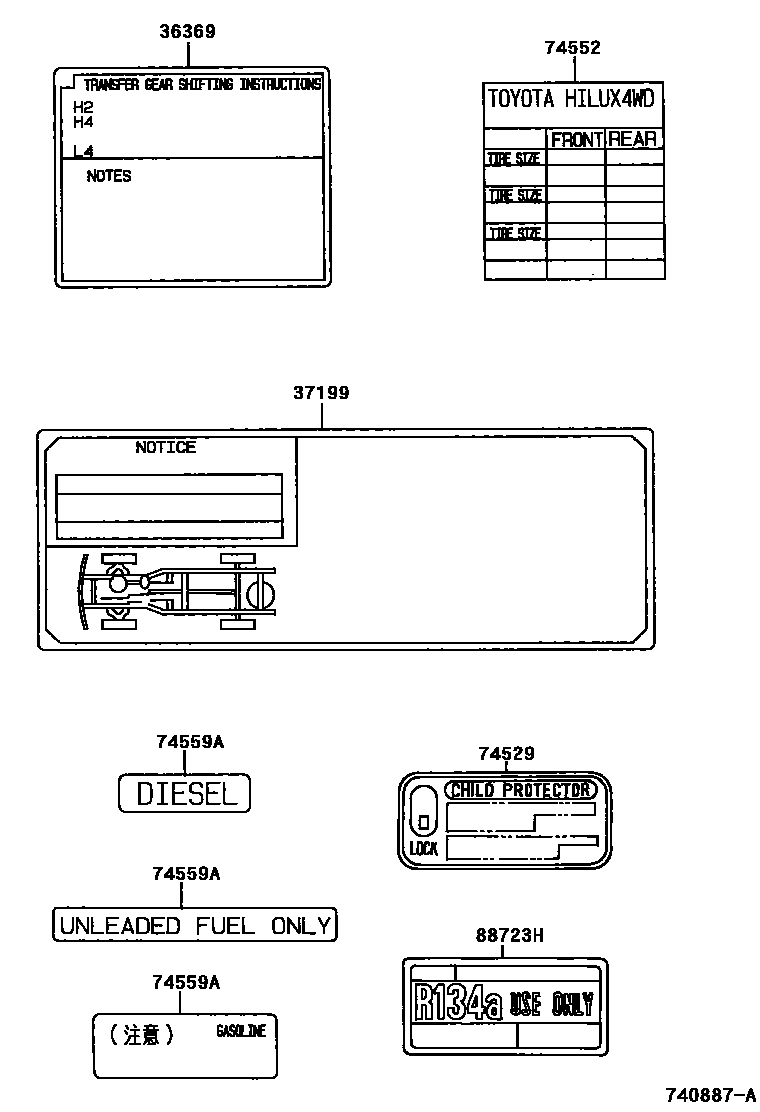

Toyota HILUX warning nameplate EPC diagram — 740887A
warning nameplate — 740887A (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
36369Transfer case information label35519-35070 · 35519-35100 · 36369-35110 · 36369-35140 · 36369-35170 · 36369-35230 · 36369-35260 · 36369-35280
37199Maintenance warning nameplate37199-35260 · 37199-35261 · 37199-35270 · 37199-35271 · 37199-35290 · 37199-35300
74529Child safety or child restraint lock warning nameplate69339-12010
74552Safety warning nameplate42661-35080 · 42661-35120 · 42661-35160 · 42661-35170 · 42661-35180 · 42661-35320 · 42661-35380
74559AFuel warning plate74559-16010 · 74559-20090 · 74559-27010 · 74559-28010 · 74559-89101
88723HCooler maintenance warning label88723-20040
