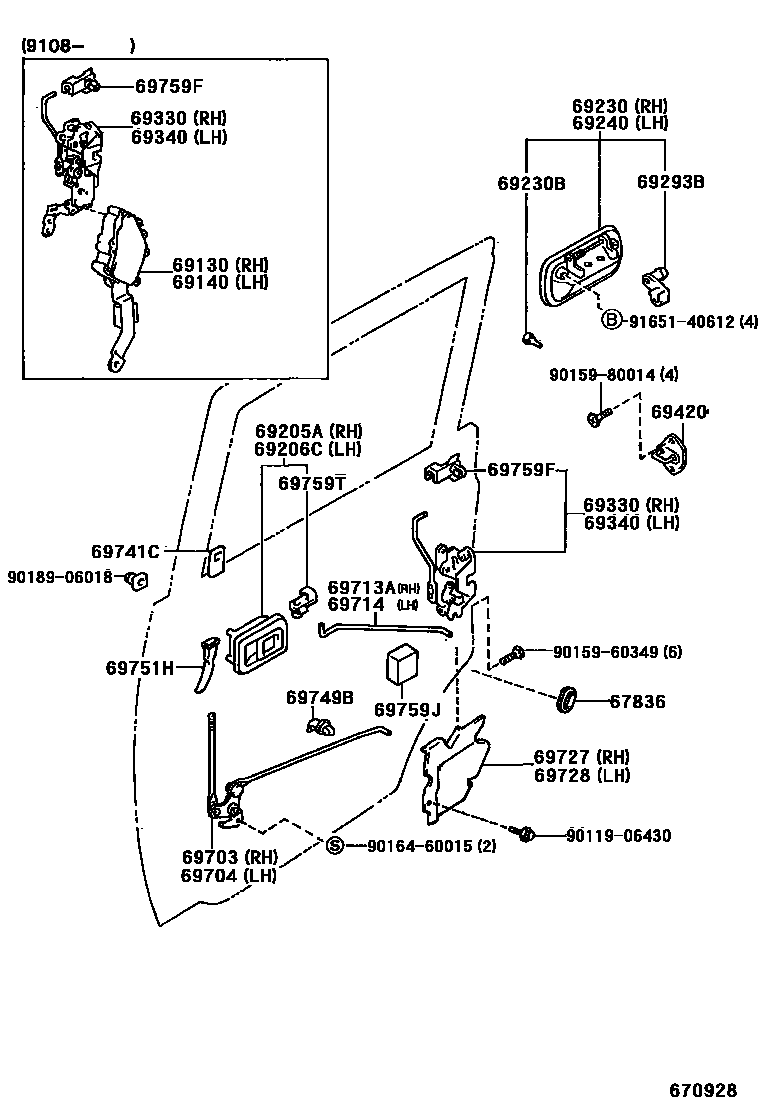

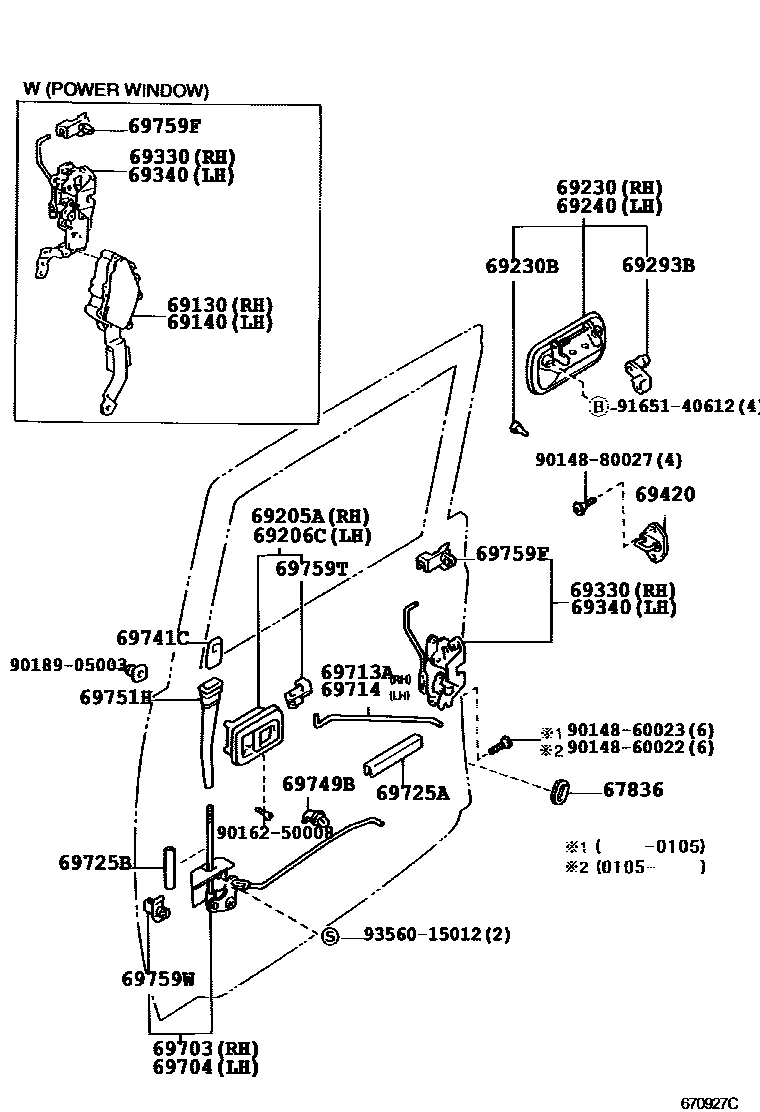

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 69130 | Right rear door lock actuator assembly | 69130-35010 · 69130-35020 · 69130-35040 |
| 69140 | Left rear door lock actuator assembly | 69140-35010 · 69140-35020 · 69140-35040 |
| 69230 | Right rear door outer handle assembly | 69230-89102 · 69230-89103 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69240 | Left rear door outer handle assembly | 69240-89101 · 69240-89102 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69330-35020 · 69330-35030 · 69330-35040 · 69330-35060 · 69330-35070 · 69330-35100 · 69330-35110 · 69330-89104 · 69330-89105 · 69330-89106 |
| 69340 | Left rear door lock assembly | 69340-35020 · 69340-35030 · 69340-35040 · 69340-35070 · 69340-35080 · 69340-35100 · 69340-35110 · 69340-89104 · 69340-89105 · 69340-89106 |
| 69420 | Rear door lock plate assembly | 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69703-35010 · 69703-35020 · 69703-89104 · 69703-89105 |
| 69704 | Left rear door lock control link sub-assembly | 69704-35010 · 69704-35020 · 69704-89103 · 69704-89104 |
| 69713A | Right rear door lock remote control lever | 69713-89105 · 69713-89106 |
| 69714 | Left rear door lock remote control lever | 69714-89105 · 69714-89106 |
| 69725A | Door inner locking link guard | 69725-89102 |
| 69725B | Door inner locking link guard | 69725-35010 |
| 69727 | Right rear door inner locking link guard | 69727-89101 |
| 69728 | Left rear door inner locking link guard | 69728-89101 |
| 69749B | Rear door lock link clamp | 69749-89101 |
| 69751H | Rear door lock control button fixing | 69751-89105 · 69751-89108 |
| 69759F | Rear door lock control link buckle | 69759-20040 · 69759-20050 · 69759-20100 · 69759-20110 · 69759-30030 |
| 69759J | Door lock link silencer | 69759-89102 |
| 69759T | Rear door inner handle buckle | 69759-20060 · 69759-20070 |
| 69759W | Rear door lock control link buckle | 69759-20020 · 69759-20030 · 69759-24030 · 69759-24040 |
