Toyota HILUX 后门板和后门玻璃 — Figure 6755

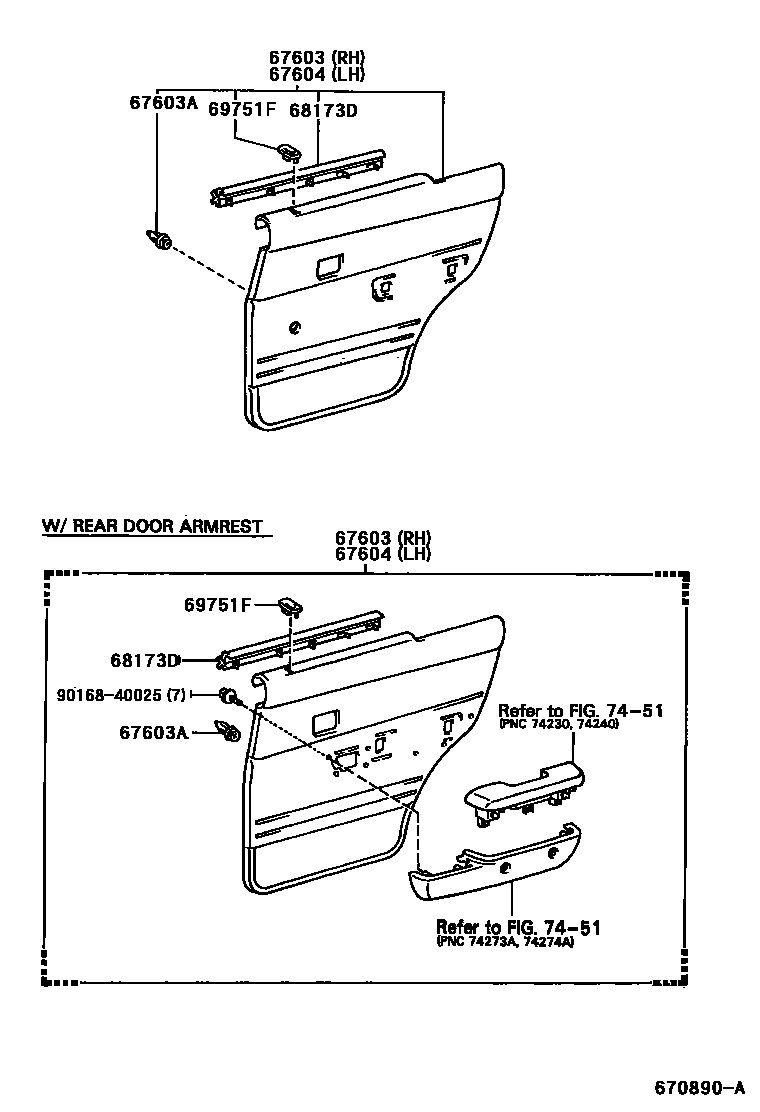

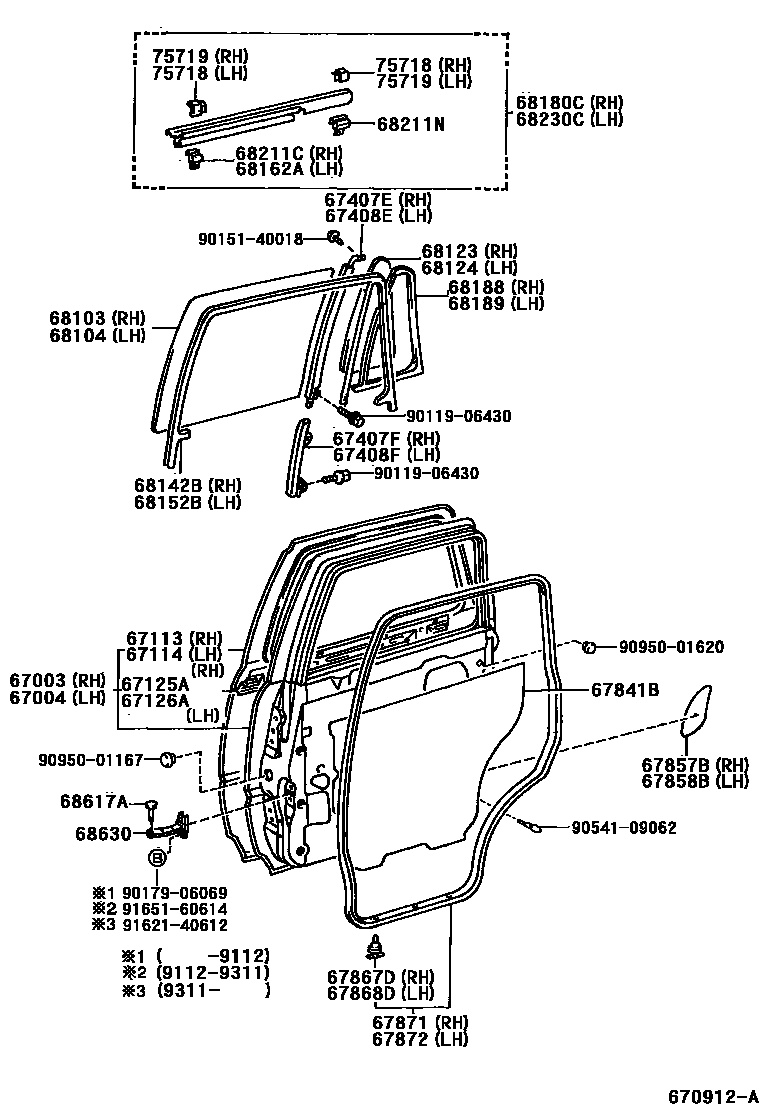

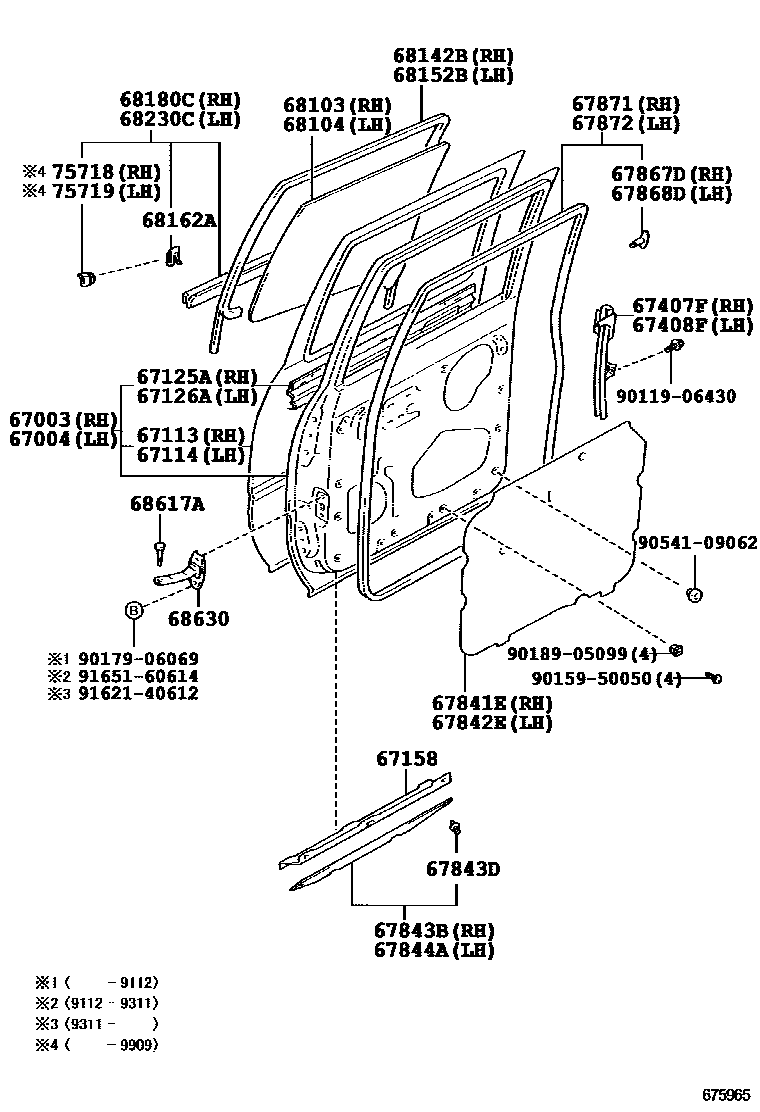

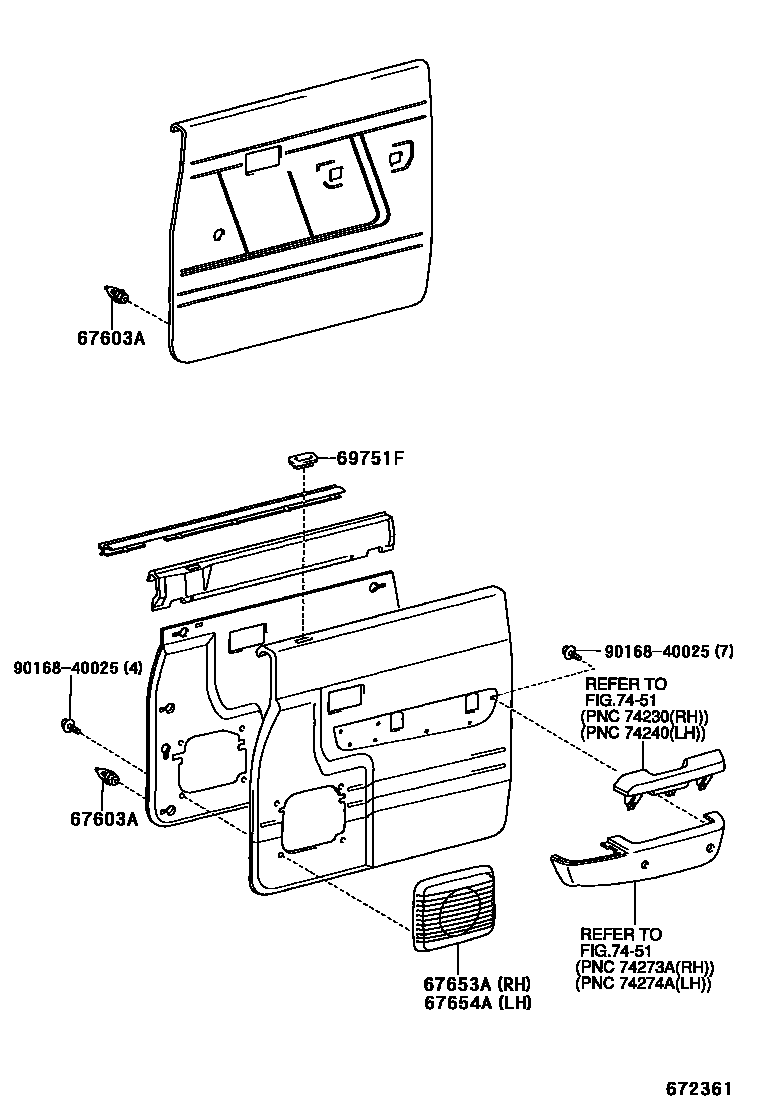

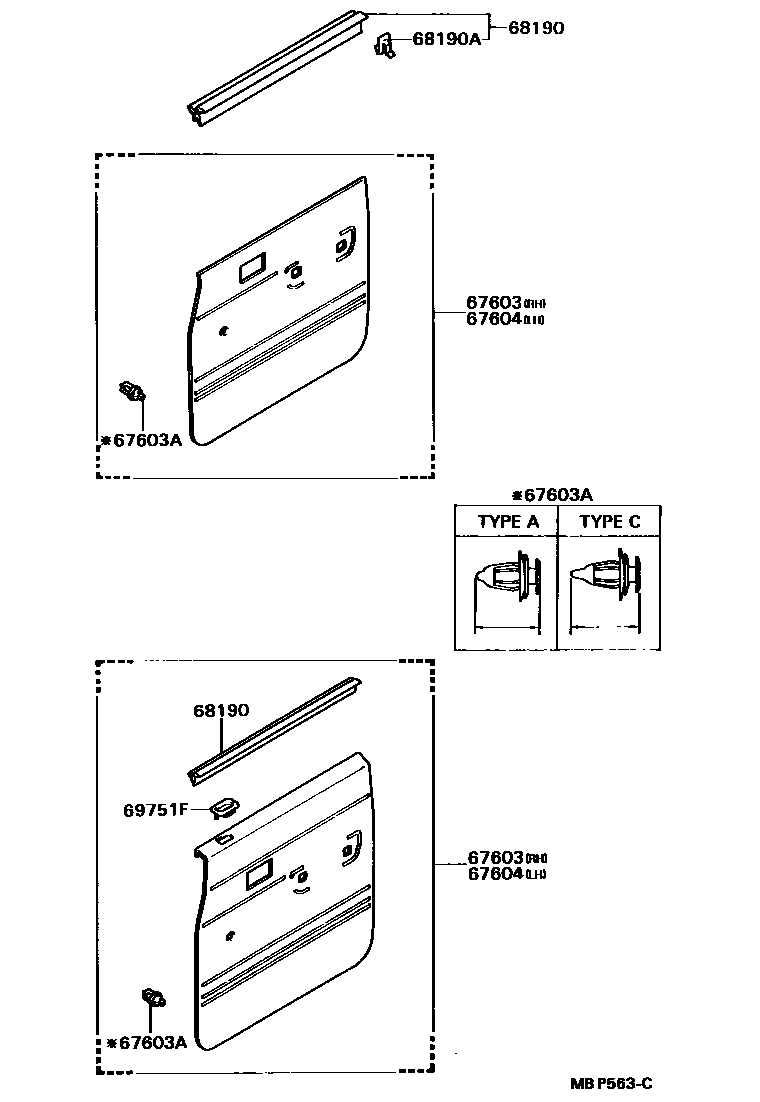

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-35010 · 67003-35030 · 67003-35050 · 67003-89107 · 67003-89109 |
| 67004 | Left rear door panel sub-assembly | 67004-35010 · 67004-35030 · 67004-35050 · 67004-89107 · 67004-89109 |
| 67113 | Right rear door outer panel | 67113-89104 · 67113-89106 |
| 67114 | Left rear door outer panel | 67114-89104 · 67114-89106 |
| 67125A | Right rear door outer panel reinforcement | 67125-89101 · 67125-89102 |
| 67126A | Left rear door outer panel reinforcement | 67125-89101 · 67126-89101 |
| 67158 | Rear door lower hole bracket | 67158-89101 |
| 67407E | Right rear door window divider sub-assembly | 67407-89106 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-89103 · 67407-89104 · 67407-89105 |
| 67408E | Left rear door window divider sub-assembly | 67408-89106 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-89103 · 67408-89104 · 67408-89105 |
| 67603A | Fixings (for rear door trim) | 67771-12050 · 67771-16080 · 67771-89109 · 67771-89111 |
| 67841B | Rear door access hole cover | 67841-89103 |
| 67841E | Right rear door access hole cover | 67841-35010 · 67841-89102 |
| 67842E | Left rear door access hole cover | 67841-35010 · 67841-89102 |
| 67843B | Right rear door No. 2 access hole cover | 67843-89101 |
| 67843D | Rear door access hole clip | 90189-05043 |
| 67844A | Left rear door No. 2 access hole cover | 67844-89101 |
| 67857B | Right rear door panel protector | 67857-35010 · 67857-89101 |
| 67858B | Left rear door panel protector | 67858-35010 · 67858-89101 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67867-89108 · 67868-22020 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-22020 · 67868-89106 |
| 67871 | Right rear door sealing strip | 67871-35010 · 67871-35020 · 67871-89103 · 67871-89104 |
| 67872 | Left rear door sealing strip | 67872-35010 · 67872-35020 · 67872-89103 · 67872-89104 |
| 68103 | Right rear door glass sub-assembly | 68113-89105 · 68113-89106 · 68113-89107 · 68113-89108 · 68113-89109 · 68113-89110 · 68113-89111 |
| 68104 | Left rear door glass sub-assembly | 68114-89101 · 68114-89102 · 68114-89103 · 68114-89104 · 68114-89105 · 68114-89106 · 68114-89107 |
| 68123 | Right rear door window glass | 68123-89101 · 68123-89102 · 68123-89103 |
| 68124 | Left rear door window glass | 68124-89101 · 68124-89102 · 68124-89103 |
| 68142B | Right rear door window lift chute | 68142-89103 · 68142-89104 |
| 68152B | Left rear door window lift chute | 68152-89101 · 68152-89102 |
| 68162A | Catch (for rear door glass outer sealing strip) | 68211-89111 · 68211-89112 · 68212-89101 |
| 68173D | Rear door glass groove seal strip | 68173-89111 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-89103 · 68180-89104 |
| 68188 | Right rear door corner window seal | 68188-89101 |
| 68189 | Left rear door corner window seal | 68189-89101 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-89108 · 68174-89105 · 68190-89103 · 68240-89103 |
| 68190A | Catch (for rear door glass inner sealing strip assembly) | 68211-10030 |
| 68211C | Catch (for rear door glass seal strip) | 68211-89111 |
| 68211N | Door glass seal strip clip | 68211-89112 |
| 68230C | Left rear door glass outer sealing strip assembly | 68180-89103 · 68230-89101 |
| 68617A | Rear door opening limiter pin | 68617-20011 |
| 68630 | Rear door opening limiter assembly | 68630-35010 · 68630-35020 · 68630-89103 |
| 75718 | Right front door waistline rear protective strip end cover | 75718-89102 |
| 75719 | Left front door waistline rear protective strip end cover | 75719-89102 |
