Toyota HILUX 前门车窗升降器和合页 — Figure 6754

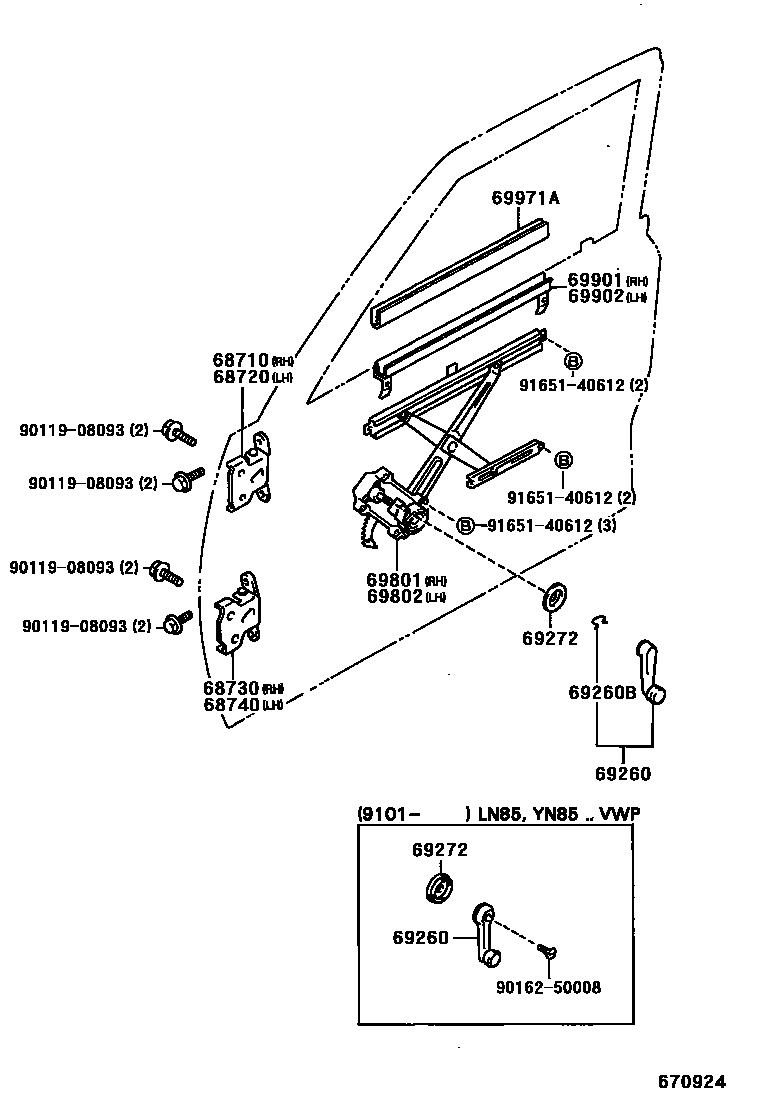

Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-20060 · 68710-35010 |
| 68720 | Left front door upper hinge assembly | 68720-20050 · 68720-35010 |
| 68730 | Right front door lower hinge assembly | 68730-14030 · 68730-35010 |
| 68740 | Left front door lower hinge assembly | 68740-14030 · 68740-35010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 · 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-16010 · 69268-20020 |
| 69801 | Right front door window lifter sub-assembly | 69801-35010 · 69801-35020 · 69801-35040 · 69801-35050 · 69801-35060 · 69801-89113 · 69801-89114 · 69801-89117 · 69801-89118 · 69801-89120 · 69801-89121 |
| 69802 | Left front door window lifter sub-assembly | 69802-35010 · 69802-35020 · 69802-35040 · 69802-35050 · 69802-35060 · 69802-89111 · 69802-89112 · 69802-89115 · 69802-89116 · 69802-89117 · 69802-89118 |
| 69901 | Right front door glass groove sub-assembly | 69901-89113 · 69901-89114 · 69901-89115 · 69901-89116 |
| 69902 | Left front door glass groove sub-assembly | 69901-89113 · 69901-89114 · 69901-89115 · 69901-89116 |
| 69971A | Front door glass channel filler | 69971-35020 · 69971-89104 · 69971-89106 · 69971-89107 · 69971-89109 |
