Toyota HILUX 后车身侧面板 — Figure 6554

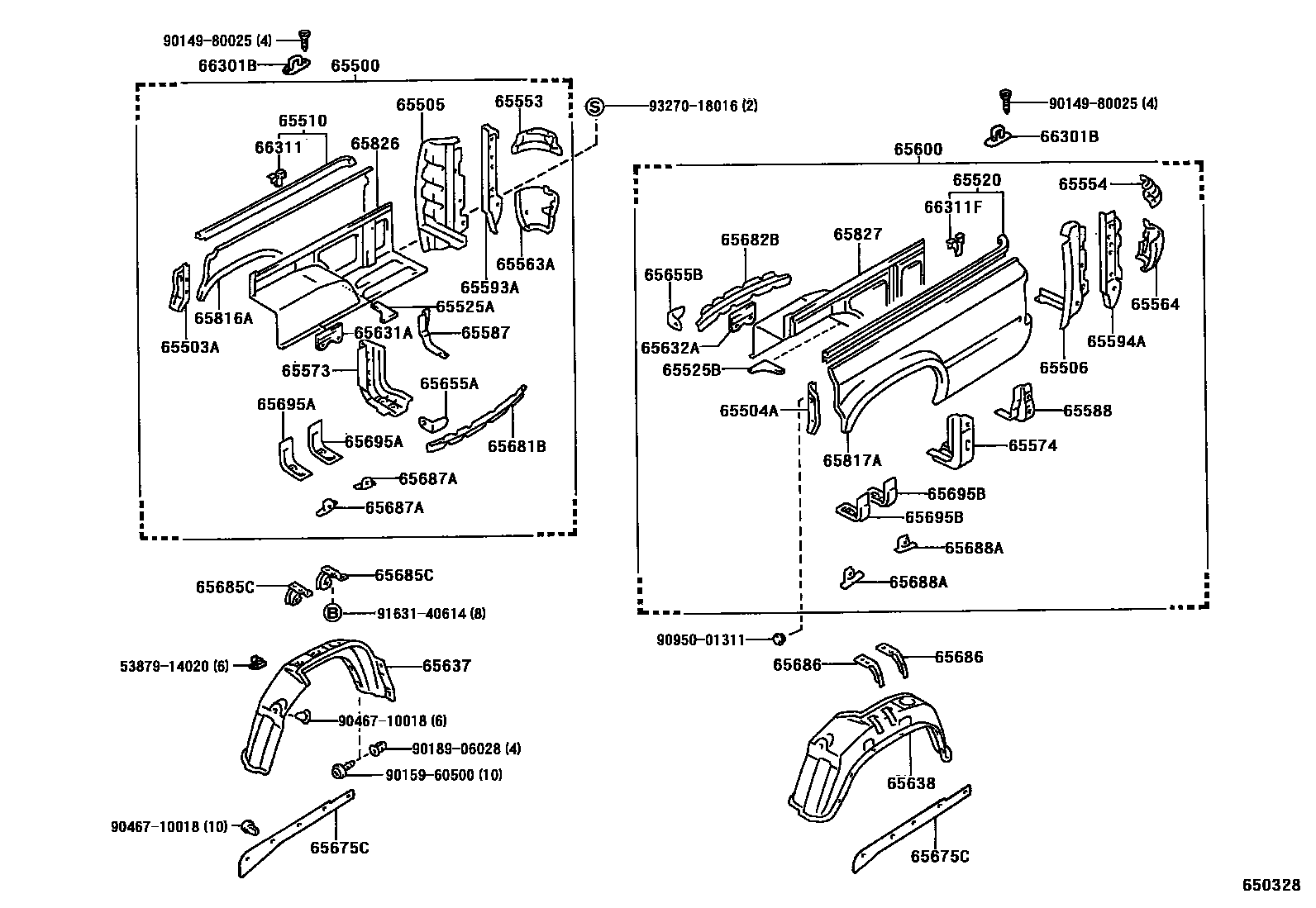

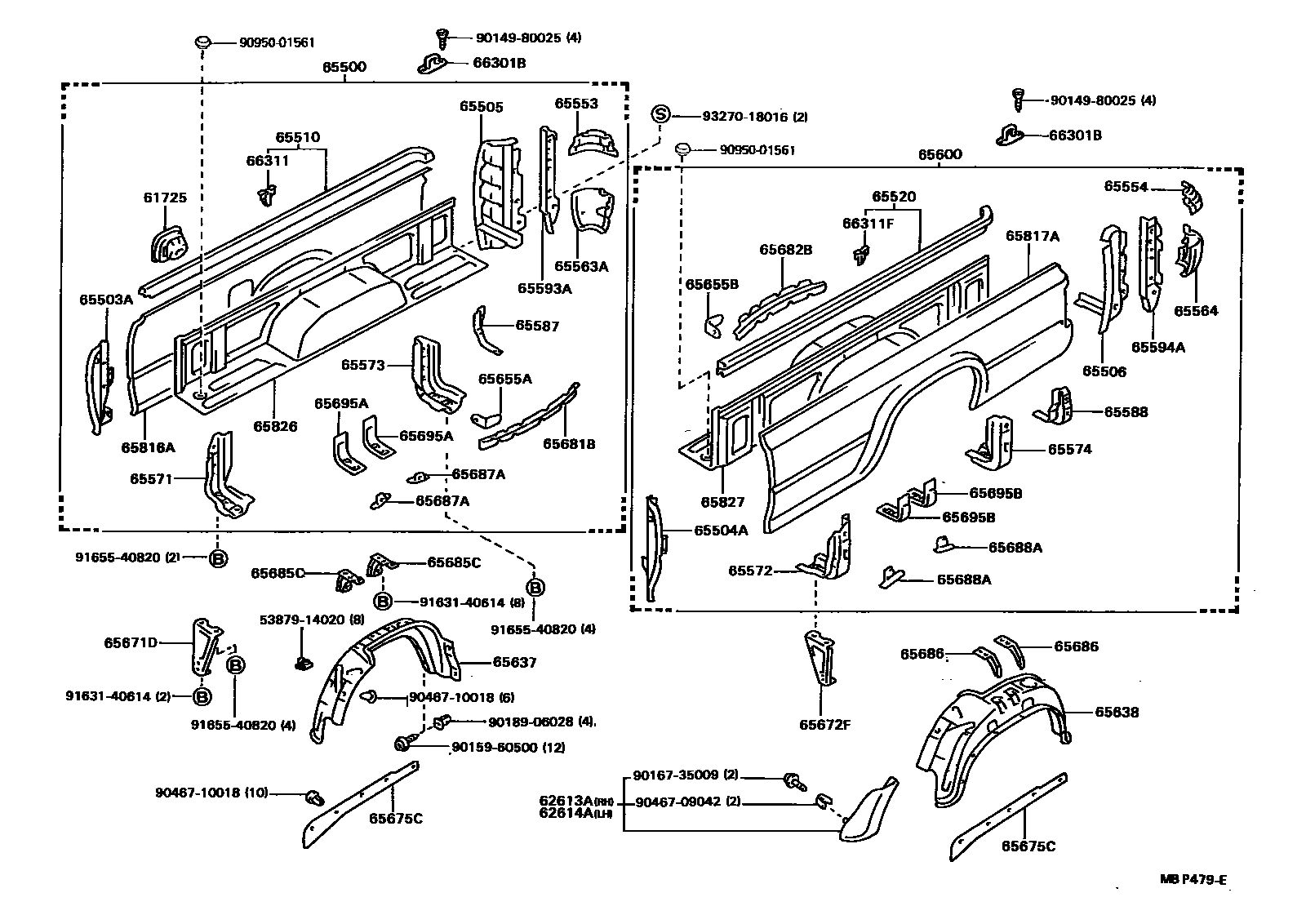

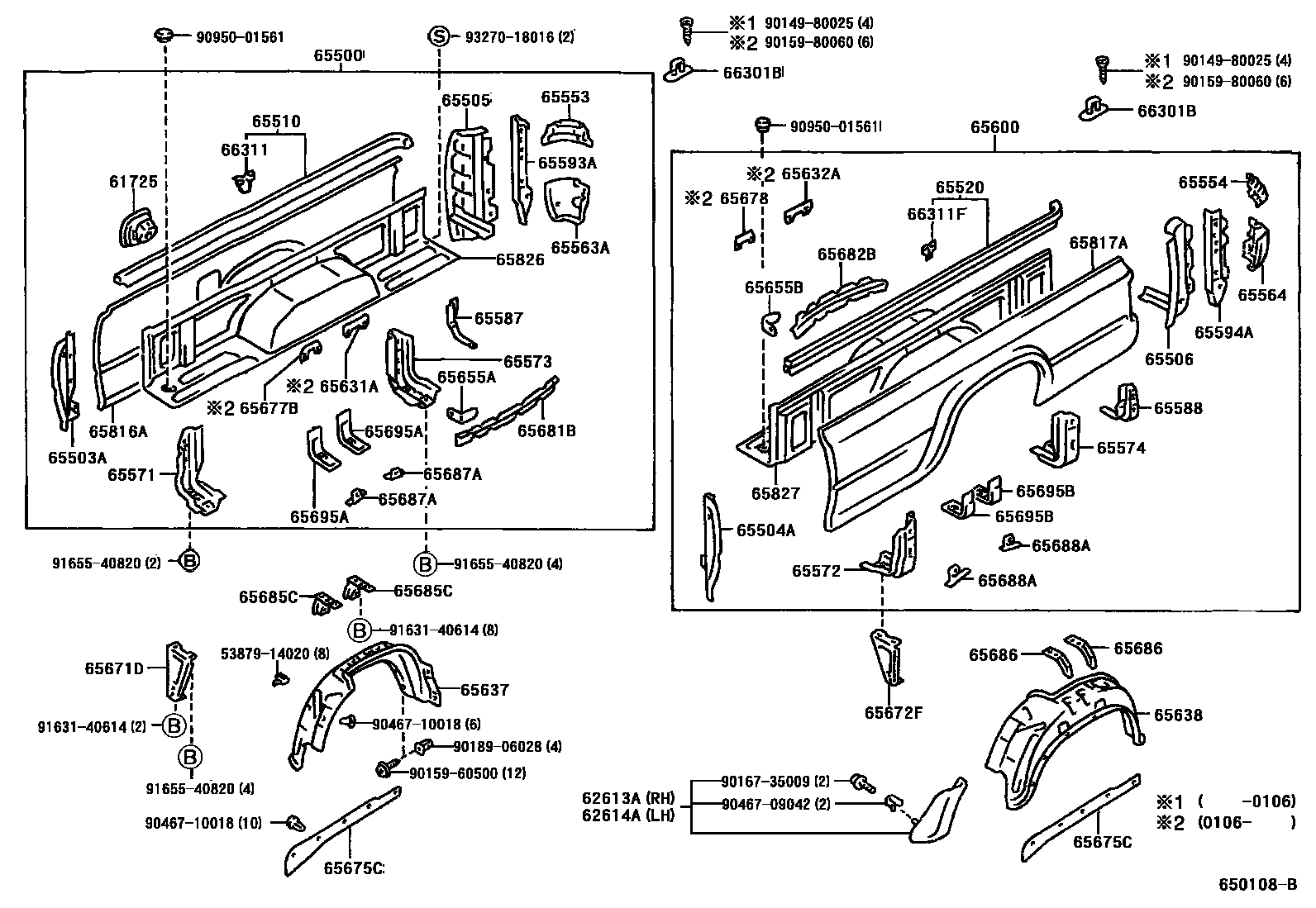

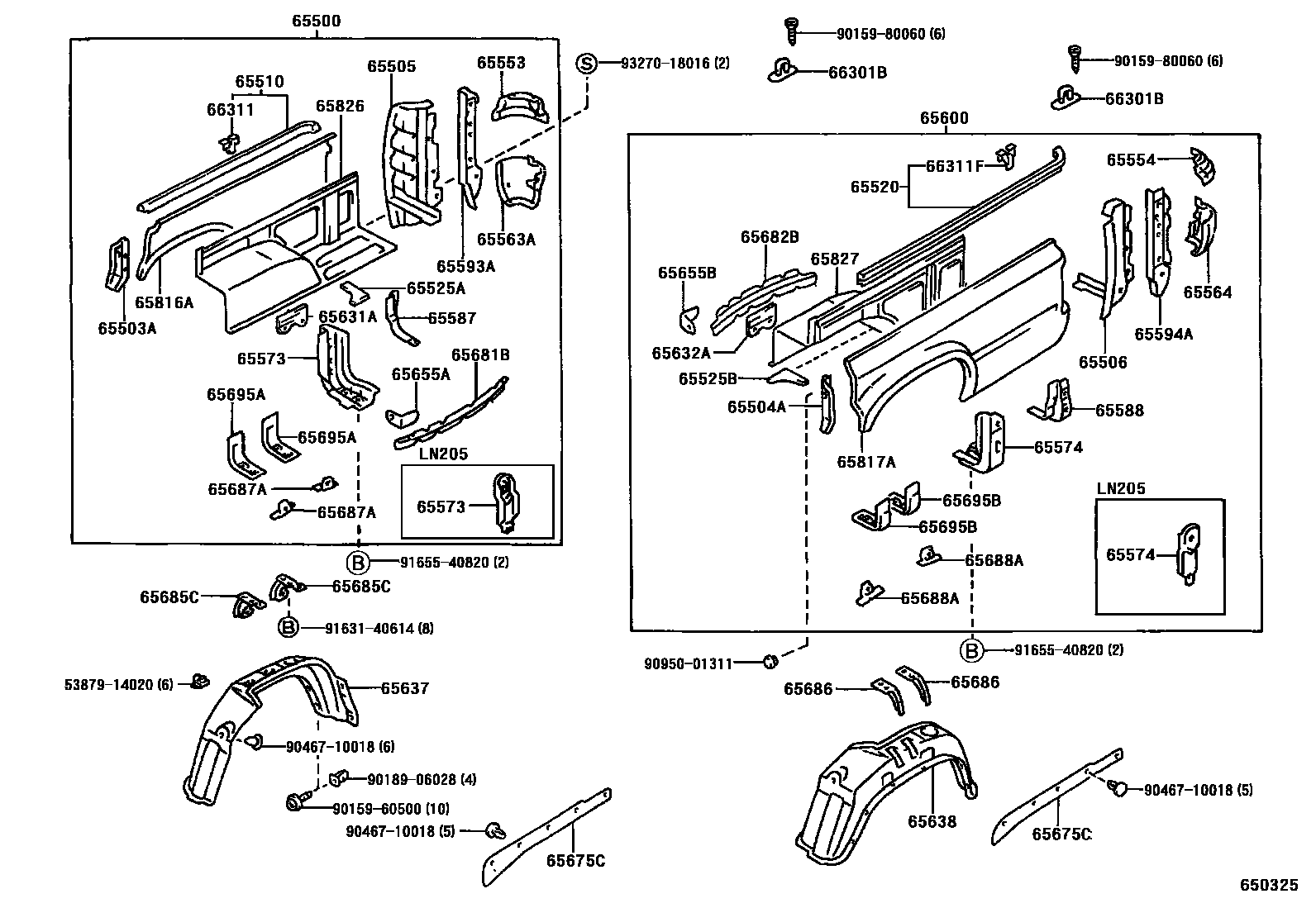

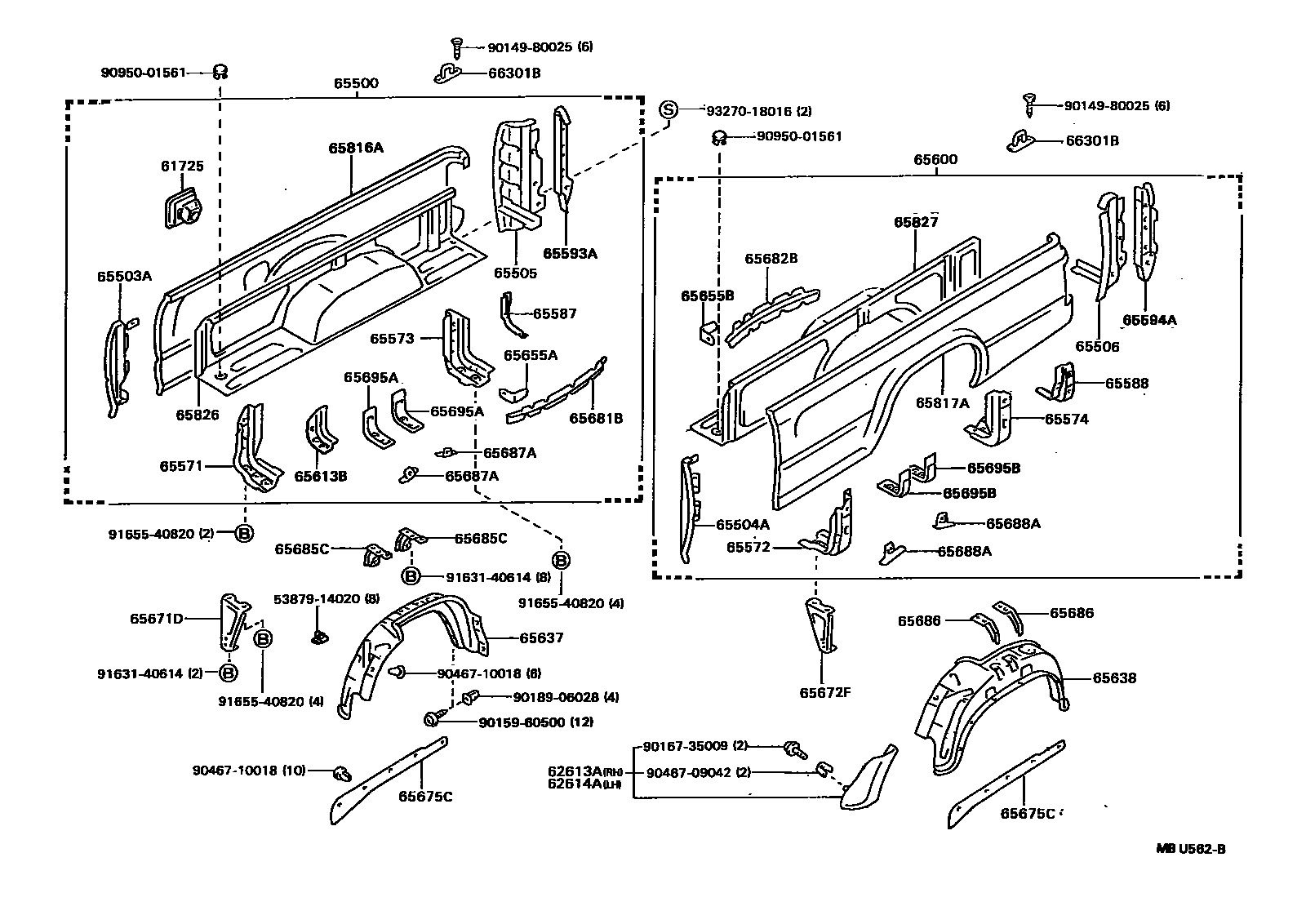

Toyota HILUX EPC diagram 6554, 后车身侧面板, with 5 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61725 | Fuel inlet | 61709-89109 · 61709-89110 · 61725-89113 |
| 65500 | Right rear body side panel assembly | 65500-35010 · 65500-35020 · 65500-35030 · 65500-35050 · 65500-35080 · 65500-35090 · 65500-35300 · 65500-35340 · 65500-35350 · 65500-35360 · 65500-35370 · 65500-35410 · 65500-35420 · 65500-35430 · 65500-35470 · 65500-35480 · 65500-89340 · 65500-89341 · 65500-89351 · 65500-89352 · 65500-89353 · 65500-89360 · 65500-89363 · 65500-89365 · 65500-89372 · 65500-89375 · 65500-89376 · 65500-89381 |
| 65503A | Right side panel front end column sub-assembly | 65503-35010 · 65503-89101 · 65503-89102 · 65551-89115 · 65551-89116 |
| 65504A | Left side panel front end column sub-assembly | 65504-35010 · 65504-89101 · 65504-89102 · 65552-89115 · 65552-89116 |
| 65505 | Right side panel rear end column sub-assembly | 65505-89108 · 65505-89109 · 65505-89111 |
| 65506 | Left side panel rear end column sub-assembly | 65506-89108 · 65506-89109 · 65506-89111 |
| 65510 | Longitudinal beam assembly on right side panel | 65510-89145 · 65510-89146 |
| 65520 | Longitudinal beam assembly on left side panel | 65520-89145 · 65520-89146 |
| 65525A | No. 1 side panel frame panel | 65525-89101 |
| 65525B | No. 1 side panel frame panel | 65525-89101 |
| 65553 | Upper right side panel rear end pillar panel | 65553-89110 · 65553-89111 |
| 65554 | Upper left side panel rear end pillar panel | 65554-89110 · 65554-89111 |
| 65563A | Lower right side panel rear end pillar panel | 65563-89103 · 65563-89105 |
| 65564 | Left lower side panel rear end pillar panel | 65564-89102 · 65564-89104 |
| 65571 | Right front side panel frame | 65571-89101 |
| 65572 | Left front side panel frame | 65572-89101 |
| 65573 | Right rear side panel frame | 65547-35010 · 65573-89101 |
| 65574 | Left rear side panel frame | 65547-35010 · 65574-89101 |
| 65587 | Right rear side panel frame B | 65587-89101 |
| 65588 | Left rear side panel frame B | 65588-89101 |
| 65593A | Right side panel rear end column inner panel | 65593-89101 · 65593-89102 · 65593-89103 |
| 65594A | Left side panel rear end column inner panel | 65594-89101 · 65594-89102 · 65594-89103 |
| 65600 | Left rear body side panel assembly | 65600-35010 · 65600-35020 · 65600-35040 · 65600-35070 · 65600-35080 · 65600-35250 · 65600-35280 · 65600-35290 · 65600-35330 · 65600-35340 · 65600-35350 · 65600-35390 · 65600-35400 · 65600-89287 · 65600-89296 · 65600-89297 · 65600-89303 · 65600-89306 · 65600-89308 · 65600-89316 · 65600-89319 |
| 65613B | Rear body panel fixings | 65613-89104 |
| 65631A | Right rear wheel house front panel | 65631-89113 |
| 65632A | Left rear wheel house front panel | 65632-89112 |
| 65637 | Right rear wheel house lining | 65637-89102 · 65637-89103 |
| 65638 | Left rear wheel house lining | 65638-89102 · 65638-89103 |
| 65655A | Front wheel housing seal bracket | 65655-89103 |
| 65655B | Front wheel housing seal bracket | 65655-89103 |
| 65671D | Right front side panel skirt bracket | 65671-89106 · 65671-89107 |
| 65672F | Left front side panel skirt bracket | 65672-89101 · 65672-89102 |
| 65675C | wheel housing seal | 65675-89111 |
| 65677B | Right rear wheel house lining | 65677-35010 |
| 65678 | Left rear wheel house lining | 65678-35010 |
| 65681B | Right wheel housing seal bracket | 65681-89104 |
| 65682B | Left-hand wheel arch seal bracket | 65682-89104 |
| 65685C | Right wheel housing bracket | 65685-89101 |
| 65686 | Left wheel housing bracket | 65686-89101 |
| 65687A | Right wheel housing bracket | 65687-89101 |
| 65688A | Left wheel housing bracket | 65688-89101 |
| 65695A | No. 2 wheel housing bracket | 65695-89102 |
| 65695B | No. 2 wheel housing bracket | 65695-89102 |
| 65816A | Right rear body side panel | 65816-35020 · 65816-35030 · 65816-89131 · 65816-89133 · 65816-89135 · 65816-89138 · 65816-89141 |
| 65817A | Left rear body side panel | 65817-35020 · 65817-35030 · 65817-89129 · 65817-89131 · 65817-89133 · 65817-89136 · 65817-89139 |
| 65826 | Right rear body inner panel | 65826-35020 · 65826-89109 · 65826-89110 · 65826-89111 · 65826-89116 |
| 65827 | Left rear body inner panel | 65827-35020 · 65827-89109 · 65827-89110 · 65827-89111 · 65827-89116 |
| 66301B | Rope hook sub-assembly | 66301-89102 · 66312-34010 · 66312-35010 |
| 66311 | rope hook | 66311-89109 |
| 66311F | No. 2 rope hook | 66311-89109 |
