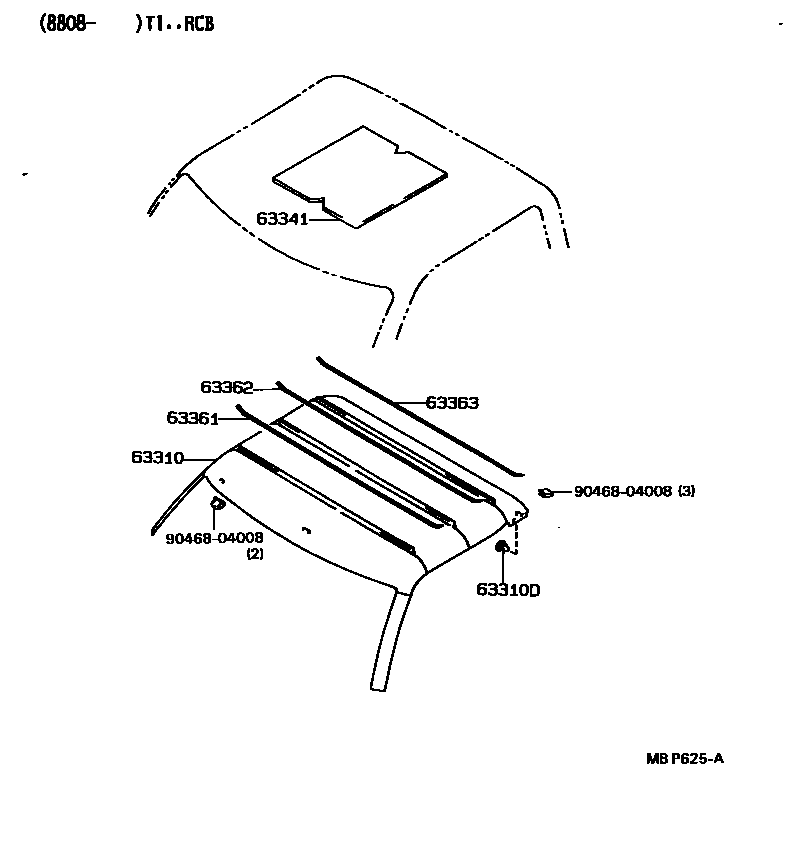

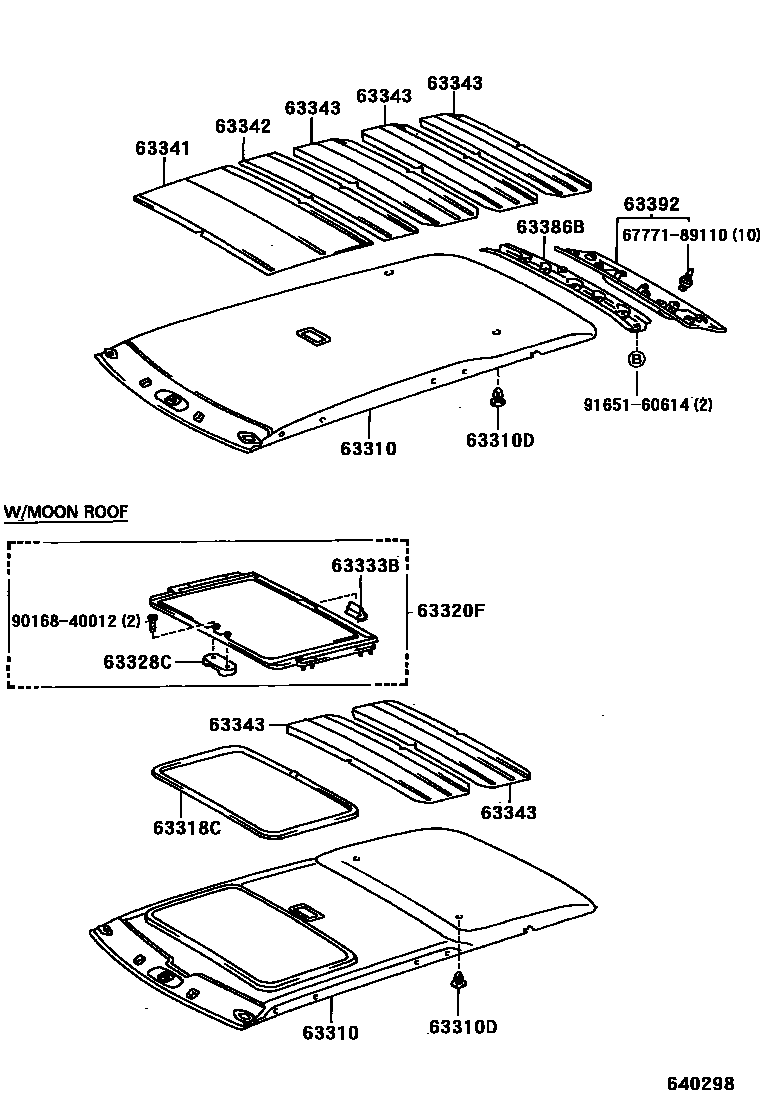

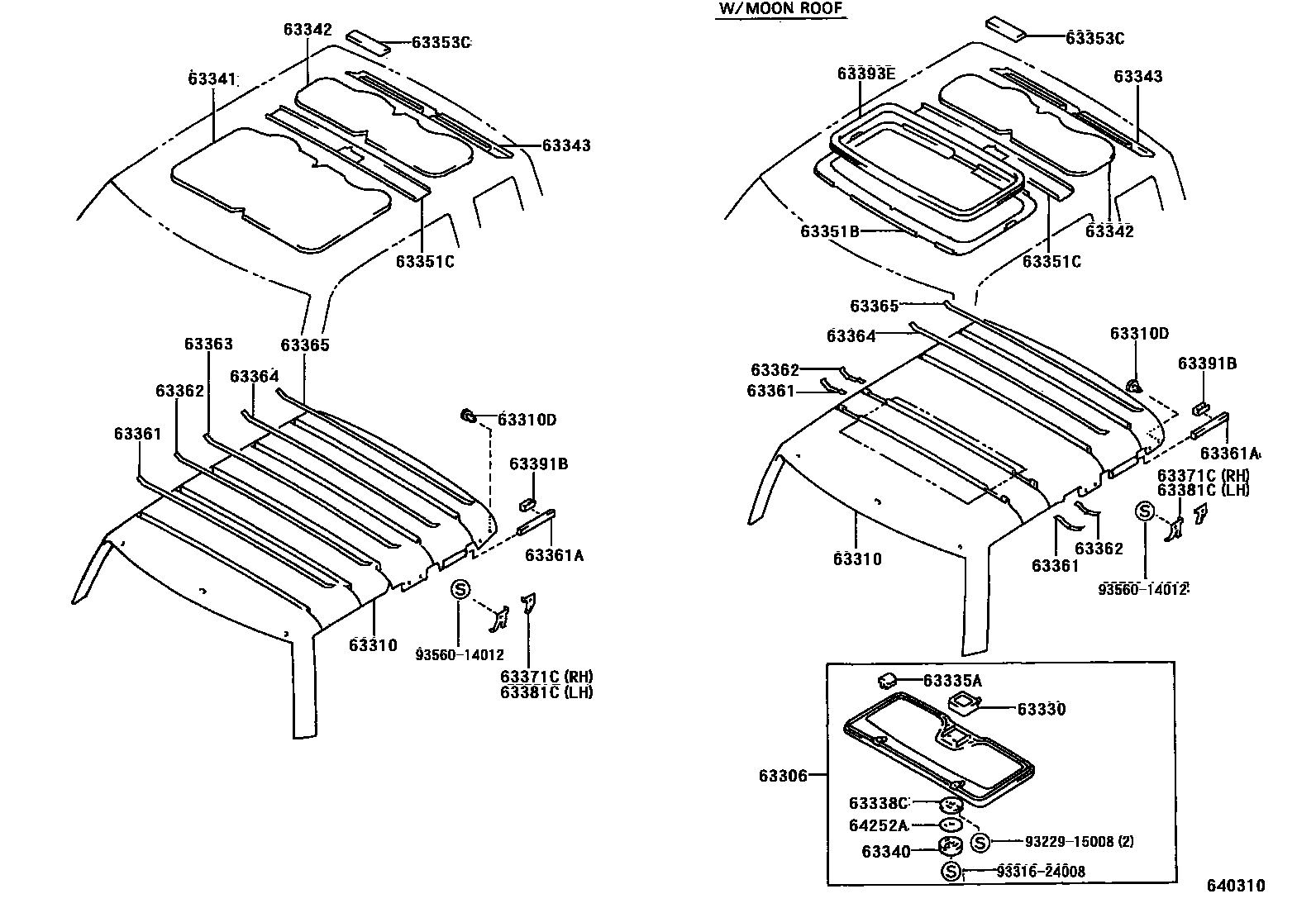

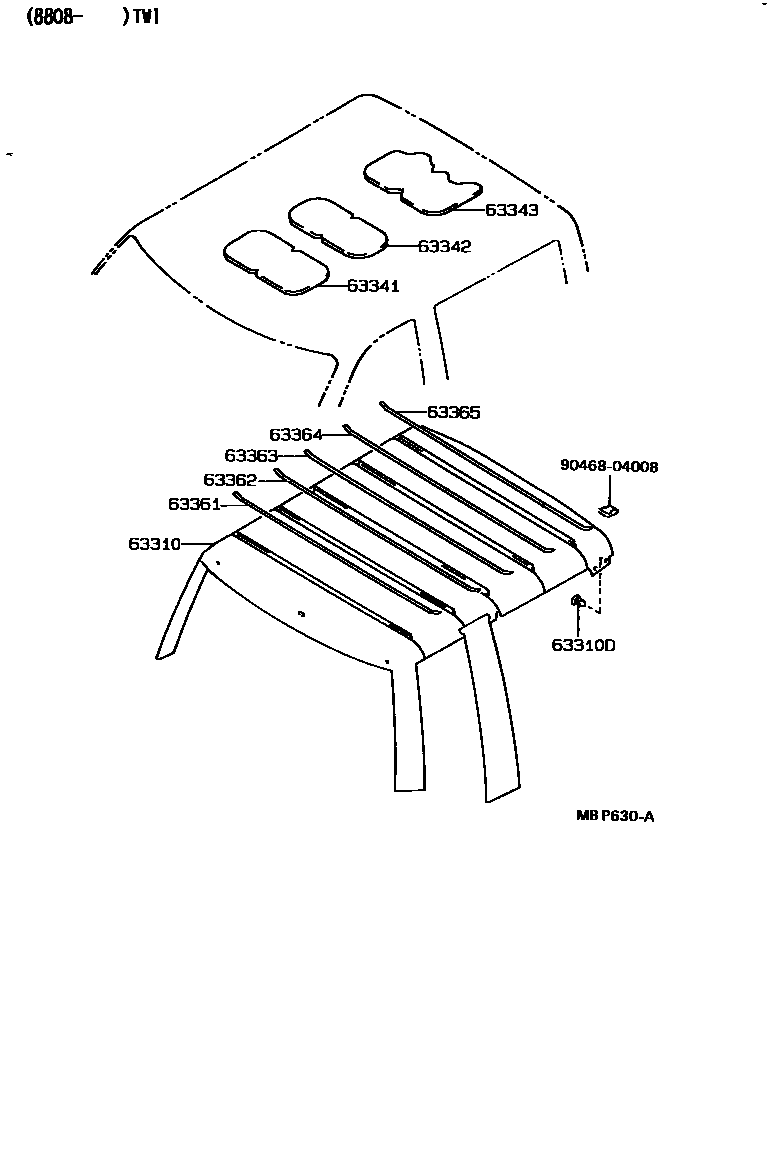

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-08122 · 90467-10018 · 90467-10044 |
| 63330 | Sunshade trim panel lock assembly | 63330-89101 |
| 63333B | Sunshade decorative panel protective parts | 63333-30010 |
| 63335A | No. 1 sunshade decorative panel cushion | 63335-89102 |
| 63338C | No. 2 sunshade lock stop | 63338-12010 |
| 63341 | No. 1 roof silencer mat | 63341-35050 · 63341-89110 · 63341-89116 · 63341-89121 · 63341-89122 |
| 63342 | No. 2 roof muffler pad | 63341-35070 · 63341-89118 · 63341-89119 · 63341-89123 |
| 63343 | No. 3 roof muffler pad | 63341-35080 · 63341-89120 · 63341-89124 · 63343-89104 |
| 63351B | roof lining pads | 63351-89107 |
| 63351C | roof lining pads | 63351-89108 |
| 63353C | Center roof lining lining | 63353-89101 |
| 63361 | Headlining bracket No. 1 | 63361-89113 · 63361-89115 · 63361-89116 · 63361-89118 |
| 63361A | headliner bracket | 63361-89122 |
| 63362 | Headlining bracket No. 2 | 63361-89113 · 63361-89115 · 63361-89120 · 63361-89123 |
| 63363 | No. 3 roof lining bracket | 63361-89115 · 63361-89120 · 63361-89123 |
| 63364 | No. 4 roof lining bracket | 63361-89117 · 63361-89120 · 63361-89121 |
| 63365 | No. 5 headliner bracket | 63361-89117 · 63361-89121 · 63361-89124 |
| 63371C | No. 1 roof right side lining fixing piece | 63371-89102 |
| 63381C | No. 1 roof left lining fixing piece | 63374-89102 |
| 63386B | Headlining trim reinforcement | 63386-89102 |
| 63391B | Headlining trim panel clip | 63391-89104 |
| 64252A | Sunshade decorative panel lock spacer | 64252-17010 |
