Toyota HILUX 车内装饰板 — Figure 6451

Toyota HILUX EPC diagram 6451, 车内装饰板, with 5 images and 13 PNC and OE references.

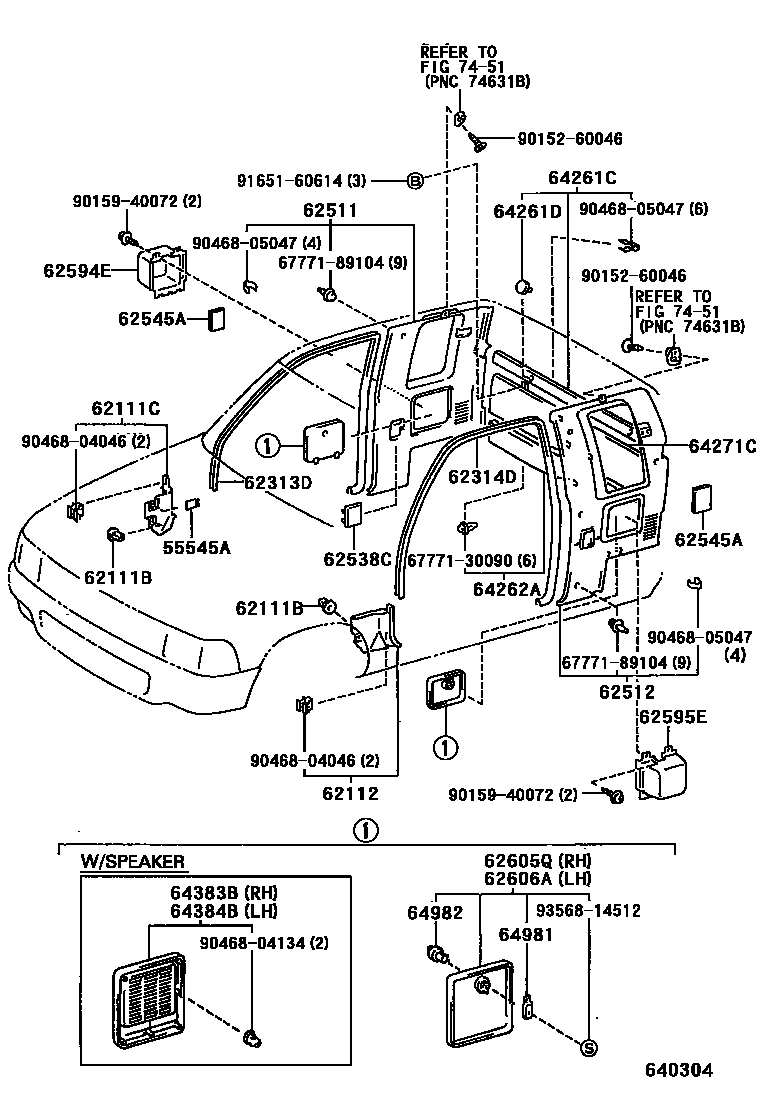

Toyota HILUX 车内装饰板 EPC diagram — 640304
车内装饰板 — 640304 (198808 – 999999)

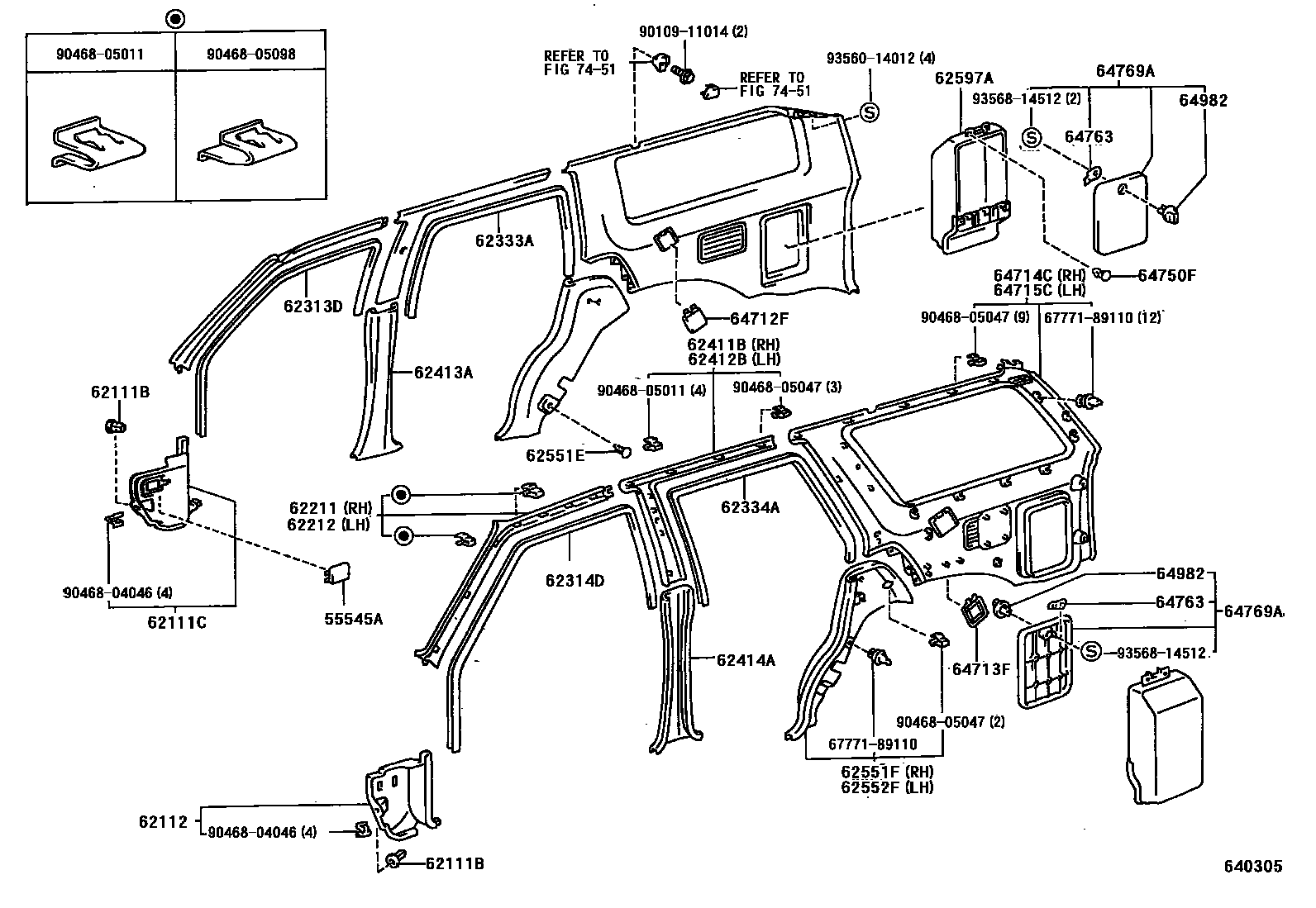

Toyota HILUX 车内装饰板 EPC diagram — 640305
车内装饰板 — 640305 (198904 – 999999)

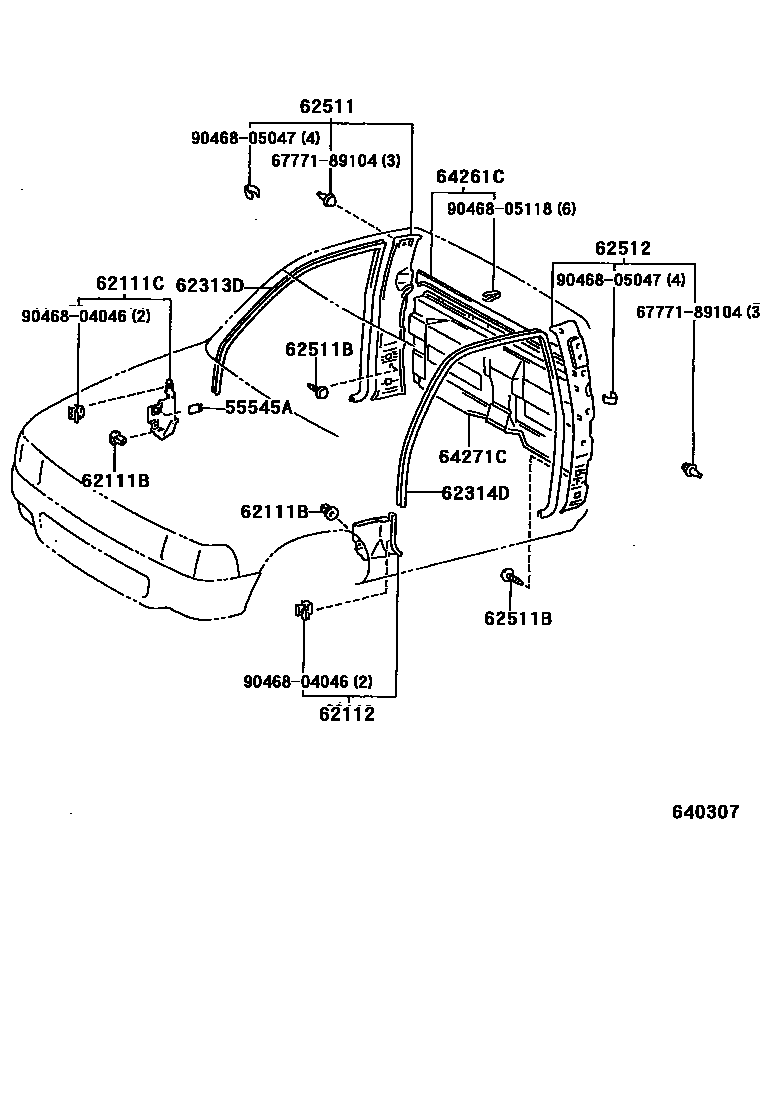

Toyota HILUX 车内装饰板 EPC diagram — 640307
车内装饰板 — 640307 (198808 – 999999)

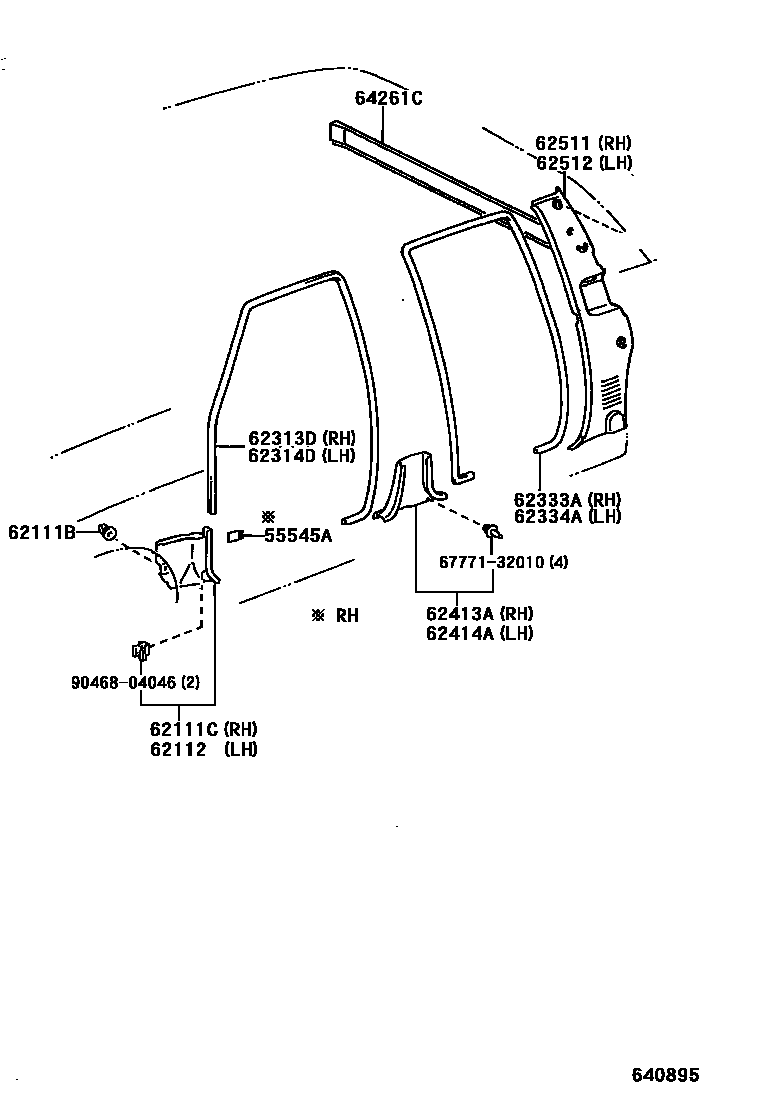

Toyota HILUX 车内装饰板 EPC diagram — 640895
车内装饰板 — 640895 (198808 – 999999)

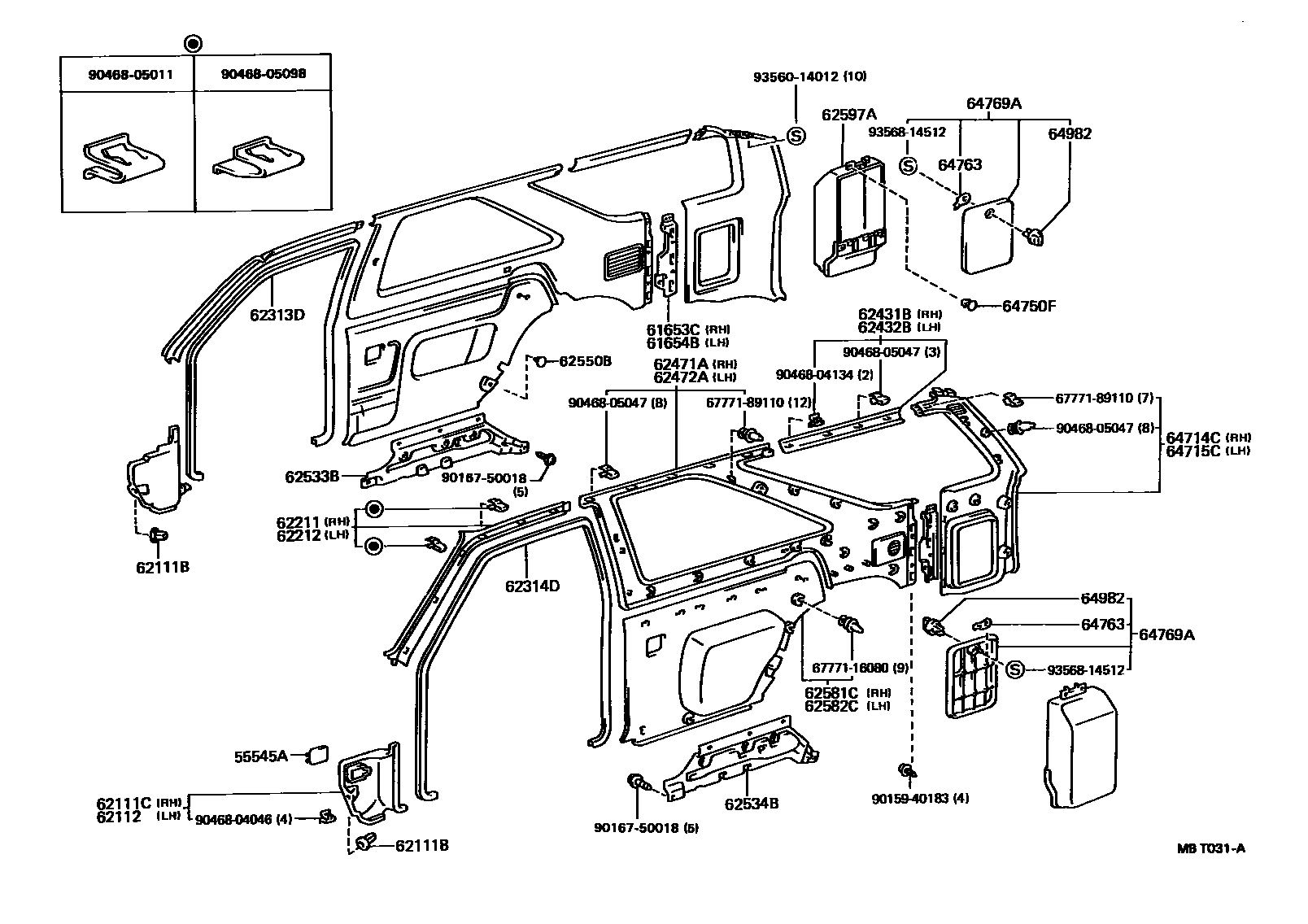

Toyota HILUX 车内装饰板 EPC diagram — MBT031A
车内装饰板 — MBT031A (198908 – 999999)

PNC and OE references

PNCPart nameOE numbers
61653CDecoration bracket on the right side of the floor61653-89101
61654BDecoration bracket on the left side of the floor61654-89101
62313DRight front door waterproof strip62313-89114
62314DLeft front door waterproof strip62313-89114
62333ARight rear door waterproof strip62333-89105
62334ALeft rear door waterproof strip62333-89105
62533BRight side decorative panel bracket62533-89101
62534BLeft side decorative panel bracket62534-89101
62545ASide decorative panel sound attenuator62545-89101
62597ASide decorative box62580-89101 · 62590-89101
64750FClip (for bottom panel side decorative panel)90467-07096
64763Tool cover stop64763-89102
64981Washer water tank cover stopper64981-16021
