Toyota HILUX 天窗板和背板 — Figure 6153

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 5 images and 78 PNC and OE references.

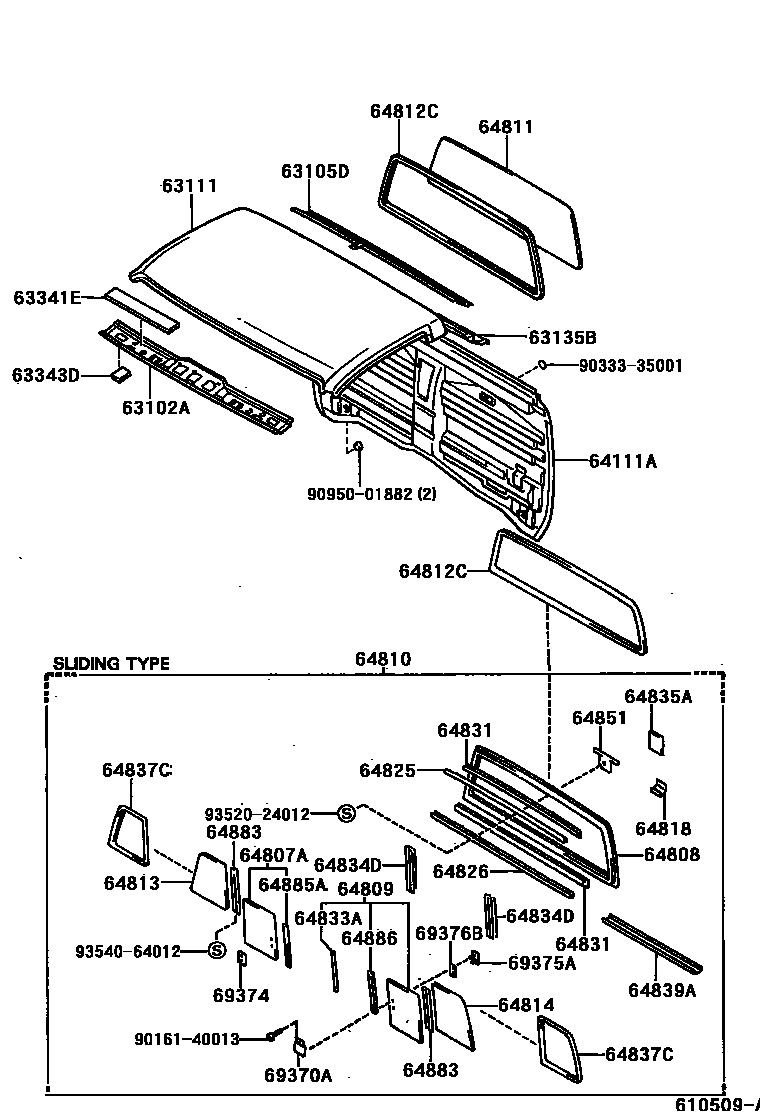

Toyota HILUX 天窗板和背板 EPC diagram — 610509A
天窗板和背板 — 610509A (198808 – 999999)

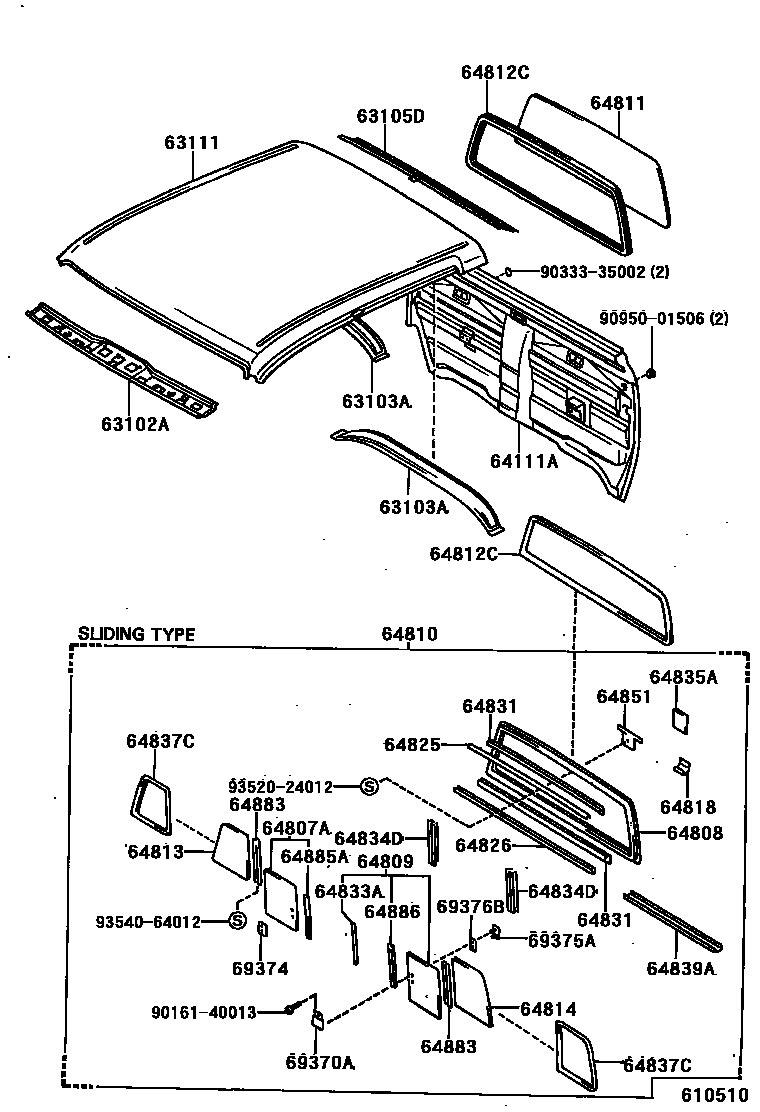

Toyota HILUX 天窗板和背板 EPC diagram — 610510
天窗板和背板 — 610510 (198808 – 999999)

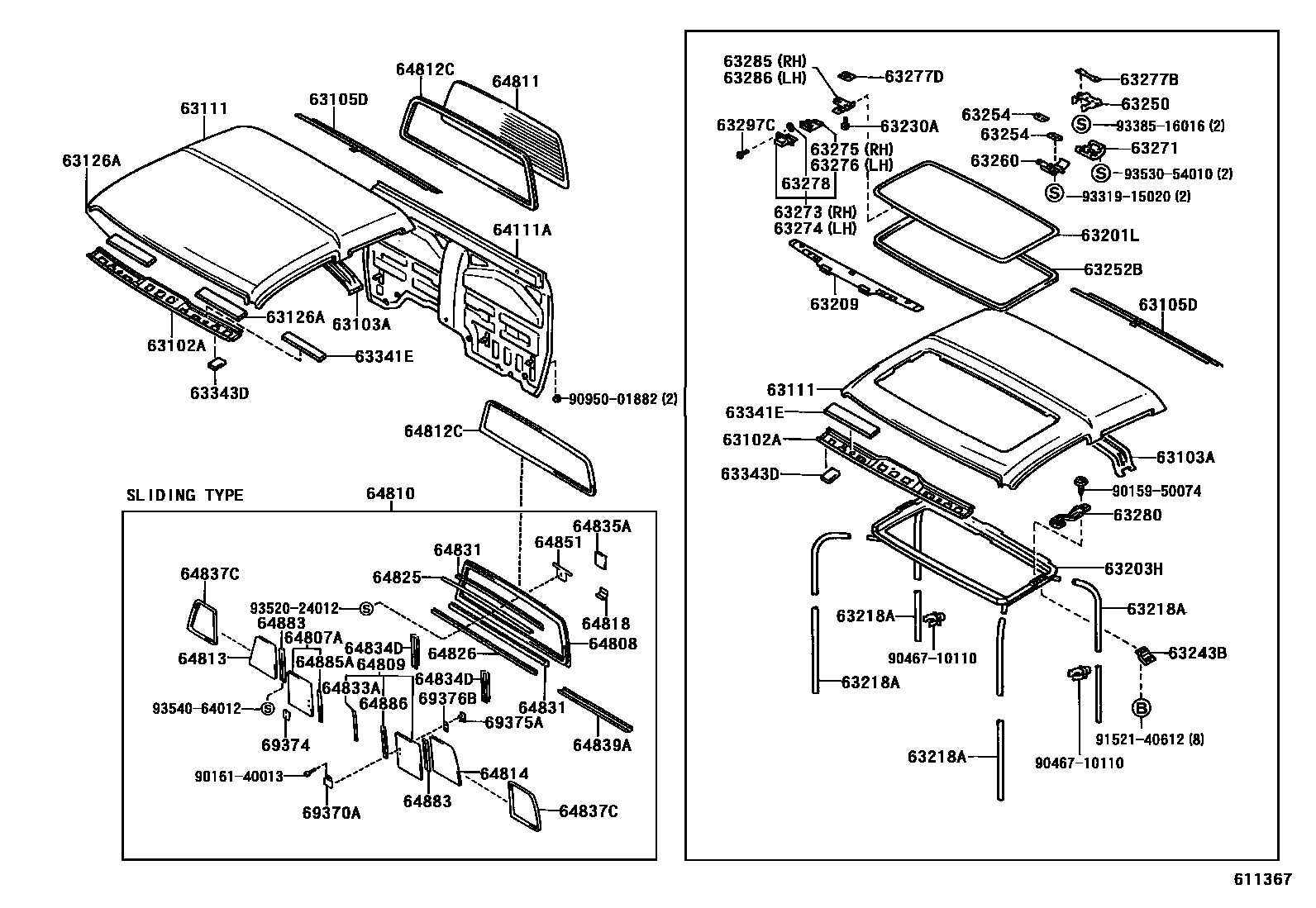

Toyota HILUX 天窗板和背板 EPC diagram — 611367
天窗板和背板 — 611367 (198808 – 999999)

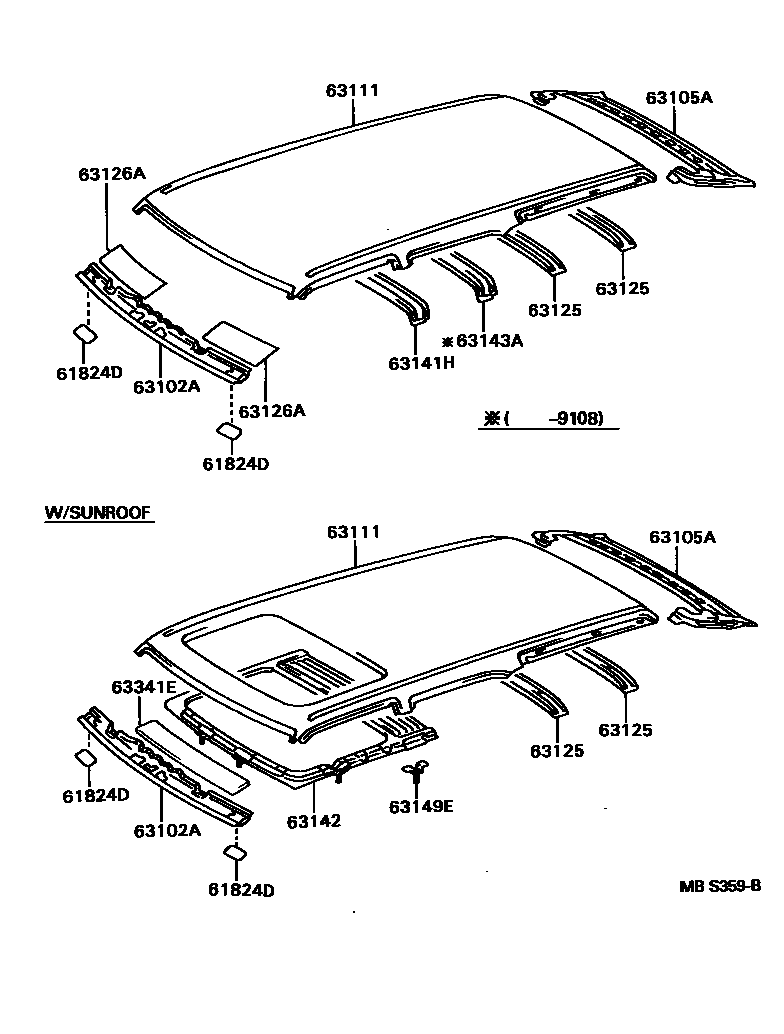

Toyota HILUX 天窗板和背板 EPC diagram — MBS359B
天窗板和背板 — MBS359B (198904 – 199511)

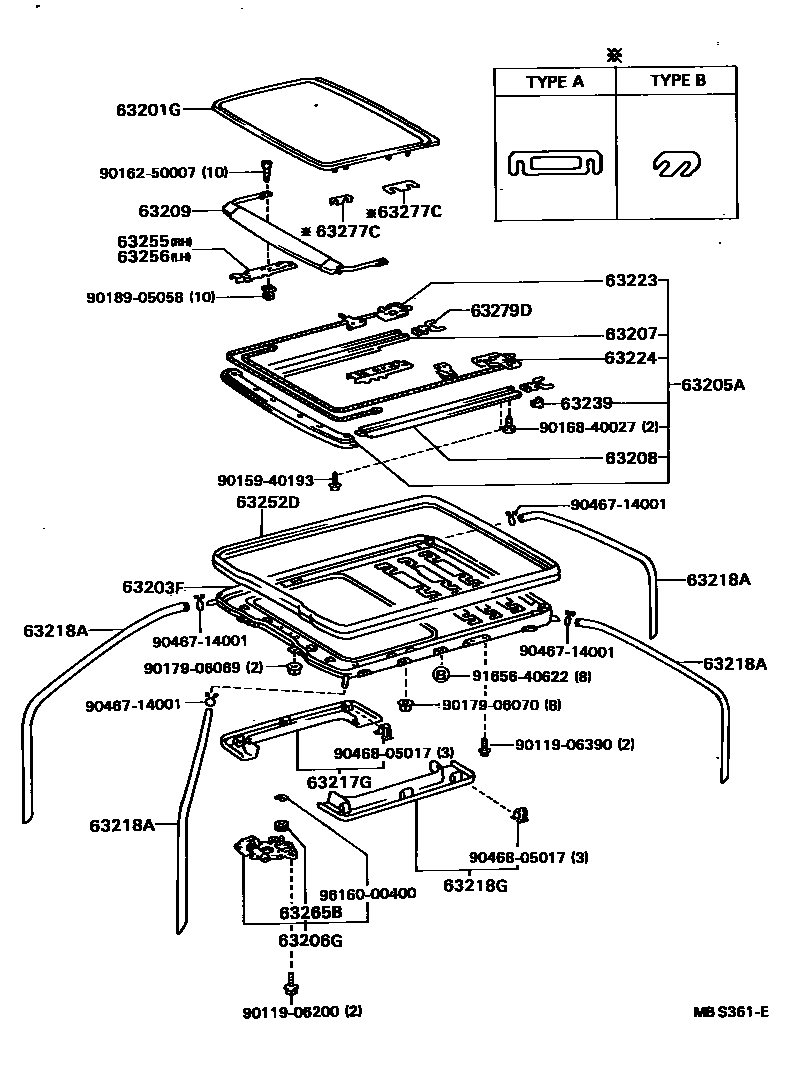

Toyota HILUX 天窗板和背板 EPC diagram — MBS361E
天窗板和背板 — MBS361E (198904 – 199511)

PNC and OE references

PNCPart nameOE numbers
61824DNoise Control Panel No. 161824-89106 · 61825-20100
63102AWindshield roof sub-assembly63102-89107 · 63102-89108 · 63102-89109
63103ARoof panel reinforcement sub-assembly63103-89106 · 63103-89107
63105ABack door opening frame sub-assembly63105-35010 · 63105-35011 · 63105-89111
63105DRear window upper frame sub-assembly63105-35020 · 63105-35050 · 63105-89106 · 63105-89109 · 63105-89110
63111roof panel63111-35090 · 63111-35100 · 63111-35110 · 63111-35120 · 63111-89118 · 63111-89120 · 63111-89121 · 63111-89122 · 63111-89123 · 63111-89124 · 63111-89125 · 63111-89126 · 63111-89129 · 63111-89130
63125No. 2 roof panel reinforcement63125-89101
63126AWindshield roof shock absorber63126-16010
63135BUpper panel inside the back window63135-35020 · 63135-89102
63141HCenter roof panel reinforcement63141-89106 · 63141-89107
63142No. 2 roof panel reinforcement63142-89102
63143ARoof panel reinforcement63143-89102
63149ENo. 2 roof panel reinforcement bracket63149-89103
63201GSliding sunroof glass sub-assembly63201-89107
63201LRemovable roof glass sub-assembly63201-89106
63203FSliding sunroof frame sub-assembly63203-89109
63203HRemovable roof rack sub-assembly63203-89108
63205ASliding sunroof transmission cable sub-assembly63205-35010 · 63205-35011 · 63205-89101
63206GSliding sunroof driving gear sub-assembly63260-35020 · 63260-89106
63207Right sliding sunroof guide rail sub-assembly63207-35010 · 63207-35011 · 63207-89101
63208Left sliding sunroof guide rail sub-assembly63208-35010 · 63208-35011 · 63208-89102
63209Roof deflector sub-assembly63209-89102 · 63209-89103
63217GRight sliding sunroof trim63217-89102
63218AHoses (for sliding roof or removable roof drainage)63249-16070 · 63249-35040 · 63249-89101 · 63249-89102 · 63249-89104 · 63249-89105 · 63249-89109
63218GSliding sunroof trim, left63218-89103
63223Right sliding sunroof transmission cable63223-35010 · 63223-35020 · 63223-89101
63224Left sliding sunroof transmission cable63224-35010 · 63224-35020 · 63224-89101
63230ARemovable roof bolt assembly63230-89101
63239Sliding roof panel stop63239-24010
63243BRemovable roof rack right side mounting bracket63243-89105
63250Removable roof lock base assembly63250-12010 · 63250-17011
63252BRemovable roof rear seal63252-89103
63252DSliding skylight frame sealing strip63252-89105
63254Removable roof glass inner rear mounting bracket63254-89103 · 63254-89104
63255Right sliding sunroof guide cover63255-35010 · 63255-89101
63256Left sliding sunroof guide cover63255-35010 · 63255-89101
63265BSliding sunroof driving gear63265-89101
63273Removable roof right hinge housing63273-12010 · 63273-17010
63274Removable roof left hinge housing63274-12010 · 63274-17010
63275Removable roof right hinge mount63275-12010 · 63275-17010
63276Removable roof left hinge mount63276-12010 · 63276-17010
63277BRemovable roof lock base spacer63277-89101
63277CSliding skylight panel gasket63277-24010 · 63277-30020 · 63277-32010 · 63277-32020
63277DRemovable roof hinge spacer63277-89102
63278Removable roof hinge housing seal63278-12010
63279DSliding sunroof guide rail stop63279-32010 · 63279-35010
63280Removable roof left auxiliary hook assembly63280-89101
63285Removable roof hinge, right63285-89102
63286Removable roof hinge, left63286-89102
63297CRemovable roof hinge housing bolts63297-12010
63341ERoof right side muffler63341-89125
63343DNo. 3 roof muffler pad63343-89106
64111Abackplane64101-35160 · 64101-89133 · 64101-89135 · 64101-89136 · 64101-89138 · 64101-89139 · 64101-89140 · 64101-89142 · 64101-89143 · 64101-89144 · 64101-89149 · 64101-89150 · 64101-89151 · 64101-89152
64807ASliding glass sub-assembly on the right side of the back window64807-89135 · 64807-89137 · 64807-89141 · 64807-89147
64808Rear window sliding glass channel sub-assembly64808-89105 · 64808-89106
64809Rear window left sliding glass sub-assembly64809-89101 · 64809-89102 · 64809-89103 · 64809-89105
64810Rear window assembly64810-89109 · 64810-89110 · 64810-89112 · 64810-89115
64811back window glass64811-04030 · 64811-35020 · 64811-89119 · 64811-89120 · 64811-89138 · 64811-89139 · 64811-89140 · 64811-89141 · 64811-89157
64812CBack window glass seal strip64812-35010 · 64812-35020 · 64812-89108 · 64812-89109 · 64812-89110 · 64812-89111
64813Back window right corner glass64813-89101 · 64813-89102 · 64813-89107 · 64813-89110
64814Back window left corner glass64814-89101 · 64814-89102 · 64814-89108 · 64814-89111
64818Back window glass spacer64818-89101
64825Rear window lift chute64825-89101
64826Lift chute under rear window64826-89101
64831Back window glass seal strip64831-89110
64833ACenter sealing strip of rear window trough64833-89114 · 64833-89115
64834DRear window sliding glass seal64834-89101 · 64834-89102
64835ACenter sealing strip of back window glass64835-89101
64837CBack window corner glass seal strip64837-89101 · 64837-89105
64839ARear window seal64839-89105
64851Rear window sliding glass stop64851-89103
64883back window frame64881-89104 · 64881-89115
64885ARear window right glass slot64885-89101 · 64885-89102
64886Rear window left glass slot64886-89101 · 64886-89102
69370ARear window lock assembly69370-35010 · 69370-89103
69374Back window latch69374-89103
69375ARear window lock fastener69375-89103
69376BRear window lock seal69376-89103
