Toyota HILUX 侧窗 — Figure 6152

Toyota HILUX EPC diagram 6152, 侧窗, with 3 images and 10 PNC and OE references.

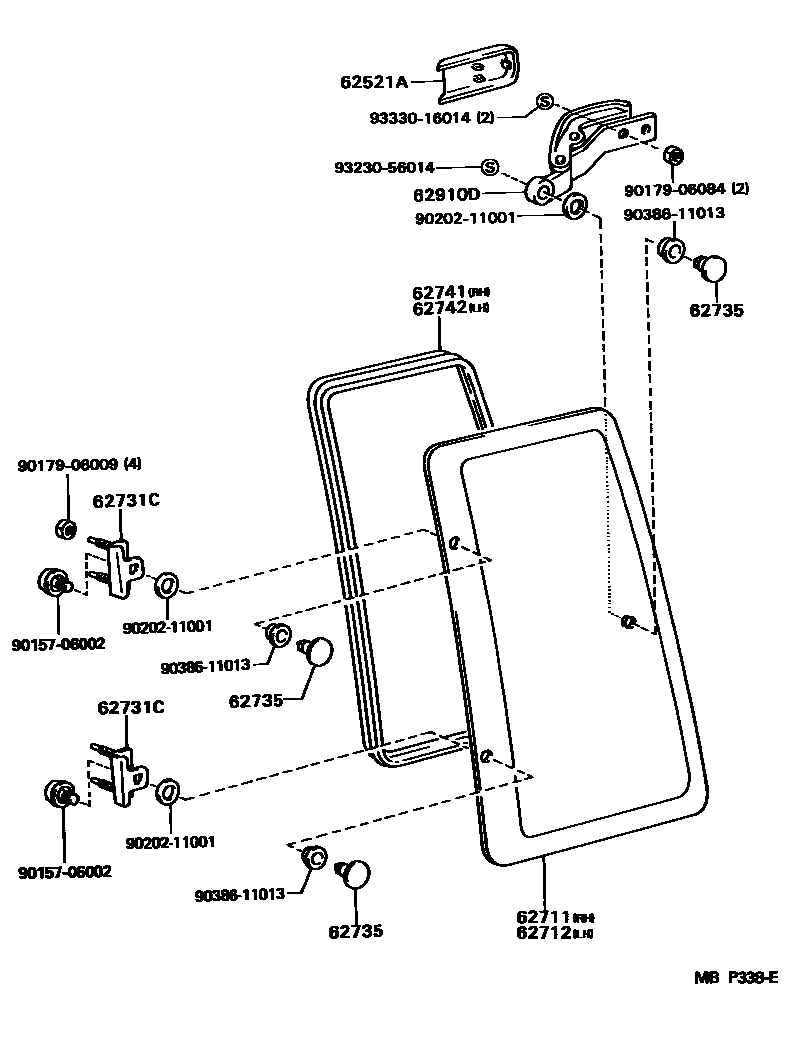

Toyota HILUX 侧窗 EPC diagram — MBP338E
侧窗 — MBP338E (198808 – 999999)

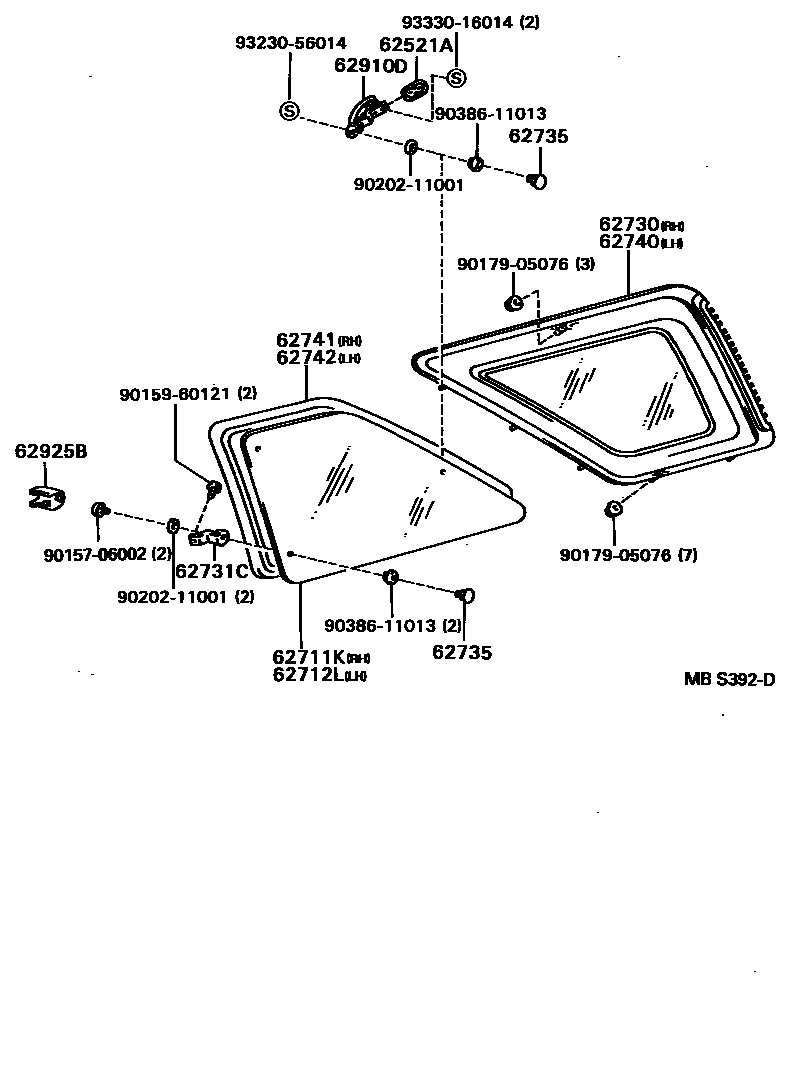

Toyota HILUX 侧窗 EPC diagram — MBS392D
侧窗 — MBS392D (198908 – 199511)
Toyota HILUX 侧窗 EPC diagram — MBS393B
侧窗 — MBS393B (198904 – 199511)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-89113 · 62711-89116
62711KRight front corner window glass62711-89119
62712Left corner window glass62712-89113 · 62712-89116
62712LLeft front corner window glass62712-89119
62730No. 3 side window panel assembly62730-35090 · 62730-89101 · 62730-89102 · 62730-89105
62731CRight corner window hinge62731-89101 · 62731-89102 · 62731-89103
62735Corner window hinge fixings62735-89102
62740No. 4 side window panel assembly62740-35050 · 62740-89101 · 62740-89102 · 62740-89103
62741Right corner window sealing strip62741-89102 · 62741-89103
62742Left corner window sealing strip62741-89102 · 62742-89102 · 62742-89103
