Toyota HILUX 地板垫和消声垫 — Figure 5854

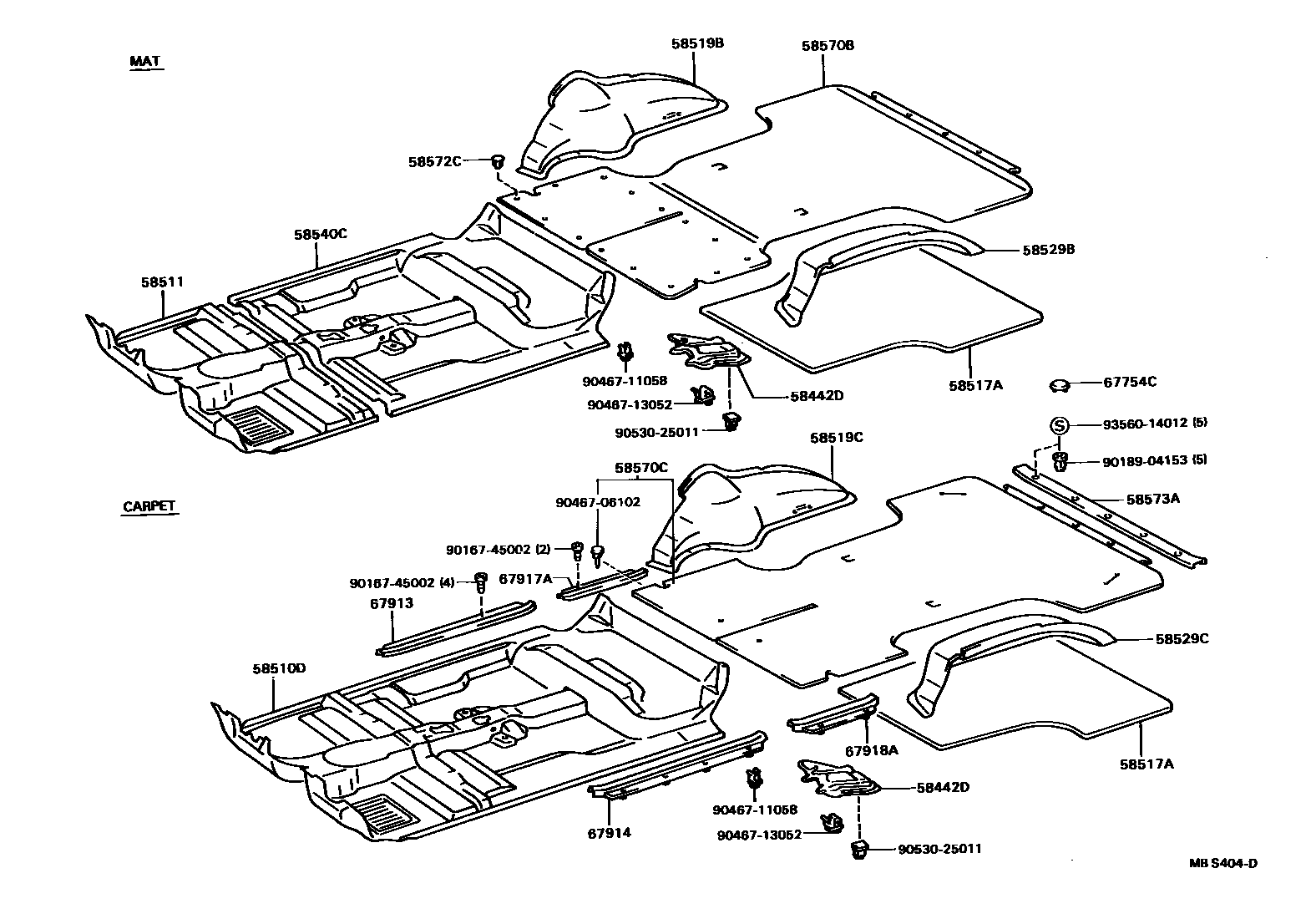

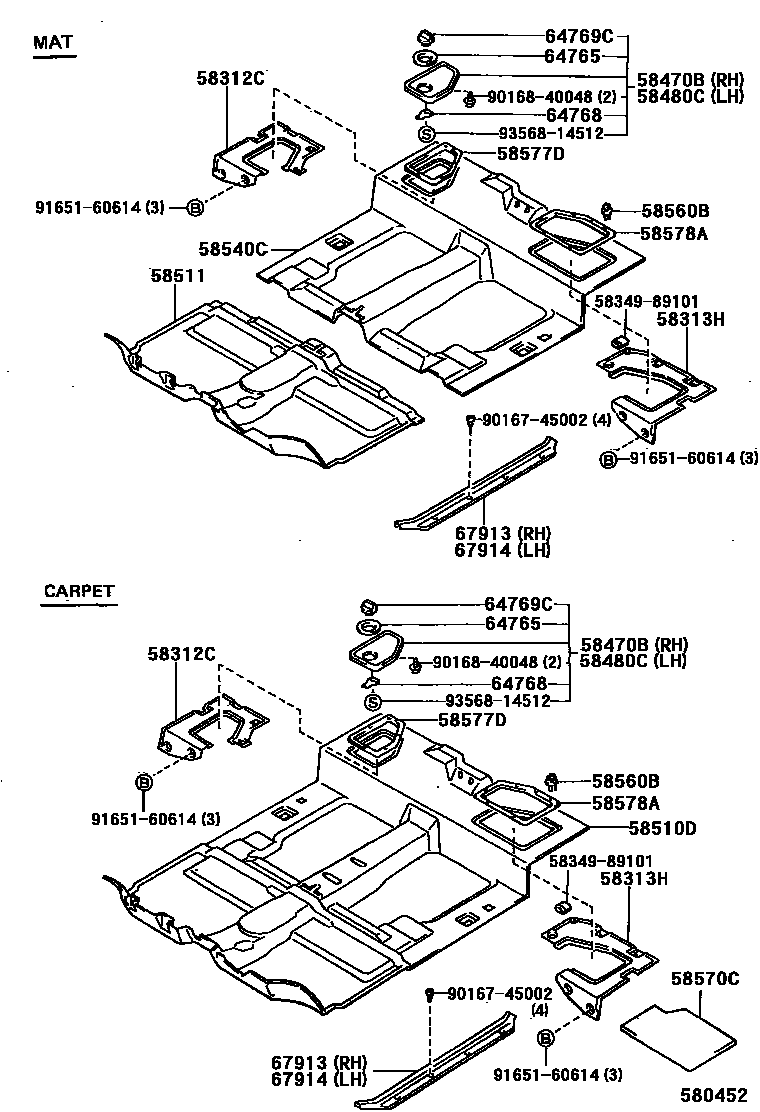

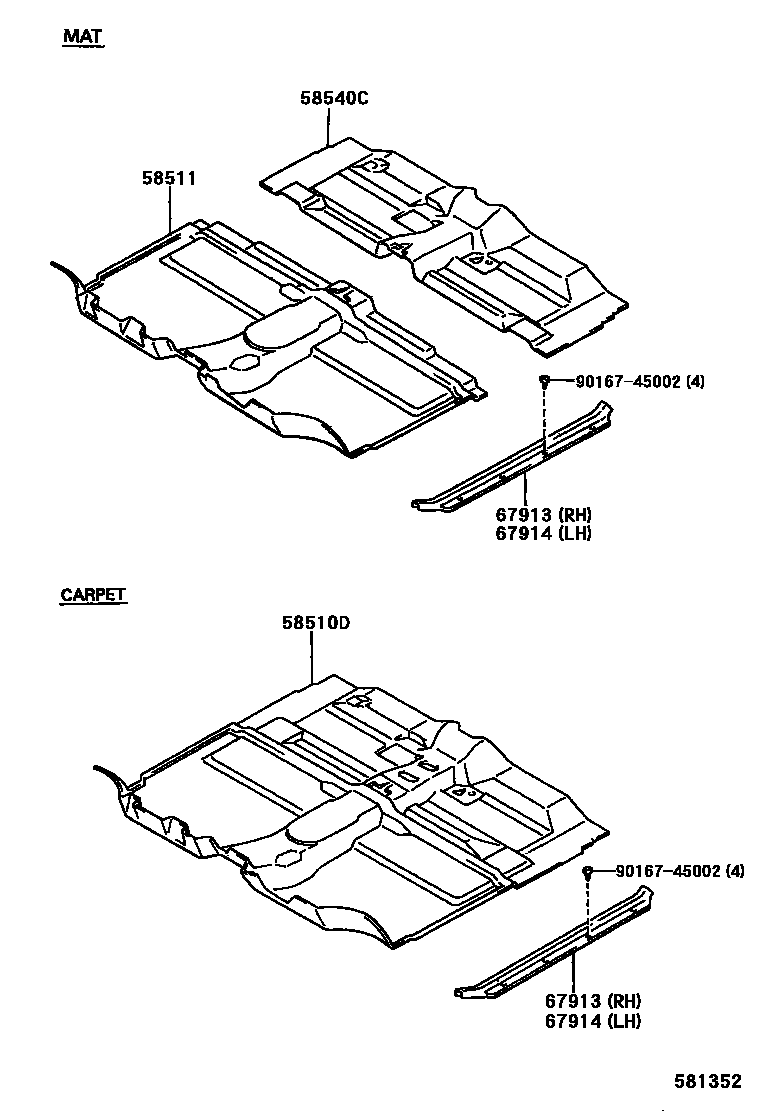

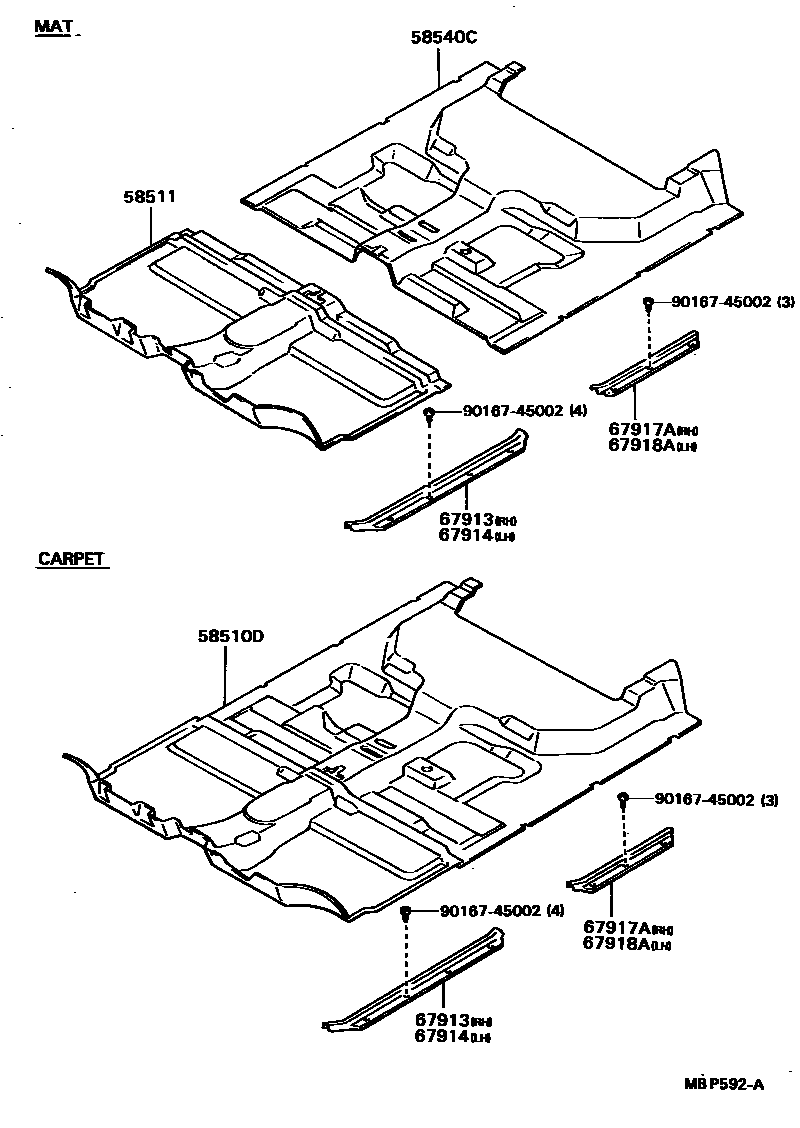

Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58312C | rear floor | 58312-89101 |
| 58313H | Rear floor panel No. 2 | 58313-89103 |
| 58442D | jack cover | 58440-89101 |
| 58517A | Rear floor mat No. 2 | 58517-89103 |
| 58560B | Clip (for rear carpet) | 90467-09087 |
| 58570C | Rear carpet assembly | 58571-35010 · 58571-89102 |
| 58577D | Rear floor mat right support plate | 58577-89101 |
| 58578A | Rear floor mat left support plate | 58578-89101 |
| 64768 | Jack cover stop | 64768-89101 |
