Toyota HILUX 后地板和后地板梁 — Figure 5852

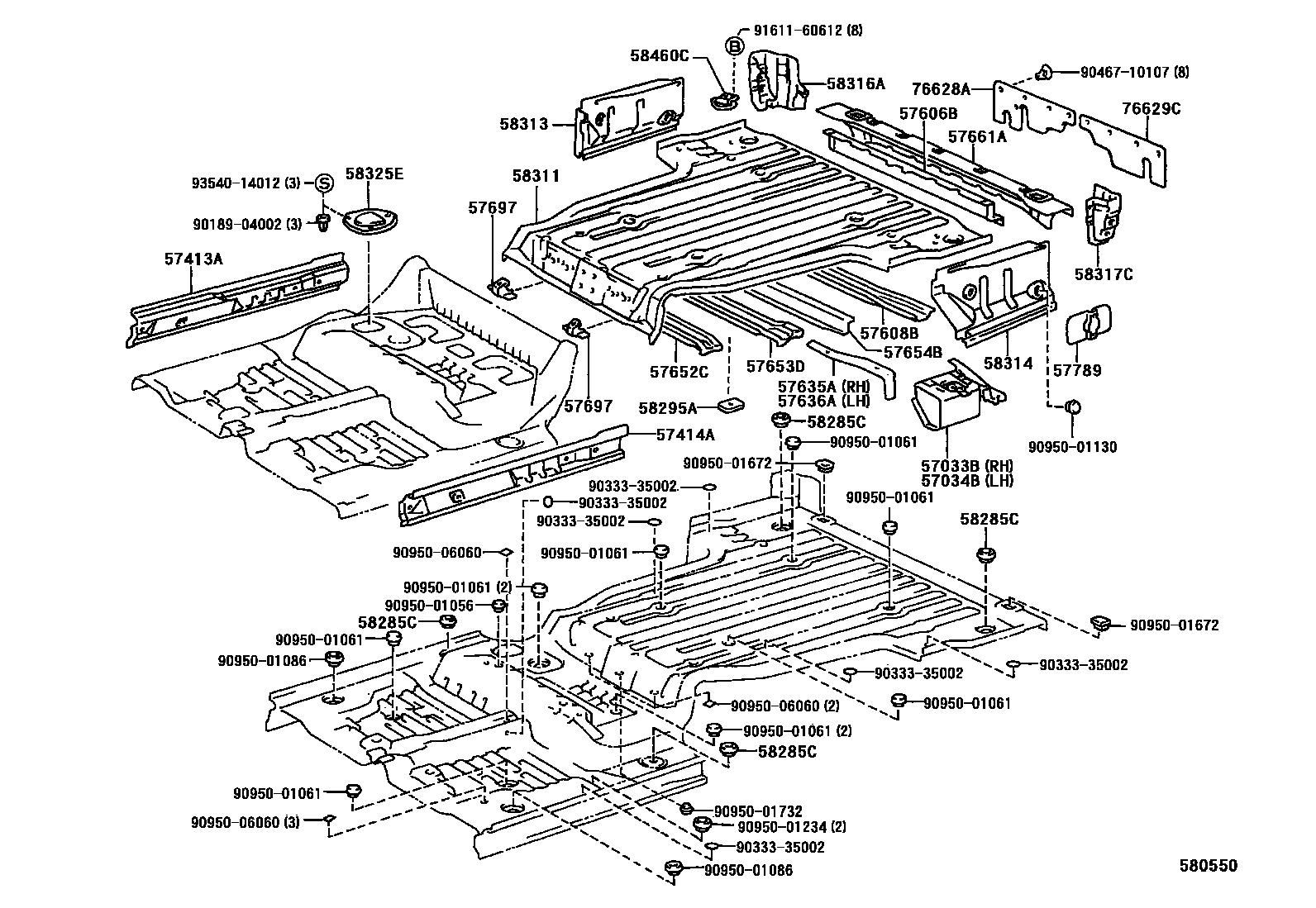

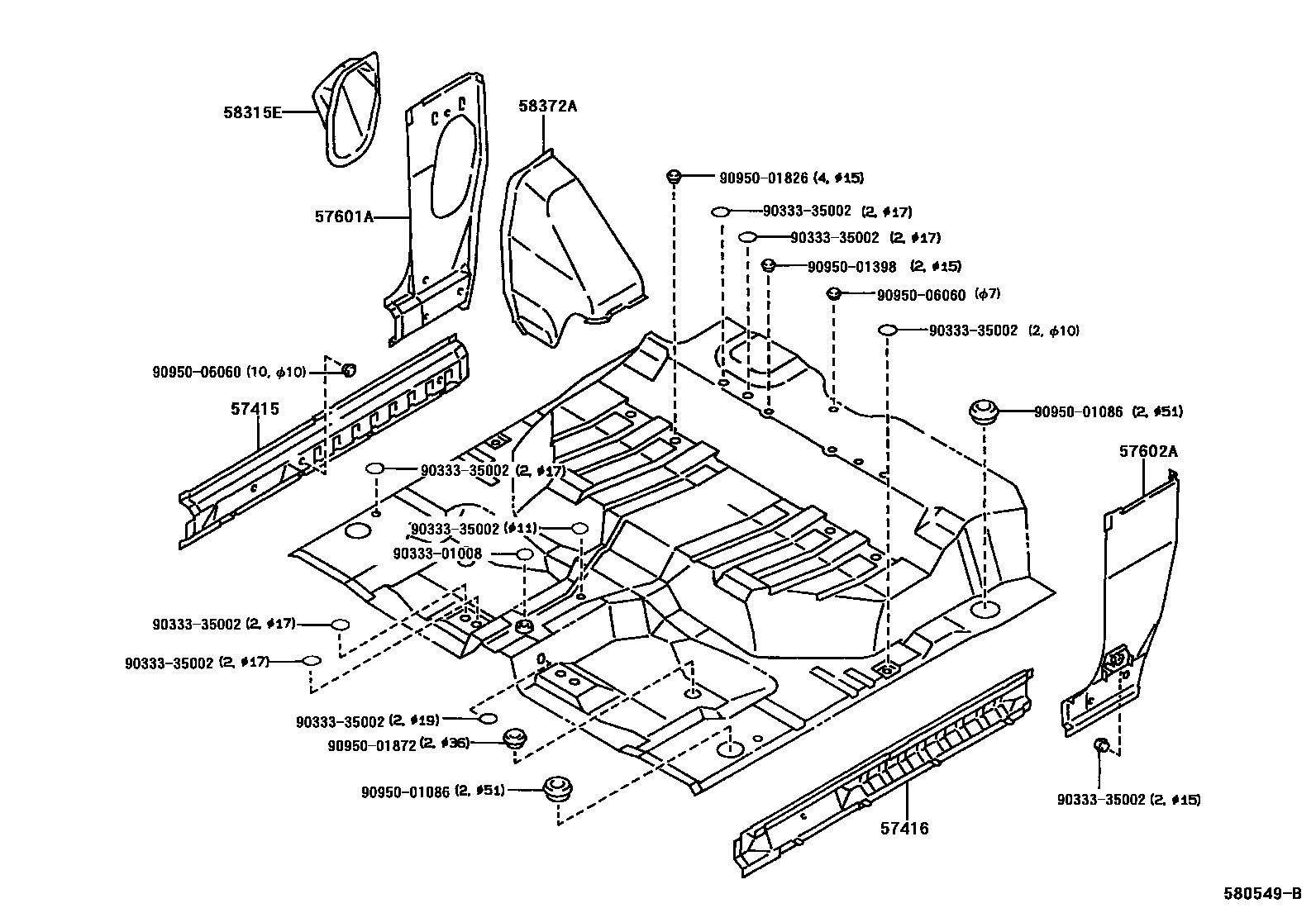

Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57033B | Rear floor No. 2 right mounting bracket sub-assembly | 57033-89101 |
| 57034B | Rear floor No. 2 left mounting bracket sub-assembly | 57034-89101 |
| 57413A | Rear floor right inner longitudinal beam | 57413-89106 |
| 57414A | Rear floor left inner longitudinal beam | 57414-89105 |
| 57415 | Rear floor right longitudinal beam | 57415-89104 |
| 57416 | Rear floor left longitudinal beam | 57416-89102 |
| 57601A | Rear floor right longitudinal beam sub-assembly | 57601-89103 · 57601-89104 |
| 57602A | Rear floor left longitudinal beam sub-assembly | 57602-89103 |
| 57606B | Rear floor inner cross member sub-assembly | 57606-89107 |
| 57608B | Rear floor No. 4 cross member sub-assembly | 57608-89101 |
| 57635A | Rear floor right rear longitudinal beam reinforcement | 57635-89102 |
| 57636A | Rear floor left rear longitudinal beam reinforcement | 57636-89101 |
| 57652C | Rear floor beam No. 1 | 57652-89129 |
| 57653D | No. 2 rear floor cross member | 57653-89106 |
| 57654B | Rear floor beam No. 3 | 57654-89101 |
| 57661A | Rear floor, rear cross member outer panel | 57661-89102 |
| 57697 | Rear seat cushion fixings | 57697-89102 |
| 57789 | Rear floor mounting reinforcement | 57789-89101 |
| 58285C | Rear floor hole cover | 58285-89101 · 90950-01234 |
| 58295A | Seat belt anchor floor reinforcement | 58295-89101 · 58295-89104 |
| 58311 | rear floor pan | 58311-89117 |
| 58313 | Rear floor right panel | 58313-89106 |
| 58314 | rear floor left panel | 58314-89102 |
| 58315E | Rear floor right front side panel extension | 58315-89103 |
| 58316A | Rear floor right rear side panel extension | 58316-89102 |
| 58317C | Rear floor left rear side panel extension | 58317-89101 |
| 58325E | Rear floor access hole cover | 58325-89102 |
| 58372A | Fuel inlet pipe housing | 58372-89103 |
| 58460C | Luggage fixing belt lock assembly | 58460-89102 |
| 76628A | Rear body rear fender | 76628-39015 · 76628-89103 |
| 76629C | Left rear body rear fender | 76629-39015 · 76629-89101 |
