Toyota HILUX 前围板和挡风玻璃 — Figure 5553

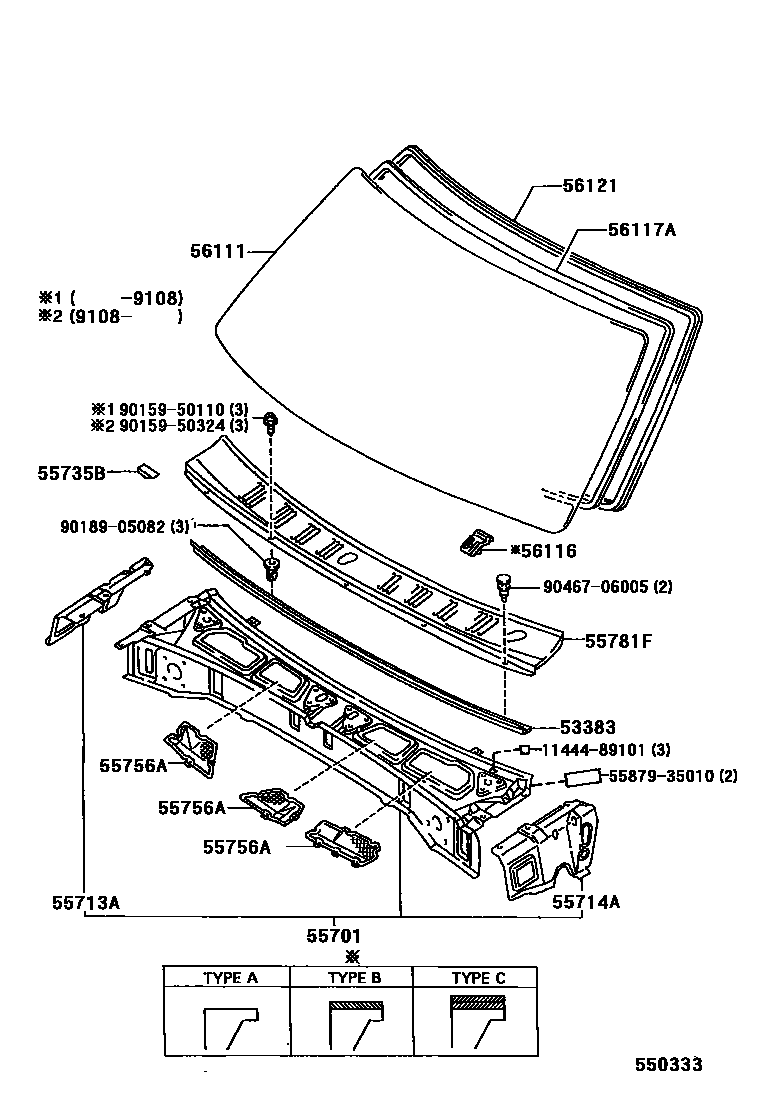

Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-89106 |
| 55701 | Front apron sub-assembly | 55700-35060 · 55700-35070 · 55700-35090 · 55700-35110 · 55700-35120 · 55700-35130 · 55700-89130 · 55700-89131 · 55700-89134 · 55700-89138 · 55700-89139 · 55700-89141 · 55700-89146 · 55700-89149 · 55700-89150 · 55700-89155 · 55700-89156 |
| 55713A | Right front wall upper side panel | 55713-89105 |
| 55714A | Left front wall upper side panel | 55714-89106 |
| 55735B | Front air door seal | 55735-89101 |
| 55756A | heater duct partition | 55756-89108 · 55756-89109 · 55756-89110 · 55756-89111 |
| 55781F | Ventilation grille on front panel | 55781-89103 · 55781-89104 |
| 56111 | windshield | 56111-0W150 · 56111-0W160 · 56111-0W170 · 56111-35030 · 56111-89142 · 56111-89143 · 56111-89144 · 56111-89145 · 56111-89146 · 56111-89147 · 56111-89148 · 56111-89149 · 56111-89150 · 56111-89152 · 56111-89153 |
| 56116 | windshield spacer | 56116-89104 · 56116-89105 · 56116-89106 |
| 56117A | Window glass adhesive seals | 56117-89104 |
| 56121 | windshield seal | 56121-89120 · 56121-89121 |
