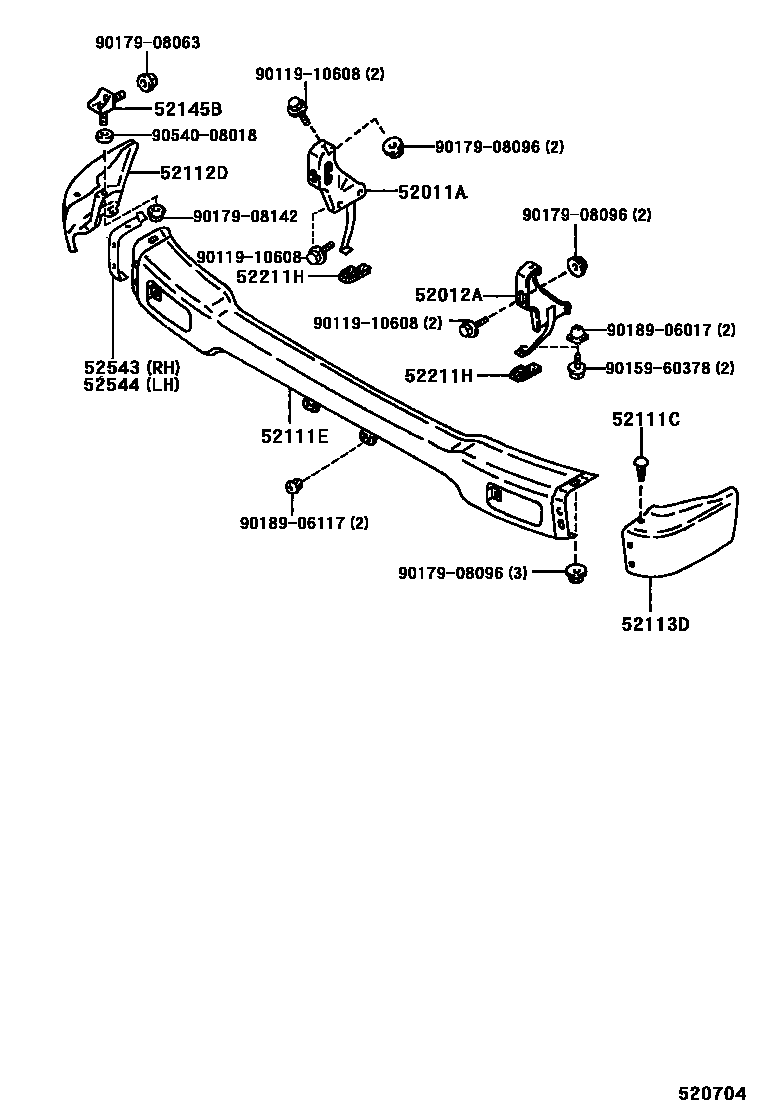

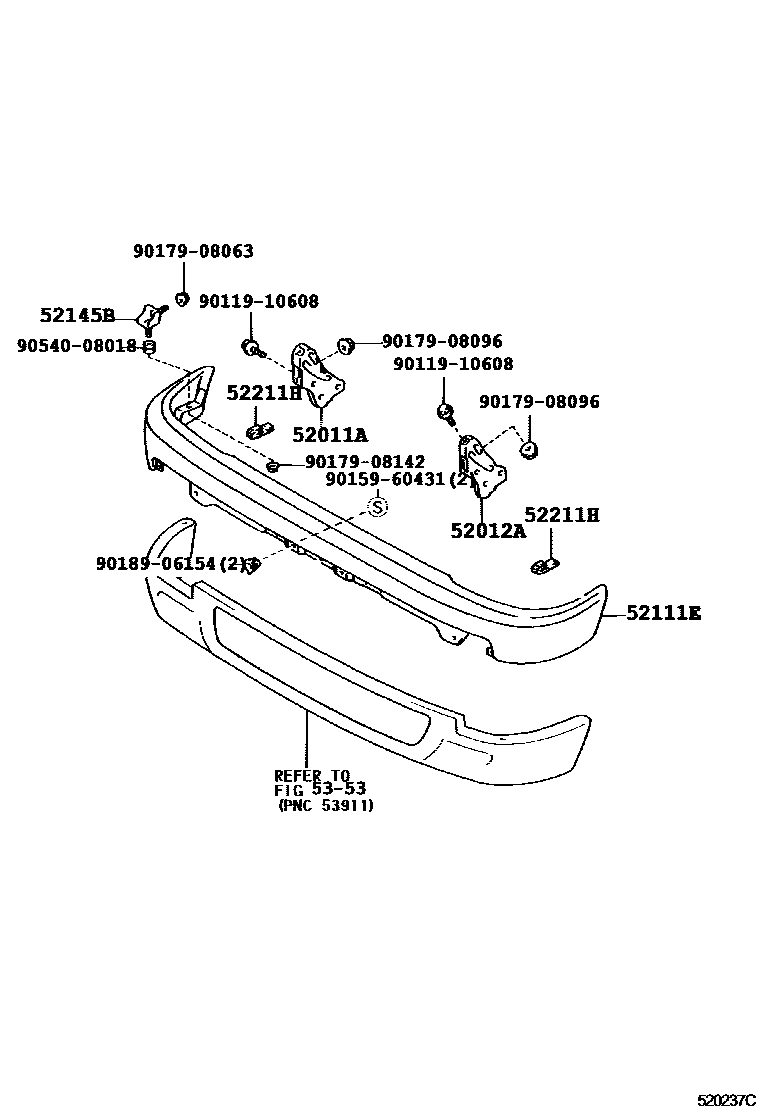

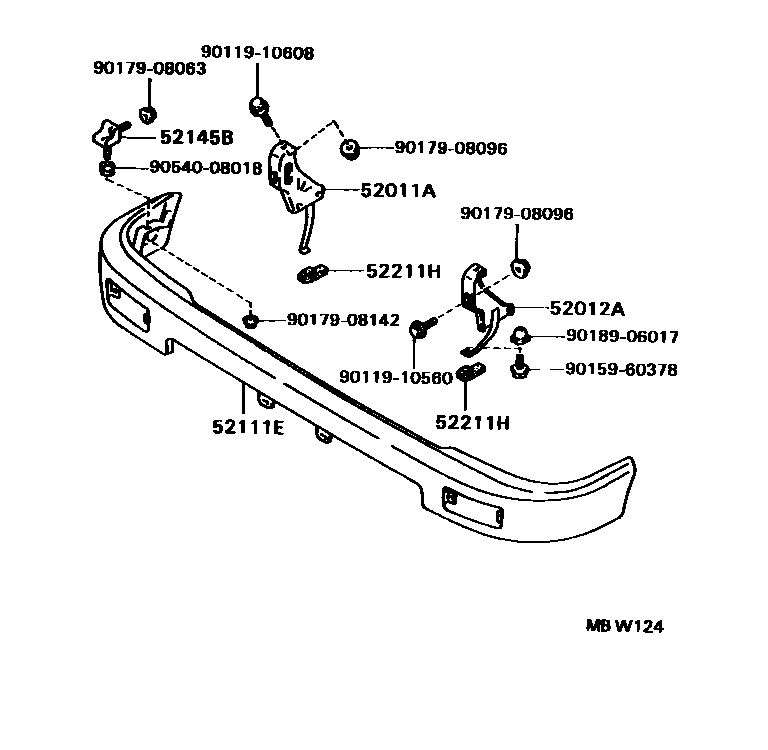

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-35030 · 52011-35050 · 52011-89116 · 52011-89117 |
| 52012A | Front bumper left arm sub-assembly | 52012-35030 · 52012-35050 · 52012-89116 · 52012-89117 |
| 52111C | Round head square neck bolt (for front bumper) | 90112-08069 · 90112-08070 |
| 52111E | front bumper stay | 52101-35080 · 52101-35090 · 52101-35130 · 52101-35150 · 52101-35170 · 52101-89113 · 52101-89114 |
| 52112D | Front bumper right extension | 52102-89112 · 52102-89113 · 52102-89114 · 52102-89115 |
| 52113D | Front bumper left extension | 52103-89112 · 52103-89113 · 52103-89114 · 52103-89115 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52211H | Bumper pad (for front bumper arm) | 52211-89101 |
| 52543 | Front bumper right seal | 52543-89101 |
| 52544 | Front bumper left seal | 52544-89101 |
