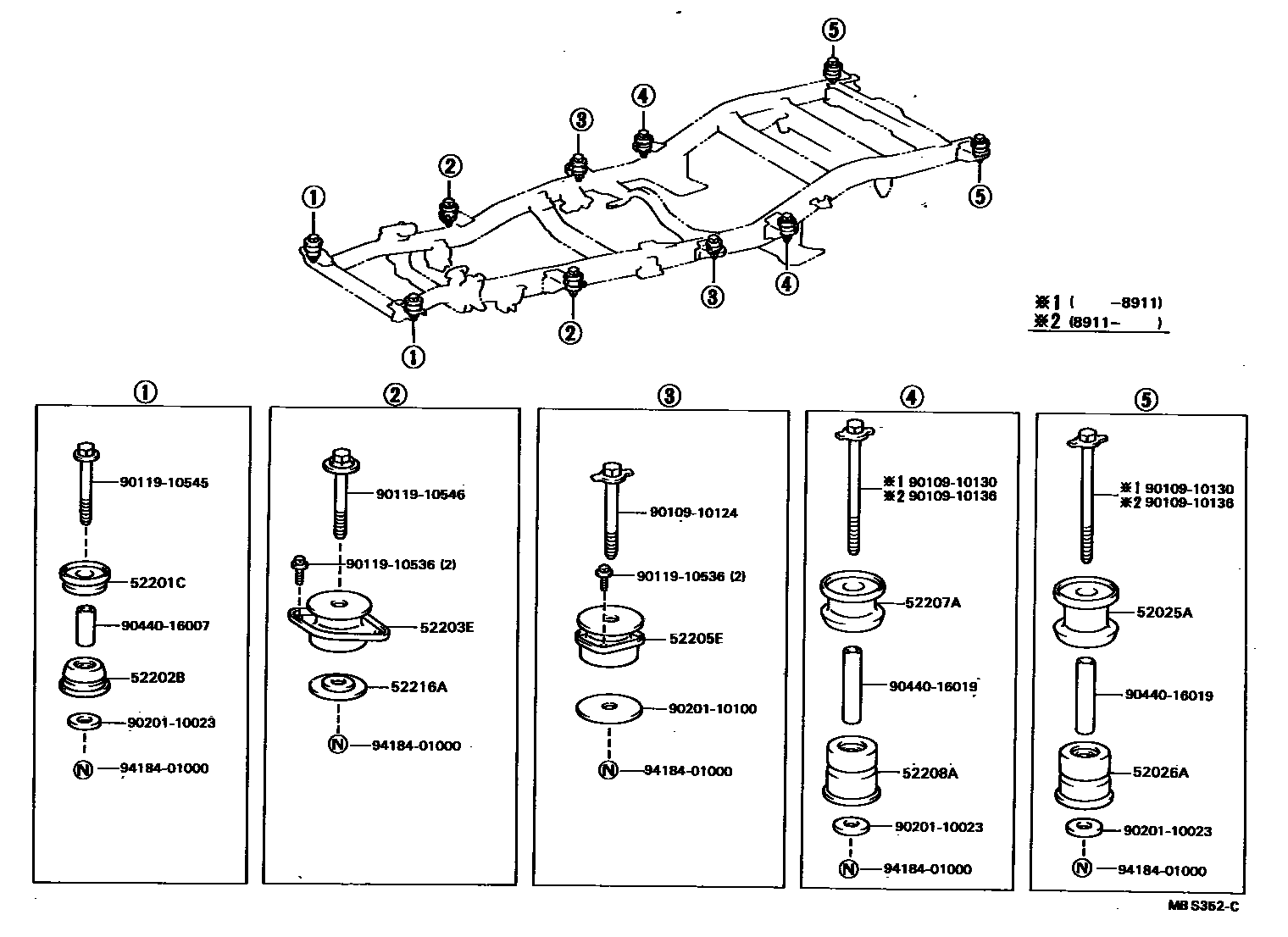

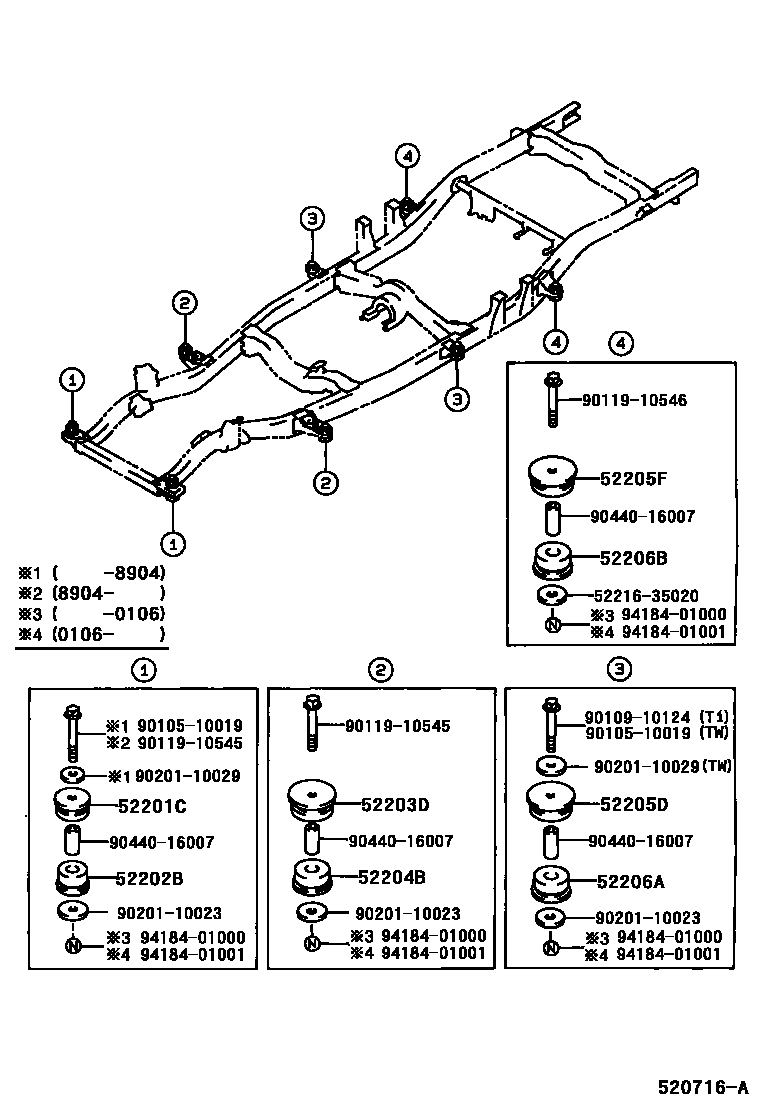

Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251
Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52025A | Cushion pad sub-assembly on cab suspension end | 52025-35020 |
| 52026A | Cab suspension end lower cushion pad sub-assembly | 52026-35020 |
| 52201C | Cab suspension No. 1 upper cushion pad sub-assembly | 52201-35021 · 52201-35070 |
| 52202B | Cab suspension No. 1 lower cushion pad sub-assembly | 52202-35021 · 52202-35060 |
| 52203D | Cab suspension No. 2 upper cushion pad sub-assembly | 52203-35031 · 52203-35100 |
| 52203E | Cab suspension No. 2 cushion pad sub-assembly | 52203-35150 · 52203-35170 |
| 52204B | Cab suspension No. 2 lower cushion pad sub-assembly | 52204-35031 · 52204-35100 |
| 52205D | Cab suspension No. 3 upper cushion pad sub-assembly | 52203-35031 · 52203-35040 · 52205-35020 |
| 52205E | Cab suspension No. 3 cushion pad sub-assembly | 52205-35070 |
| 52205F | Cab suspension No. 4 upper cushion pad sub-assembly | 52203-35031 · 52205-35020 |
| 52206A | Cab suspension No. 3 lower cushion pad sub-assembly | 52204-35031 · 52204-35040 · 52206-35010 |
| 52206B | Cab suspension No. 4 lower cushion pad sub-assembly | 52204-35031 · 52206-35010 |
| 52207A | Cab suspension No. 4 upper cushion pad sub-assembly | 52207-35020 |
| 52208A | Cab suspension No. 4 lower cushion pad sub-assembly | 52208-35020 |
| 52216A | Cab suspension cushion block | 52216-35010 |
