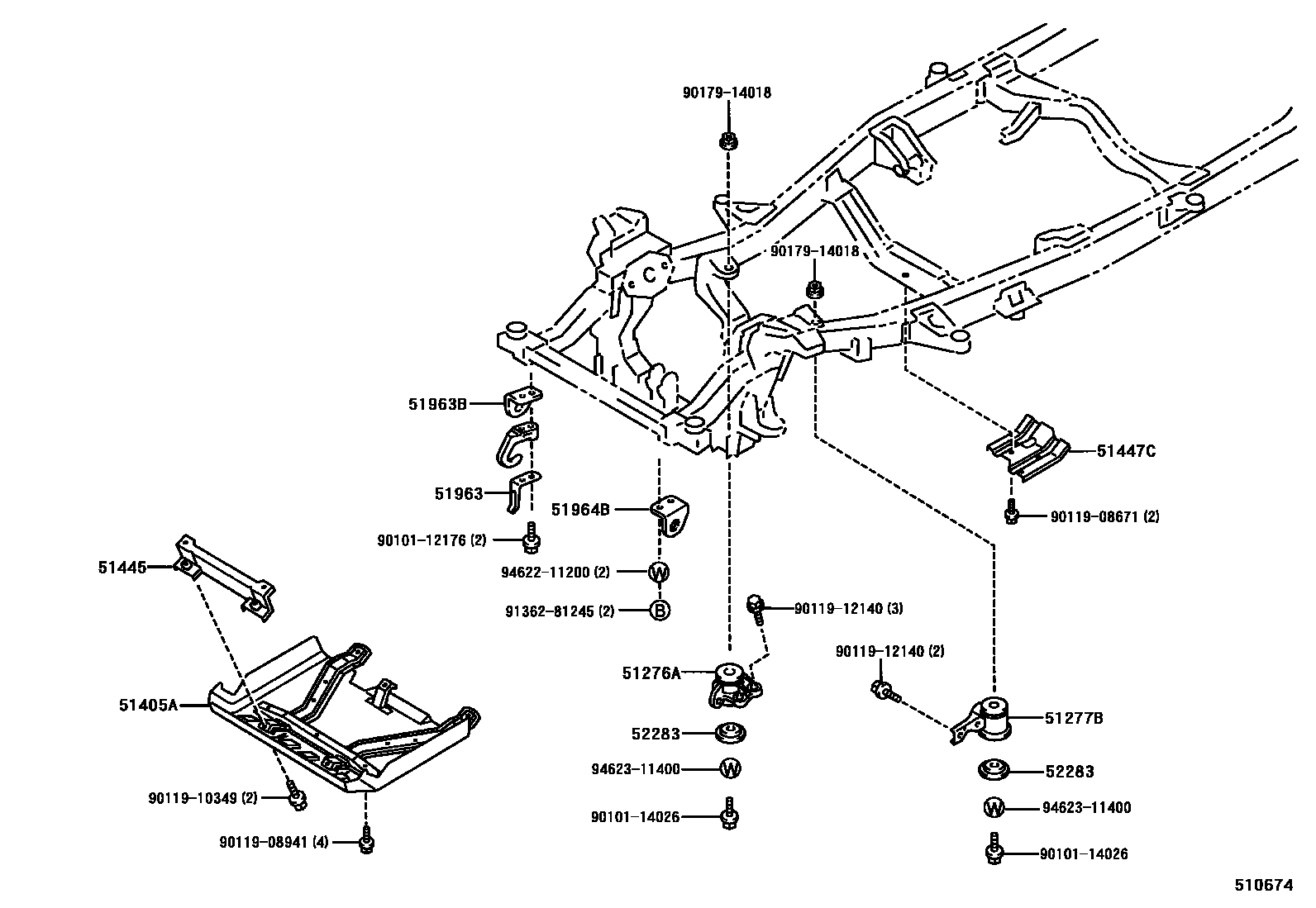

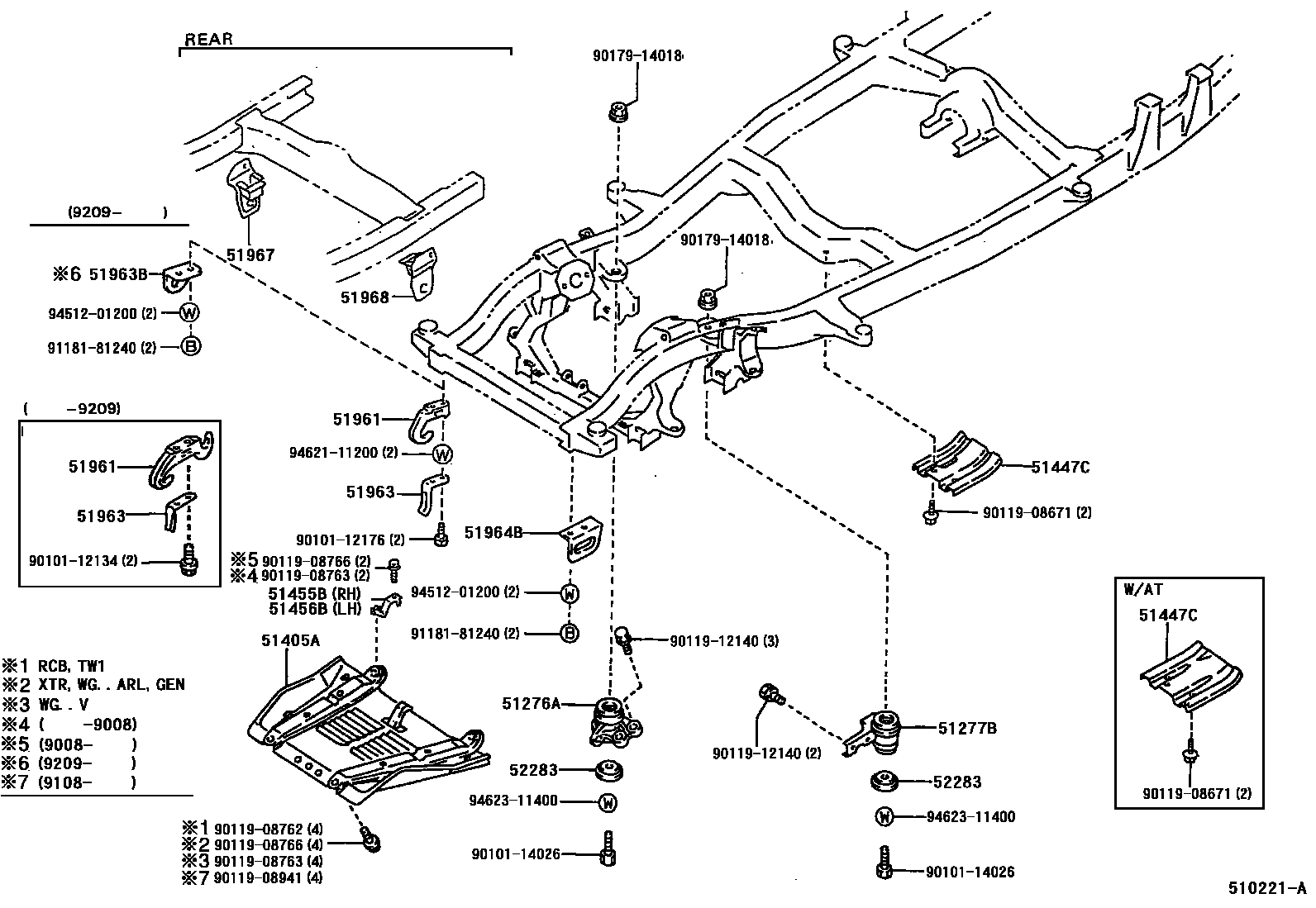

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51276A | Differential support bracket | 51250-35010 · 51250-35011 |
| 51277B | Differential left support bracket assembly | 51260-35020 · 51260-35021 |
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-35020 · 51405-35021 · 51405-35062 · 51441-35120 · 51441-35121 · 51441-35140 · 51441-35150 |
| 51445 | Engine underhood bracket | 51445-35080 |
| 51447C | Transfer case guard | 51447-35020 · 51447-35031 · 51447-35040 |
| 51455B | Engine cover right rear bracket | 51455-35020 · 51455-35021 |
| 51456B | Engine cover left rear bracket | 51456-35020 · 51456-35021 |
| 51961 | No. 1 hook | 51961-35020 · 51961-35030 |
| 51963 | Hook wire block | 51963-35080 |
| 51963B | Right front transport hook | 51963-35070 |
| 51964B | Left front transport hook | 51964-35050 |
| 51967 | Rear transport hook | 51967-35010 |
| 51968 | hook spacer | 51968-35010 |
| 52283 | Differential support beam lower block | 52283-35010 · 52283-35011 |
