Toyota HILUX Front Spring & Shock Absorber — Figure 4803

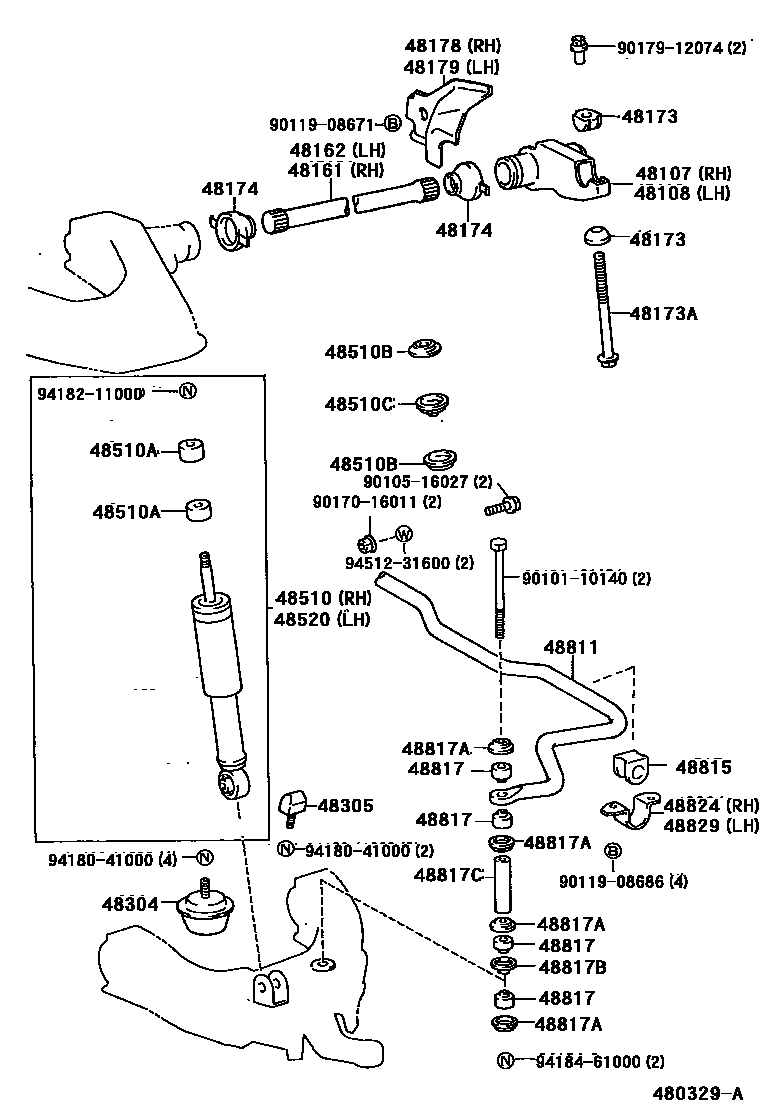

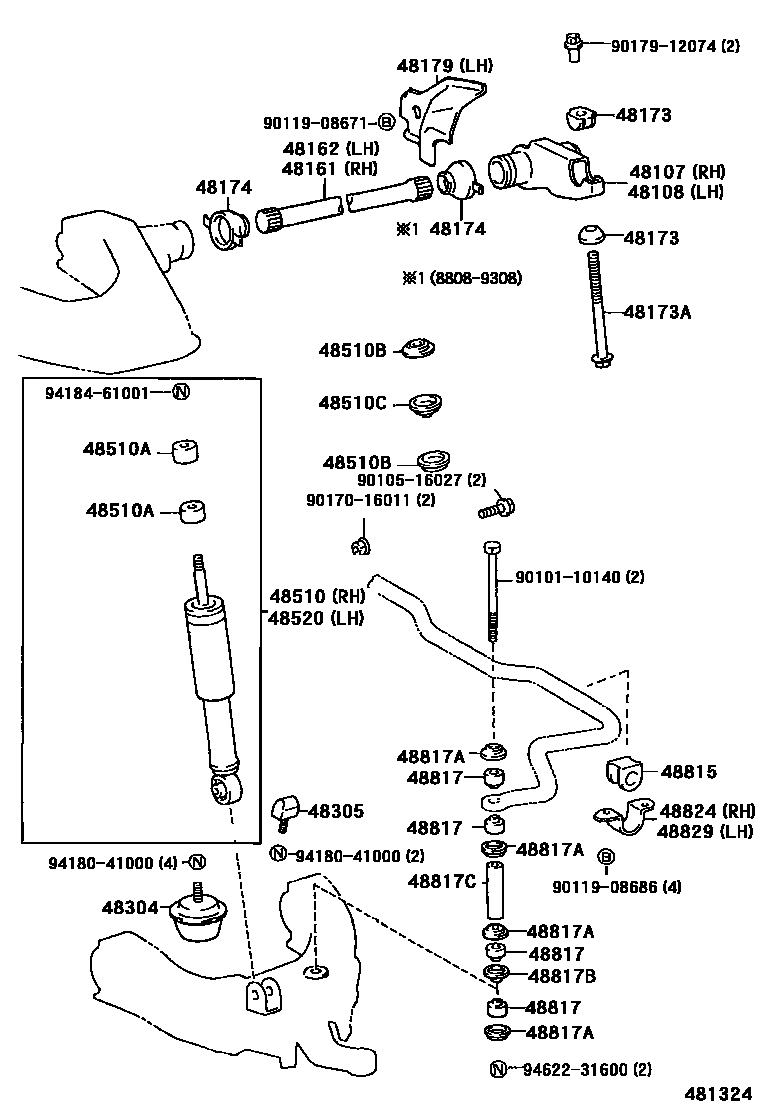

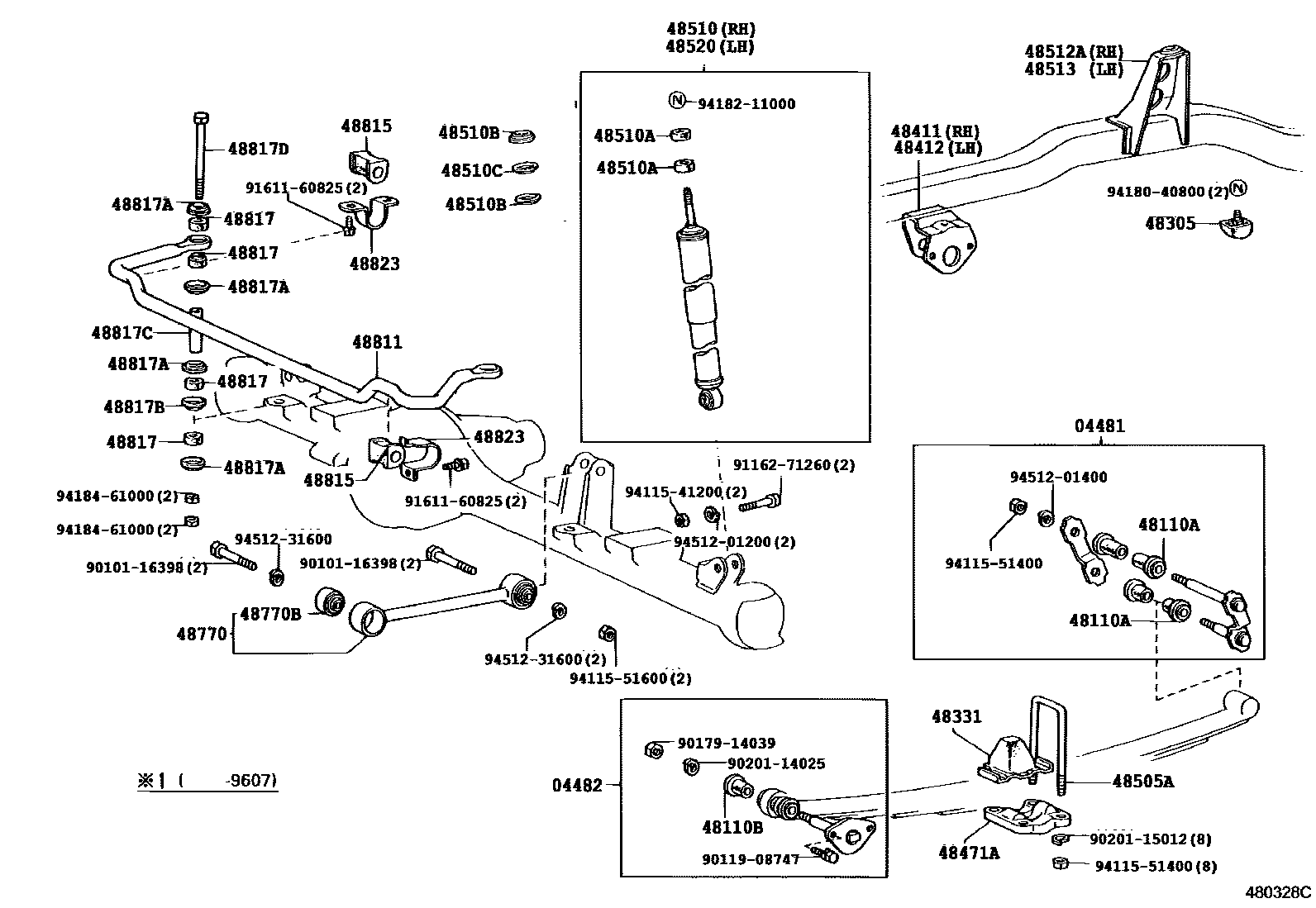

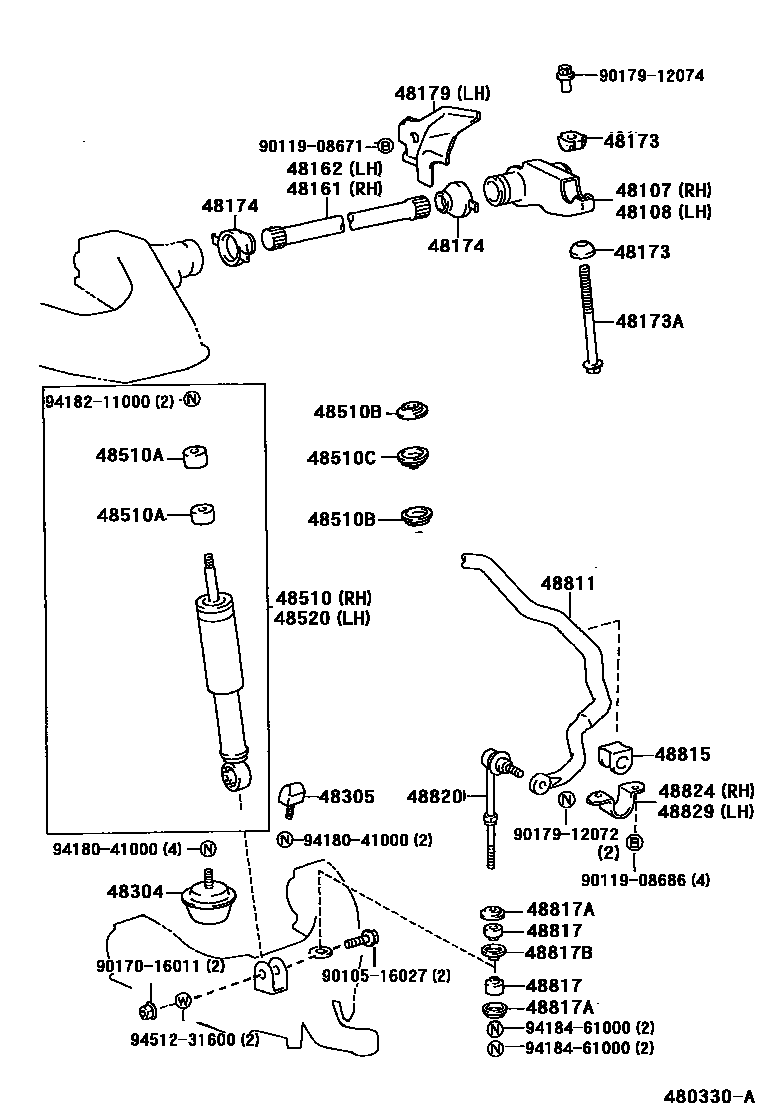

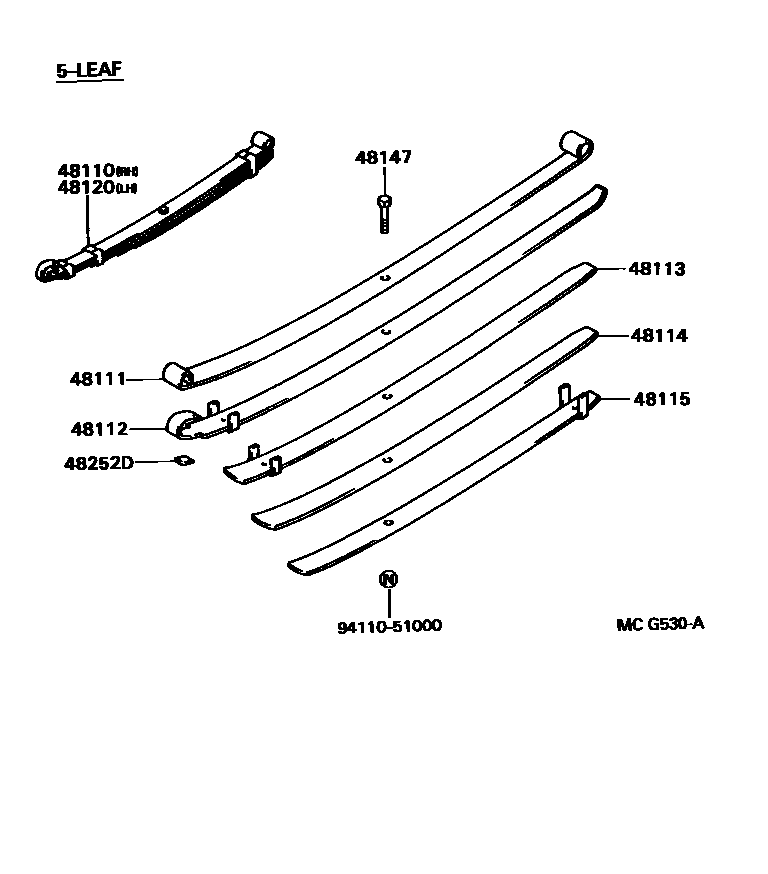

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 5 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04481 | Front spring lifting lug assembly | 04481-35040 · 04481-35050 |
| 04482 | Front spring pin assembly | 04482-35030 · 04484-35060 |
| 48107 | Right fixed arm sub-assembly | 48107-35050 |
| 48108 | Left fixed arm sub-assembly | 48108-35050 |
| 48110 | Right front spring assembly | 48110-35210 · 48110-35220 · 48110-35230 · 48110-35240 |
| 48110A | Bushing (for front spring lug) | 90385-18007 · 90385-18046 |
| 48110B | Bushing (for front spring pin) | 90385-18046 |
| 48111 | No. 1 front leaf spring | 48111-35210 · 48111-35220 · 48111-35230 |
| 48112 | No. 2 front leaf spring | 48102-35210 · 48102-35220 · 48102-35230 |
| 48113 | No. 3 front leaf spring | 48103-35210 · 48103-35220 · 48103-35230 · 48105-35210 · 48105-35220 |
| 48114 | No. 4 front leaf spring | 48114-35210 · 48114-35220 · 48114-35230 |
| 48115 | No. 5 front leaf spring | 48104-35210 · 48104-35220 · 48104-35230 |
| 48120 | Left front spring assembly | 48120-35120 · 48120-35130 |
| 48147 | Front spring center bolt | 48247-35440 |
| 48161 | Right torsion bar spring | 48161-35110 · 48161-35130 · 48161-35200 · 48161-35250 · 48161-35260 |
| 48162 | Left torsion bar spring | 48162-35110 · 48162-35130 · 48162-35200 · 48162-35250 · 48162-35260 |
| 48173 | fixed arm adjuster seat | 48173-35010 · 48173-35020 |
| 48173A | Hexagonal bolt (for adjusting the fixed arm) | 90101-12159 |
| 48174 | Torsion bar dust cover | 48174-26010 |
| 48178 | Right torsion bar dust cover protection device | 48178-35060 |
| 48179 | Left torsion bar dust cover protector | 48179-35030 |
| 48252D | Silencer | 48252-26070 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-35120 · 48304-35170 |
| 48305 | No. 2 front spring buffer block sub-assembly | 48305-27010 · 48305-35020 |
| 48331 | No. 1 front spring buffer block | 48304-35100 · 48304-35110 |
| 48411 | Front spring bracket (for right front) | 48411-35040 |
| 48412 | Front spring bracket (for left front) | 48411-35040 |
| 48471A | Front spring support seat | 48471-35010 · 48472-35020 |
| 48505A | U-bolt (for front spring) | 90117-14008 · 90117-14011 |
| 48510 | Right front shock absorber assembly | 48511-39635 · 48511-39636 · 48511-39637 · 48511-39655 · 48511-39656 · 48511-39665 · 48511-39666 · 48511-39765 · 48511-39815 · 48511-80001 · 48511-80003 · 48511-80026 · 48511-80062 · 48511-80065 · 48511-80111 |
| 48510A | Front shock absorber cushion | 90948-01003 · 90948-01045 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02002 · 90948-02131 |
| 48510C | No. 2 buffer pad block (for front shock absorber) | 90948-02087 · 90948-02119 |
| 48512A | Right front shock absorber upper bracket | 48501-35020 · 48512-35040 |
| 48513 | Left front shock absorber upper bracket | 48502-35020 · 48512-35040 |
| 48520 | Left front shock absorber assembly | 48511-39635 · 48511-39636 · 48511-39637 · 48511-39655 · 48511-39656 · 48511-39665 · 48511-39666 · 48511-39765 · 48511-39815 · 48511-80001 · 48511-80003 · 48511-80026 · 48511-80062 · 48511-80065 |
| 48770 | Torque rod sub-assembly | 48760-35020 |
| 48770B | Torque rod bushing | 48725-35010 |
| 48811 | front stabilizer bar | 48811-35091 · 48811-35320 · 48811-35330 · 48811-35350 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14160 · 48815-20030 · 48815-24020 |
| 48817 | Front stabilizer bar cushion | 90948-01002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02004 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02034 |
| 48817C | Collar (for stabilizer bar) | 90440-14003 |
| 48817D | Bolt (for front stabilizer bar) | 90101-10140 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-35010 |
| 48823 | Stabilizer bar linkage cover (for front) | 48823-35030 |
| 48824 | front stabilizer bar bracket | 48824-35080 |
| 48829 | Stabilizer bar bracket | 48829-35050 |
