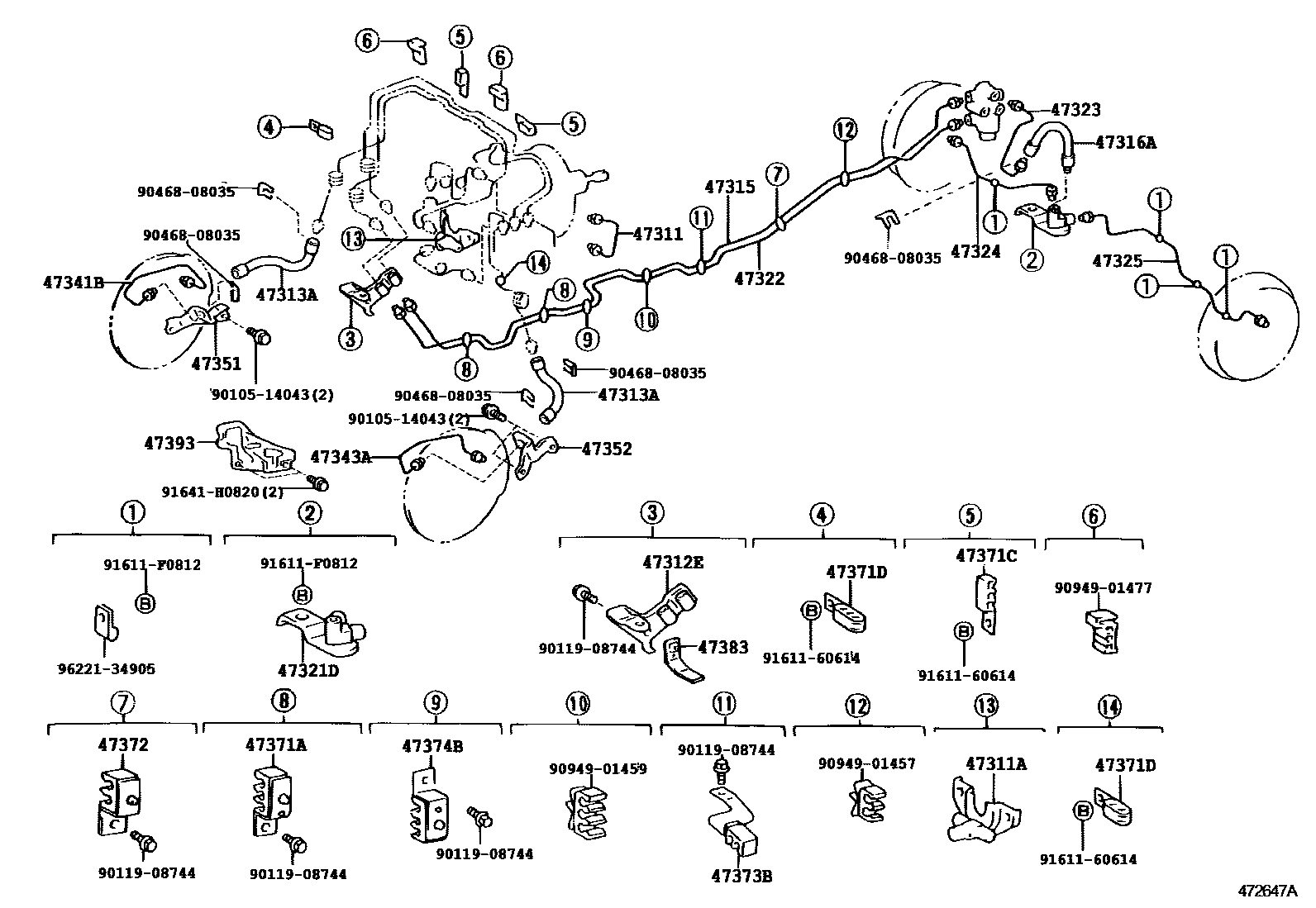

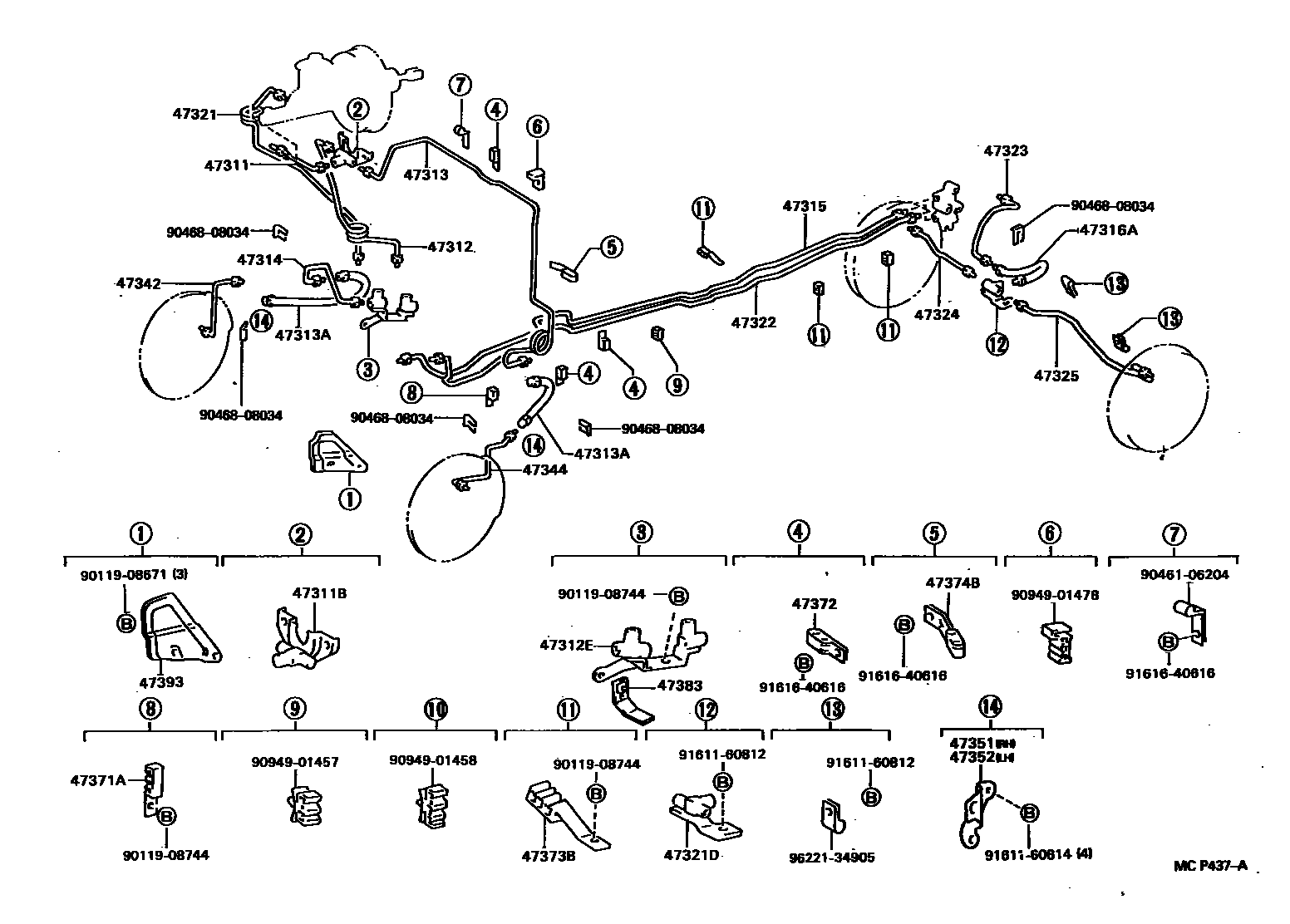

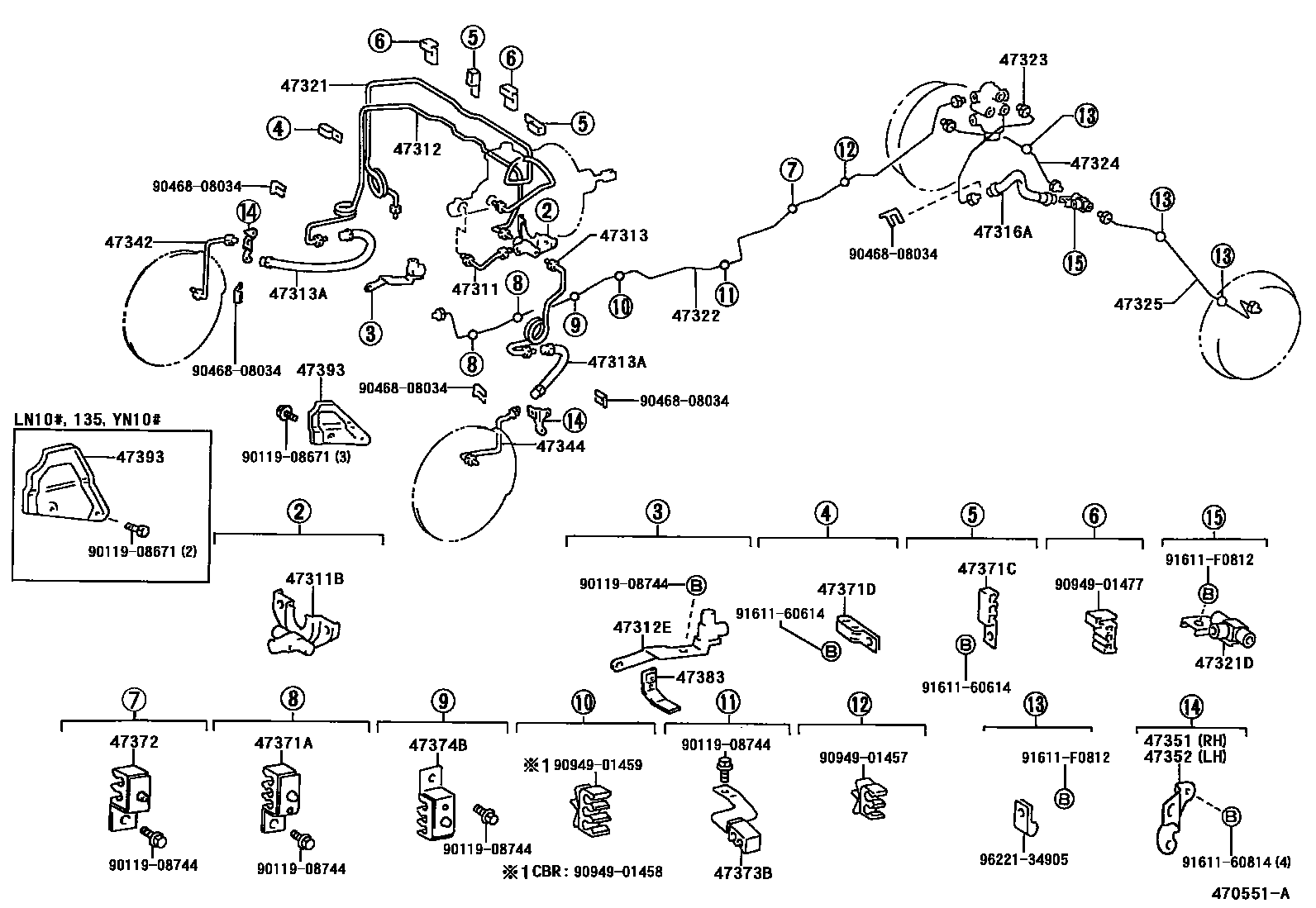

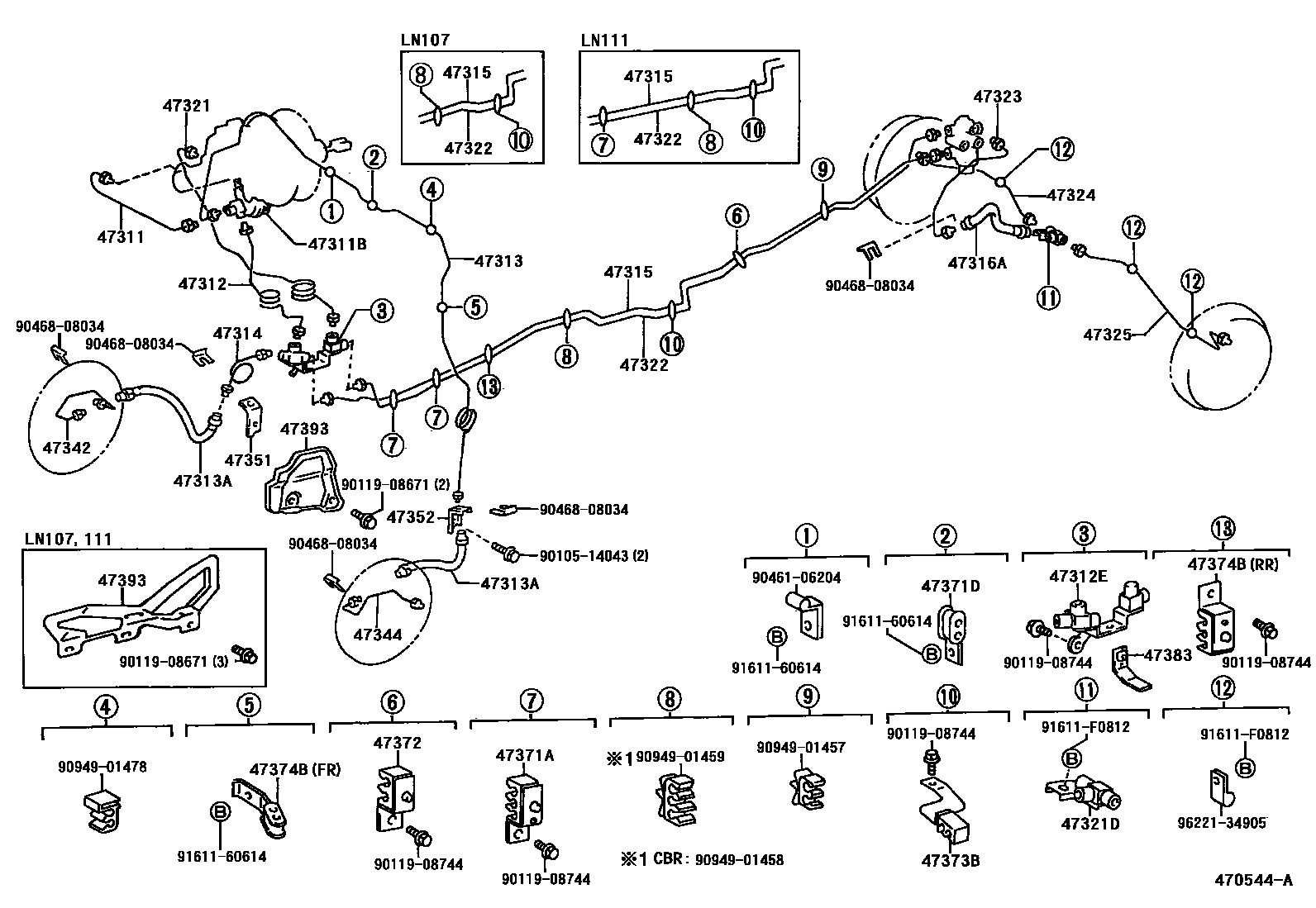

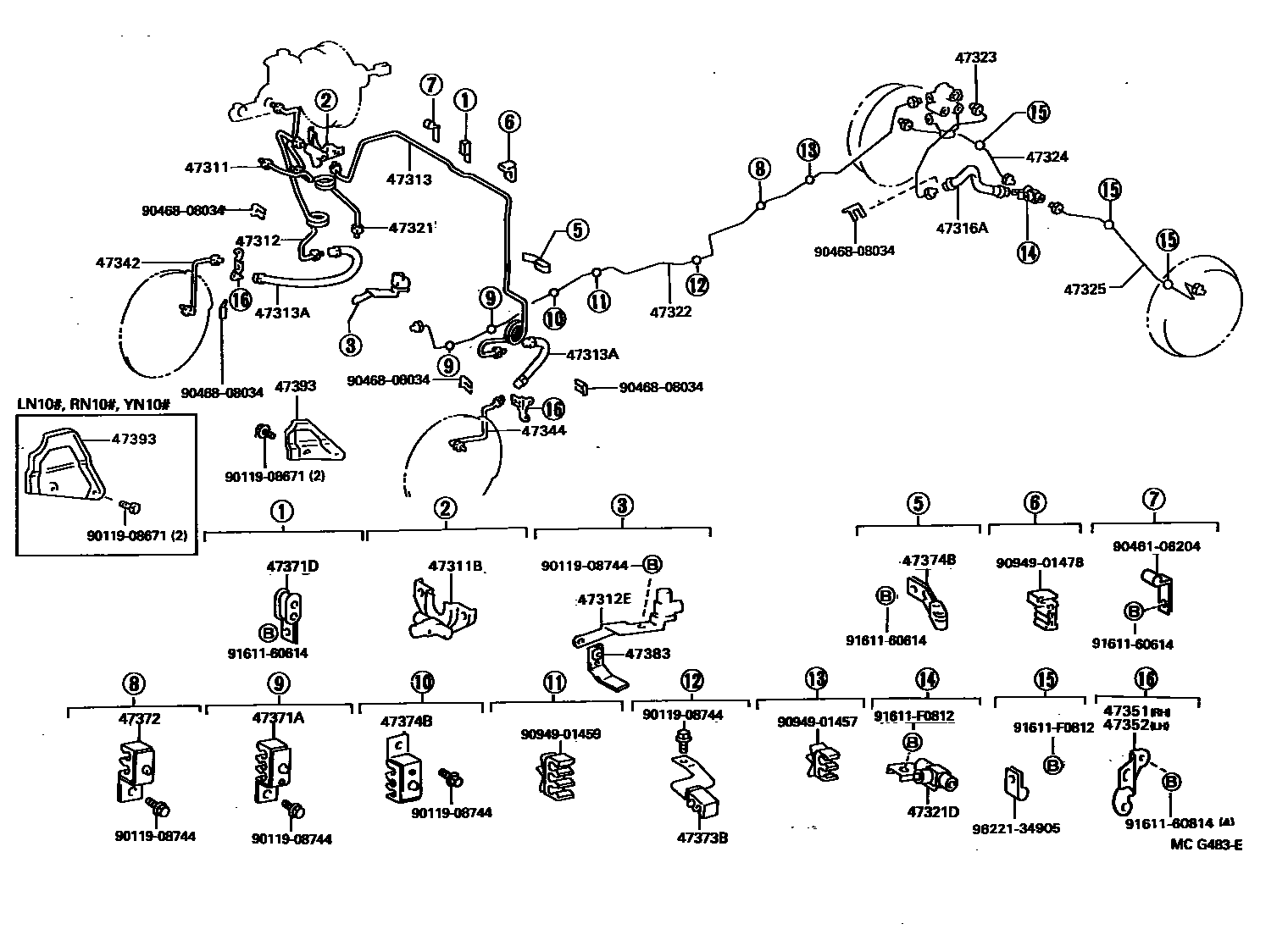

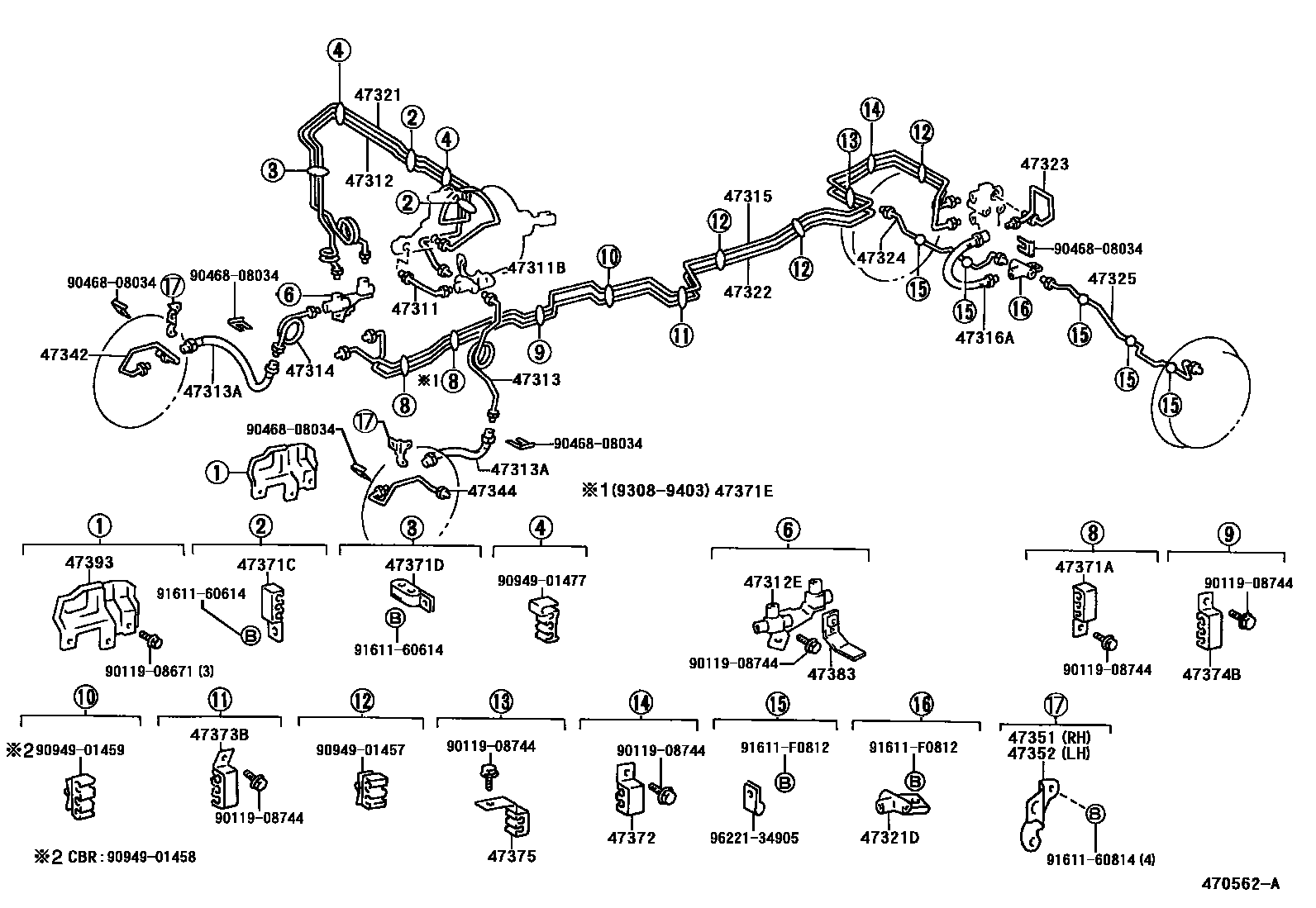

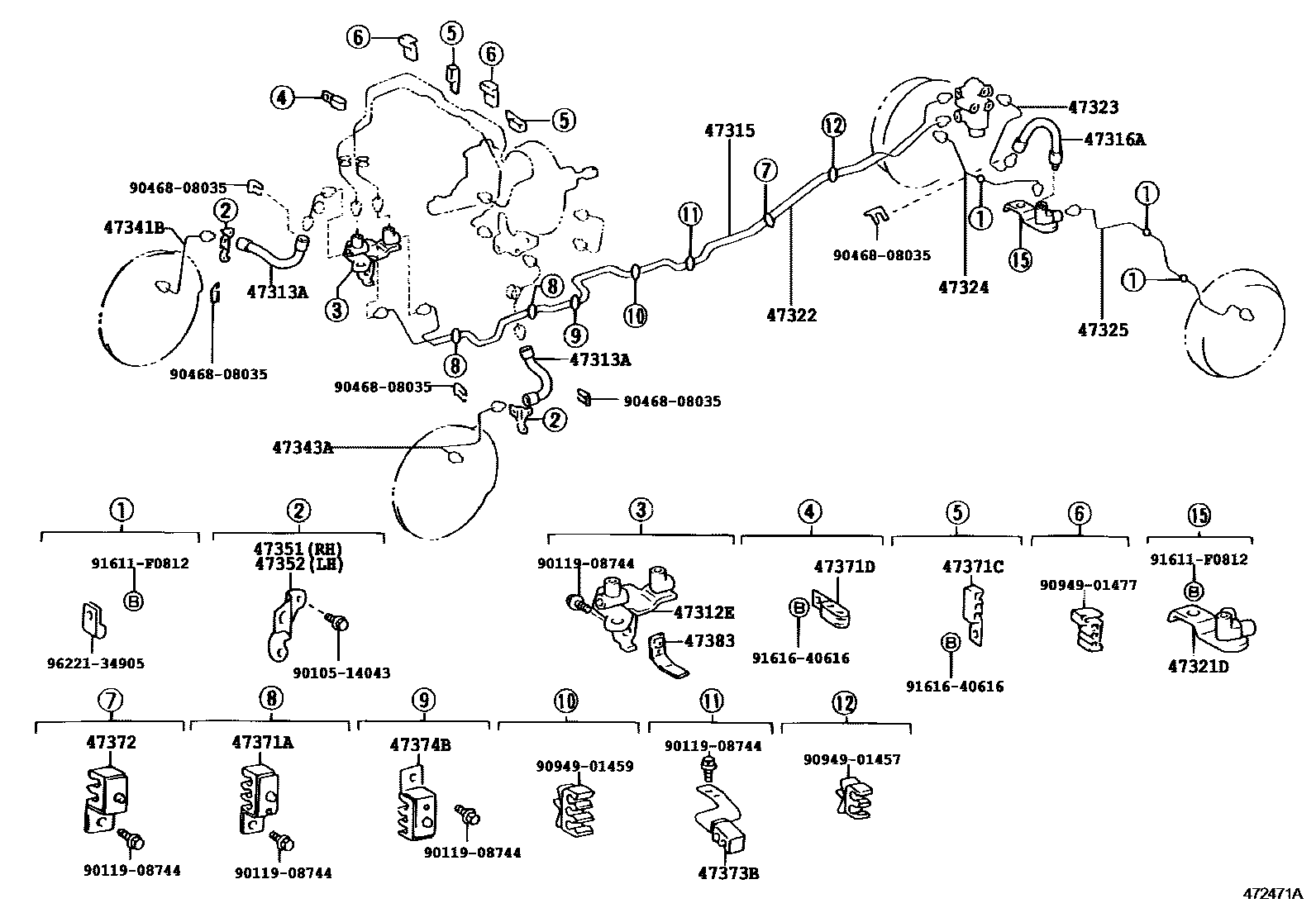

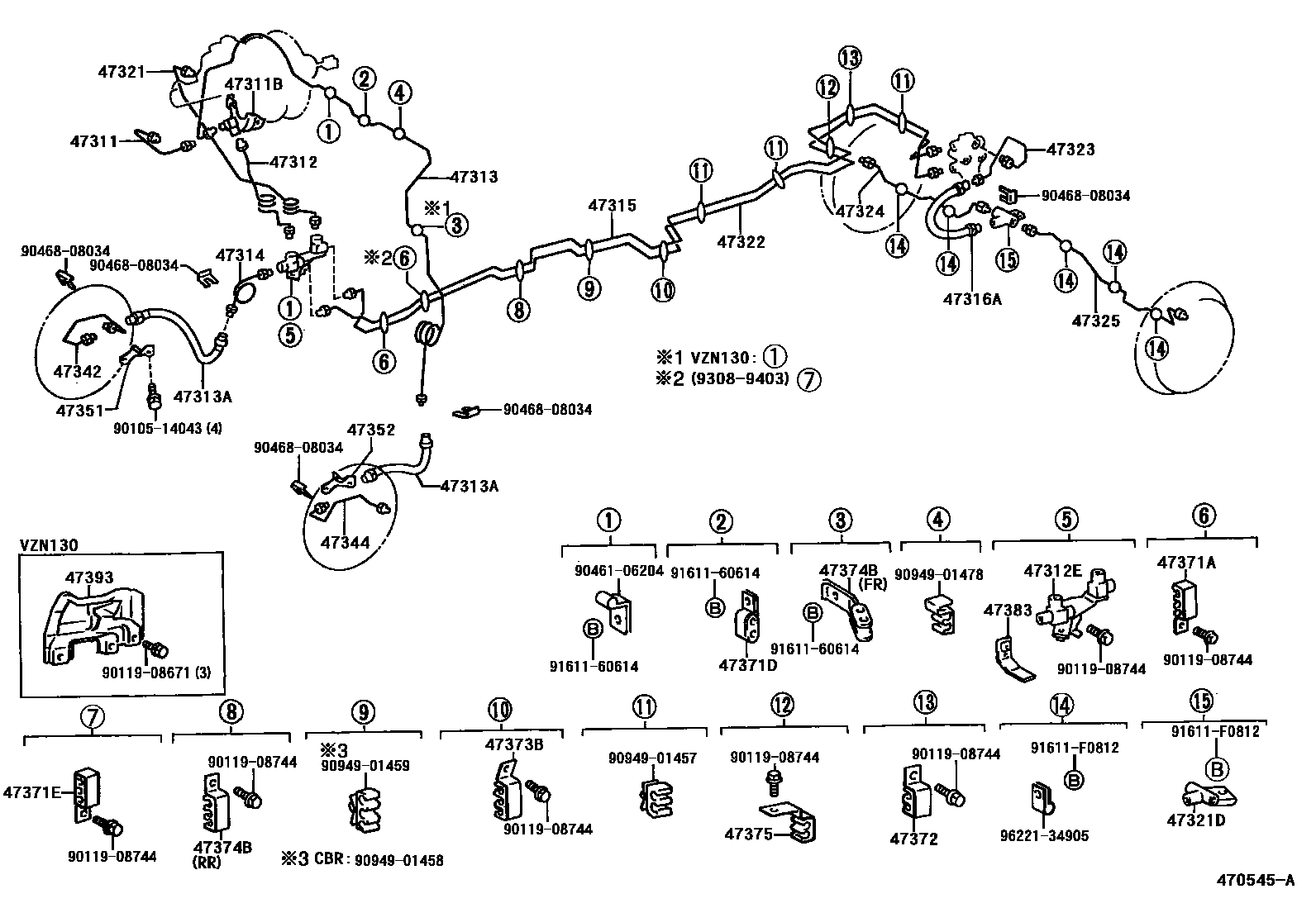

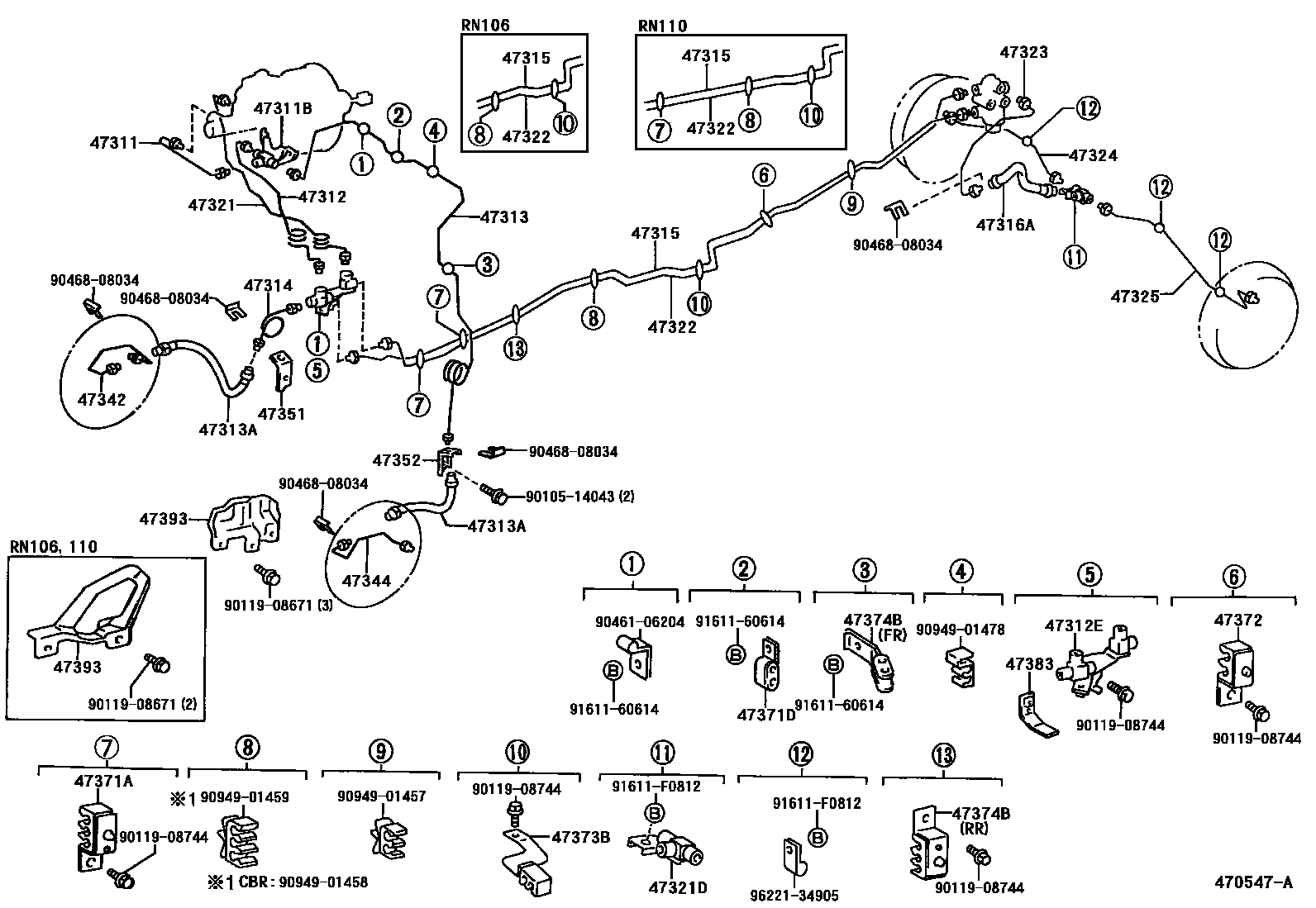

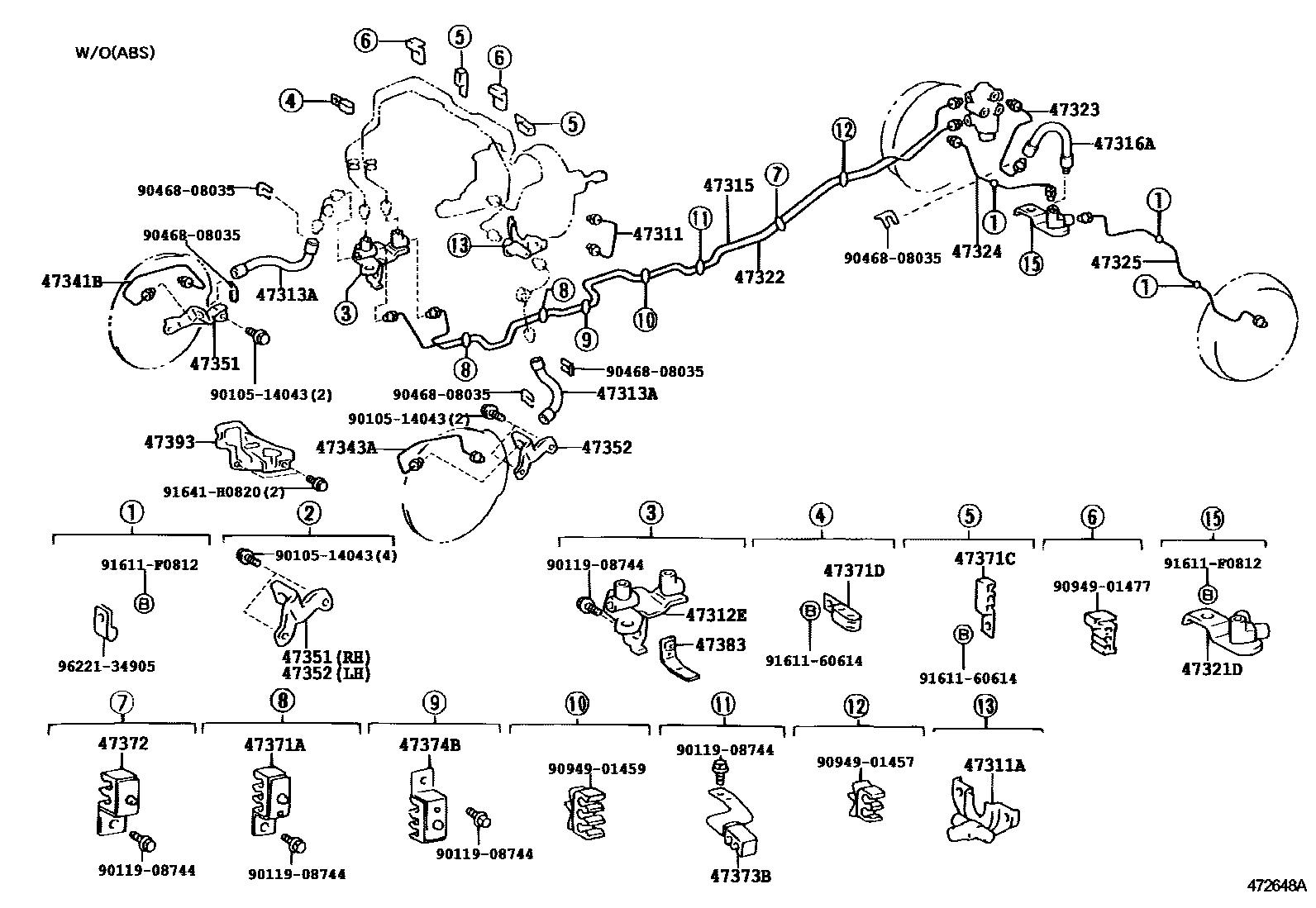

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 12 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-26010 · 04477-26050 · 04477-60010 |
| 31478D | Bleed plug cap (for LSPV) | 31478-30010 |

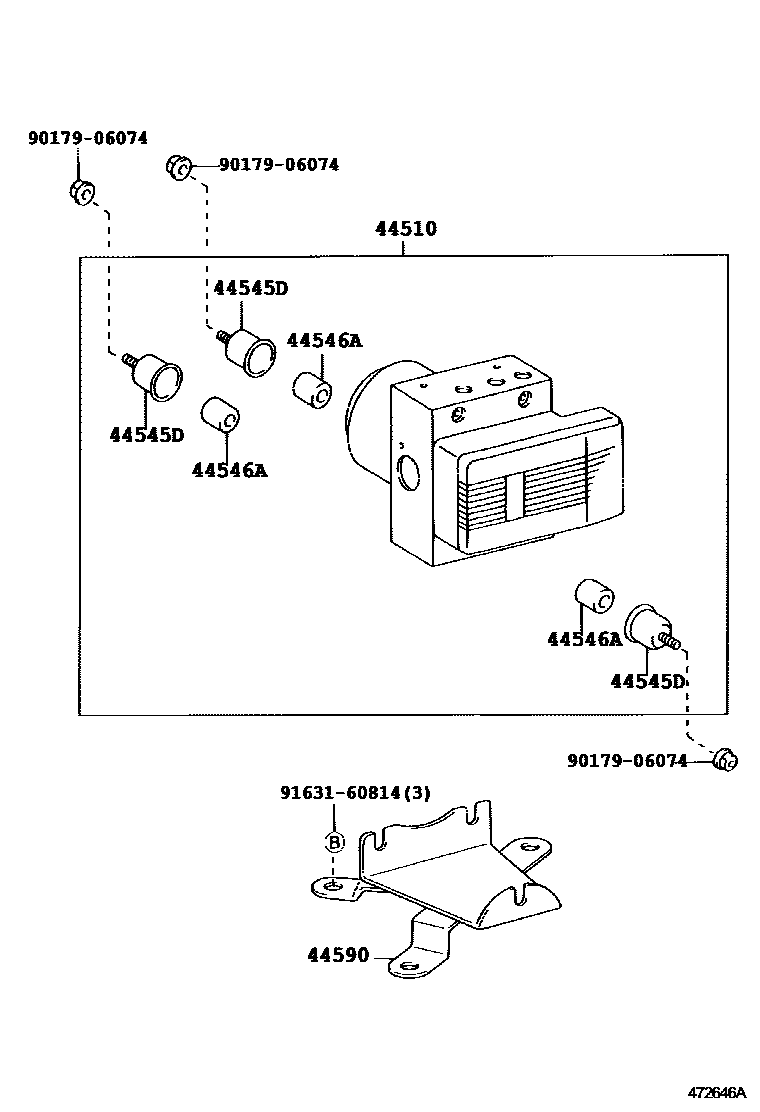

| 44510 | brake actuator assembly | 44050-35020 |
| 44545D | Brake actuator bolt mount | 44545-35080 |
| 44546A | Brake actuator bolt cushion | 44546-35090 |
| 44590 | Brake actuator bracket assembly | 44590-35050 |
| 47311 | No. 1 front brake pipe | 47311-35440 · 47311-35450 · 47311-35460 · 47311-35500 |
| 47311A | Pipe fitting (for front brake pipe) | 90904-13021 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10111 · 90413-10194 · 90413-10226 |
| 47312 | No. 2 front brake pipe | 47312-35580 · 47312-35610 · 47312-35620 · 47312-35800 · 47312-35810 · 47312-35820 · 47312-35840 · 47312-35860 · 47312-35870 · 47312-35890 · 47312-3D010 · 47312-3D020 · 47312-3D050 · 47312-3D100 · 47312-3D190 · 47312-3D200 · 47312-3D210 · 47312-3D220 · 47312-3D230 · 47312-3D260 · 47312-3D270 · 47312-3D280 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10108 · 90412-10135 · 90413-10233 · 90415-10006 · 90904-12027 |
| 47313 | No. 3 front brake pipe | 47313-35430 · 47313-35440 · 47313-35540 · 47313-35550 · 47313-35560 · 47313-35570 · 47313-35580 · 47313-35650 · 47313-35670 · 47313-35680 · 47313-35700 · 47313-35720 · 47313-35730 · 47313-35740 · 47313-35750 · 47313-35760 · 47313-35770 · 47313-35780 · 47313-35800 · 47313-35890 |
| 47313A | No. 1 front flexible hose | 90947-02383 · 90947-02583 · 90947-02957 · 96950-33555 · 96950-33656 |
| 47314 | No. 4 front brake pipe | 47314-35180 · 47314-35240 · 47314-35270 |
| 47315 | No. 5 front brake pipe | 47315-35040 · 47315-35140 · 47315-35160 · 47315-35240 · 47315-35260 · 47315-35261 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02599 · 90947-02600 · 90947-02958 · 96940-34305 · 96940-34406 |
| 47321 | No. 1 rear brake pipe | 47321-35330 · 47321-35460 · 47321-35470 · 47321-35480 · 47321-35490 · 47321-35500 · 47321-35510 · 47321-35520 · 47321-35530 · 47321-35540 · 47321-35620 · 47321-35660 · 47321-35730 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10162 · 90413-10235 · 90904-13036 |
| 47322 | No. 2 rear brake pipe | 47322-35380 · 47322-35430 · 47322-35450 · 47322-35460 · 47322-35461 · 47322-35470 · 47322-35660 · 47322-35661 |
| 47323 | No. 3 rear brake pipe | 47323-35110 · 47323-35120 · 47323-35190 |
| 47324 | No. 4 rear brake pipe | 47324-35160 · 47324-35170 · 47324-35220 · 47324-35250 |
| 47325 | No. 5 rear brake pipe | 47325-35170 · 47325-35180 · 47325-35230 · 47325-35290 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47341-35170 |
| 47342 | No. 2 right front wheel cylinder brake pipe | 47341-35100 · 47341-35120 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47343-35170 |
| 47344 | No. 2 left front wheel cylinder brake pipe | 47343-35100 · 47343-35120 |
| 47351 | Right front flex hose bracket | 47351-35120 · 47351-35300 · 47351-35310 · 47352-35170 |
| 47352 | Left front flex hose bracket | 47352-35350 · 47352-35360 · 47353-35080 · 47354-35080 |
| 47371A | No. 1 brake pipe clamp | 47371-35070 · 47371-35080 · 47371-35230 |
| 47371C | No. 7 brake pipe clamp | 47371-35130 |
| 47371D | No. 8 brake pipe clamp | 47372-35080 |
| 47371E | No. 9 brake pipe clamp | 47371-35220 · 47371-35240 |
| 47372 | No. 2 brake pipe clamp | 47372-35030 |
| 47373B | No. 3 brake pipe clamp | 47371-35110 · 47371-35120 · 47371-35150 · 47371-35160 · 47371-35170 · 47371-35190 · 47372-35090 · 47372-35100 · 47372-35110 |
| 47374B | No. 4 brake pipe clamp | 47373-35040 · 47373-35050 · 47374-35020 |
| 47375 | No. 5 brake pipe clamp | 47372-35120 |
| 47383 | Connector bracket | 47383-35010 |
| 47393 | brake pipe heat shield | 47393-35060 · 47393-35070 · 47393-35080 · 47393-35110 · 47393-35120 · 47393-35140 · 47393-35200 |

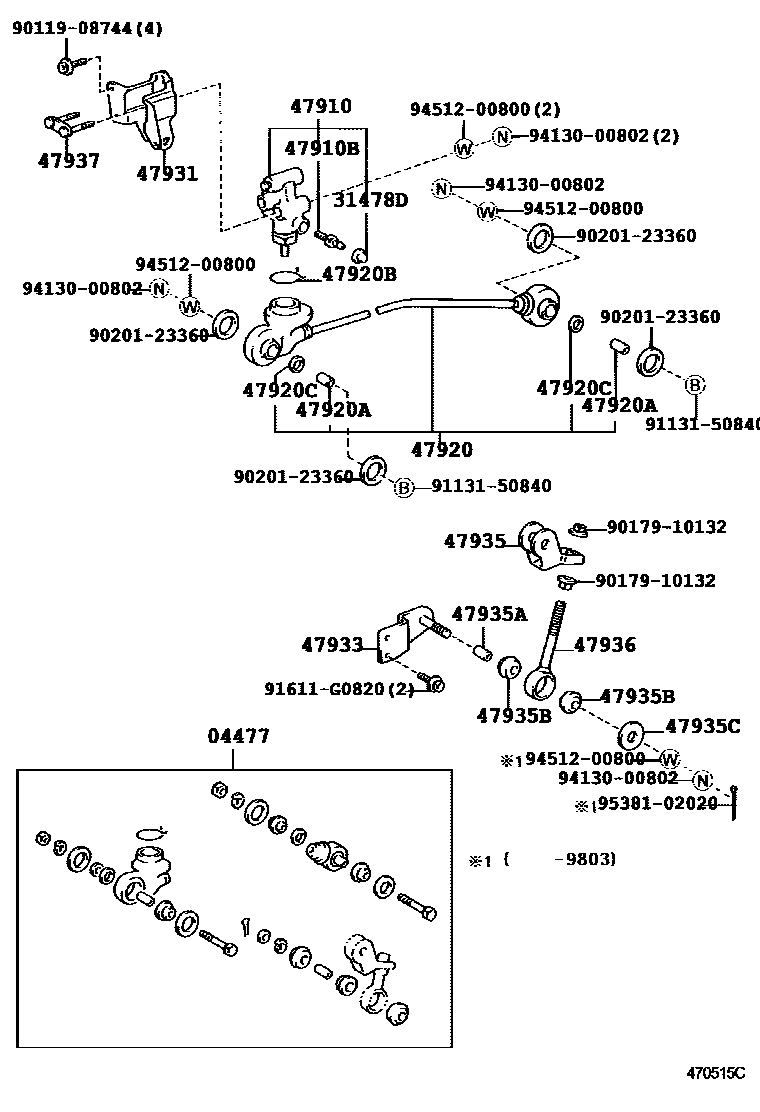

| 47910 | Load sensing proportional valve assembly | 47910-35130 · 47910-35140 · 47910-35150 · 47910-35160 · 47910-35200 · 47910-35210 · 47910-35280 · 47910-35470 |
| 47910B | Bleed plug | 47547-27020 · 47547-27030 |
| 47920 | Load sensing spring assembly | 47920-35050 · 47920-35080 · 47920-35100 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47931 | Load sensing valve bracket | 47931-35080 · 47931-35090 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35050 · 47933-35070 · 47933-35071 · 47933-35080 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35020 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47935B | Bushing (for load sensing spring lifting lugs) | 90385-10064 |
| 47935C | Fixings (for load-sensing spring lifting lugs) | 90201-08062 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35030 · 47936-35040 |
| 47937 | Load sensing valve fixing plate | 47937-35020 · 47937-60010 |
