Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706

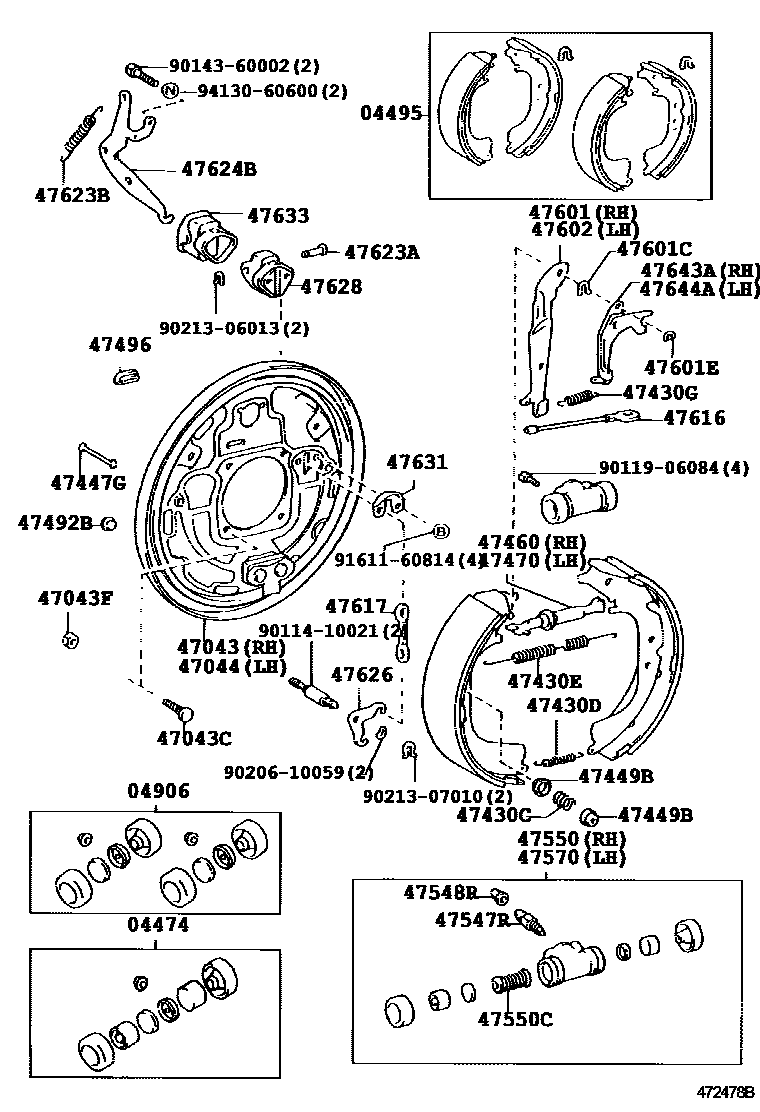

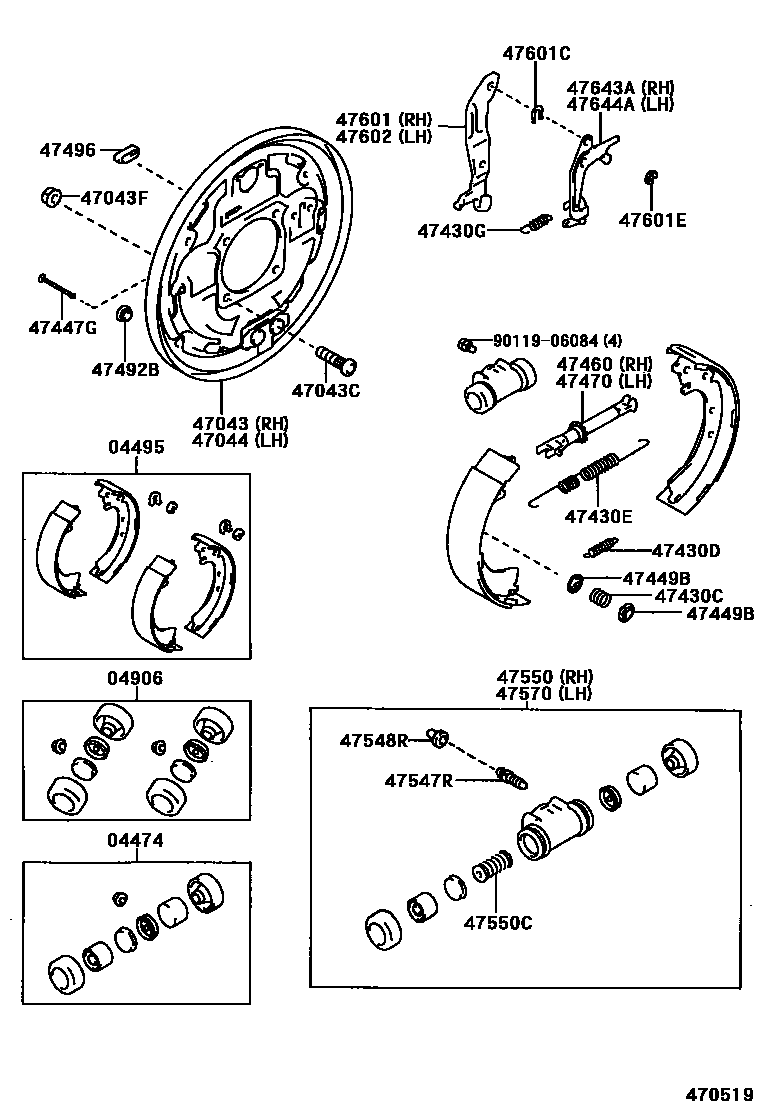

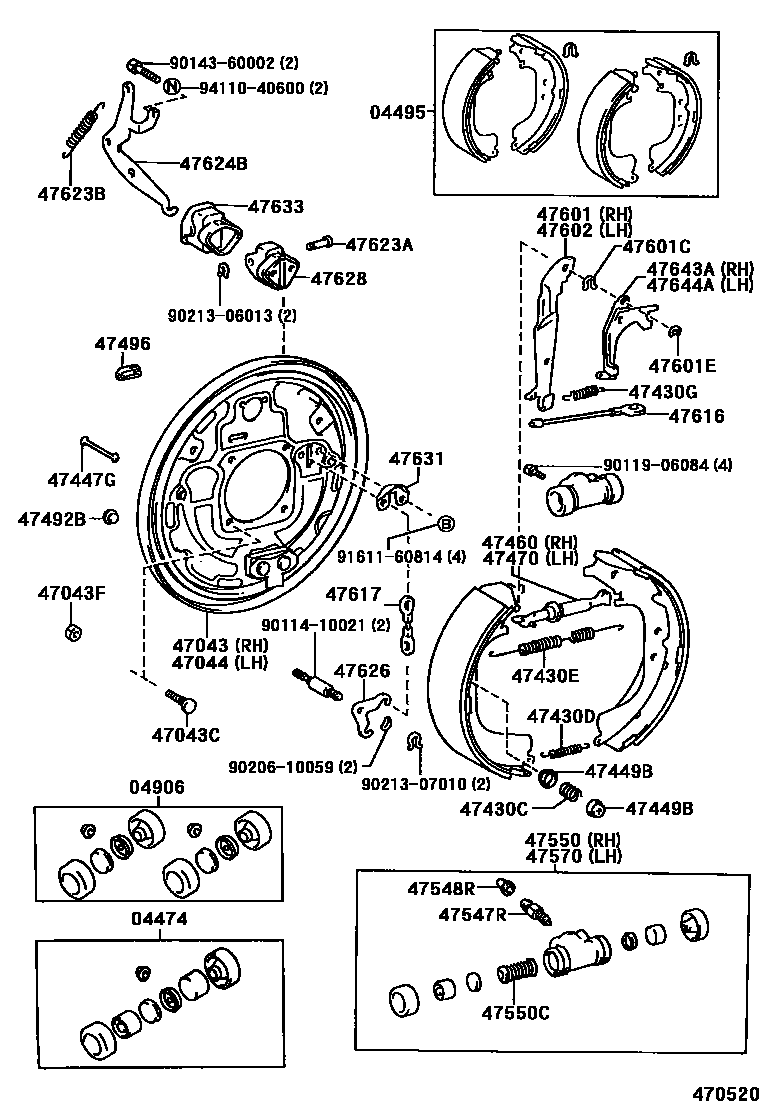

Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-26030 · 04474-35060 · 04474-35080 |
| 04495 | Rear brake shoe assembly | 04495-26061 · 04495-35151 · 04495-35230 |
| 04906 | Rear wheel pump cup assembly | 04906-35100 · 04906-35120 |
| 47043 | Right rear brake base plate sub-assembly | 47043-35150 · 47043-35160 · 47043-35170 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 90114-10002 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90179-10067 |
| 47044 | Left rear brake base plate sub-assembly | 47044-35140 · 47044-35150 · 47044-35160 |
| 47430C | Limit spring (for rear brake shoe) | 90501-20012 · 90501-20604 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-18031 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-26011 · 90506-26014 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12031 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-30020 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-30020 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47061-60011 · 47062-60011 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47061-60011 · 47062-60011 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-28010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-60020 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-26110 · 47550-35170 · 47550-35190 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-60010 · 90029-60011 · 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-26110 · 47550-35170 · 47550-35190 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-35040 · 47612-35040 |
| 47601C | C-shaped washer (for rear brake) | 90213-07010 |
| 47601E | E-ring (for rear brake) | 96160-00500 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-35040 · 47612-35040 |
| 47616 | Right parking brake cable | 47616-35020 |
| 47617 | No. 2 parking brake cable | 46361-35100 · 47617-35010 |
| 47623A | Pin (for parking brake right angle lever) | 90249-08068 |
| 47623B | Tension spring (for parking brake right angle lever return) | 90506-20019 · 90506-20033 |
| 47624B | No. 1 Parking Brake Right Angle Lever | 47603-35010 · 47604-35010 · 47624-35020 · 47625-35020 |
| 47626 | No. 3 parking brake right angle lever | 47626-35010 |
| 47628 | Rear brake right angle lever bracket | 47628-35020 |
| 47631 | Rear brake right angle lever dust cover | 47631-35010 |
| 47633 | Parking brake right angle lever dust boot | 47633-35020 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-60010 · 47644-60010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47643-60010 · 47644-60010 |
