Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

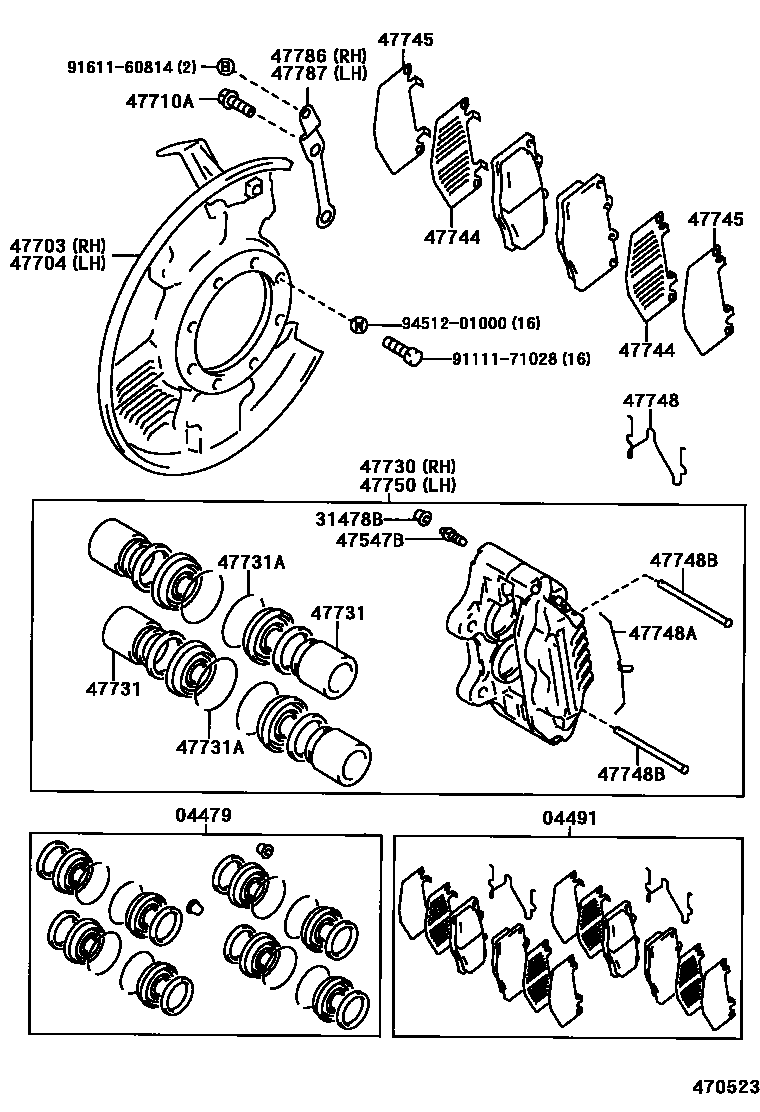

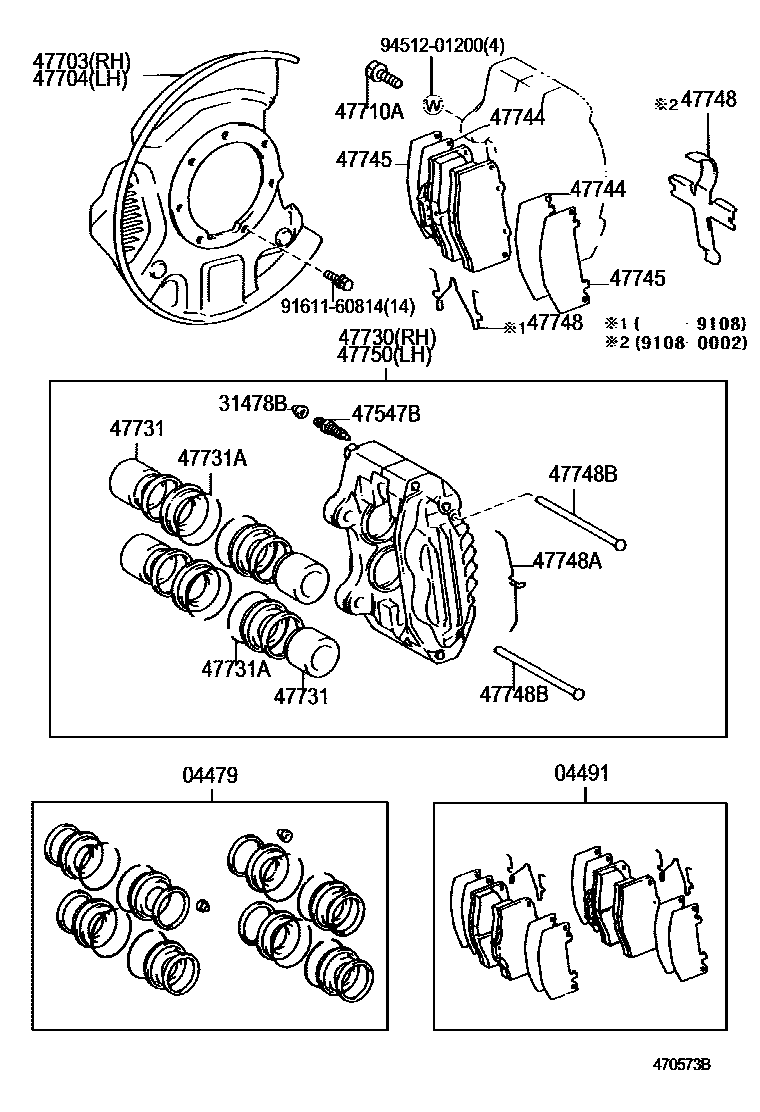

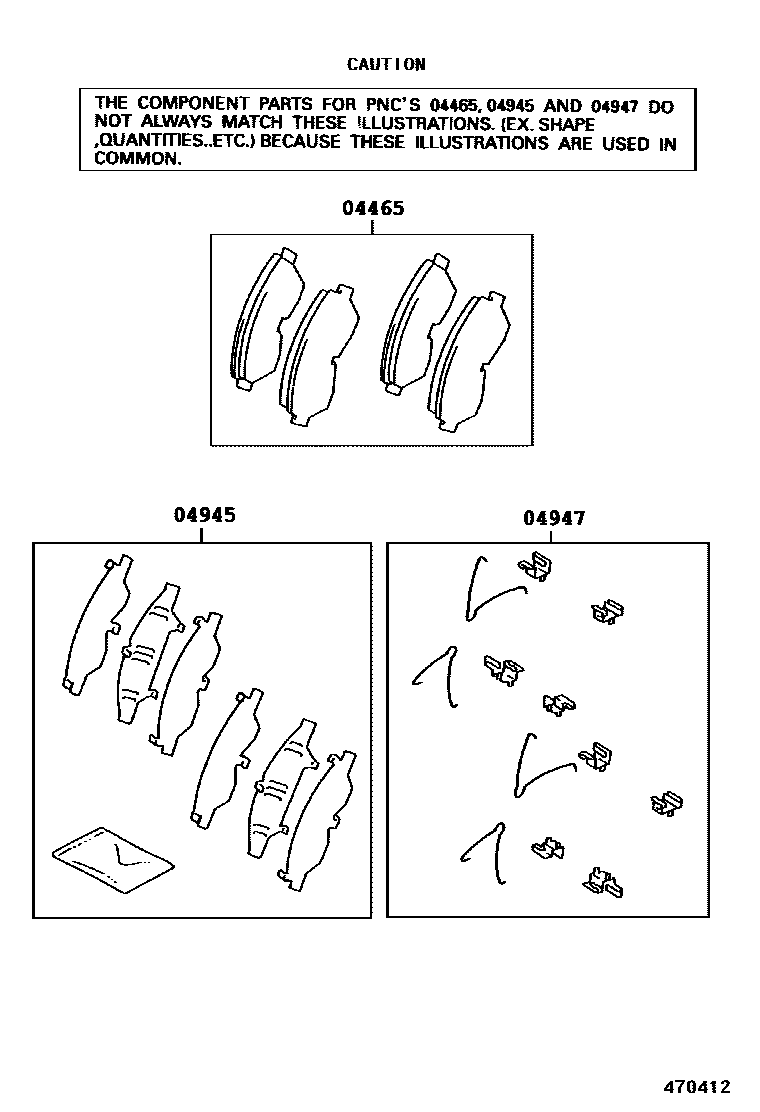

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-35030 · 04465-35040 · 04465-35140 |
| 04479 | Front disc brake cylinder assembly | 04479-35010 · 04479-60020 |
| 04491 | Front disc brake pad assembly | 04491-35160 · 04491-35170 · 04491-35240 · 04491-35241 |
| 04945 | Front silencer gasket assembly | 04945-35040 · 04945-35050 |
| 04947 | Front disc brake mounting kit | 04947-60050 · 04947-60080 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20030 |
| 47703 | Right front disc brake dust cover sub-assembly | 47703-35050 · 47703-35060 · 47703-35061 · 47703-35062 |
| 47704 | Left front disc brake dust cover sub-assembly | 47704-35050 · 47704-35060 · 47704-35061 · 47704-35062 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-12144 |
| 47730 | Right front disc brake cylinder assembly | 47730-35080 · 47730-35090 |
| 47731 | Front disc brake piston | 47731-35010 · 47731-60010 |
| 47731A | retaining ring (for front disc brake piston) | 90522-48044 · 90522-50003 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-35020 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47745-35020 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-60010 · 47748-60030 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90468-12015 · 90468-12019 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06014 · 90240-06158 |
| 47750 | Left disc brake cylinder assembly | 47750-35080 · 47750-35090 |
| 47786 | Right dust cover reinforcement | 47786-60020 |
| 47787 | Left dust cover reinforcement | 47787-60020 |
