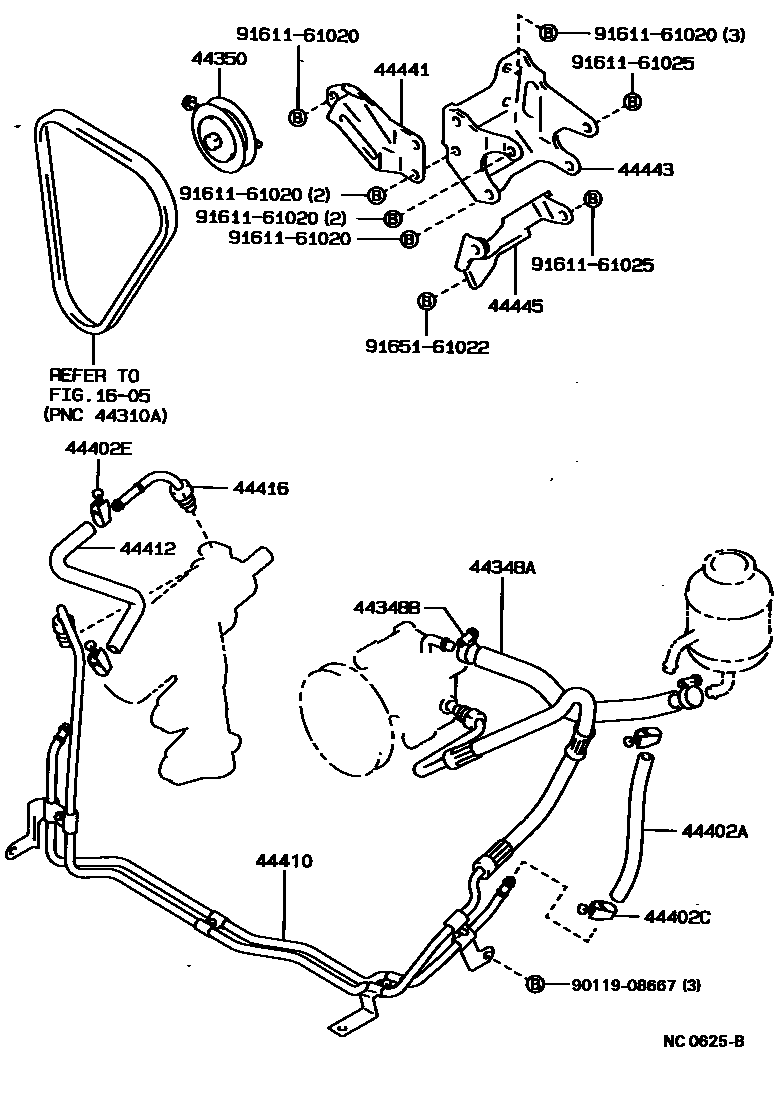

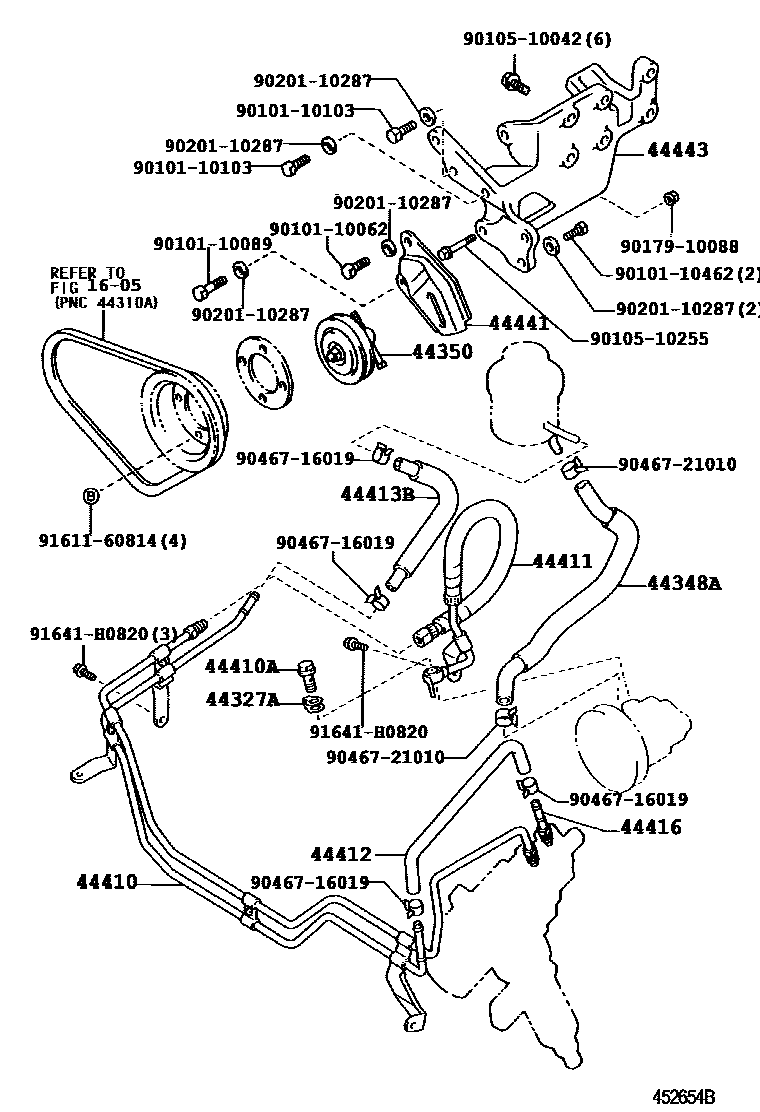

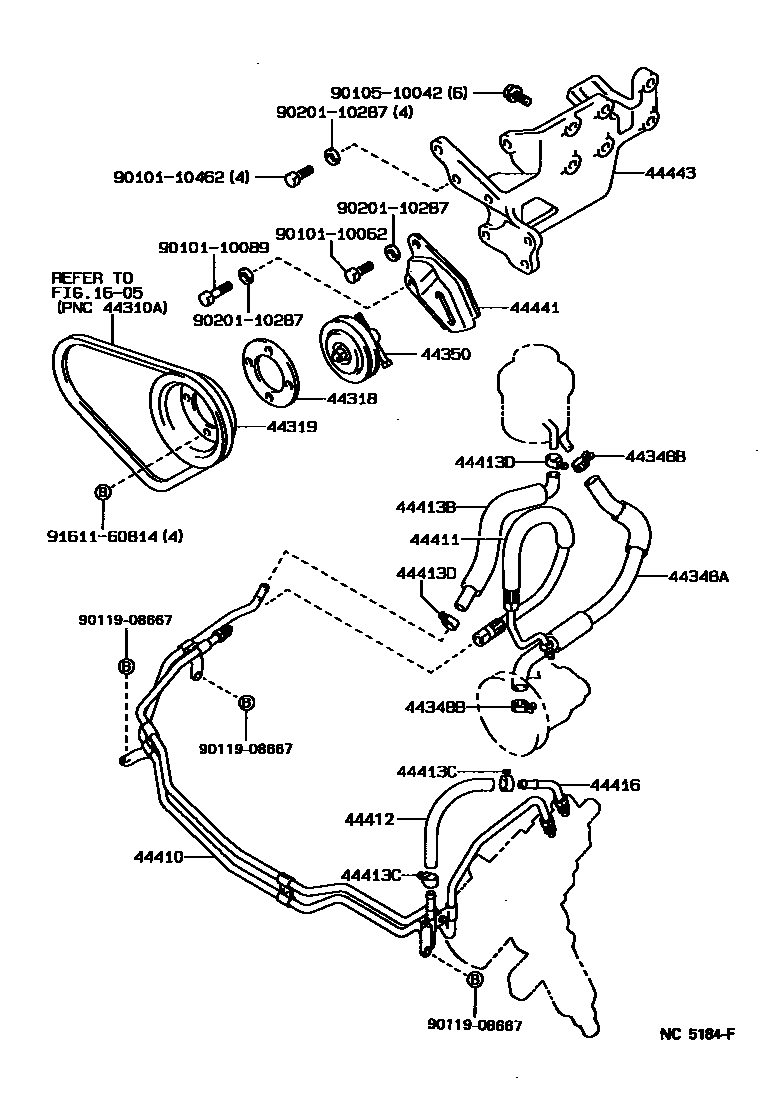

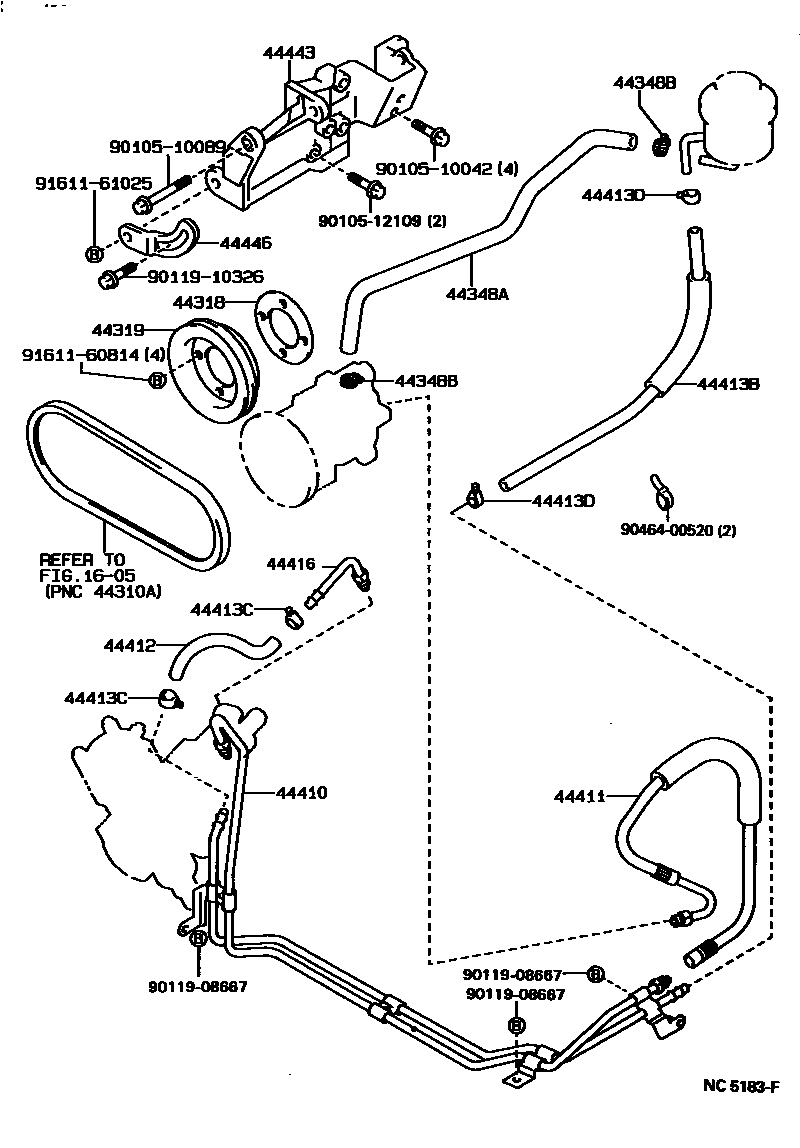

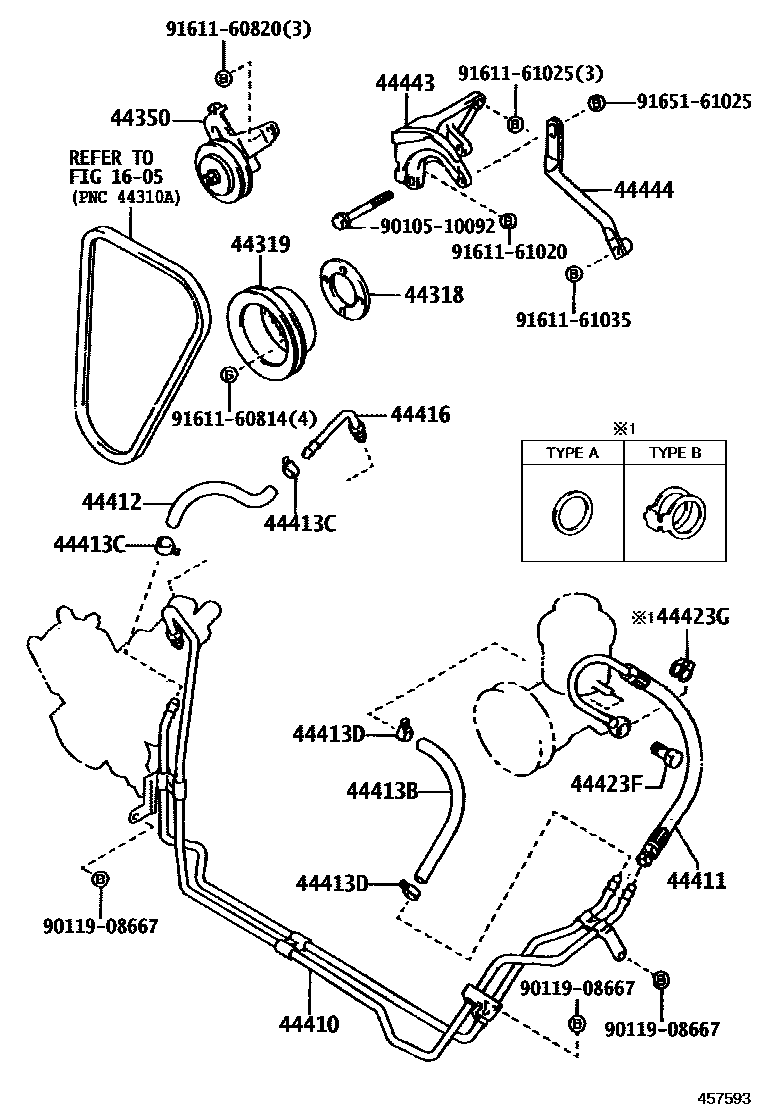

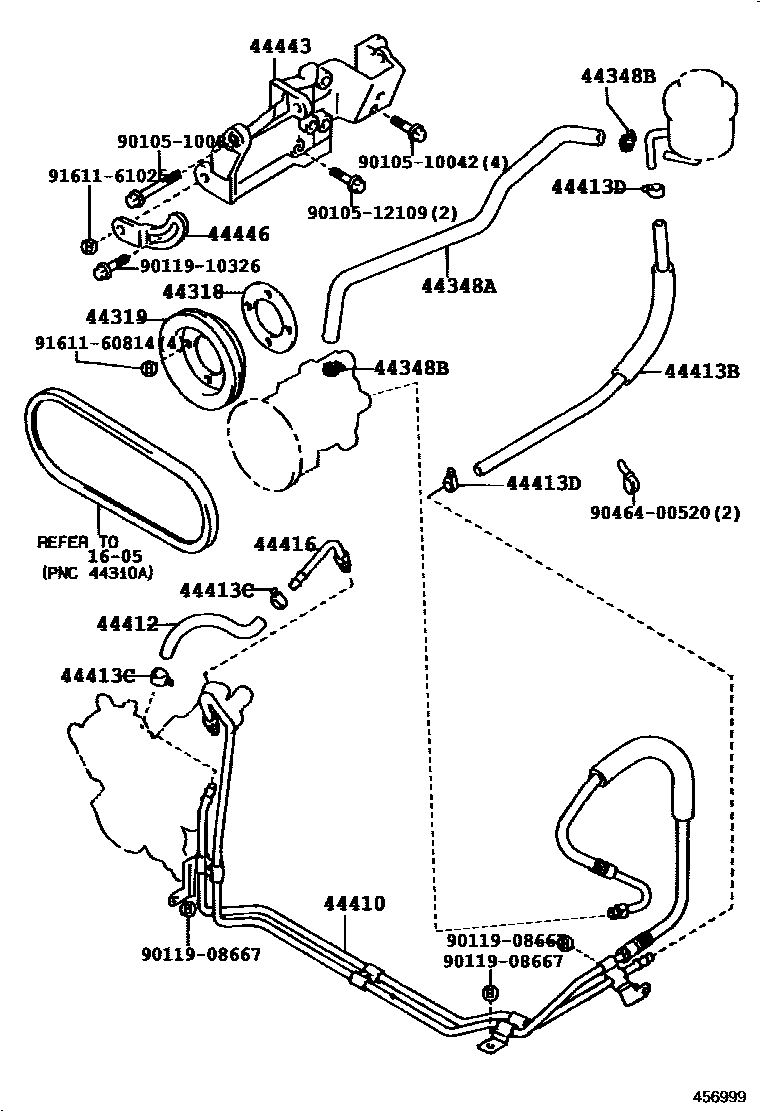

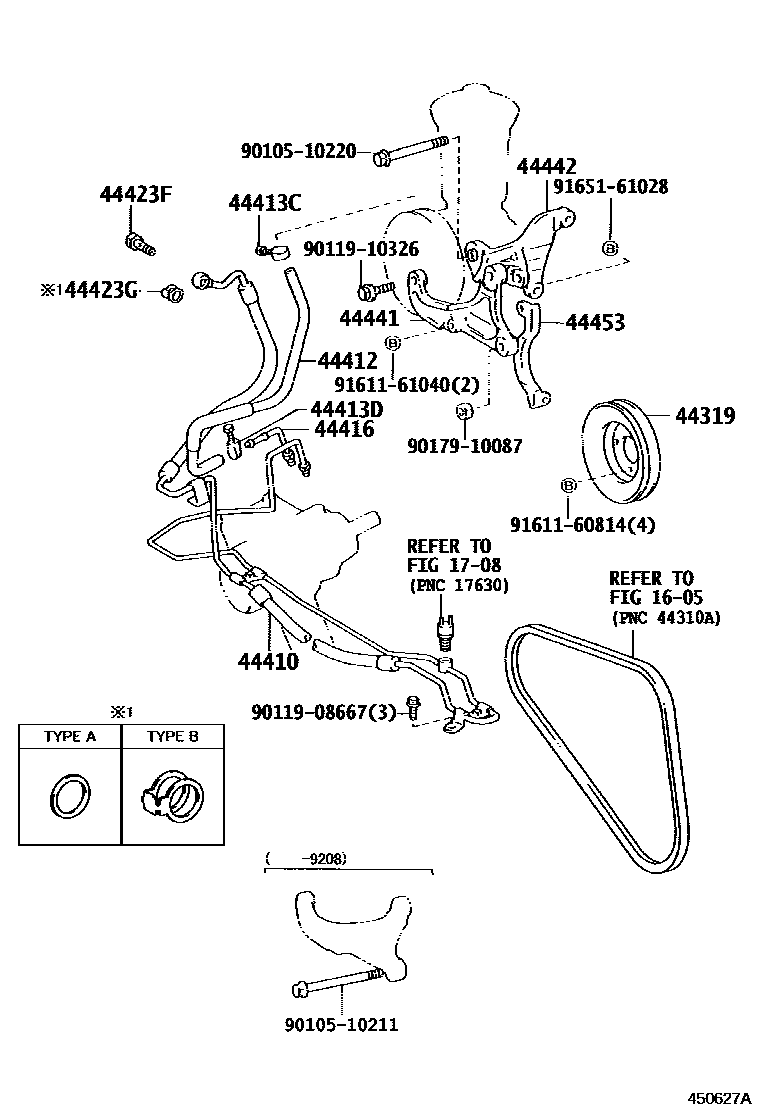

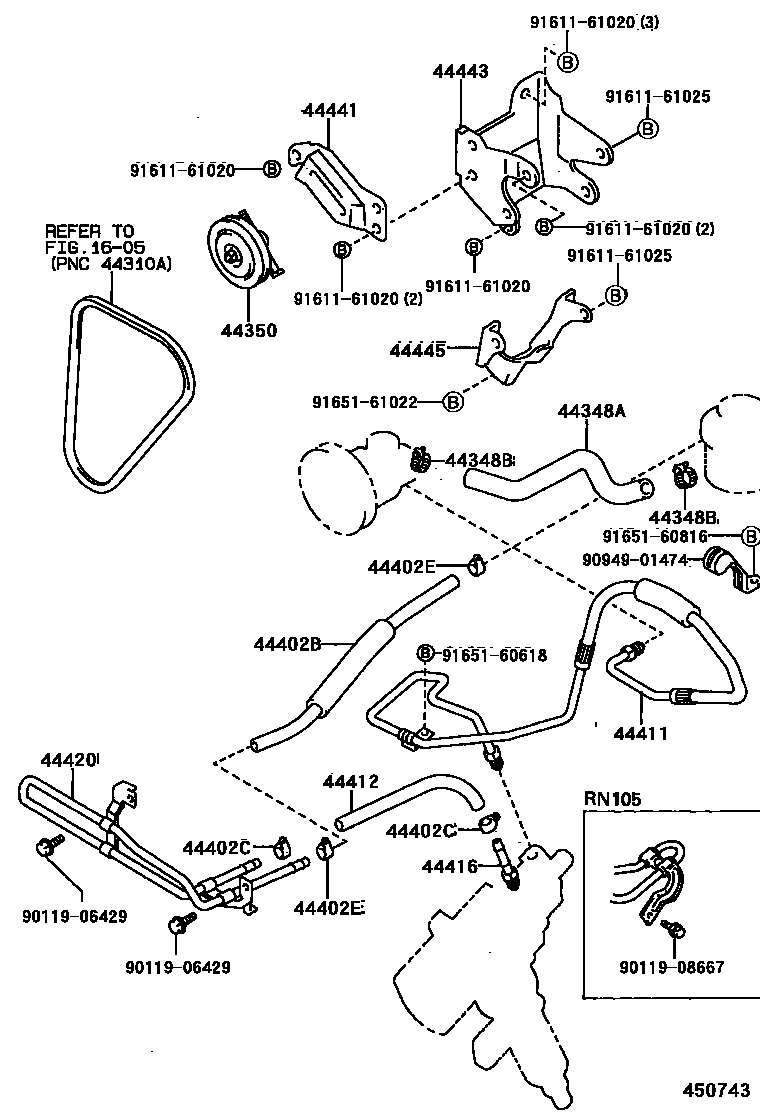

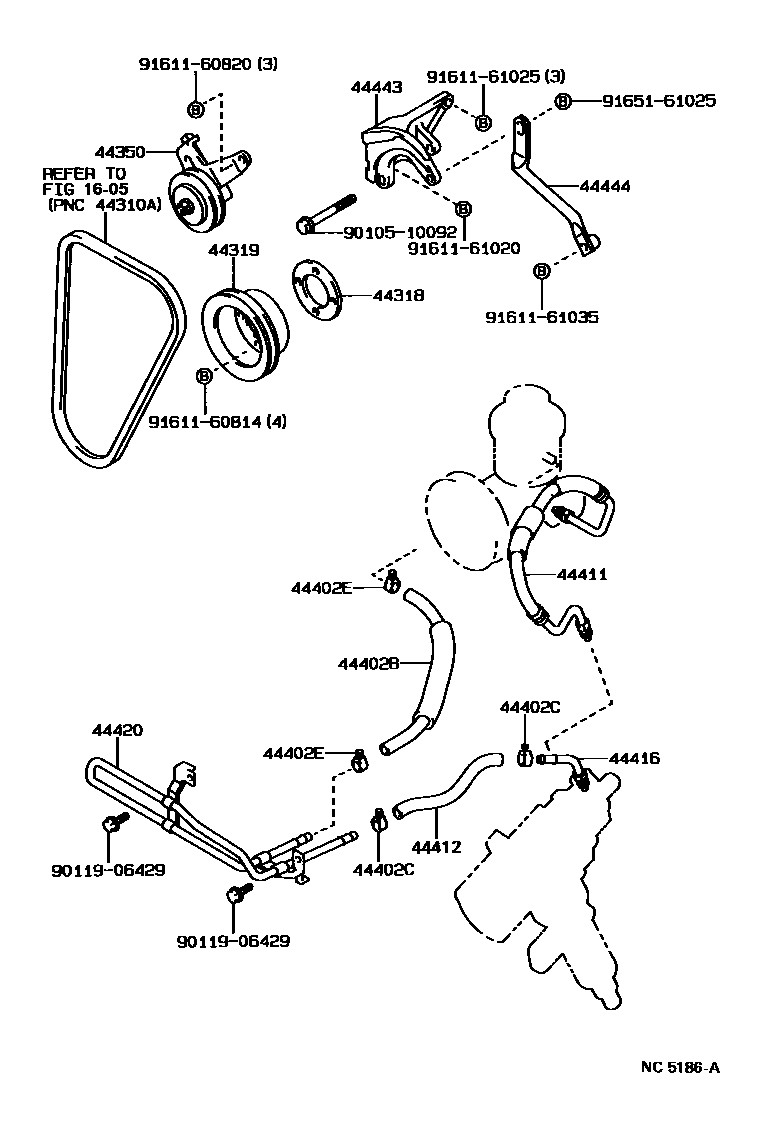

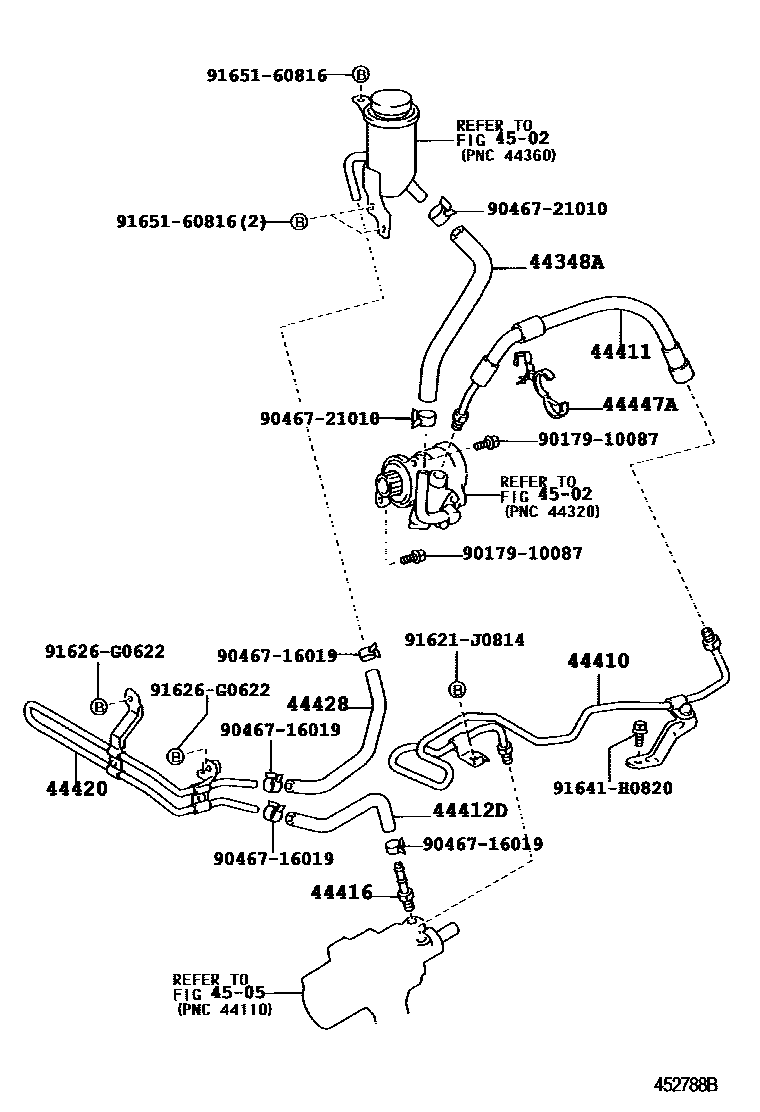

Toyota HILUX 动力转向配管 — Figure 4503
Toyota HILUX EPC diagram 4503, 动力转向配管, with 10 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-28012 · 44318-35010 |
| 44319 | Vane pump drive pulley | 44319-22010 · 44319-28013 · 44319-35020 · 44319-35030 |
| 44327A | No. 1 pressure hole gasket | 44327-26020 · 44327-30040 |
| 44348A | No. 1 hose (tank to pump) | 44348-35100 · 44348-35110 · 44348-35120 · 44348-35130 · 44348-35230 · 44348-35270 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 · 90467-21005 |
| 44350 | Power steering idler assembly | 44350-28011 · 44350-35010 · 44350-60020 · 44350-60021 |
| 44402A | Power steering oil cooler inlet hose | 90445-18095 · 90445-18125 |
| 44402B | Power steering oil cooler outlet hose | 90447-18025 · 90447-18039 |
| 44402C | Power steering oil cooler inlet hose clamp | 90460-01001 · 90467-16008 |
| 44402E | Power steering oil cooler outlet hose clamp | 90460-01001 · 90467-16008 |
| 44410 | Pressure supply pipe assembly | 44410-35150 · 44410-35151 · 44410-35160 · 44410-35170 · 44410-35180 · 44410-35190 · 44410-35191 · 44410-35210 · 44410-35220 · 44410-35230 · 44410-35330 · 44410-35340 · 44410-35600 · 44410-35660 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16034 |
| 44411 | pressure supply hose | 44411-35260 · 44411-35261 · 44411-35262 · 44411-35270 · 44411-35280 · 44411-35290 · 44411-35300 · 44411-35330 · 44411-35470 · 44411-35600 · 44411-35660 |
| 44412 | Oil return hose | 44412-35080 · 44412-35100 · 44412-35110 · 44412-35120 · 44412-35170 · 44412-35210 · 90445-18118 · 90445-18138 · 90447-18035 |
| 44412D | No. 1 oil return hose | 44412-35290 |
| 44413B | Hoses (for storage tank inlet) | 90447-18033 · 90447-18036 · 90447-18040 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 · 90467-16008 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 · 90467-16008 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-35020 · 44416-35090 · 44416-35100 |
| 44420 | Oil cooler assembly | 44420-35040 · 44420-35070 · 44420-35230 |
| 44423F | Joint bolts | 90401-16008 · 96341-41603 |
| 44423G | Joint bolt gasket | 44327-12010 · 90430-16242 |
| 44428 | No. 2 oil return hose | 44428-35110 |
| 44441 | Pump front bracket | 44441-20010 · 44441-35020 · 44441-35040 |
| 44442 | Pump rear bracket | 44442-35010 |
| 44443 | pump bracket | 44443-28021 · 44443-30080 · 44443-35011 · 44443-35020 · 44443-35070 |
| 44444 | Pump back stay | 44444-27010 |
| 44445 | Pump lower bracket | 44445-35010 |
| 44446 | Adjust the stand | 44446-30070 |
| 44447A | Hose Bracket No. 1 | 44447-35040 |
| 44453 | Pump front stay | 44453-35010 · 44453-35030 |
