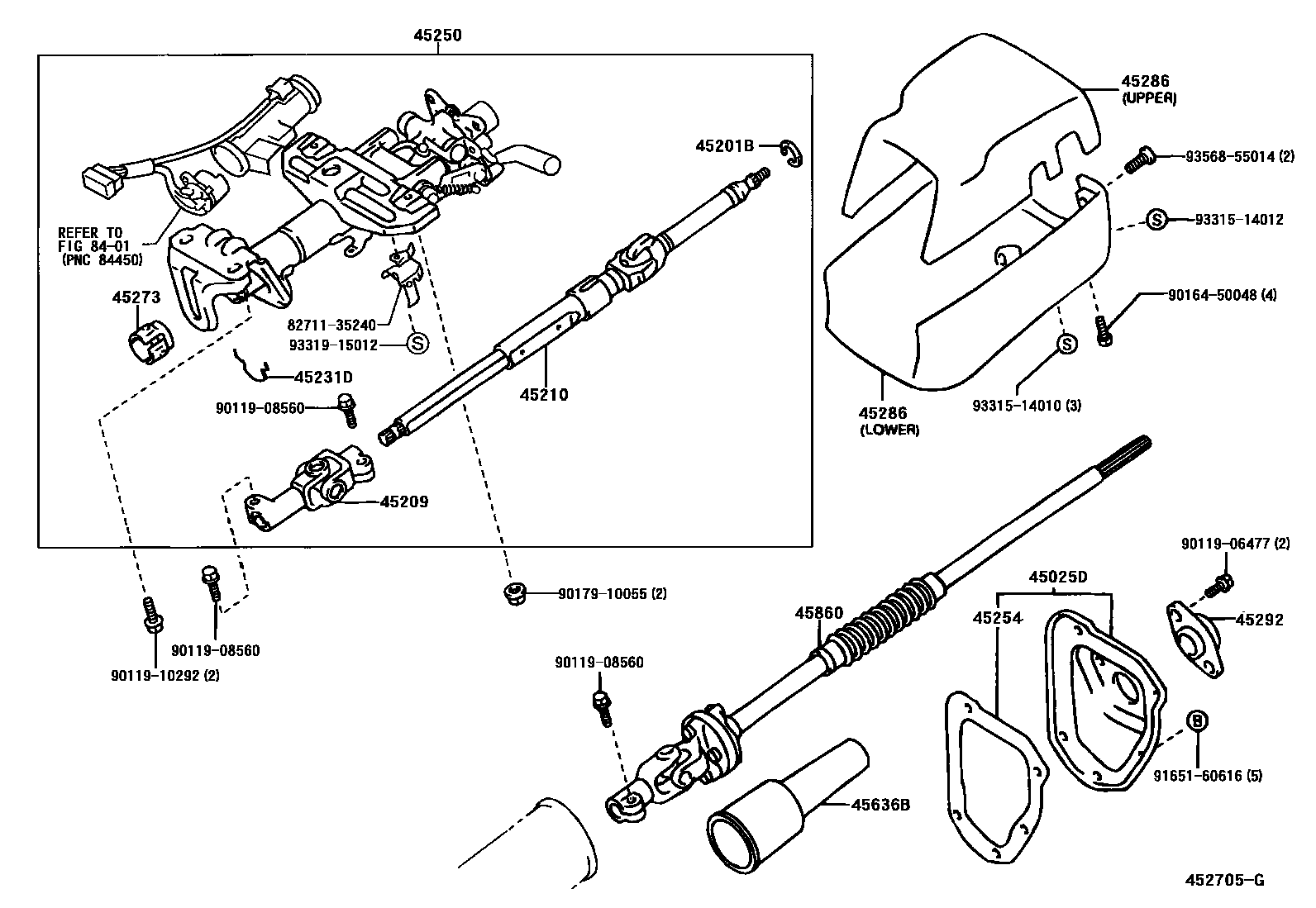

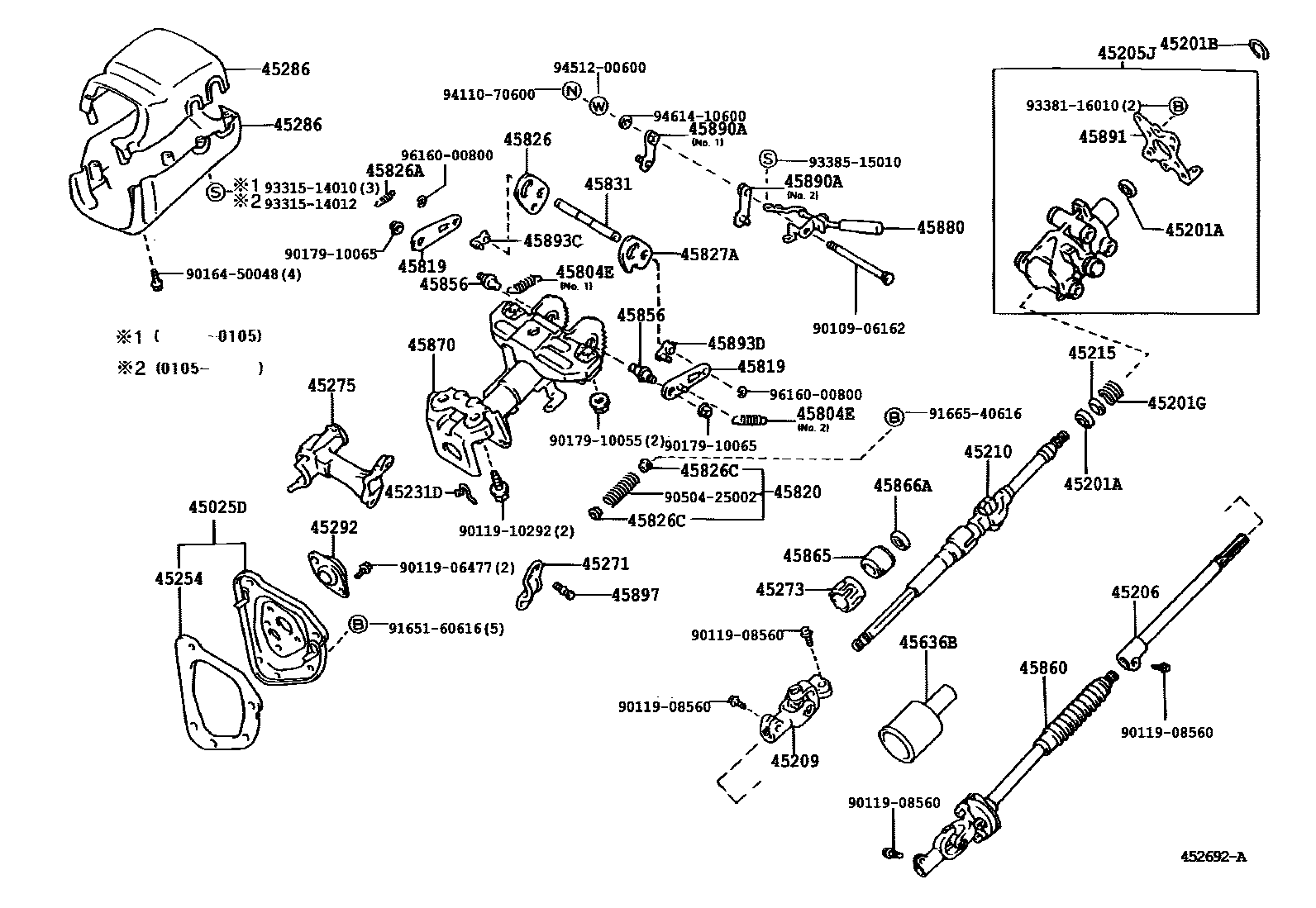

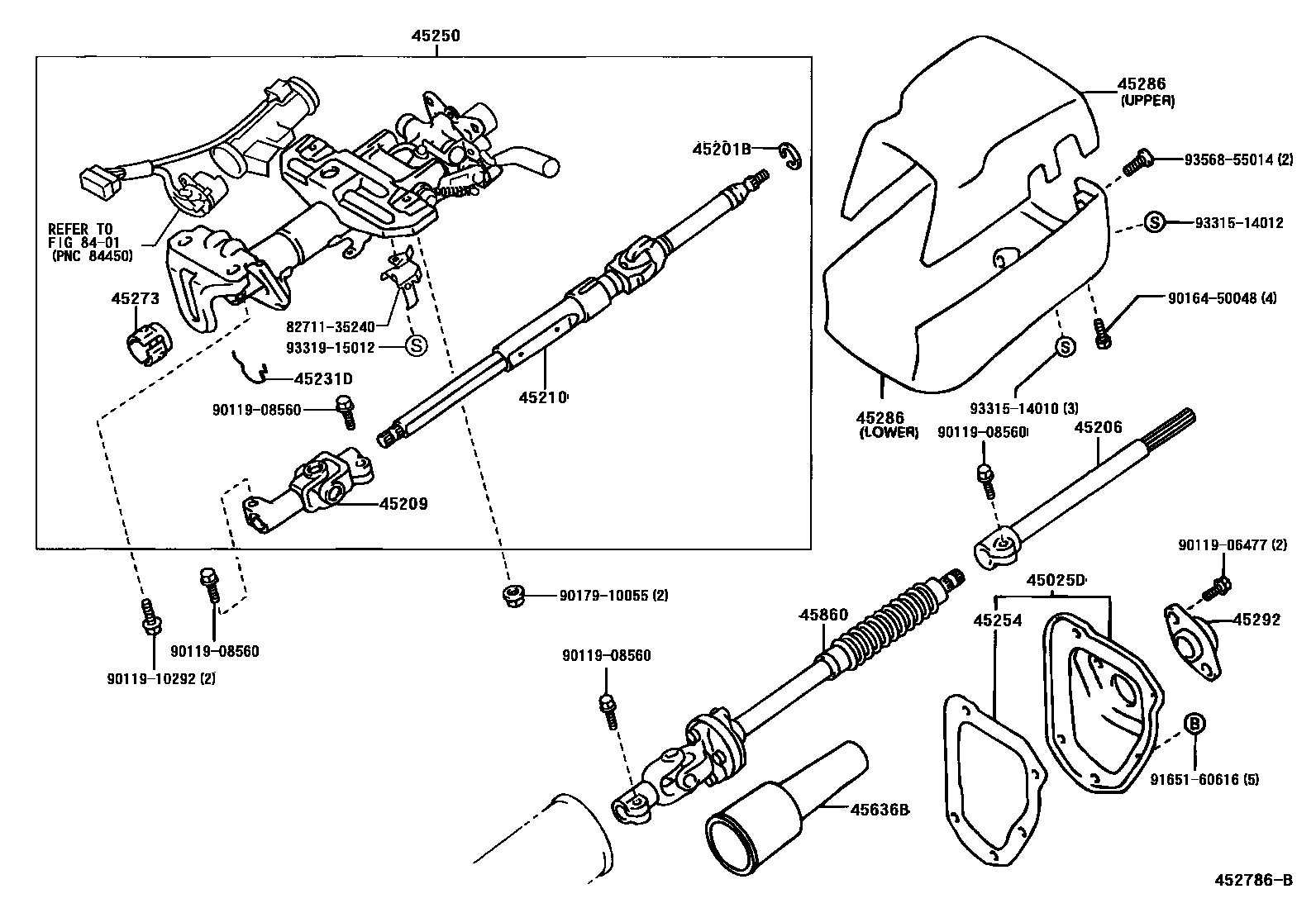

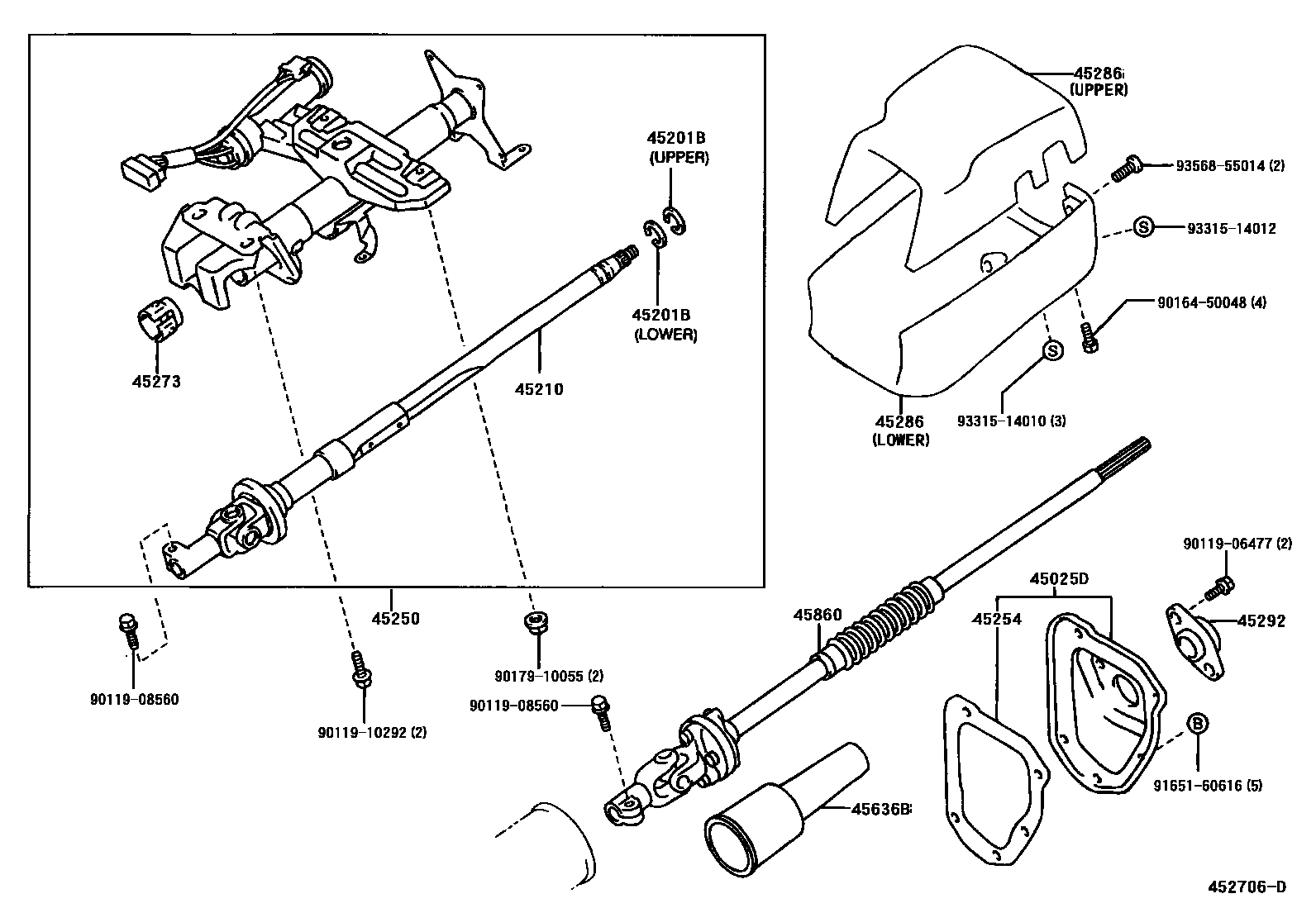

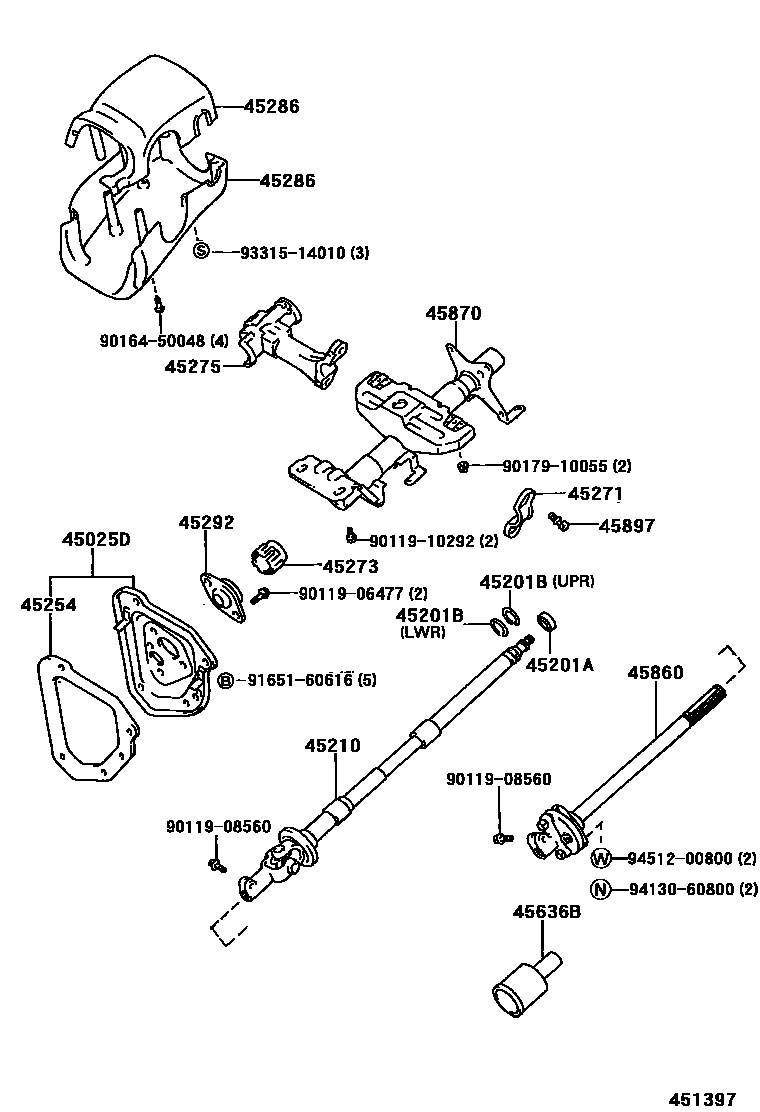

Toyota HILUX Steering Column & Shaft — Figure 4501
Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-35170 · 45025-35180 · 45025-35190 · 45025-35200 · 45025-35250 |
| 45201A | Bearings (for steering spindle) | 90363-18004 · 90363-18005 · 90363-18007 · 90363-18009 · 90363-18010 · 90363-18011 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 · 90520-17269 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45205J | Steering column upper tube sub-assembly | 45205-34010 · 45205-35230 · 45205-35231 · 45205-35240 · 45205-35241 |
| 45206 | Steering slip fork sub-assembly with shaft | 45206-35020 |
| 45209 | Steering slip fork sub-assembly | 45209-35020 · 45209-35030 |
| 45210 | Steering spindle assembly | 45210-35140 · 45210-35150 · 45210-35160 · 45210-35170 · 45210-35230 · 45210-60110 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45231D | Hole snap ring (for steering spindle) | 90521-01005 |
| 45250 | Steering column assembly | 45250-3D510 · 45250-3D520 · 45250-3D840 |
| 45254 | steering column escutcheon | 45254-35100 · 45254-35110 · 45254-35120 |
| 45271 | Clamp on steering column | 45271-12050 · 45271-12060 |
| 45273 | Steering spindle bushing | 45273-16010 |
| 45275 | Steering column upper bracket | 45280-35190 · 45280-35210 · 45280-35220 · 45280-35240 |
| 45286 | steering column cover | 45286-04020 · 45287-04020 |
| 45292 | Dust-proof sealing ring under spindle | 45292-35050 |
| 45636B | Intermediate shaft tie rod joint protection device | 45636-35030 · 45636-35040 |
| 45804E | Tension spring (for steering tilt adjustment lever) | 90507-08010 · 90507-12035 |
| 45819 | Tilt adjustment lever retaining ring | 45819-22040 · 45819-22060 |
| 45820 | Tilt-adjustable steering bracket spring assembly | 45820-35010 |
| 45826 | Steering tilt adjustment lever | 45826-22050 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-07003 |
| 45826C | Bushing (for steering tilt adjustment lever) | 90386-06031 · 90386-06043 |
| 45827A | Steering tilt adjustment lever | 45827-22030 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-22020 |
| 45856 | No. 2 tilt-adjustable steering column bolt | 45856-22010 · 45856-22020 |
| 45860 | No. 2 steering intermediate shaft assembly | 45860-35090 · 45860-35100 · 45860-35110 · 45860-35120 · 45860-35130 · 45860-35140 · 45860-35150 · 45860-35270 · 45860-35280 |
| 45865 | Steering spindle collar | 45865-12050 · 45865-12060 |
| 45866A | Steering spindle bushing block | 45866-12010 |
| 45870 | Steering column tube assembly | 45870-35110 · 45870-35111 · 45870-35120 · 45870-35121 · 45870-35130 · 45870-35140 · 45870-35141 · 45870-35150 · 45870-35240 · 45870-35260 · 45870-35280 |
| 45880 | Steering tilt adjustment lever assembly | 45880-35010 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-20110 · 45890-22080 · 45890-22090 |
| 45891 | turn signal bracket | 45891-35030 · 45891-35040 |
| 45893C | Right steering pawl block | 45893-22030 · 45893-22040 · 45893-22050 · 45893-22060 · 45893-22070 · 45893-24010 · 45893-24020 · 45893-24030 · 45893-24040 · 45893-24050 · 45893-24060 · 45893-24070 |
| 45893D | Left steering pawl block | 45893-20260 · 45893-20270 · 45893-20280 · 45893-20290 · 45893-20300 · 45893-20310 · 45893-20320 · 45893-22080 · 45893-22090 · 45893-22100 · 45893-22110 · 45893-22120 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
