Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

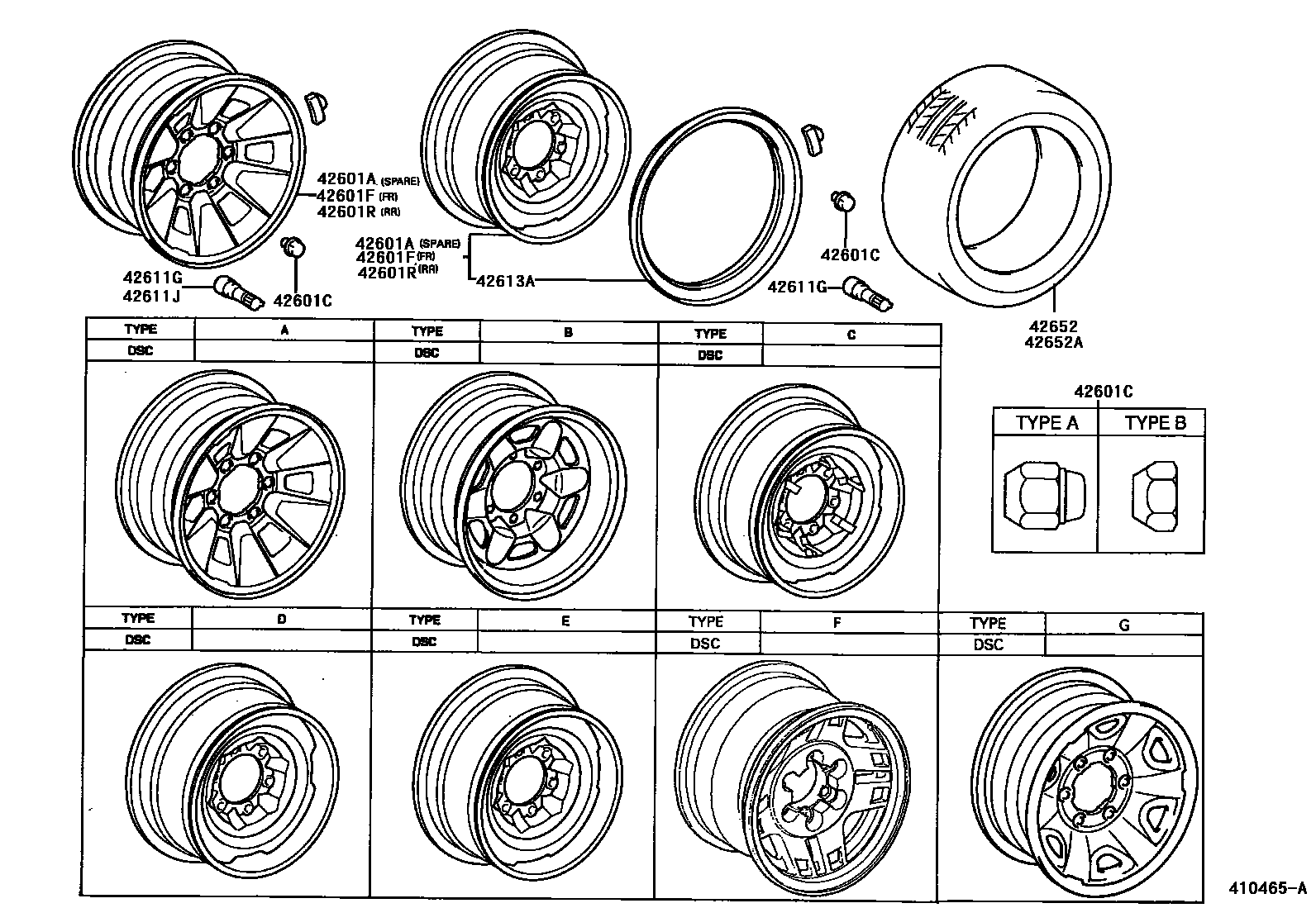

| 42601A | Spoke wheel (for spare tire) | 42601-35490 · 42610-60022 · 42611-35070 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01048 · 90942-01051 · 90942-01075 · 90942-01077 |
| 42601F | Spoke wheels (for front tires) | 42601-35490 · 42610-60022 · 42611-35070 |
| 42601R | Spoke wheels (for rear tires) | 42601-35490 · 42610-60022 · 42611-35070 |

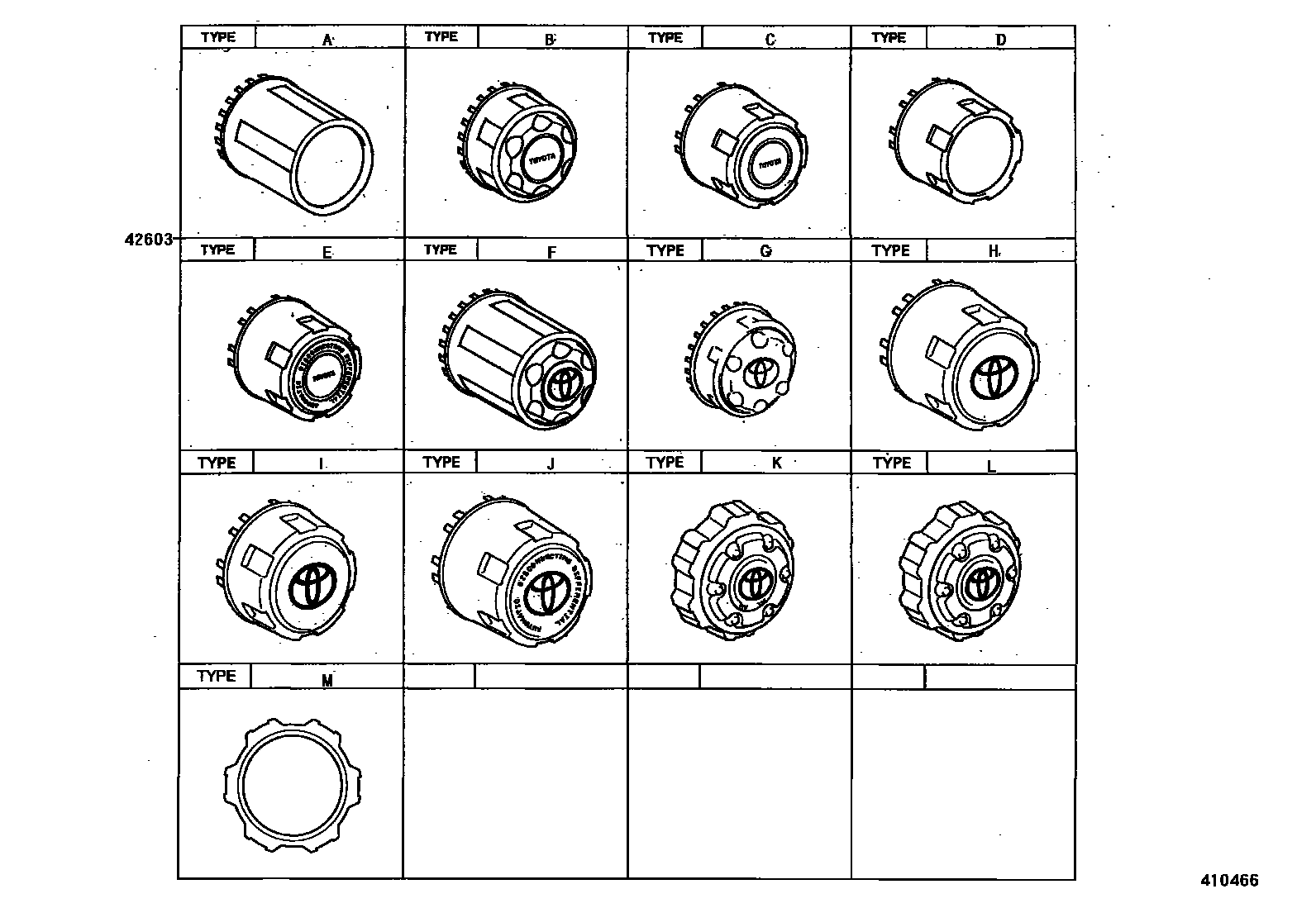

| 42603 | Wheel hub decorative parts sub-assembly | 42603-35080 · 42603-35120 · 42603-35300 · 42603-35310 · 42603-35320 · 42603-35330 · 42603-35340 · 42603-35350 · 42603-35380 · 42603-35390 · 42603-35430 · 42603-35500 · 42603-35510 · 42603-35520 · 42603-35530 · 42603-35540 · 42603-35550 · 42603-35560 · 42603-35570 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42613A | Spoke wheel retaining ring | 42613-35010 · 42613-36020 · 42613-60080 |
| 42621 | wheel cover | 42621-60010 · 42621-60020 |
| 42652 | tires | 42605-35030 · 42605-35081 · 42605-35140 · 42605-35141 · 42605-35220 · 42605-35290 · 42605-35291 · 42605-60470 · 42605-60631 · 42605-6A050 · 42652-35470 · 42652-35580 · 42652-35590 · 42652-35680 · 42652-35770 · 98665-70154 · 98665-70164 |
| 42652A | Tire (for Spare Wheel) | 42605-35030 · 42605-35081 · 42605-35140 · 42605-35141 · 42605-35220 · 42605-35290 · 42605-35291 · 42605-60631 · 42605-6A050 · 42652-04090 · 42652-35460 · 42652-35550 · 42652-35560 · 42652-35600 · 42652-35680 · 42652-35770 · 98665-70154 · 98665-70164 |
