Toyota HILUX 后桥壳和差速器 — Figure 4101

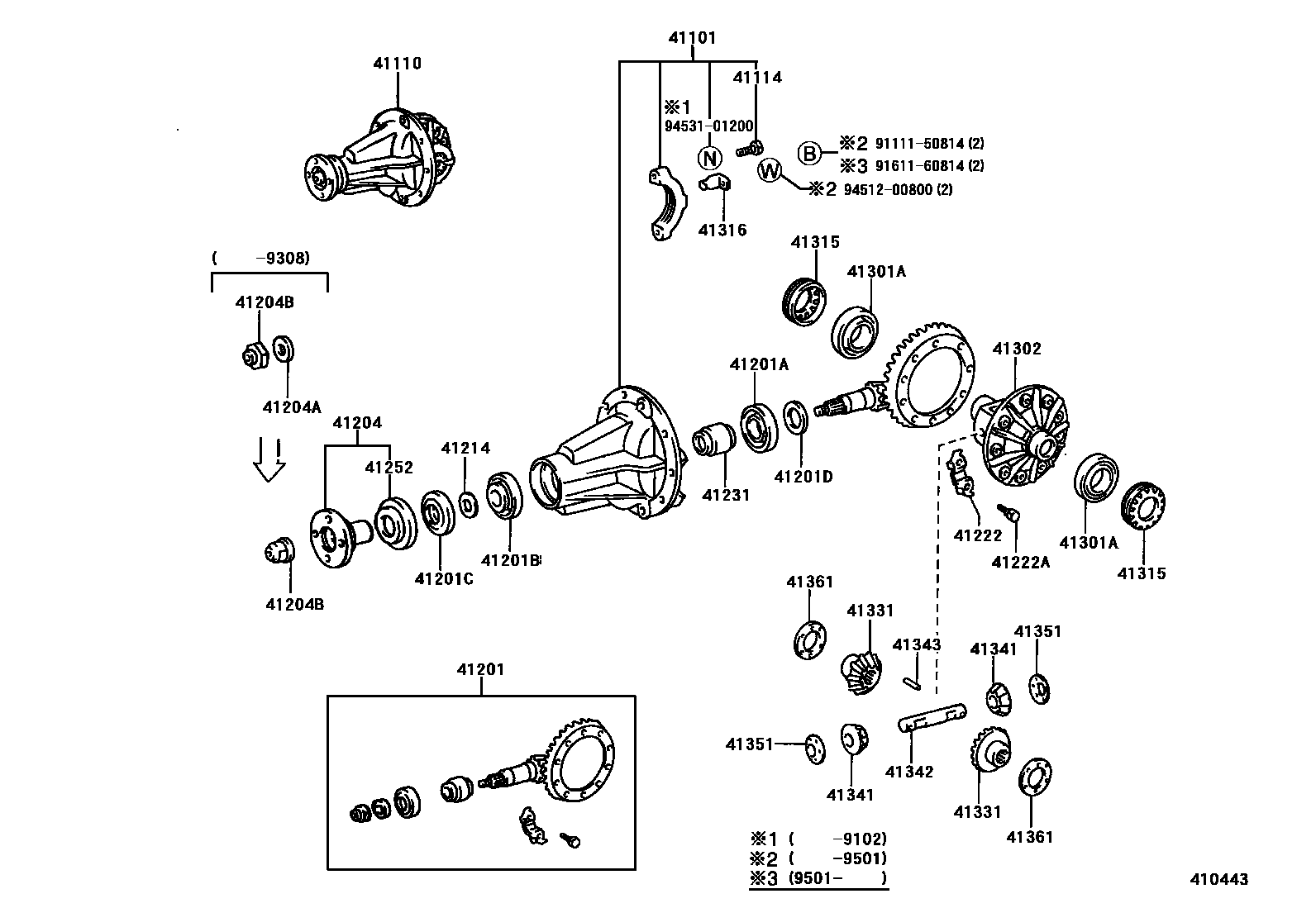

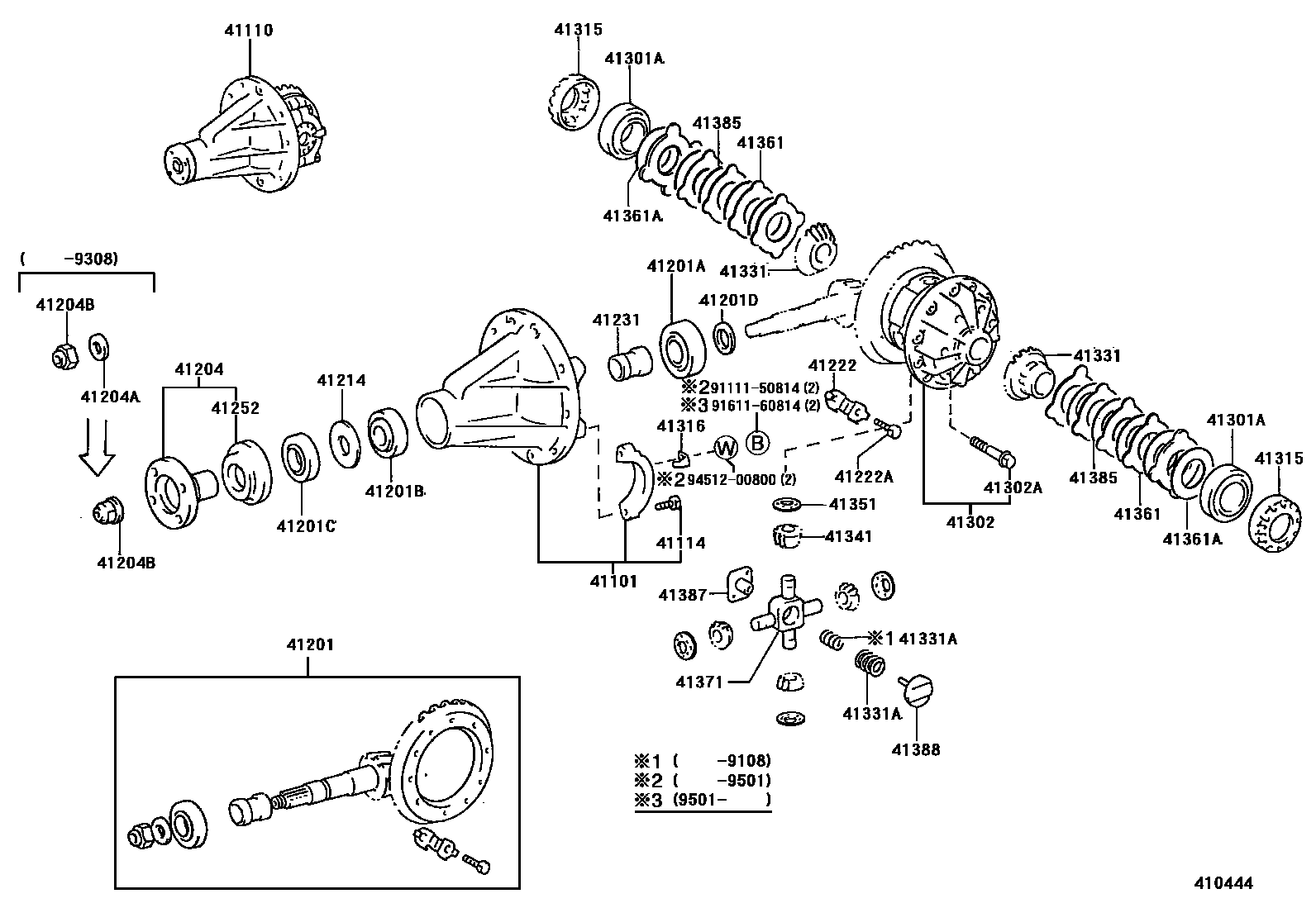

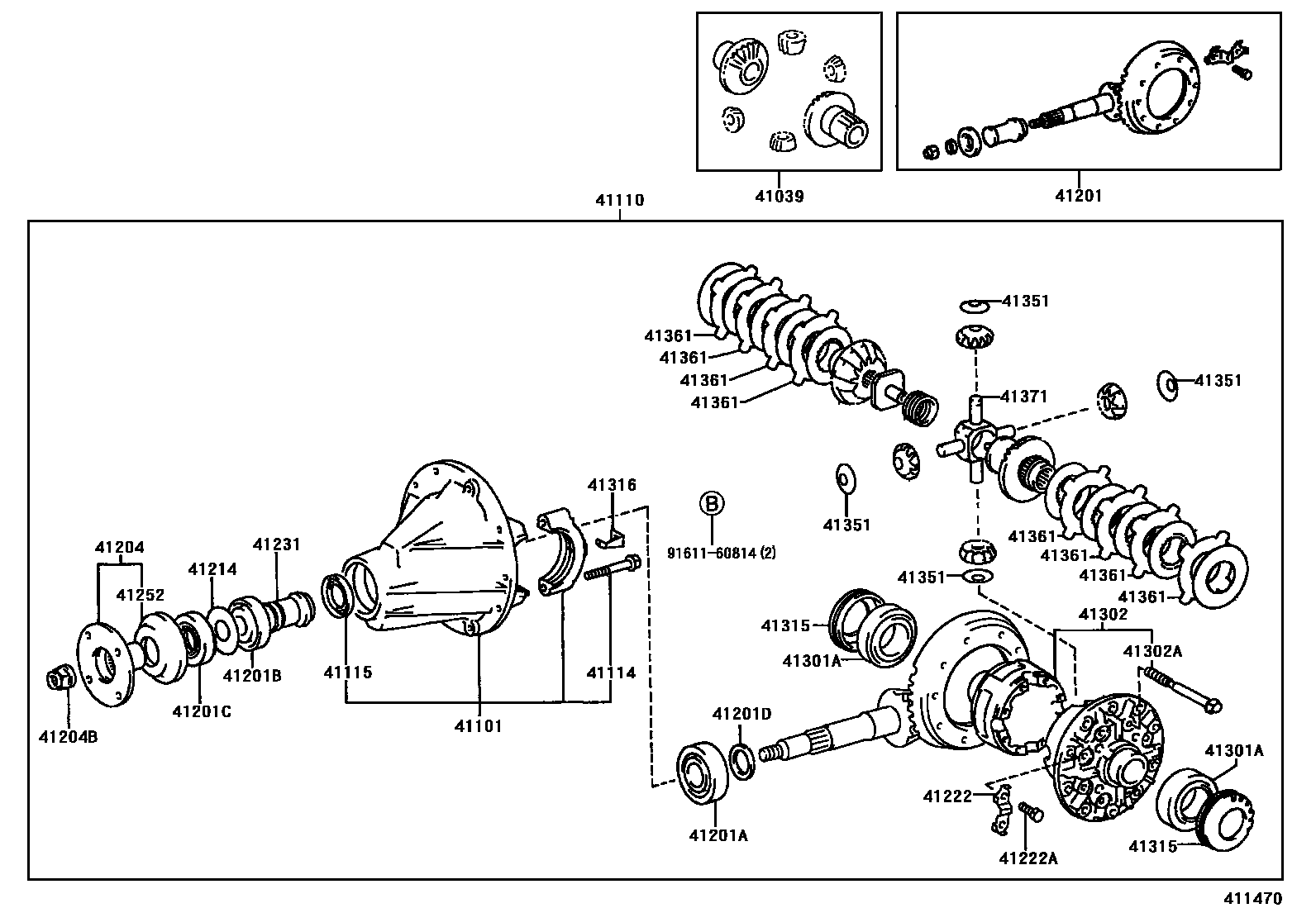

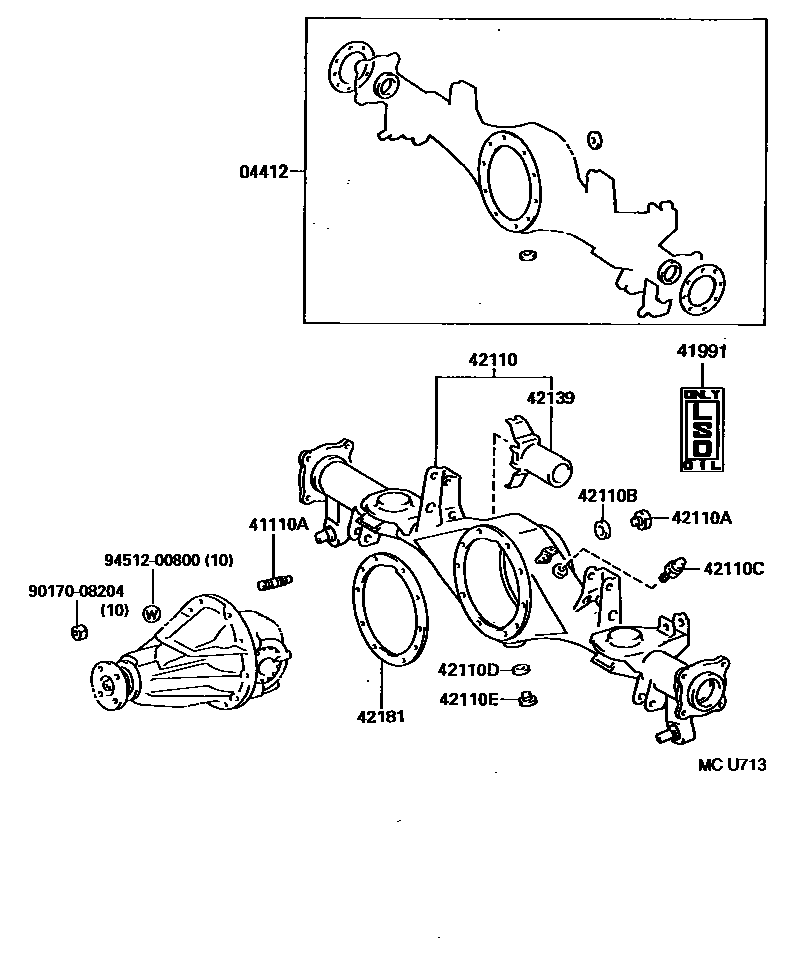

Toyota HILUX EPC diagram 4101, 后桥壳和差速器, with 4 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-25060 · 04412-35120 · 04412-35200 · 04412-35220 |
| 41039 | rear differential gear assembly | 41039-34080 |
| 41101 | Rear differential bracket sub-assembly | 41101-35030 · 41101-35031 · 41101-35040 · 41101-35041 · 41101-35071 · 41101-35170 · 41101-60061 |
| 41110 | Rear differential bracket assembly | 41110-26161 · 41110-35083 · 41110-35084 · 41110-35211 · 41110-35212 · 41110-35221 · 41110-35222 · 41110-35301 · 41110-35302 · 41110-35311 · 41110-35312 · 41110-35331 · 41110-35332 · 41110-35491 · 41110-35640 · 41110-35670 · 41110-35870 · 41110-60390 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08233 · 90116-08235 · 90116-08329 |
| 41114 | Rear differential bearing cap bolts | 90105-12053 |
| 41115 | Differential oil reservoir ring | 41115-35010 |
| 41201 | Rear differential final drive gear assembly | 41201-29526 · 41201-29536 · 41201-29537 · 41201-29855 · 41201-29856 · 41201-39696 · 41201-39697 · 41201-69285 · 41201-80011 · 41201-80059 · 41201-80099 · 41201-80174 · 41201-80189 |
| 41201A | Rear bearing (for rear drive pinion) | 90366-35028 · 90366-35044 · 90366-35087 |
| 41201B | Front bearing (for rear drive pinion) | 90366-30022 · 90366-30025 · 90366-30067 · 90366-30078 |
| 41201C | Oil seal (for rear differential case) | 90311-38035 · 90311-38047 · 90311-38133 · 90311-41009 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35441 · 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-35040 · 41204-35080 · 41204-35081 · 41204-35082 |
| 41204A | Flat washer (for rear drive pinion) | 90201-20005 |
| 41204B | Nut (for rear driving pinion) | 90177-22003 · 90179-20001 · 90179-20018 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-26010 · 41214-26011 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-35020 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-24010 · 41231-40011 |
| 41252 | Dust cover (for rear differential) | 41252-35010 · 41252-35020 · 41252-35040 · 41252-35041 |
| 41301A | Bearings (for rear differential housing) | 90366-50007 · 90368-45066 · 90368-50024 |
| 41302 | Rear differential housing sub-assembly | 41302-35010 · 41302-35020 · 41302-35040 · 41311-40020 |
| 41302A | Bolt (for rear differential case) | 90105-10084 |
| 41315 | Rear differential bearing adjusting nut | 41315-35010 · 41315-35020 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-30010 · 41316-35010 |
| 41331 | rear differential side gear | 41331-35011 · 41331-35030 · 41331-35040 |
| 41331A | compression spring | 90501-07112 · 90501-35008 · 90501-65003 · 90501-70001 · 90501-75001 |
| 41341 | rear differential pinion | 41341-30020 · 41341-35010 · 41341-35020 |
| 41342 | Rear differential planetary gear shaft | 41342-39610 |
| 41343 | Rear differential planetary gear pin | 90250-06085 |
| 41351 | Rear differential planetary gear thrust washer | 41351-30052 · 41351-30060 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-24010 · 41361-24020 · 41361-24030 · 41361-24040 · 41361-24050 · 41361-35020 · 41361-35160 · 41361-35290 · 41361-35310 · 41361-35320 · 41361-35330 · 41361-35340 · 41361-35350 · 41361-40021 · 41362-40021 · 41363-40021 |
| 41361A | Thrust washers (for rear differential side gears) | 90564-50001 · 90564-50002 · 90564-50003 · 90564-50004 · 90564-50005 |
| 41371 | Rear differential cross shaft | 41306-35010 · 41306-35040 · 41371-35020 |
| 41385 | clutch plate | 41385-22020 · 41385-35010 |
| 41387 | Right spring seat | 41308-35010 · 41387-35010 |
| 41388 | Left spring seat | 41388-35010 · 41388-35020 |
| 41991 | Rear differential warning plate | 41991-22010 · 41991-60010 |
| 42110 | Rear axle housing assembly | 42110-35410 · 42110-35421 · 42110-35441 · 42110-35460 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 · 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42139-40010 |
| 42181 | Rear differential case gasket | 42181-60020 |
