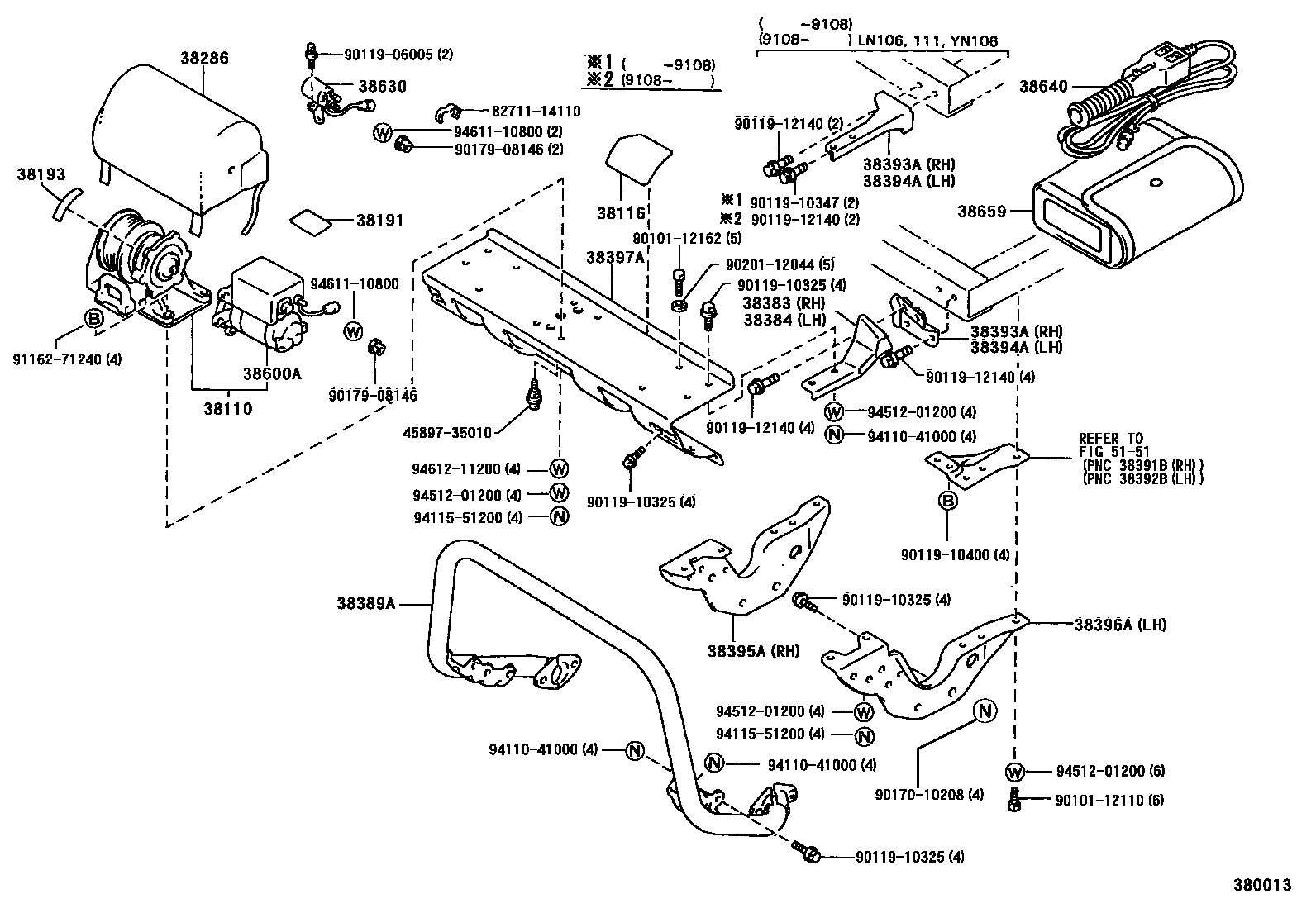

Toyota HILUX 绞盘 — Figure 3802
Toyota HILUX EPC diagram 3802, 绞盘, with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 38101 | Winch gear housing sub-assembly | 38101-35010 |
| 38101E | Screw plug (for winch gear housing) | 90344-52003 |
| 38103 | Winch rotating hub sub-assembly | 38103-35010 |
| 38107 | No. 1 winch planetary gear sub-assembly | 38107-35010 |
| 38108 | No. 2 winch planetary gear sub-assembly | 38108-35010 |
| 38109 | No. 3 winch planetary gear sub-assembly | 38109-35010 |
| 38110 | winch assembly | 38110-35020 · 38110-35030 |
| 38116 | winch cover | 74594-35020 · 74594-35040 |
| 38123A | No. 1 winch worm adjustment washer | 38123-35010 |
| 38124 | No. 2 winch worm adjustment washer | 38124-35010 |
| 38151 | No. 1 winch hub spacer | 38151-35010 |
| 38161 | Winch planetary gear train sun gear | 38161-35010 |
| 38172 | winch ring gear | 38172-35010 |
| 38174 | Winch gear shell plate | 38174-35020 · 38174-35030 |
| 38177 | winch fixing bolts | 38177-35010 |
| 38178 | drum thrust bushing | 38178-35010 |
| 38188 | Winch hub oil seal | 38188-35010 |
| 38189 | No. 4 warning nameplate | 38189-35010 |
| 38191 | No. 1 winch warning nameplate | 38191-35020 · 38191-35040 |
| 38193 | No. 3 winch warning nameplate | 38193-60010 · 38193-60040 |
| 38201 | Winch clutch lever sub-assembly | 38201-35010 |
| 38212 | Inner disc guide plate | 38212-35010 |
| 38216 | Winch one-way clutch | 38216-35010 |
| 38216A | Snap ring (for one-way clutch) | 96151-03700 |
| 38233 | brake pads | 38233-35010 |
| 38238 | Thrust Bushing No. 1 | 38238-35010 |
| 38286 | winch cover | 38286-35020 · 38286-35030 |
| 38340 | Winch chain cable assembly | 38340-35010 |
| 38344 | Winch cable guide | 38344-35020 · 38344-35030 |
| 38383 | No. 1 winch hook fixing bracket | 38383-35010 |
| 38384 | No. 2 winch hook fixing bracket | 38384-35010 |
| 38389A | Protective buffer under winch | 38389-35030 · 38389-35040 · 38389-35050 · 38389-35060 |
| 38393A | Winch right support rod | 38393-35030 · 38393-35040 · 38393-35050 · 38393-35060 · 38393-35070 |
| 38394A | Winch left support rod | 38394-35030 · 38394-35040 · 38394-35050 · 38394-35060 · 38394-35070 |
| 38395A | Winch right lower stay | 38395-35030 · 38395-35040 · 38395-35050 · 38395-35060 |
| 38396A | Winch left lower stay | 38396-35030 · 38396-35040 · 38396-35050 · 38396-35060 |
| 38397A | winch upper base | 38397-35020 · 38397-35030 · 38397-35040 |

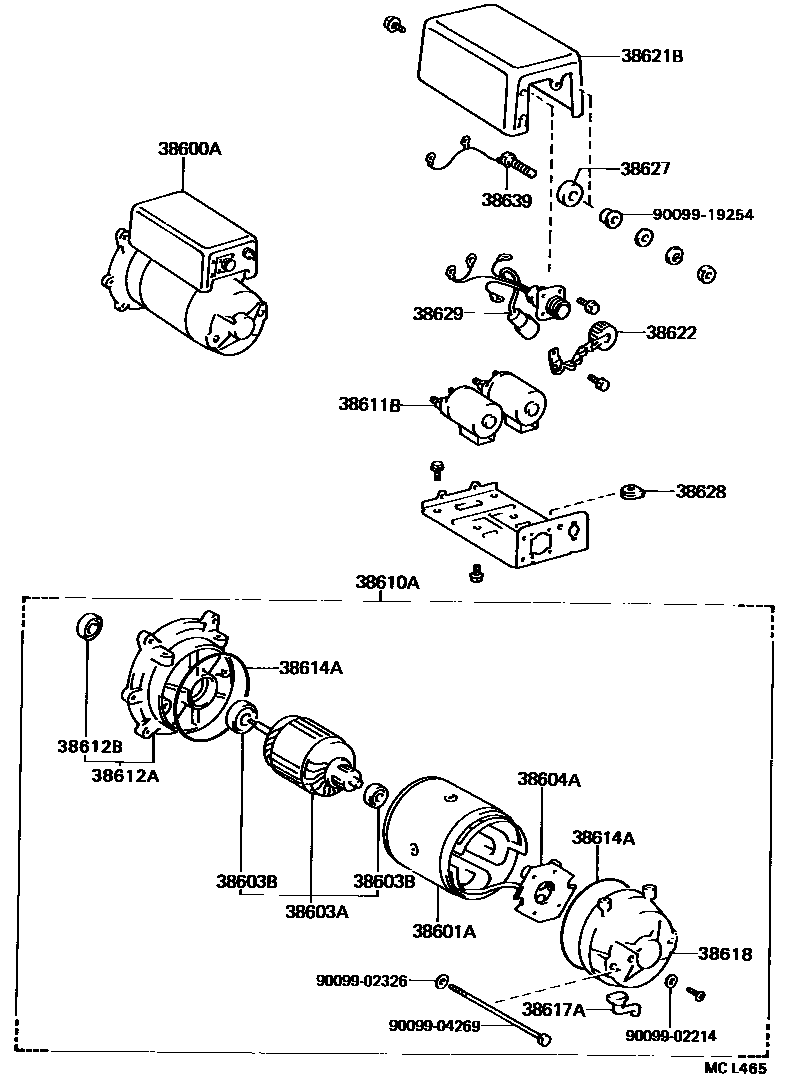

| 38600A | Winch motor assembly with electromagnetic switch | 38600-35010 |
| 38601A | Winch motor fork sub-assembly | 38601-35010 |
| 38603A | Winch motor armature sub-assembly | 38603-35010 |
| 38603B | No. 1 bearing (for winch motor armature) | 90099-10116 · 90099-10153 |
| 38604A | Winch motor brush holder assembly | 38604-35010 |
| 38610A | Winch motor assembly | 38610-35010 |
| 38611B | No. 2 electromagnetic switch (for winch motor) | 38611-35010 |
| 38612A | Winch motor end frame | 38612-35010 |
| 38612B | Oil seal (for end cover) | 90099-15033 |
| 38614A | O-ring (for winch motor) | 90099-14077 |
| 38617A | winch cover slot | 38617-35010 |
| 38618 | Winch motor commutator end frame | 38618-35010 |
| 38621B | Electromagnetic switch winch cover | 38621-35010 |
| 38622 | Connector winch cover | 38622-35010 |
| 38627 | Winch motor stepped plug bushing | 38627-60011 |
| 38628 | Winch gasket | 38628-60010 |
| 38629 | Winch motor wiring harness | 38629-35010 |
| 38630 | No. 1 electromagnetic switch assembly | 38630-35030 · 38630-35031 |
| 38639 | Wiring harness (for winch motor) | 38639-35010 |
| 38640 | Winch control switch assembly | 38640-35010 |
| 38659 | Winch control switch cover | 38659-60010 |
