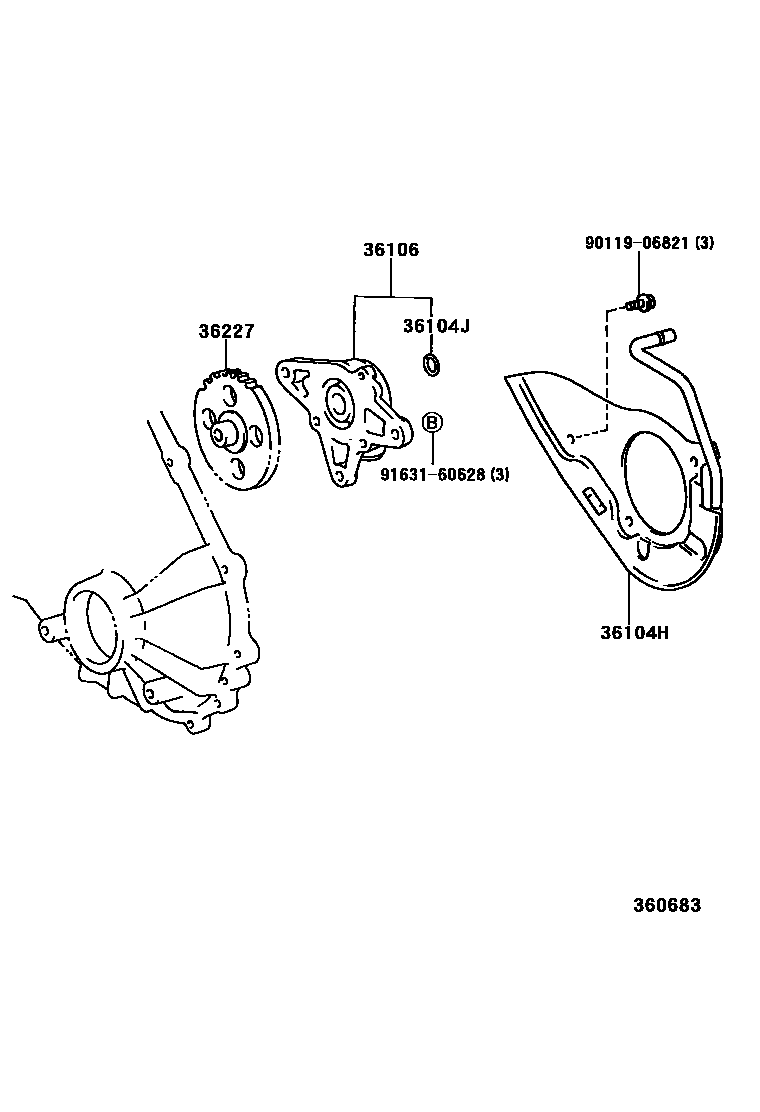

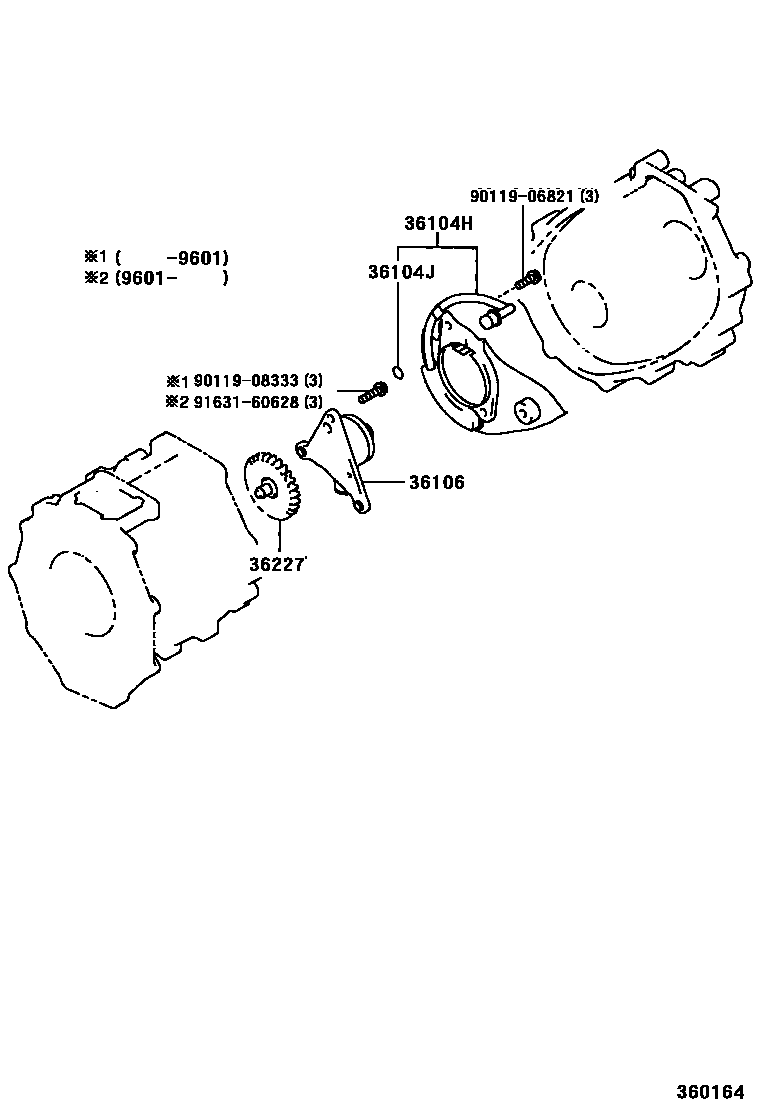

Toyota HILUX 分动器油泵 — Figure 3617
Toyota HILUX EPC diagram 3617, 分动器油泵, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34370 | Transfer case oil pump assembly | 34370-35010 |
| 34371 | Automatic transfer case oil pump body | 34371-35010 |
| 34372 | Transfer case oil pump drive gear | 34372-35010 |
| 34373 | Transfer case oil pump driven gear | 34373-35010 |
| 34374 | Automatic transfer case oil pump plate | 34374-35010 |
| 34375 | Automatic transfer case oil pump cover | 34375-35010 |
| 35419B | One-way valve | 35419-35010 |
| 35419C | Compression spring (for one-way valve) | 90501-06015 |
| 36104H | Transfer case oil separator sub-assembly | 36104-35010 · 36104-35040 |
| 36104J | O-ring (for transfer case oil pump body) | 96721-19009 · 96721-19012 |
| 36106 | Transfer case oil pump body sub-assembly | 36106-35021 · 36106-35040 |
| 36227 | Transfer case oil pump gear | 36227-35010 · 36227-35020 |
