Toyota HILUX 分动器直接档离合器、低速制动器和支架 — Figure 3613

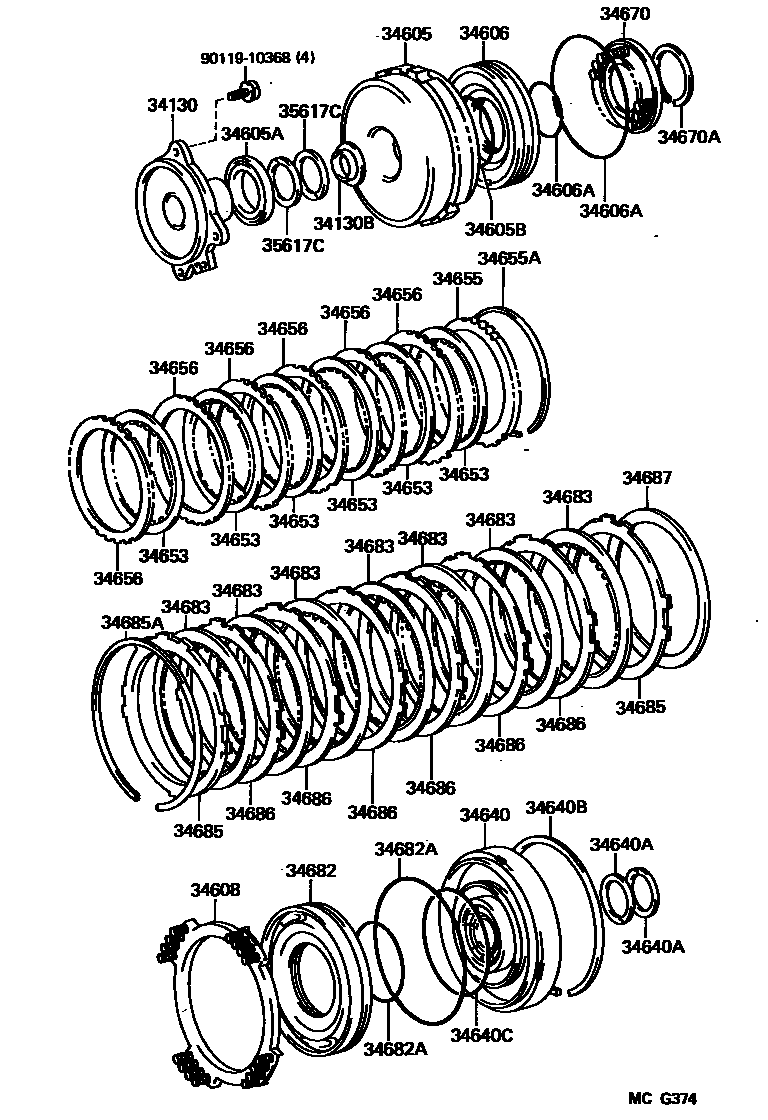

Toyota HILUX EPC diagram 3613, 分动器直接档离合器、低速制动器和支架, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34130 | Transfer case front bracket assembly | 34130-35010 |
| 34130B | Thrust bearing race (for transfer case front bracket) | 35789-35020 |
| 34605 | Transfer case direct gear clutch drum sub-assembly | 34605-35010 |
| 34605A | Thrust bearing (for transfer case direct clutch drum) | 90374-51001 |
| 34605B | O-ring (for transfer case direct clutch drum) | 90301-85002 |
| 34606 | Transfer case direct gear clutch piston sub-assembly | 34606-35010 |
| 34606A | O-ring (for transfer case direct clutch piston) | 90301-60003 · 90301-99041 · 90301-99075 |
| 34608 | Brake return spring sub-assembly | 34608-35010 |
| 34640 | Transfer case intermediate bracket assembly | 34640-35010 |
| 34640A | Sealing ring (for transfer case center bracket) | 35617-22020 |
| 34640B | Snap ring (for transfer case center bracket) | 90521-99038 |
| 34640C | O-ring (for transfer case intermediate bracket) | 90301-99047 |
| 34653 | Transfer case direct gear clutch disc | 34653-35020 |
| 34655 | Transfer case direct gear clutch flange | 34655-35010 · 34655-35020 · 34655-35030 · 34655-35040 |
| 34655A | Snap ring (for transfer case direct clutch flange) | 90521-99036 |
| 34656 | Transfer case direct gear clutch plate | 34656-35010 · 34656-35020 |
| 34670 | Transfer case direct gear clutch return spring assembly | 34670-35010 |
| 34670A | Snap ring (for transfer case direct gear clutch return spring) | 90520-56001 |
| 34682 | Transfer case low speed brake piston | 34682-35010 |
| 34682A | O-ring (for transfer case low speed brake piston) | 90301-84184 · 90301-99042 |
| 34683 | Transfer case low speed brake disc | 34683-35020 |
| 34685 | Transfer case low speed brake flange | 34685-35010 · 34685-35020 · 34685-35030 · 34685-35040 · 34685-35050 |
| 34685A | Snap ring (for transfer case low speed brake flange) | 90521-99037 |
| 34686 | Transfer case low speed brake pad | 34686-35010 |
| 34687 | Transfer case low speed brake cushion | 34687-35010 |
| 35617C | Direct clutch drum oil guard ring | 35617-22010 |
