Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 25 PNC and OE references.

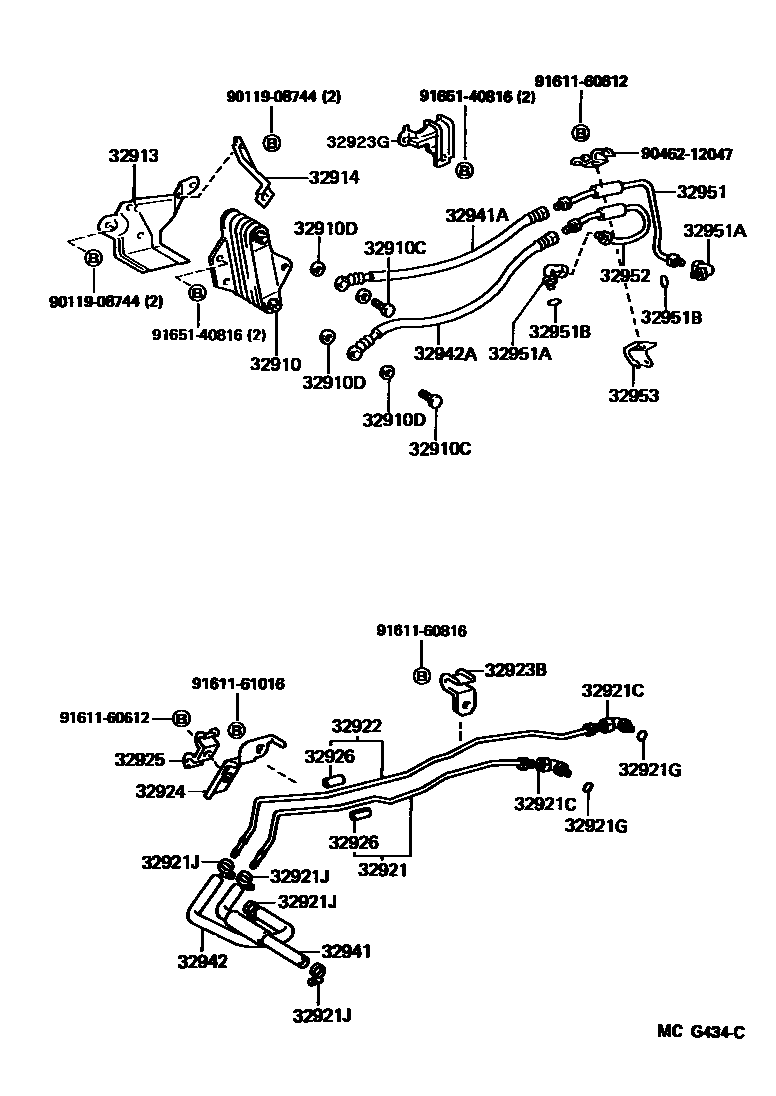

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — MCG434C
变速器油冷却器和配管(ATM) — MCG434C (199008 – 199511)

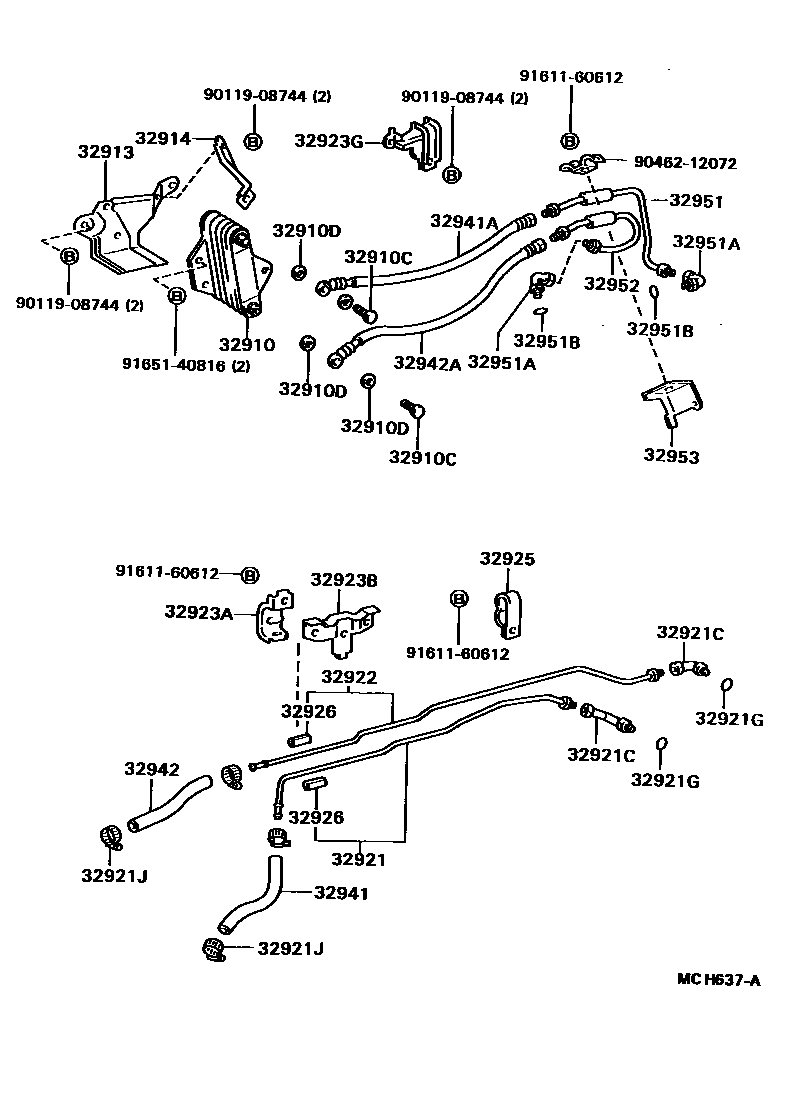

Toyota HILUX 变速器油冷却器和配管(ATM) EPC diagram — MCH637A
变速器油冷却器和配管(ATM) — MCH637A (198908 – 199008)

PNC and OE references

PNCPart nameOE numbers
32910Oil cooler assembly32910-35010
32910CConnector bolt (for oil cooler)90401-14003
32910DGasket (for transmission oil cooler)90430-14235
32913Transmission oil cooler bracket32913-35010
32914Transmission oil cooler stay32914-35010
32921No. 1 transmission oil cooler oil inlet pipe32921-35171 · 32921-35210 · 32921-35230
32921CFitting (for transmission oil cooler tube)90407-16008 · 90407-16012
32921GO-ring (for transmission oil cooler pipe joint)90301-11006
32921JClamp (for transmission oil cooler hose)90467-16013
32922No. 1 transmission oil cooler oil outlet pipe32922-35150 · 32922-35210 · 32922-35260
32923AAutomatic transmission oil cooler pipe clamp32929-28010
32923BNo. 1 automatic transmission oil cooler pipe clamp32923-30110 · 32923-35020 · 32923-35030
32923GNo. 8 automatic transmission oil cooler pipe clamp32908-35010
32924No. 2 transmission oil cooler pipe clamp32924-35030 · 32924-35040
32925No. 3 transmission oil cooler pipe clamp90461-08628 · 90462-12044 · 90462-12079
32926Automatic transmission oil cooler pipe cushion32926-30020
32941No. 1 transmission oil cooler oil inlet hose32941-35041 · 32941-35240 · 90445-17097
32941ANo. 2 transmission oil cooler oil inlet hose32941-35010 · 32941-35030
32942No. 1 transmission oil cooler oil outlet hose32941-28190 · 32942-35011 · 90445-17105
32942ANo. 2 transmission oil cooler oil outlet hose32942-35020 · 32942-35030
32951Transfer case oil cooler oil inlet pipe32951-35010
32951ABend pipe (for transfer case oil cooler pipe)90407-16010
32951BO-ring (for transfer case oil cooler pipe)90301-10189
32952Transfer case oil cooler oil outlet pipe32952-35010
32953Transfer case oil cooler clip32953-35010
